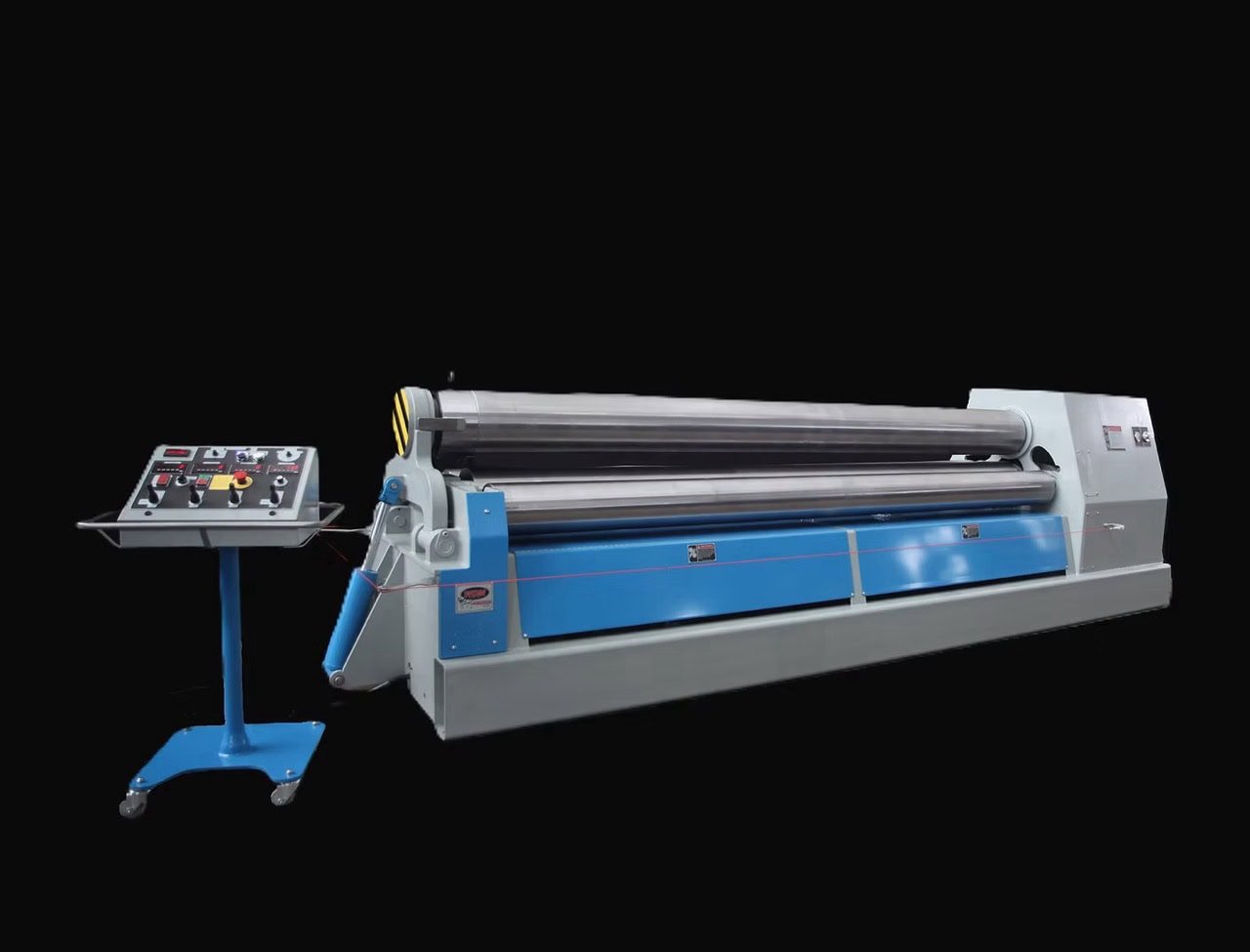

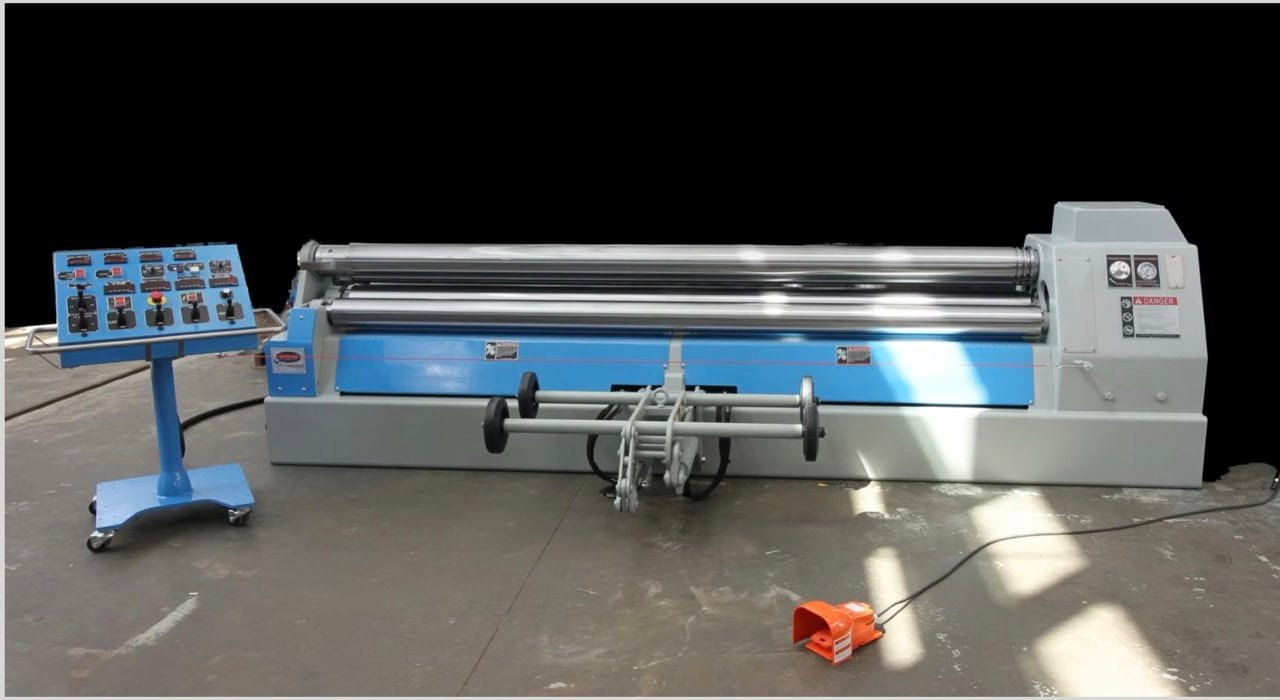

Description
Rated Capacity: 0.41″ (≈10.4 mm) mild steel, up to 8′ (2.44 m) width
Top Roll Diameter: 10″ nominal
Roll Material: Flame‑hardened/polished 1045 carbon steel, machined to ~63 µ″ finish
Drive System: Hydraulic LSHT motors; 2‑roll drive with hydraulic instant start/stop/reverse
Motor Power: 10 HP, TEFC, 230/460 V, 3‑phase
Roll Speed: Infinitely variable, 0–22 ft/min
Controls: Beta 4 pendant or auto 4.2 console (3 digital readouts for lower rolls)
Safety & Construction:
NEMA 12 electrical cabinet, NFPA 79 compliance
SKF spherical bearings
Safety cable perimeter, hydraulic drop‑end support
Weight: ≈14,200 lb (6,440 kg)
Other add ons available
