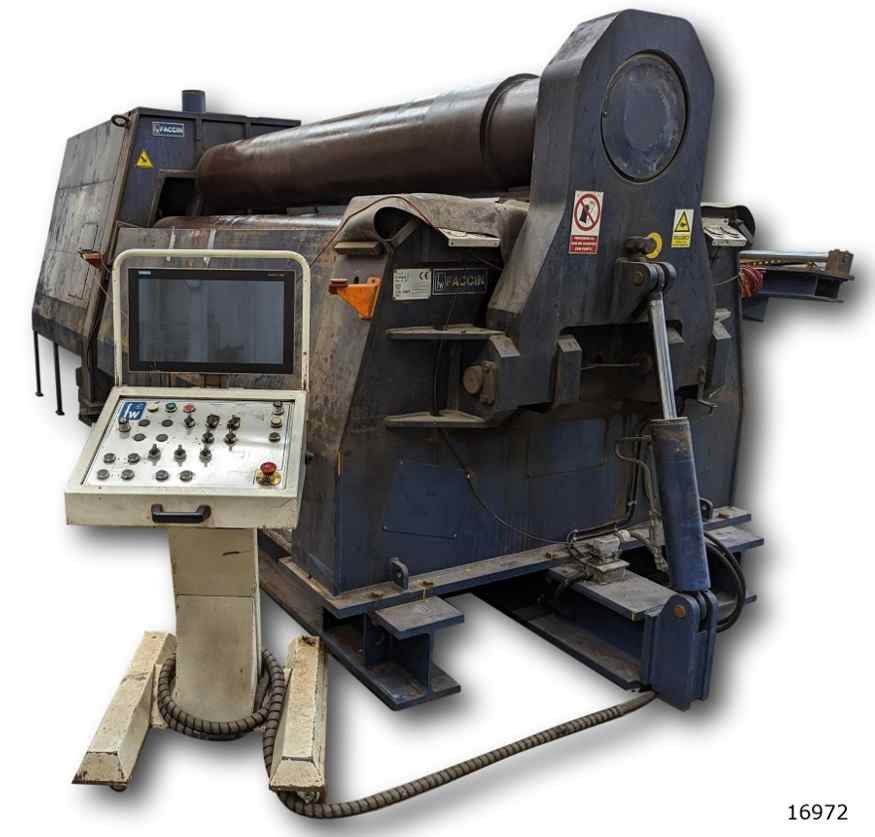

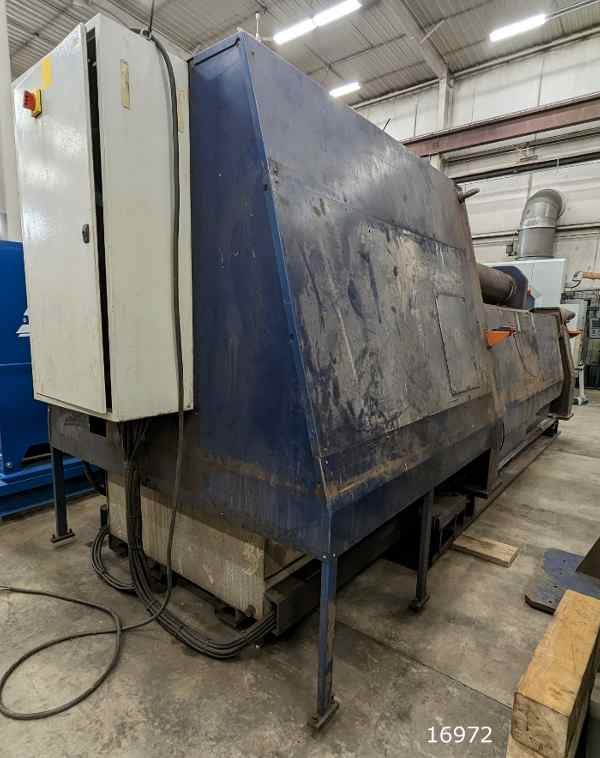

Description
4 Rolls
Linear Slides
Maximum Plate Width: 120″
Top Roll Diameter: 18.11″
Lower Roll Diameter: 16.93″
Side Rolls Diameter: 13.39″
Bending Force On Top Roll: 441 Ton
Infinitely Variable Rotation Speed: 25 Feet/Minute
Rolling Power: 60 Hp
Full-Length Capacity At 37.7 KSI:
Bending Thickness: 1.42″ (With 90.5″ Inside Dia.)
Pre-Bend Thickness: 1.18″ (With 90.5″ Inside Dia.)
Full-Length Capacity At 52.2 Ksi:
Bending Thickness: 1.22″ (With 90.5″ Inside Dia.)
Pre-Bend Thickness: 0.95″ (With 90.5″ Inside Dia.)
Dimensions: 252″ X 85″ X 105″
Weight: 60,000 lbs.
Standard Configuration:
Hardened & Polished Rolls
Cone Bending With Electronic Control
Simultaneous Machine Movements
Micro-Positioning
Designed To Accept Future Upgrades
Extra-Large Double Shaft Drop End
Electronic Balancing System For Roll Synch
Top Roll Tilting With Hyd Drop End Opening
Dual Linear Slide Sys For Rolls Translation
Ultra-Wide Roll Bearing Housings
4 Bearings Supporting Each Roll
Centralized Pump Lubrication System
Pressure Gauges For Pinch Roll Monitoring
Extra Torque & Special Braking Power System
High Precision And Productivity Package
Safety Barrier With Emergency Stop
Machinery Directive 2006/42/Ec Compliant
Equipped With:

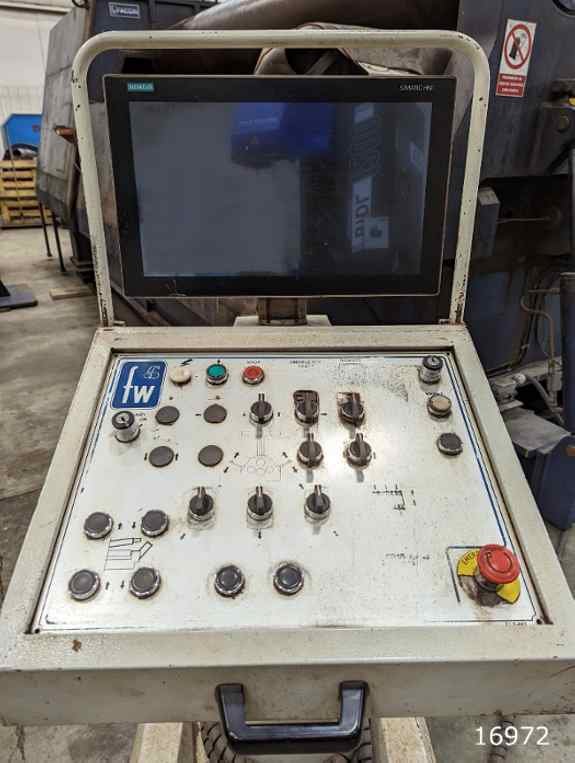

Siemens Pgs-Ultra Cnc

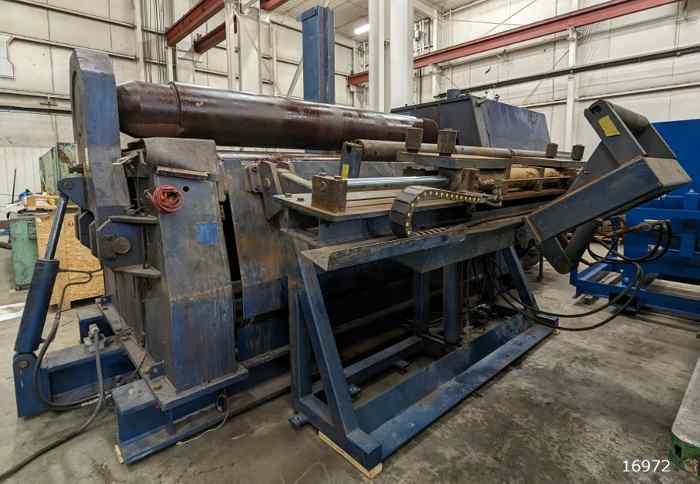

Overhead Support

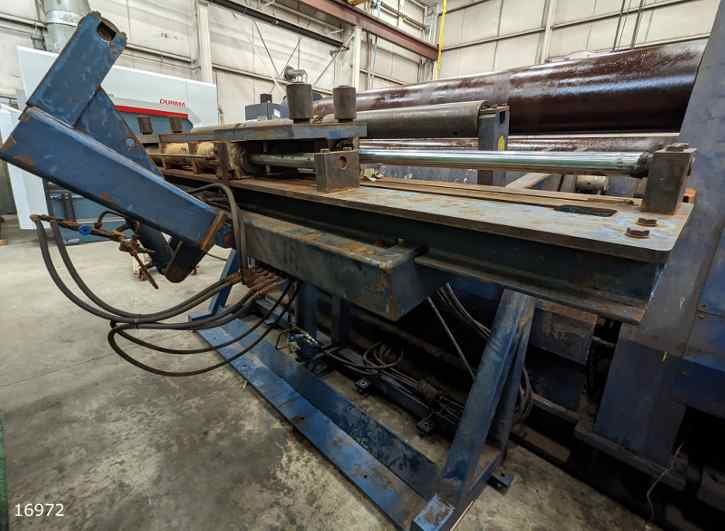

Side Support
4 Axis Clamping For Side Support
Air-Oil Exchanger Upgrade
