Description

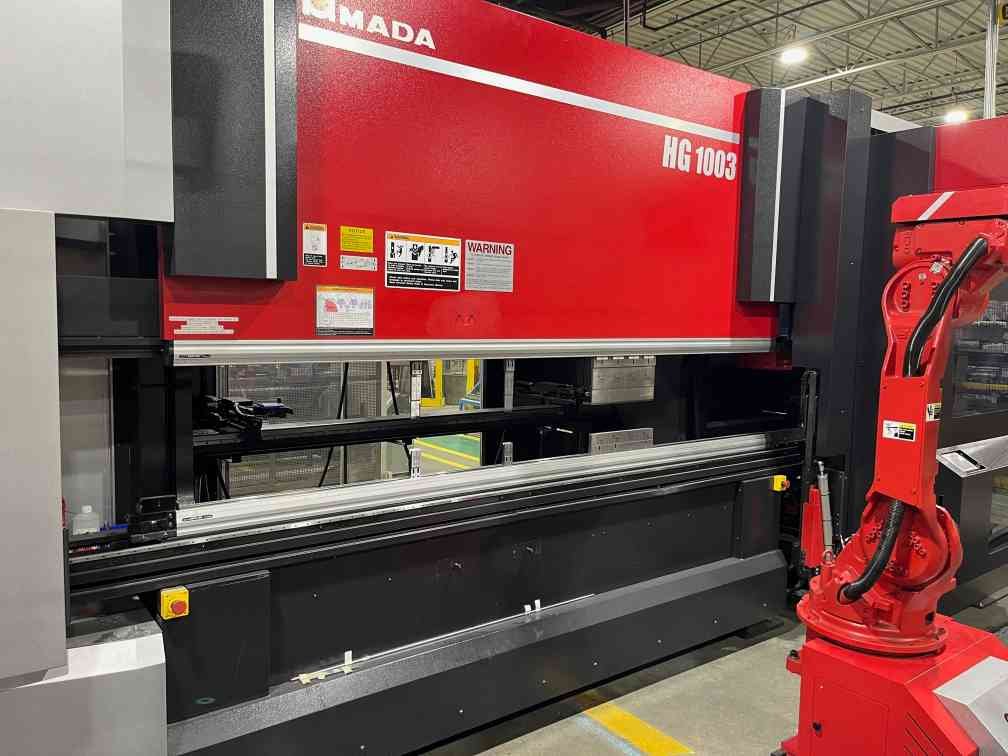

Press Brake:
Maximum Tonnage: 100 Tons
Table Length: 122.4″
Max Bending Length: 120.5″
Distance Between Uprights: 106.3″
Throat Depth: 17.7″
Length of Stroke: 9.8″
Open Height: 23.5″
Overall Dims: 244.5″ x 126.8″ x 117.1″
LBS: 26,896

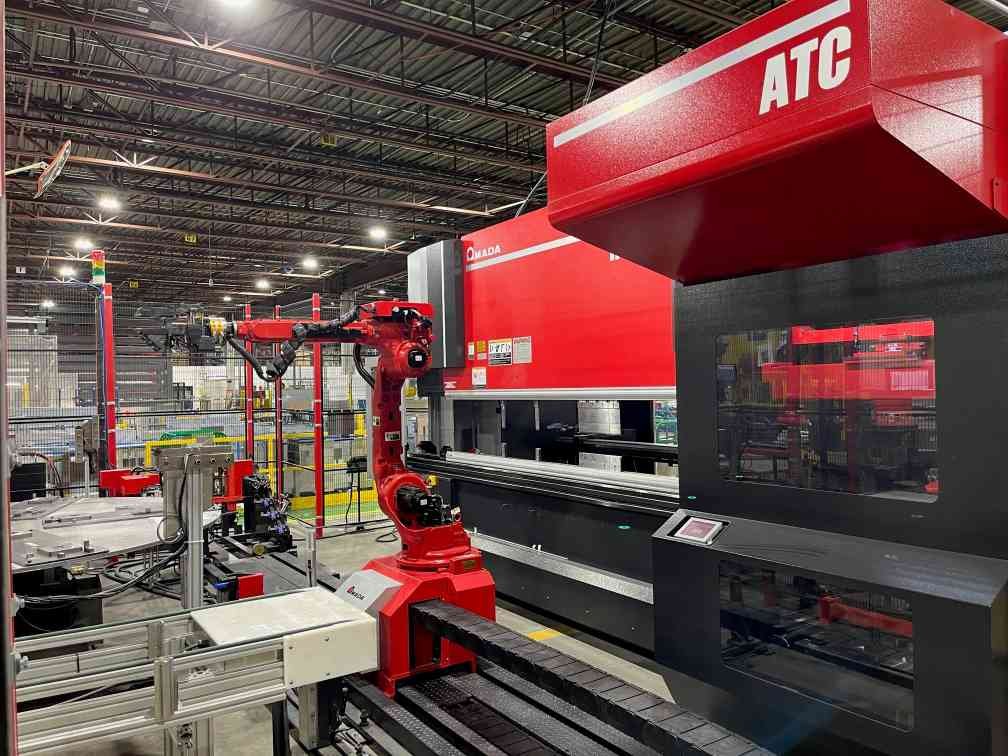

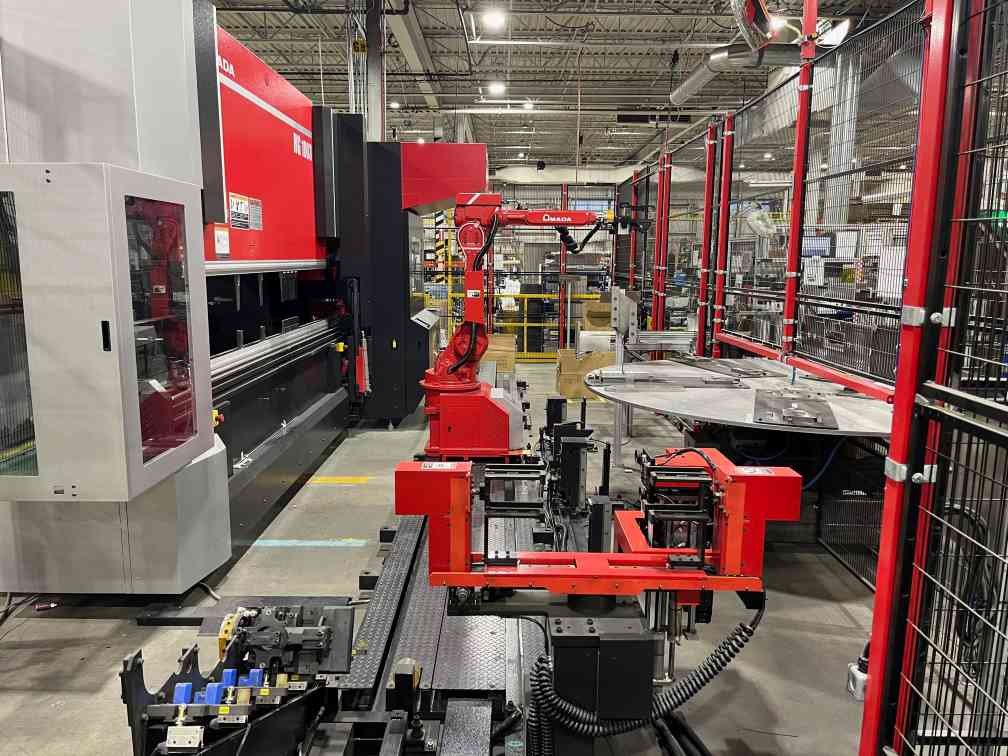

Amada breakdown and loading machine included in price
Tooling:
2 – MT-36 30° Acute Style Punch R0,6
MT-36 30° Acute Style Punch R0,6
MT-30 Straight Style Sash Punch R3
MT-28 Sash Style Punch R0,6
MT-28 Sash Style Punch R0,6
MT-28 Sash Style Punch
Die V8 x 86° R1,5 mm
Die V8 x 86° R1,5 mm
Die V25 x 86° R3
Die V25 x 86° R3
Die V4 x 86° R1
Die V40 x 84° R4
Die V12 x 86° R2.5
Die V12 x 86° R2.6
Die V12 x 30° R0.6
