Description
Table Size: 12″ x 24″
Max. Grinding Length: 24″
Max. Grinding Width: 12″
Max. Distance from Table Surface to Spindle Centerline: 24.8″

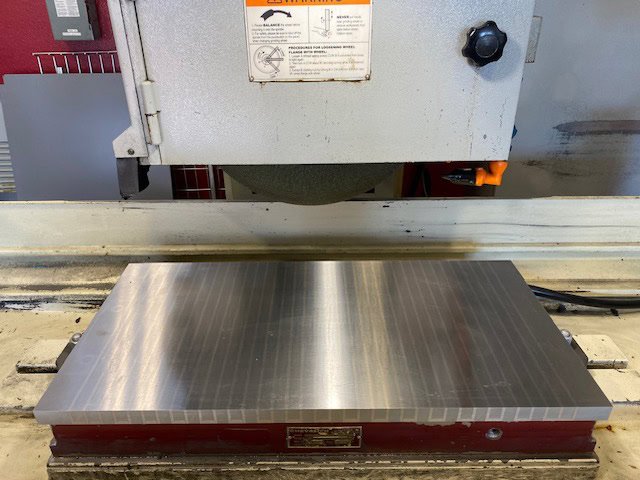

Standard Magnetic Chuck Size: 11 3/4″ x 23 5/8″
Table Speed, Variable: 16~82fpm
Crosswise Rapid Travel, Approx.: 56imp
Auto Increment: 0.04~0.47″
Crosswise Max. Auto Travel: 14 1/8″
Crosswise Max. Manual Travel: 14 1/2″
Spindle Drive Speed: 60Hz/1,750rpm, 50Hz/1,450rpm

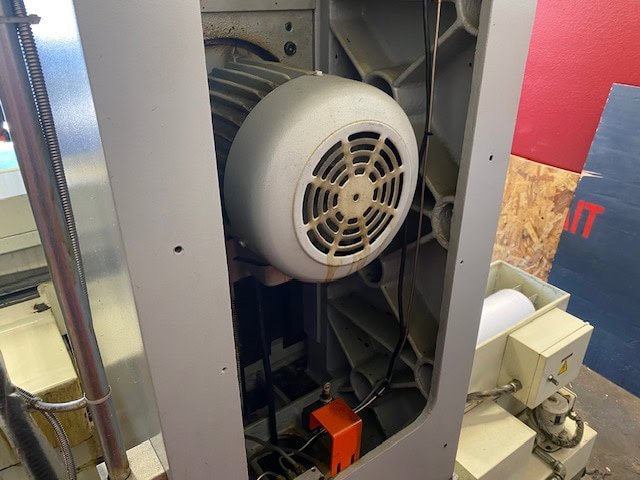

Spindle Drive Power Rating: 5HP

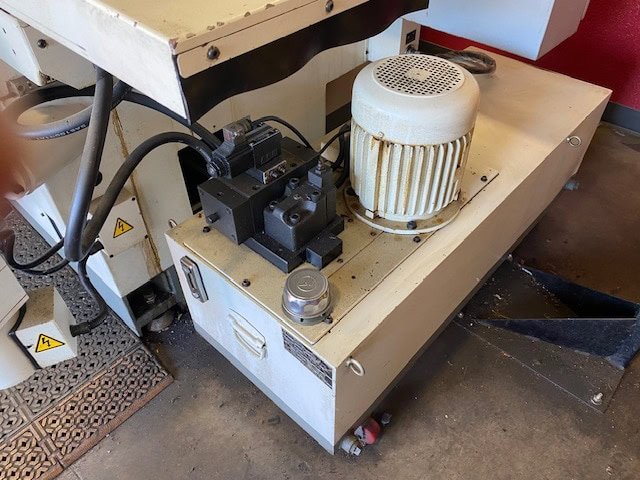

Hydraulic Drive Power Rating: 2HP
Cross feed Drive Power Rating: 0.05HP
Elevating Drive Power Rating: 0.25HP
Grinding Wheel Diameter: 14″
Grinding Wheel Width: 2″
Grinding Wheel Bore: 5″
Equipped With:

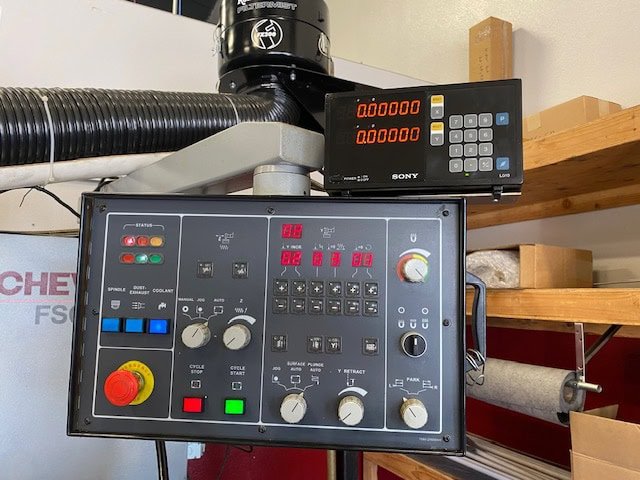

Sony DRO

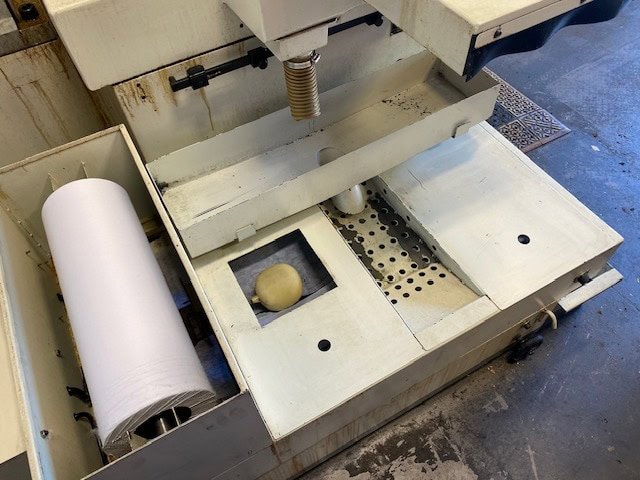

Paper Filtration System
