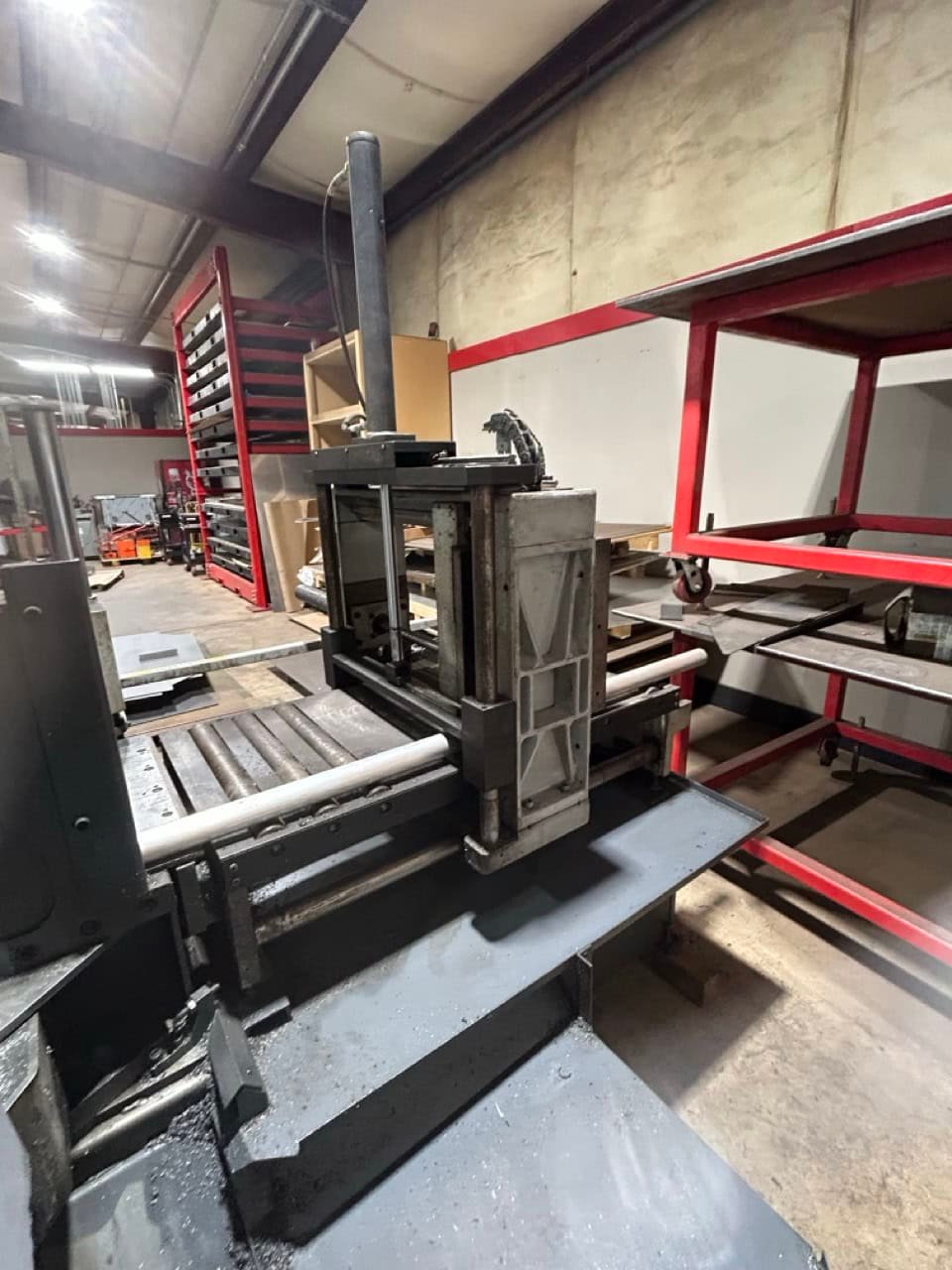

Description
Cutting Capacity
Rectangular: 16″ High x 18″ Wide
Round: 16″ Diameter
13″ Diameter @ 45 Degrees
Blade Size: 15’6″ x 1.25″ (Actual Measurement 1.350″ including teeth)
Blade Thickness: .042″
Blade Speed: 75-400 Surface Feet/Minute
Blage Guides: Carbide
Blade Wheel Diameter: 19″
Table Height: 31″
Shuttle Stroke: 29″
Max Workload: 5,000 LBS
Coolant Pump: 3.5 Gallons Per Minute
Coolant Reservoir: 6 Gallons
Machine Weight: 3,500 LBS
Overal Dimensions: 122″ x 105″ x 63″
