Description
Table Length: 21′
Control PC Based Dynatorch Software
Power Source : Hypertherm Powermax 85
pneumatically Engaged X-Y Drives
Powder Coated Finish
Precision Ground Linear Rails and Bearings
10 to 1 Helical Planetary Gearbox X-Y
3 Jaw Chuck 600 Pound Capacity
Standard Z Axis Has 8 Inches of Travel
400 Watt DC Servo Drive Motors X-Y
Steel Gantry and Frame
50 to 1 Dual Stage Helical Planetary Gearbox Rotating Axis
750 Watt DC Servo Drive Motor Rotating Axis
Automated Integrated Arc Volate Torch Height Control

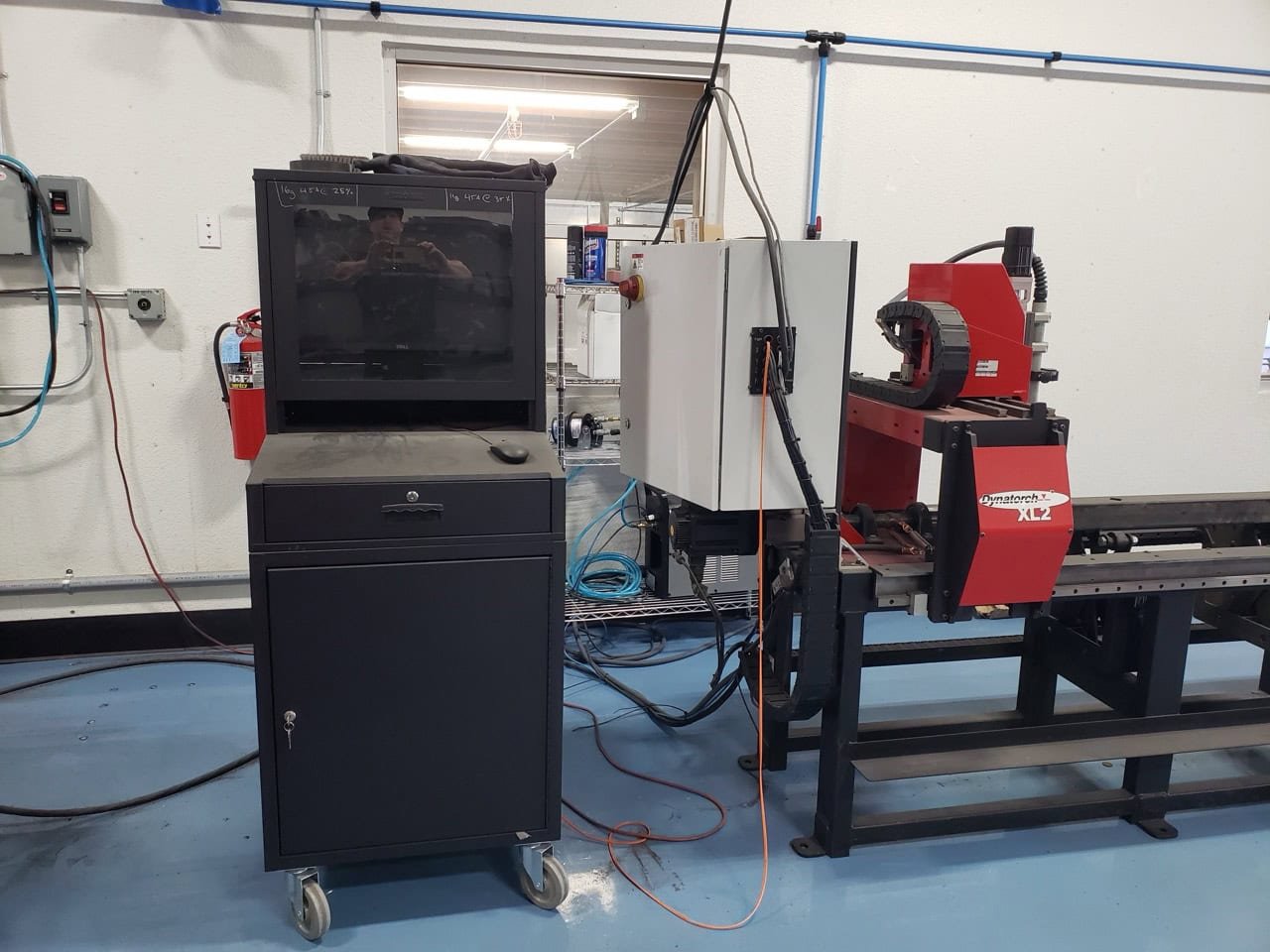

Computer Workstation with 64 BT Intel 17 Processor SSD Drive
Handles from 1 Inch to 14 Inch Tube or Pipe
Laser Locator for Torch Positioning
Magnetic Collision Protection for Torch
Ohmix Sensing Circuit Standard
