Description
Wattage: 2000
Table Size: 5′ x 10′
Length: 10150 mm
Width: 650 mm
Height: 2450 mm

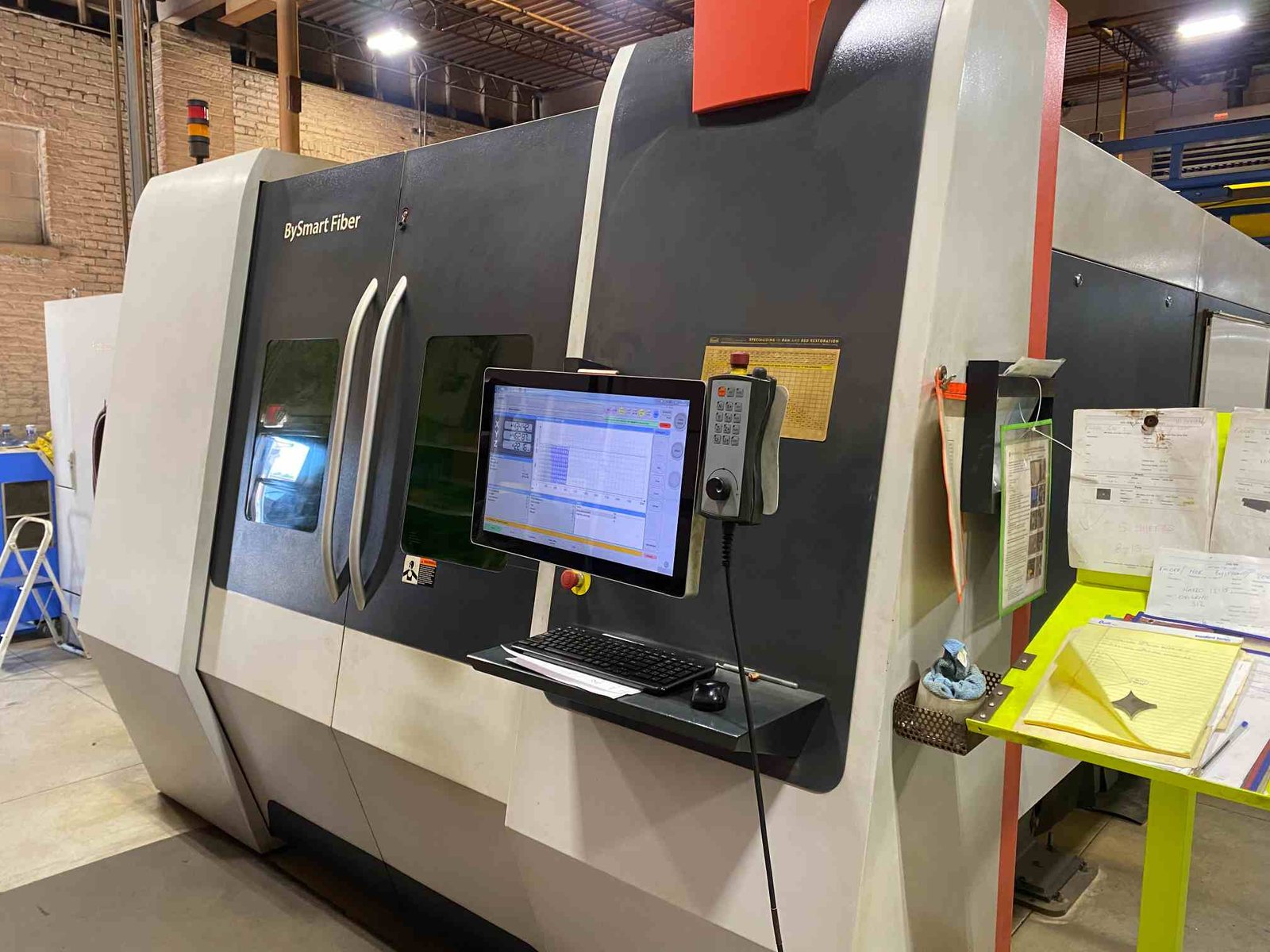

Laser Cutting System
Nominal Sheet Size
X: 3000 mm
Y: 1500 mm
Nominal Sheet Size Cutting Area
X: 3048 mm/120 in
Y: 1524 mm/ 60 in
Z: 70 mm/2,75 in
Maximum Positioning Speed Parallel Axis: x, y: 100 m/min
Maximum Positioning Speed Simultaneous: 140 m/min
Maximum Axis Acceleration: 12 m/s2
Positioning Accuracy Pa * : ± 0,1 mm
Repeatability Ps * : ± 0,05 mm
Edge Detection Accuracy: ± 0,5 mm
Maximum Workpiece Weight: 750 kg
Machine Weight ** : 12 000 kg
Maximum Sheet Thicknesses ***
Steel: 15 mm (.59″)
Stainless Steel: 6 mm (.236″)
Aluminum: 5 mm (.197″)
Equipped with:
2000 Watt Fiber Resonator

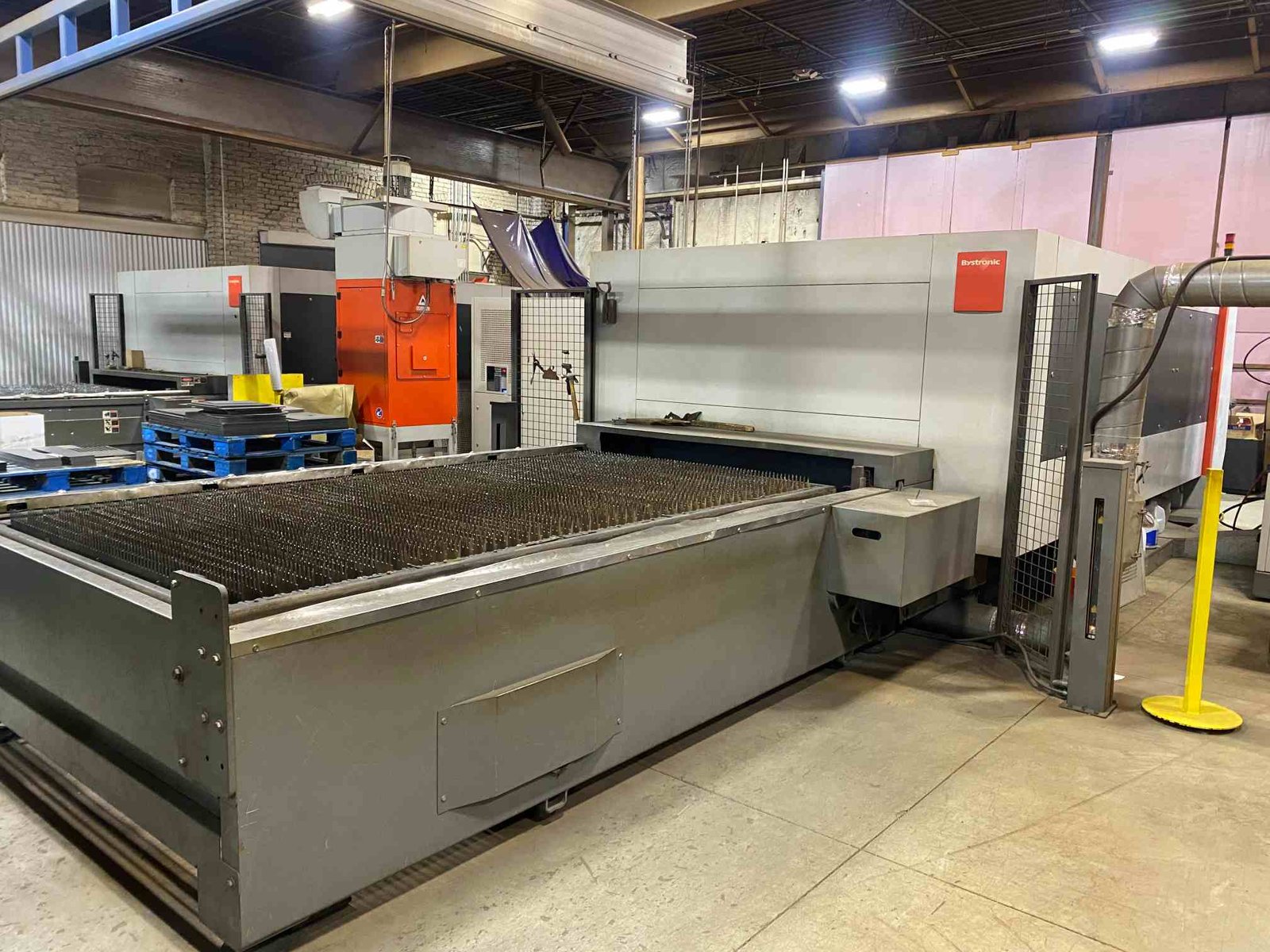

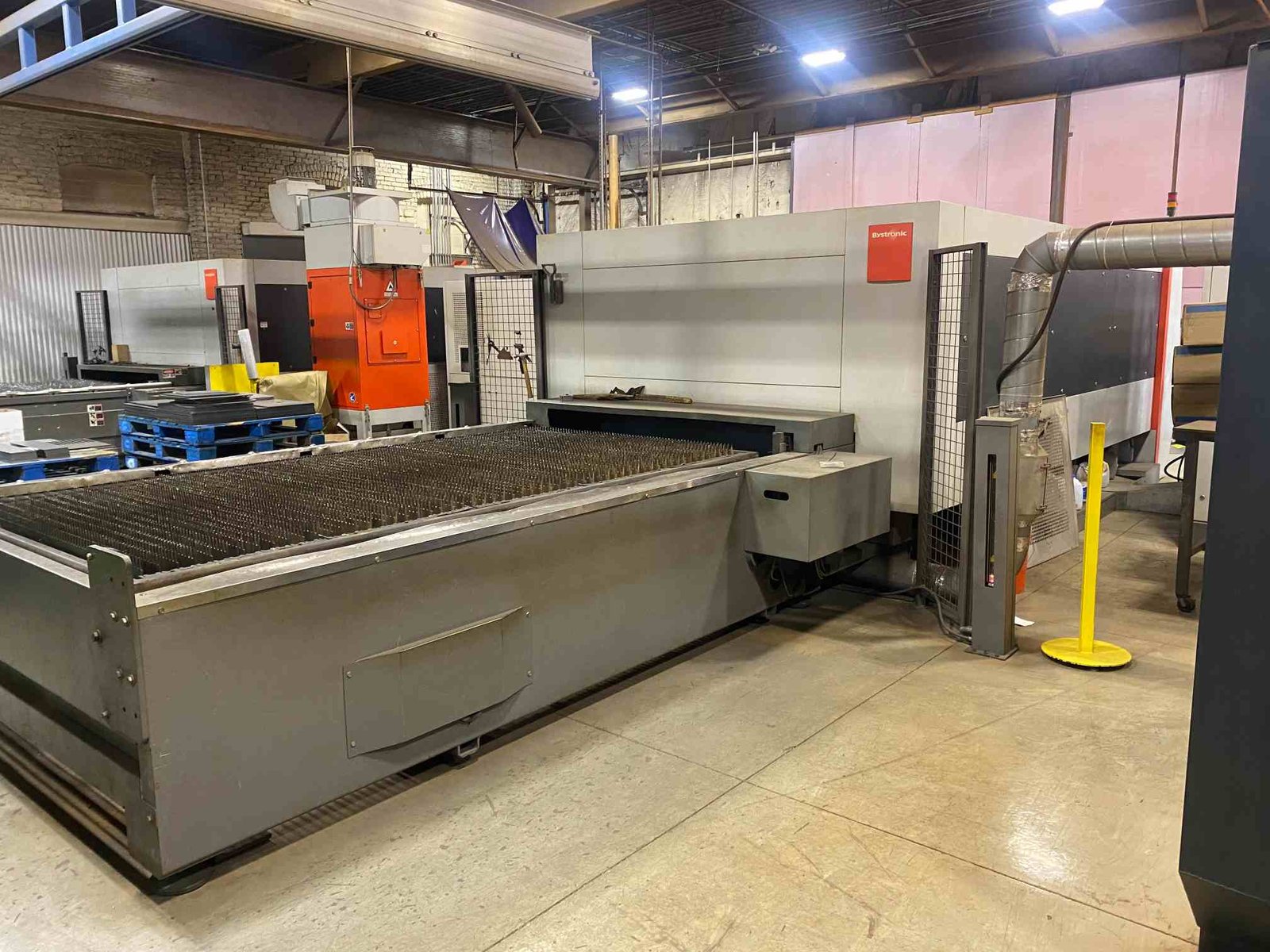

Dual Shuttle Table
Chiller

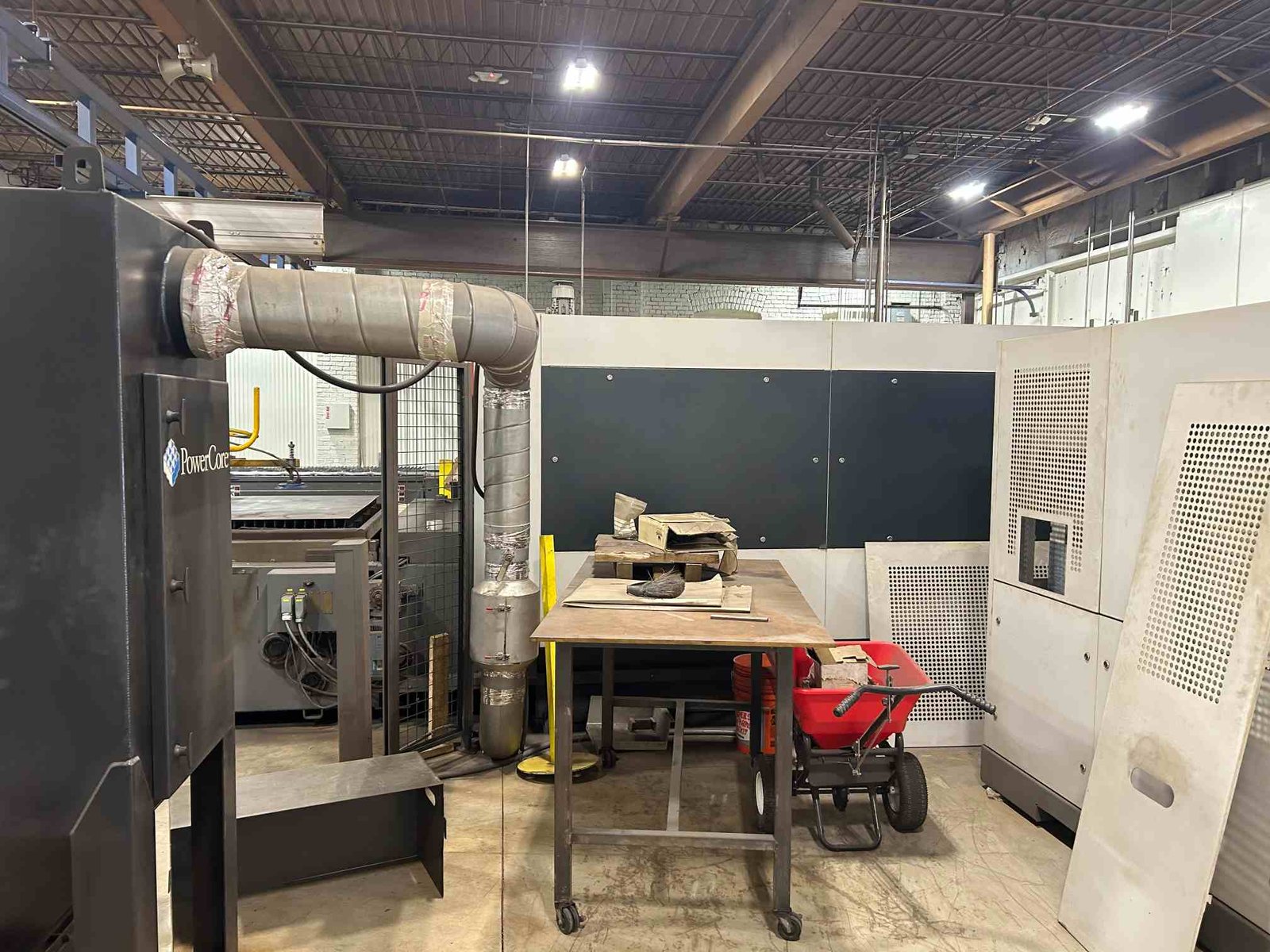

Dust Collector Donaldson
13498 Total Hours
3208 Cutting Hours
