Description
**More Information Upon Request**
Dust Level Sensors (capacitive) to ensure explosion isolation flaps are not compromised by a layer of dust accumulation on both dirty air inlets.
Explosion Isolation – 20″ Ø EXPLOSION ISOLATION FLAP VALVE(EV-VF) W/ LOCKING MECHANISM – DIRTY AIR TO COLLECTOR
Explosion Isolation – 34″ Ø EXPLOSION ISOLATION FLAP VALVE(EV-VF) W/ LOCKING MECHANISM – CLEAN AIR DISCHARGE TO FAN
Explosion Isolation Valve Control Panel. CP04 Standard panel includes status lights, intrinsic circuit with barrier and physical separation (1 per zone), monitored inputs, (3 total/2 programmable), ability to add a seconda(more…)

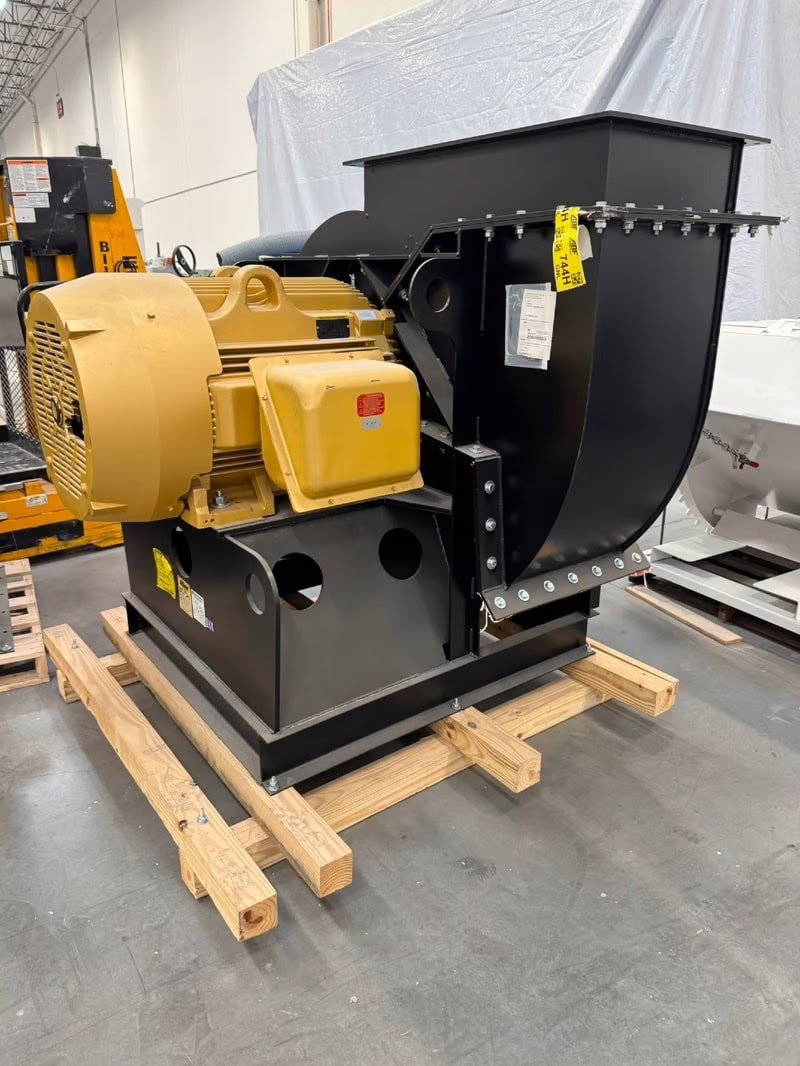

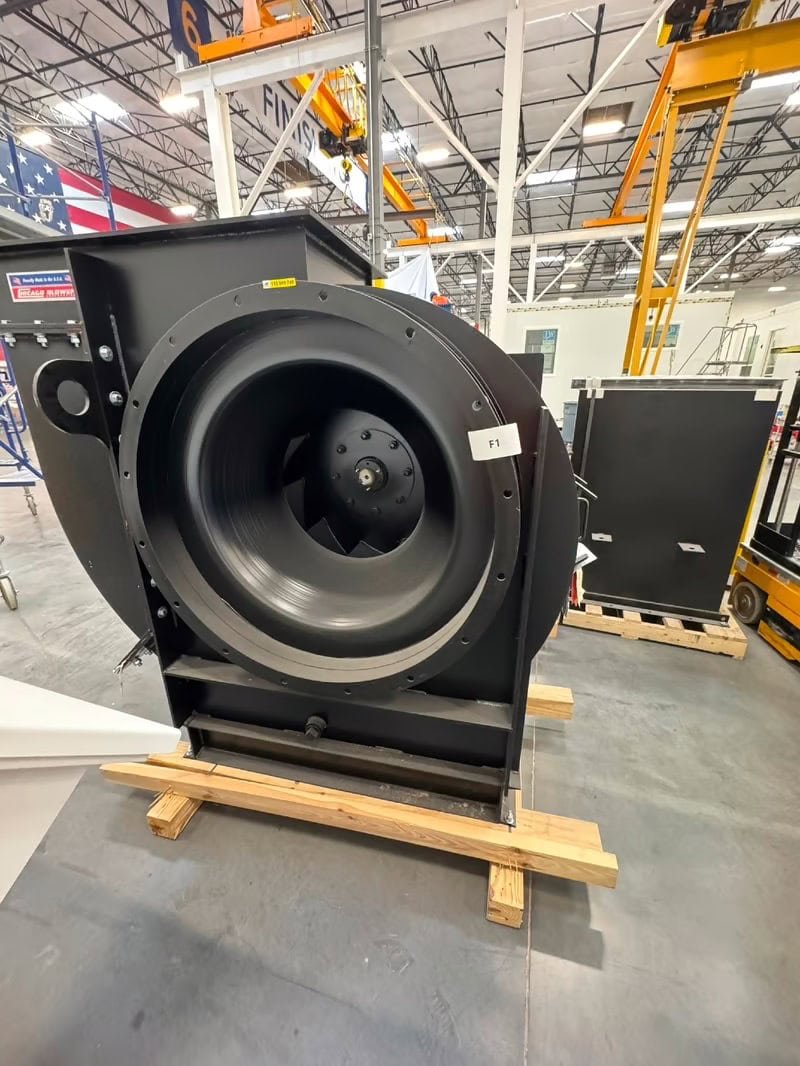

Fan – 125HP Chicago Blower Fan with 20,000 CFM @ 30″ S.P. Exhaust to outside. 4,000 for primary CNC source collection x 2 and 6,000 CFM per enclosure secondary ventilation x2, or 20,000 CFM total.
Fire Suppression System – Mounted on dust collector, CO2 Type Detection System with three 35lb. CO2 Suppressant Tanks, Smoke detection, firebreak in-duct panels, and alarm switch. Pricing includes installation of syst(more…)
In-Duct Spark Detection System – Includes Infra-Red Spark Detectors in dirty air ductwork and automated extinguishing system. Requires connection to plant water supply. Pricing includes installation of detectors, contr(more…)
IVEC – 3 Hopper Access Doors. Allows for access into hoper and underside of filtration section without having to remove rotary airlocks.
IVEC – Adder for 80 each, aluminized abrasion resistant spun-bond polyester cartridge filters with grounding straps
IVEC – ATV-80 Clean Air Plenum (CAP) with outlet flange
IVEC – ATV-80 Dirty Air Plenum (DAP) with flange

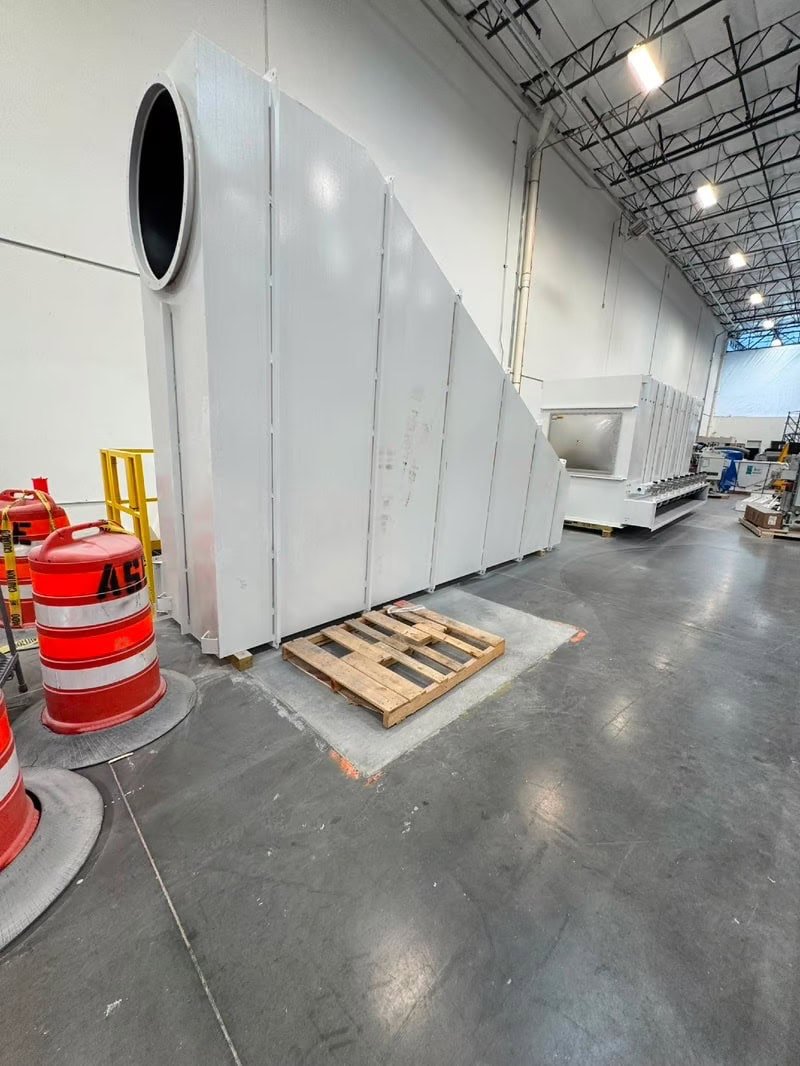

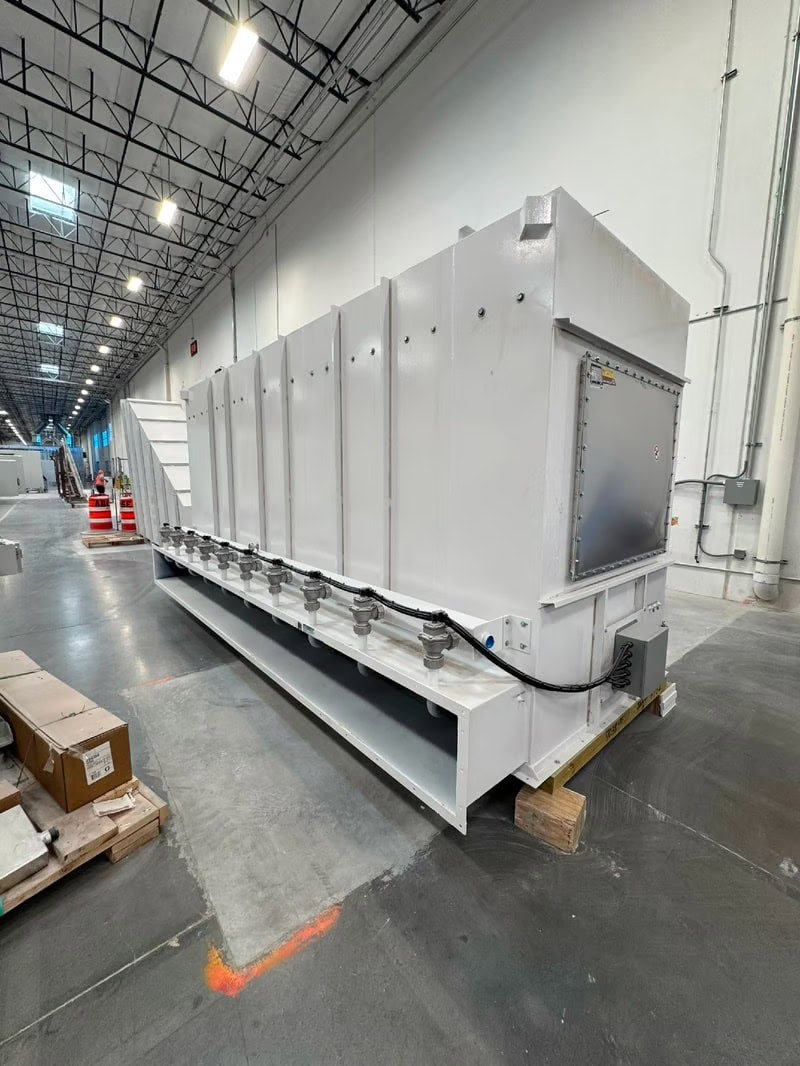

IVEC – Dust Collector – Down-flow Vertical Collector: Model
IVCDC-80, Complete with 80 each, Self-Cleaning Cartridge Filters, Tri-Hopper with 14″ Collars, Legs, Double valve reverse jet pulse cleaning. Includes E2T Turbo D(more…)
IVEC – Explosion Rupture Panel Rated for < 200 Kst, 8 Bar Pmax pre-installed in dust collector sidewalls.
IVEC Motor Controller – Model IPS2, 460V-125HP, NEMA 4X, Velocity sensor, programmed, fused disconnect, motor starter, variable frequency drive. Requires 3 phase connection and 3 phase back to motor. Wiring and mountin(more…)
IVEC No Loss Air Discharge Stack – Prevents rain from entering silencer and fan as clean air is exhausted to the atmosphere.
IVEC Remote Activation & Interface HMI Panel – Requires 115V connection and mount by others. To be mounted on/near CNC enclosures.
Noise Silencer for Fan – 85dBA, 77dBA radiated noise. Requires external support – not included.
Over Pressure Kit – OPK Safety System to prevent duct damage in event of an overpressure condition. Requires mounting by others.
Rotary Airlock Motor Starters – 1HP – Electrical wiring not included.
Boss Rotary Airlock
Ductwork Package – Clamp together ductwork package per specifications.
Dust collector service catwalk and access ladder – OSHA approved
Dust discharge hose for rotary discharge airlocks and clamps.

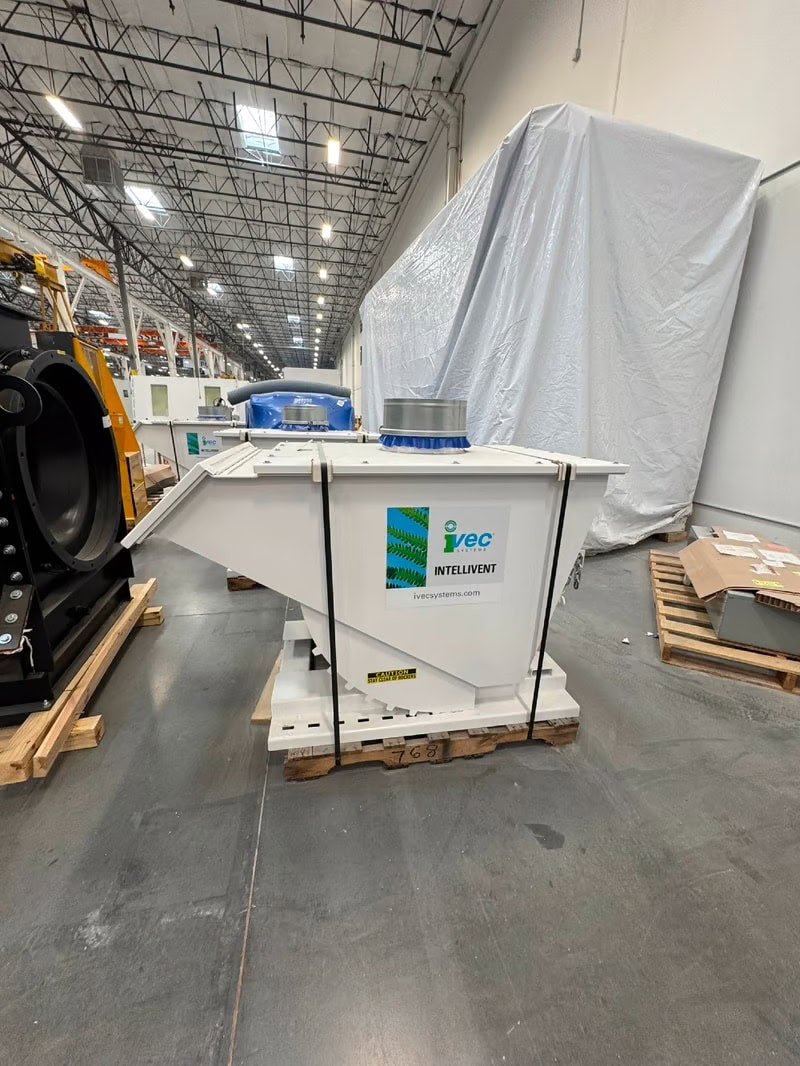

EZ Dump Dust Hopper – 1 cubic yard size hopper with fork truck lugs – design makes dust disposal easier. Equivalent of 12ea. 55 gallon drum capacity.
Heavy Gauge Duct Package – Post explosion isolation requirement – 6 ea. 5′ long flanged duct sections 20″ diameter for dual inlets. Three 34″ diameter flanged duct section post CAP to fan. Meets NFPA requirements.
Hopper Bin Full Assembly – Provides warning if dust collector hoppers get full and aren’t emptying correctly.

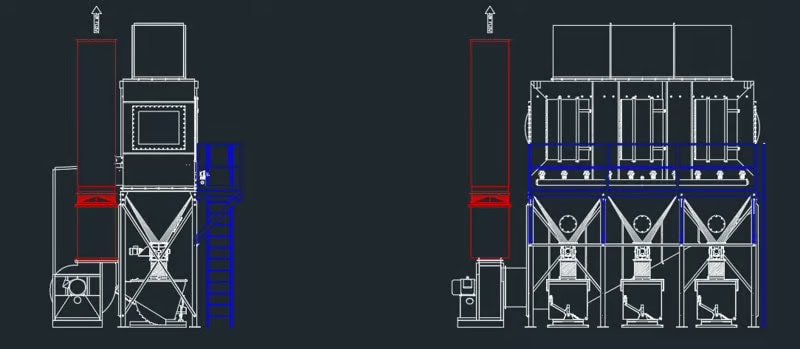

Interconnect Diagram
IVEC – ATV Increase collector leg height to accommodate rotary airlocks and EZ dump dust hoppers.
IVEC – Custom Paint Color for Collector
IVEC – Prewire solenoid to junction box on dust collector
Junior Control Panel to allow the three rotary air locks to be automatically controlled with the IPS-2 VFD. Ensures rotary airlocks are on when collector is on. Requires mounting and 115V connection by others.
