Description
Equipment Overview

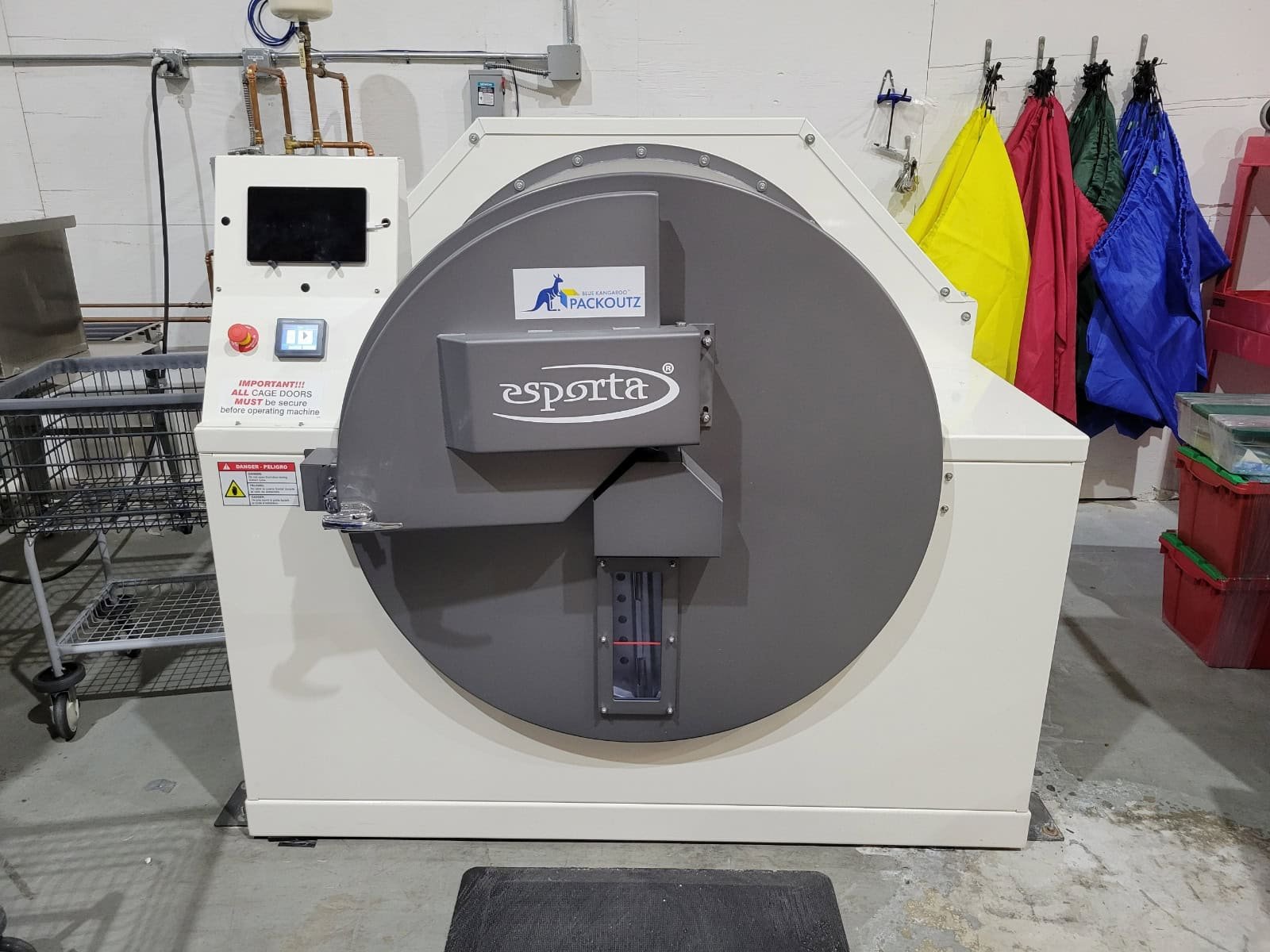

The Esporta IS-4200 is a next-generation soft contents restoration system for decontaminating PPE, gear, textiles, and other high-value items impacted by fire, mold, sewage, or biohazards. It features Esporta’s patented hydraulic wash technology and is fully automated with a programmable PLC interface. This unit shows verified installation and includes a full 5-line chemical feed setup, indicating it was actively in use.
Key Features and Specifications
Drum Capacity: 100 lbs / 45.4 kg
Wash System:
-Hydraulic-driven restoration process (not traditional tumbling)
-Capable of cleaning ~85% of total soft content categories
Drum Configuration:

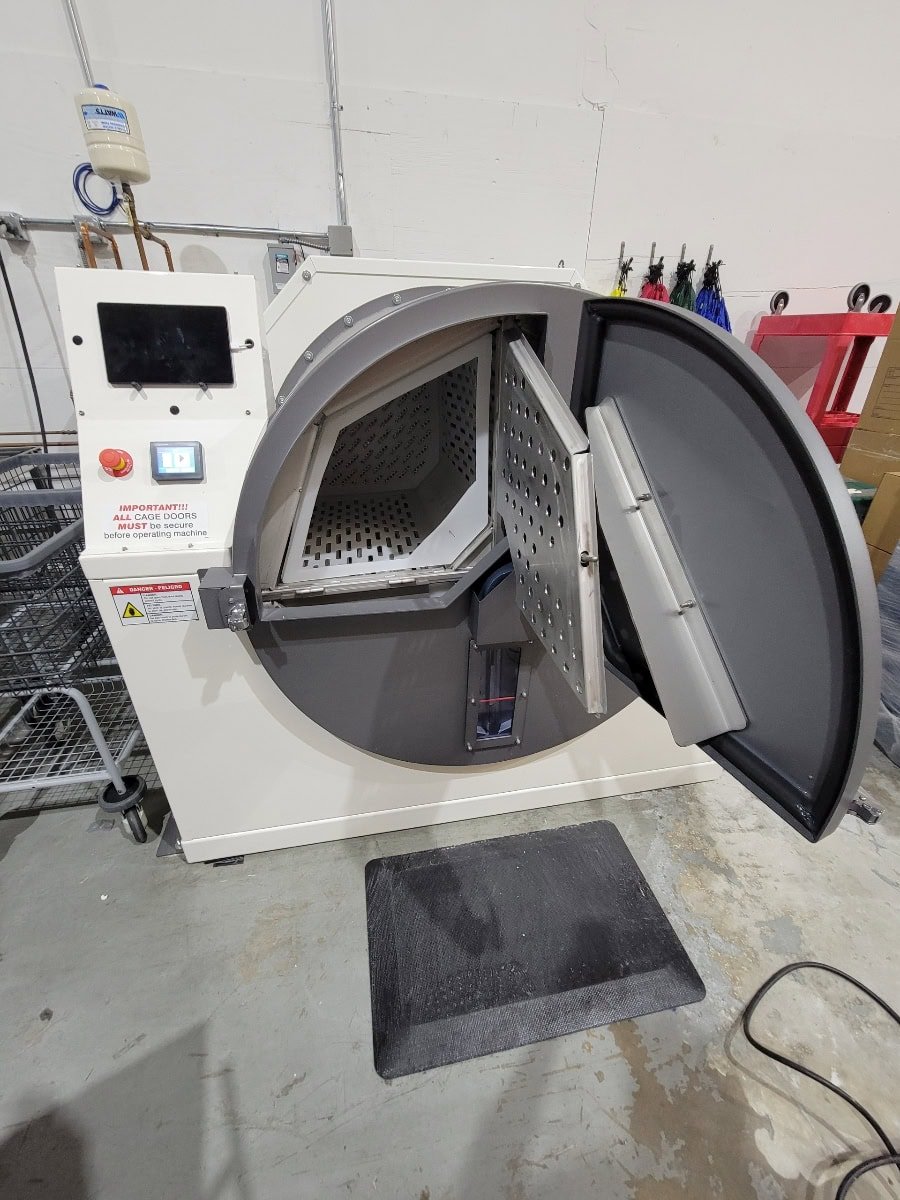

-Stainless steel cage system
-Safety interlocks and cage sensors

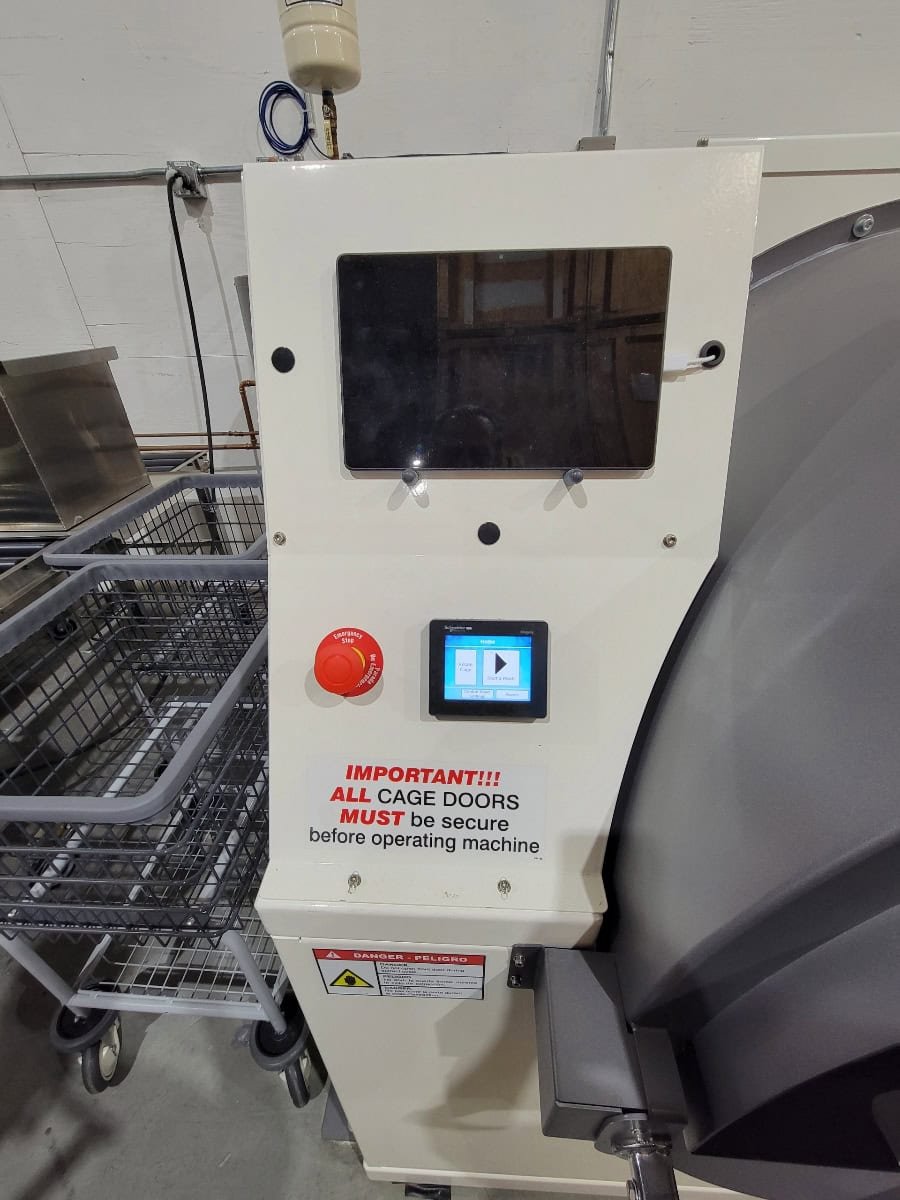

Touchscreen Control:
-Schneider Electric interface
-Pre-set cycles for category-specific decon (fire, sewage, mold)
-System lockout if cage doors are unsecured
Chemical Feed System:
-Multi-line injection
-Detergent and disinfectant compliant
Plumbing: Hot/Cold water inlets with separate ports
Power Requirements:
-240V | 1 Phase | 60 Hz
-8 HP / 6 kW total draw

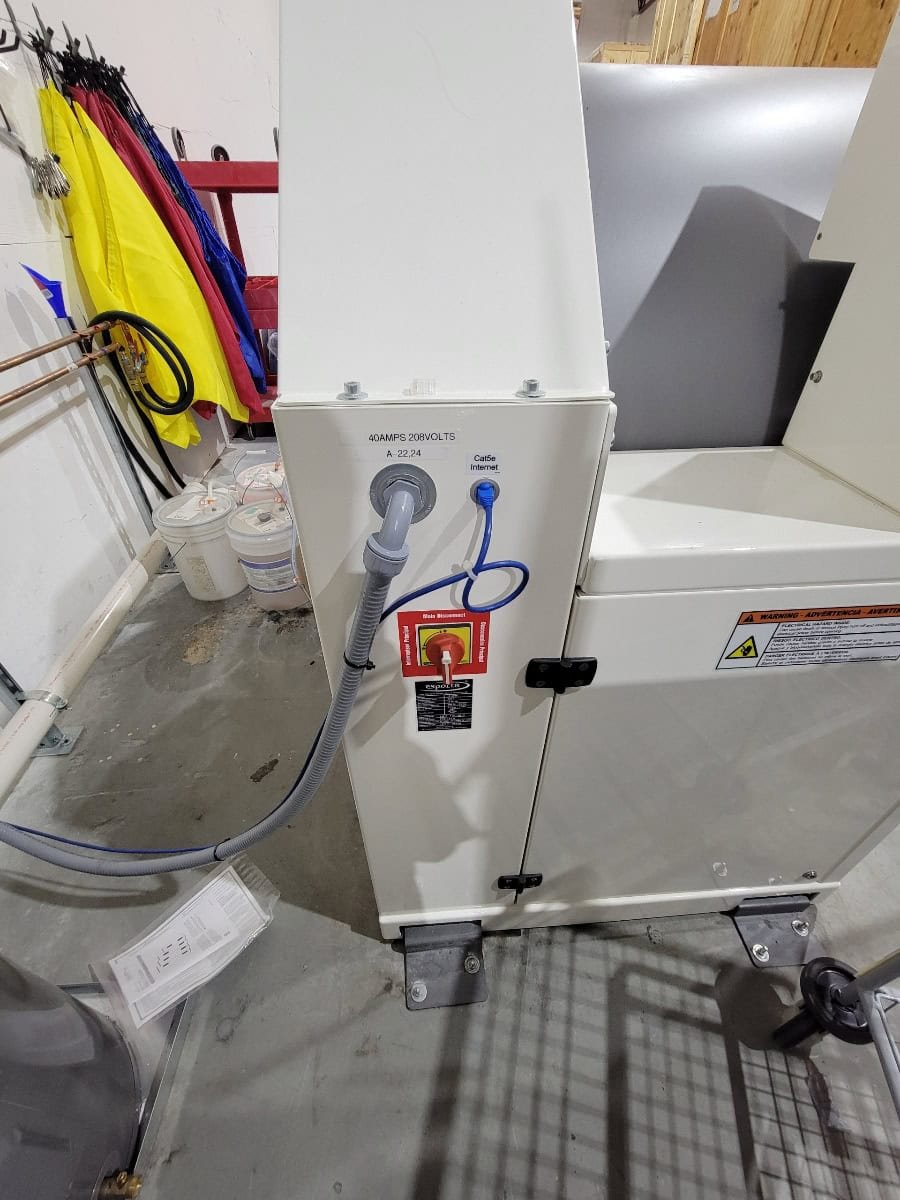

-40 AMP disconnect (visible in images)

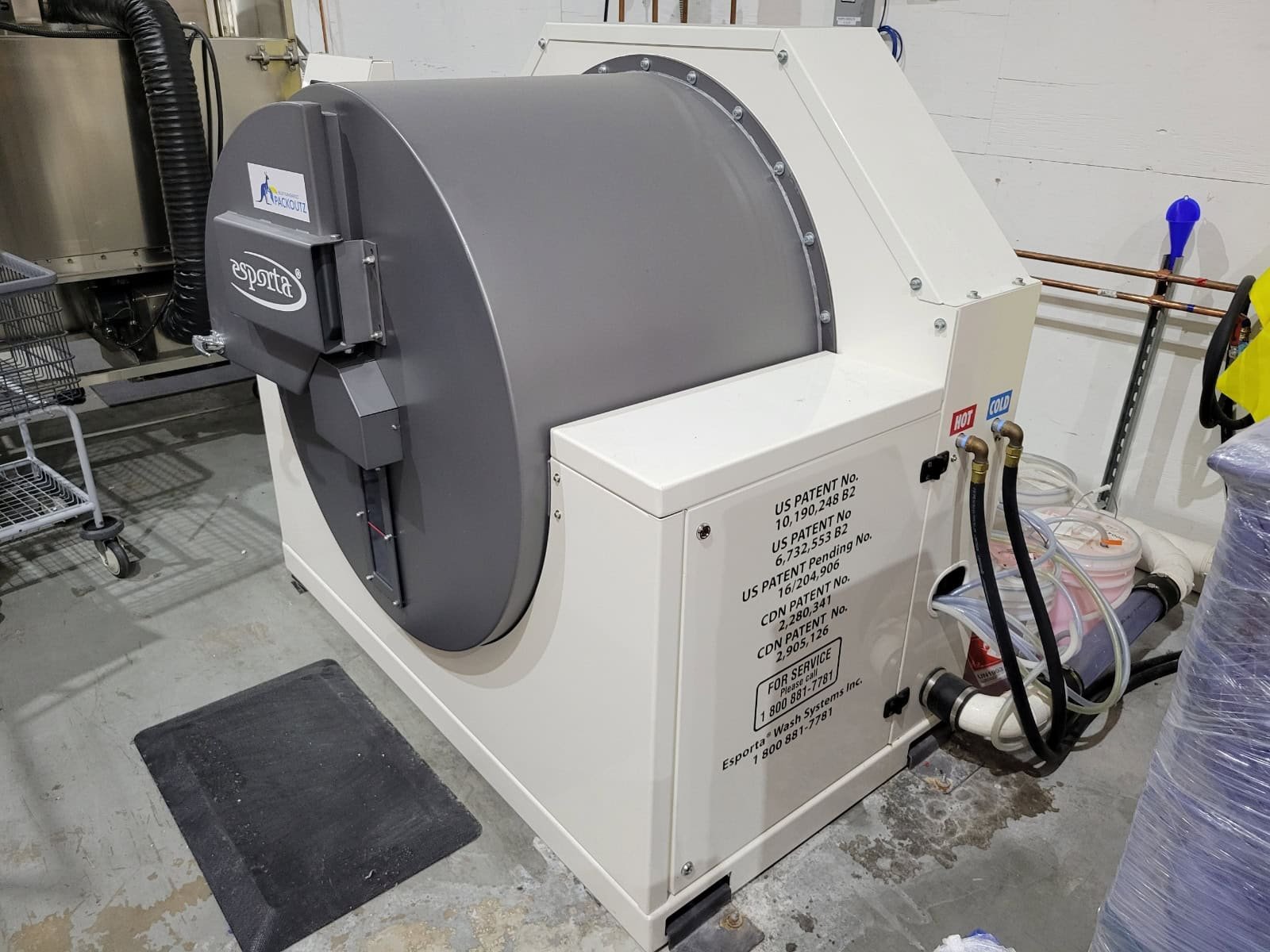

Certifications: CSA Listed, US Patent Nos. 10,190,248 B2 & 6,732,553 B2
Footprint:
-Dimensions: 52”W x 80”L x 70”H
-Weight: 1,945 lbs (885 kg)
