Description
Capacity (Round): 22″
Capacity (Square): 22″
Capacity (Rectangular): 22″ x 30″
Blade Size: 2.1″ x 262″ x 0.06″
Blade Speed: 66 to 328 FPM
Work Bed Height: 26.8″
Blade Motor: 10 HP, 230V, 3-Phase, 60 Hz
Approximate Machine Weight: 12,000 lbs
Approximate Machine Dimensions: 92″ (Left to Right) x 153″ (Front to Back) x 94″ (Height)
Equipped With:
Inverter blade drive system (infinitely variable blade speed)
Cross link on top of the columns

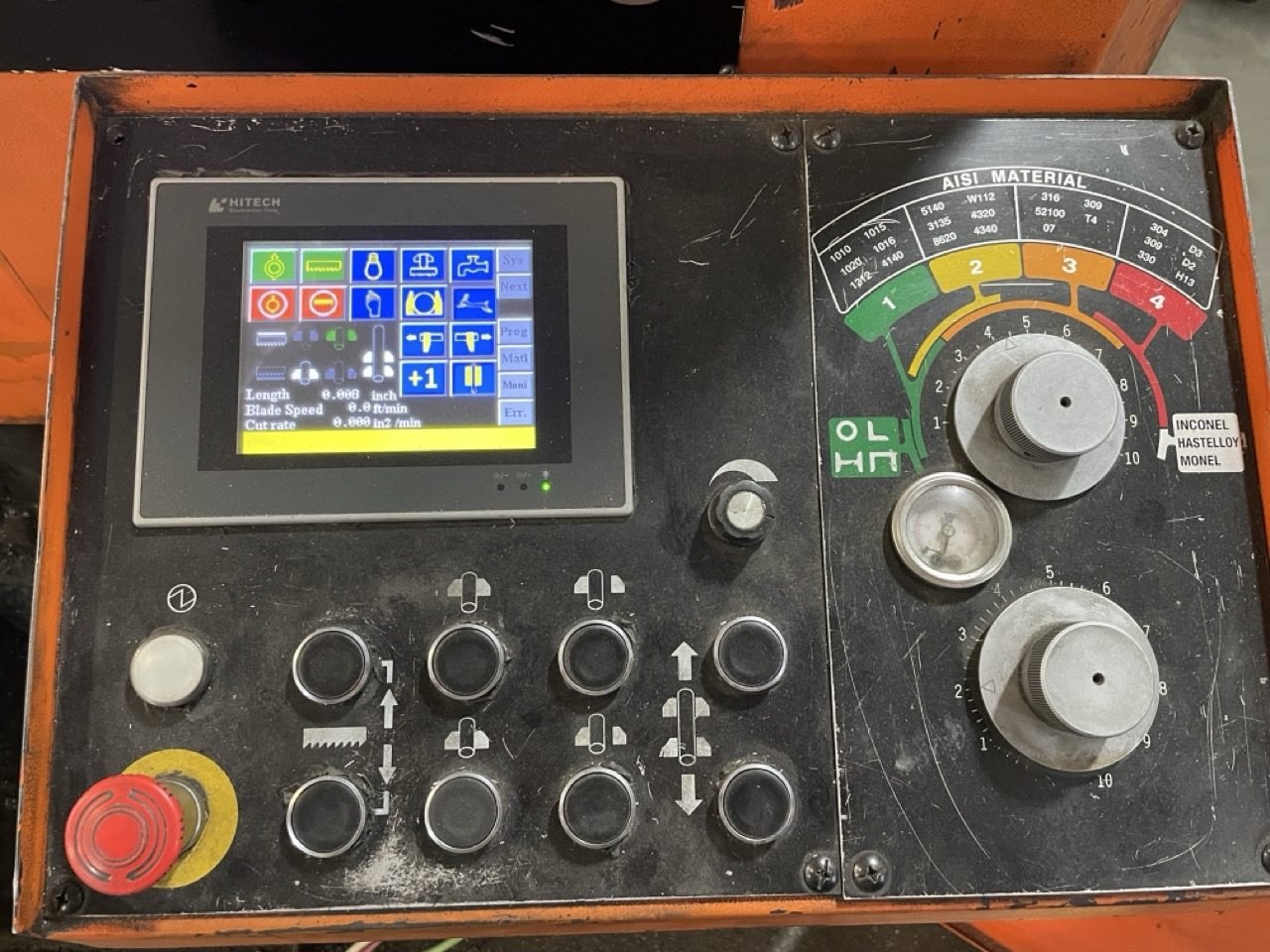

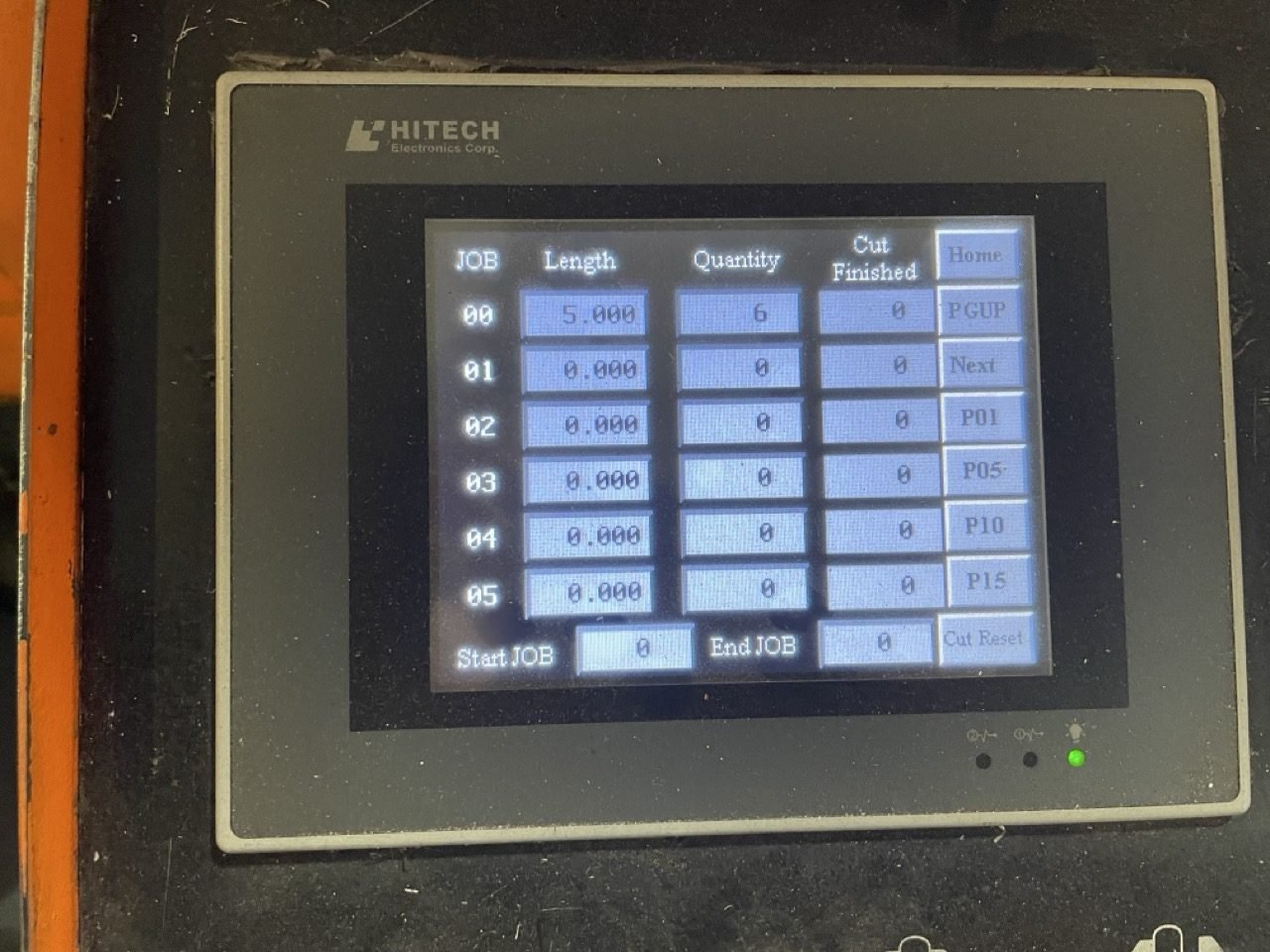

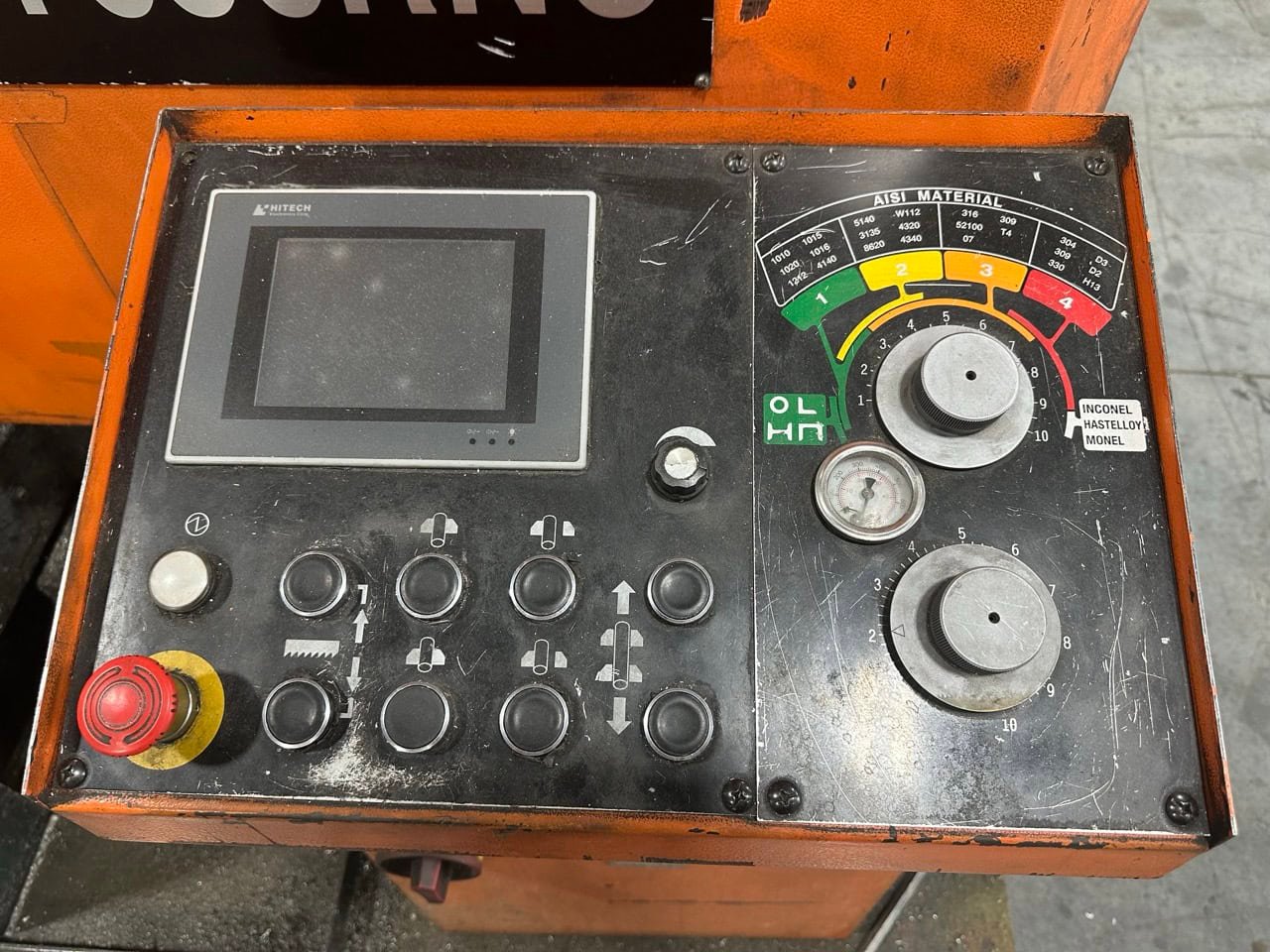

Independent NC control panel
Chip auger
Coolant system
