Description
American Made!

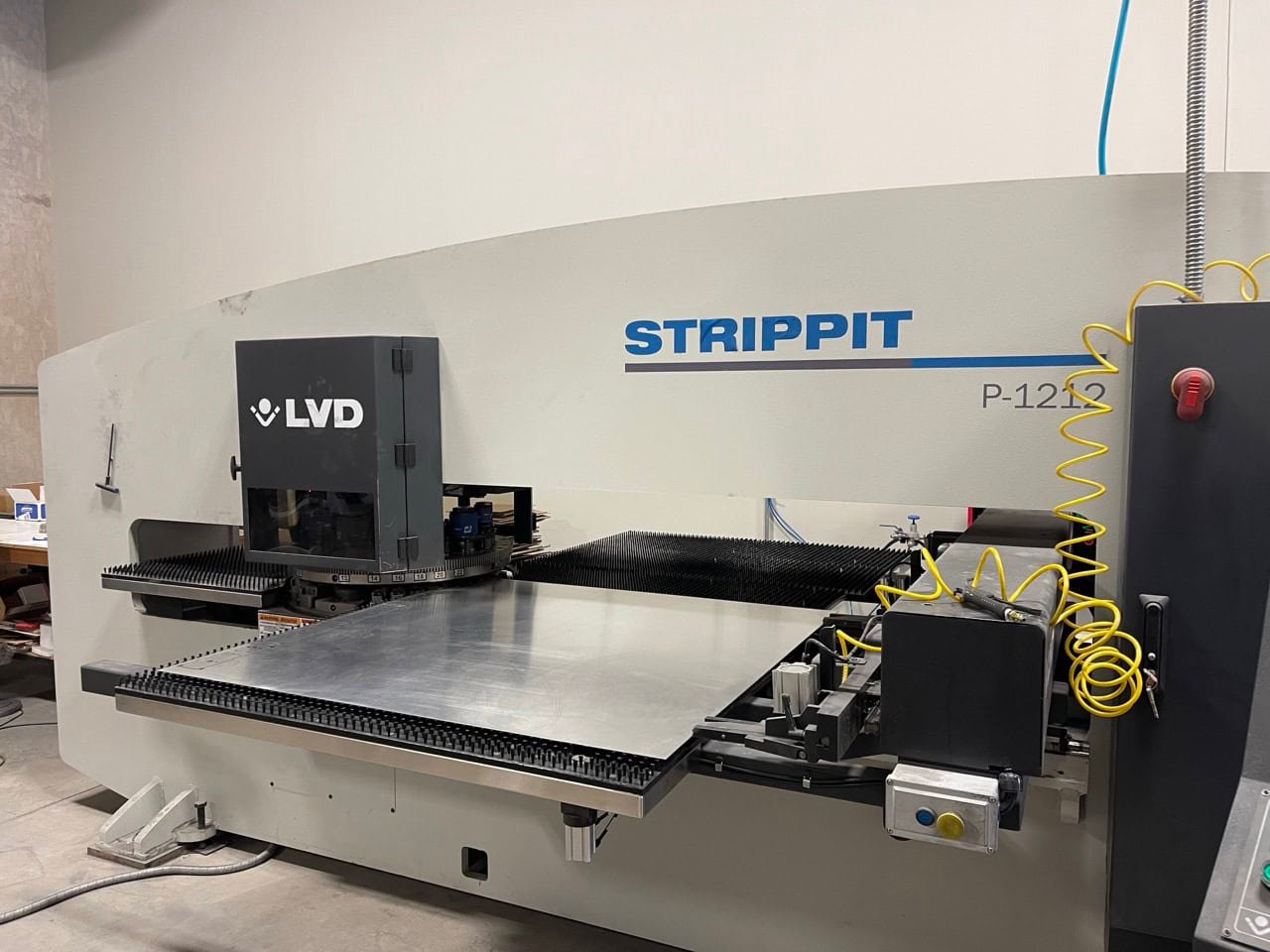

Model: P-1212
Year: 2022
Tonnage 22 T
# Turret Stations 21
33 Station, Thick Style Tooling
22 each 0.500″, (12,7 mm), ‘A’ stations
11 Round only
11 Keyed
6 each 1.250”, (31,7 mm), ‘B’ stations
3 each 2″, (50,8 mm), ‘C’ stations, all fully indexable
2 each 3.500″, (88,9 mm), ‘D’ stations
Brush Table
Maximum Material: 0.250″ (6,35 mm) mild steel
Maximum Tonnage: 20 Metric (200 KN)
Accuracy: ±.004”, (±0,1 mm)
Repeatability: ±.002”, (±0,05 mm)
Workpiece Size:
Nominal: 49.2″ x 49.2″ (1250 mm x 1250 mm)
Recommended Maximum: 98.4” x 49.2″ (2500 mm x 1250 mm) *
* Requires Progressive Move and additional sheet support (provided by end user)
Workpiece Capacity:
Brush Table: 81.5 lbs (37 kg) @ 100% speed
90.4 lbs (41 kg) @ 75% speed
134.1 lbs (61 kg) @ 50% speed
160.9 lbs (73 kg) @ 25% speed
Floating Clamps: 2 manual lock
Maximum Clamp Spread: 37.4” (950 mm)
Turret Configuration: 33 station total
Dimensions:
Dimensions are for machine only w/o control
Width: 100” 2550 mm
Height: 82.47” 2085 mm
Depth: 177.1” 4498 mm
Shipping Wt: 18,040 lbs. 8200 kg
