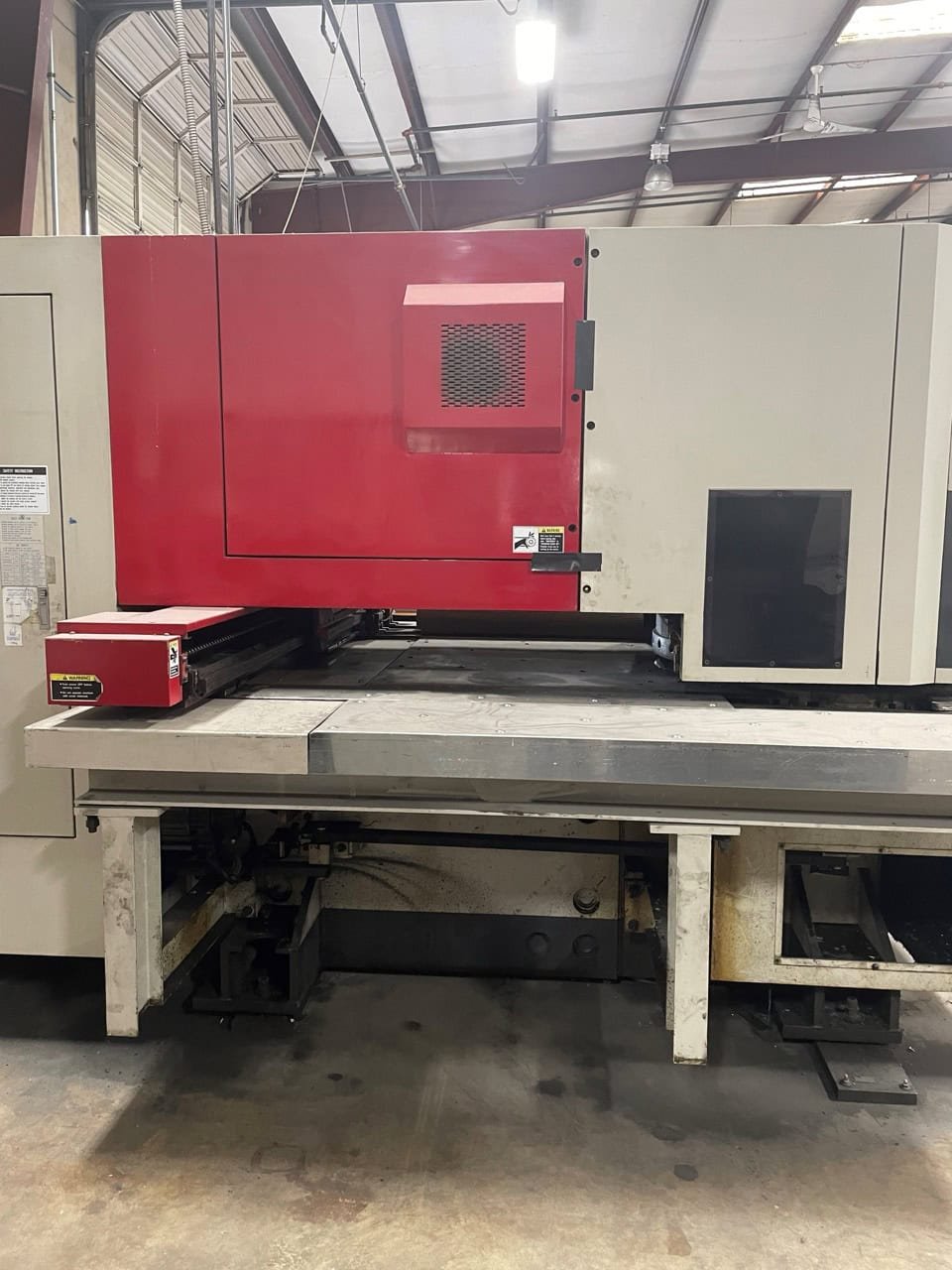

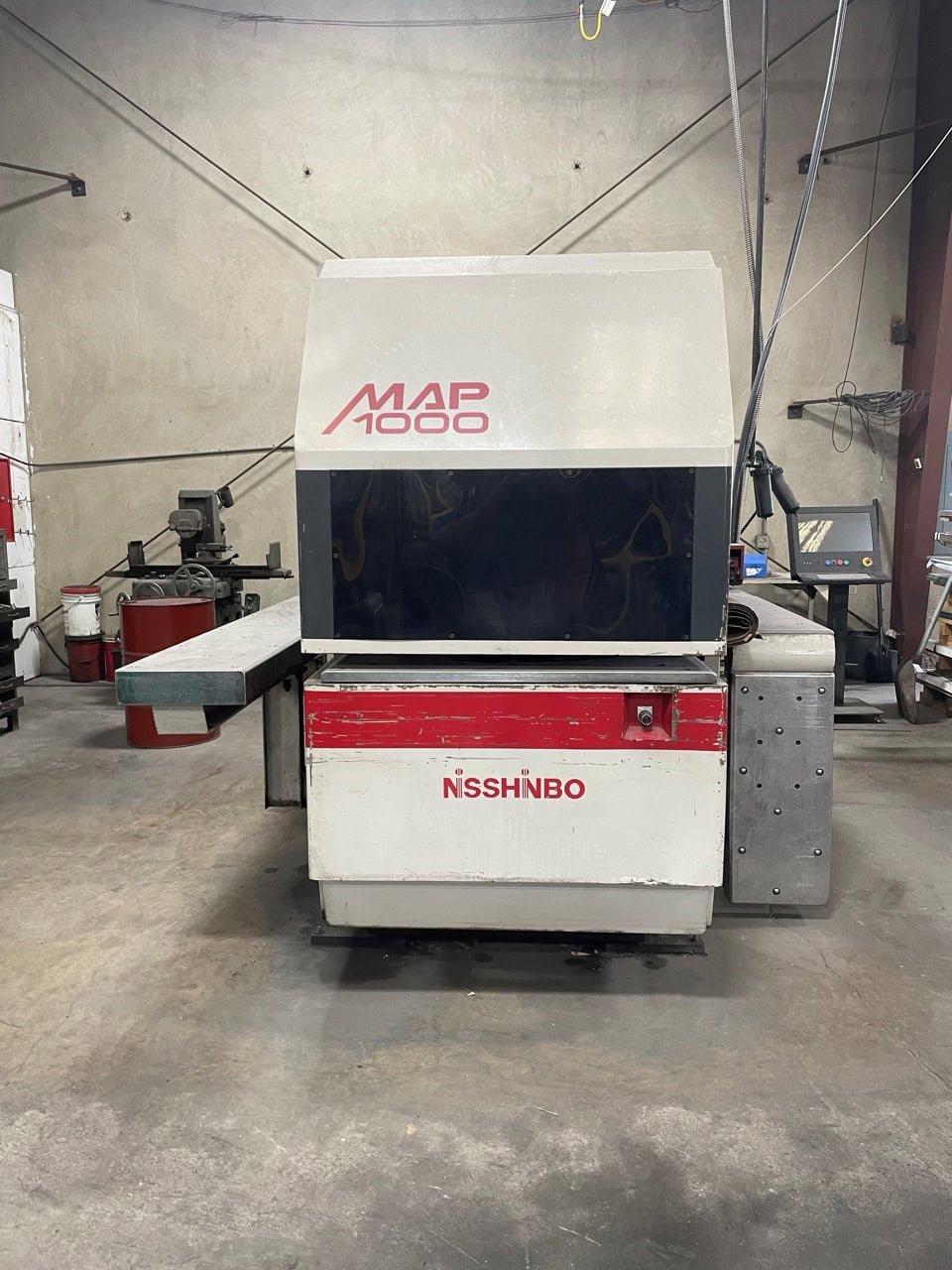

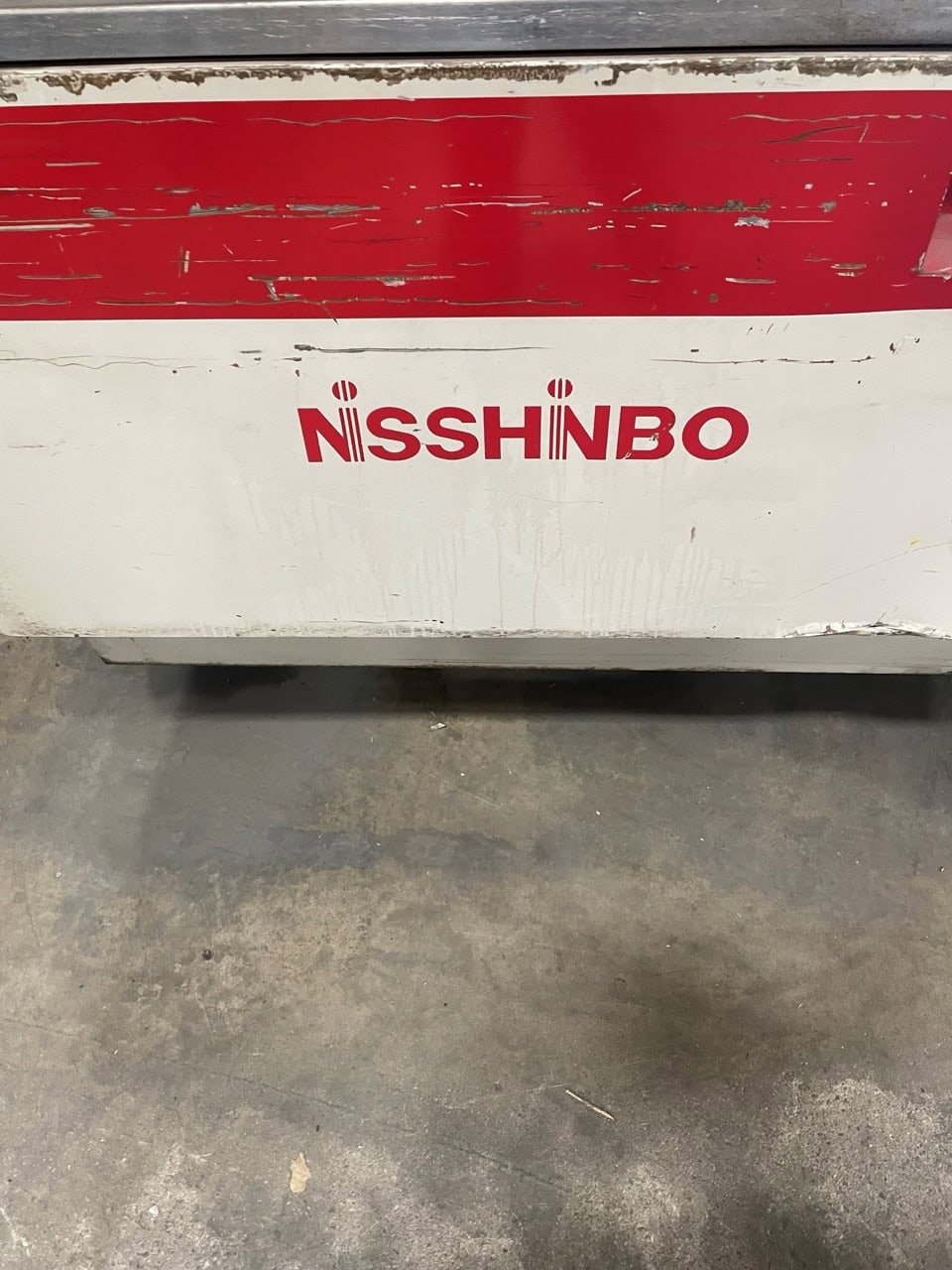

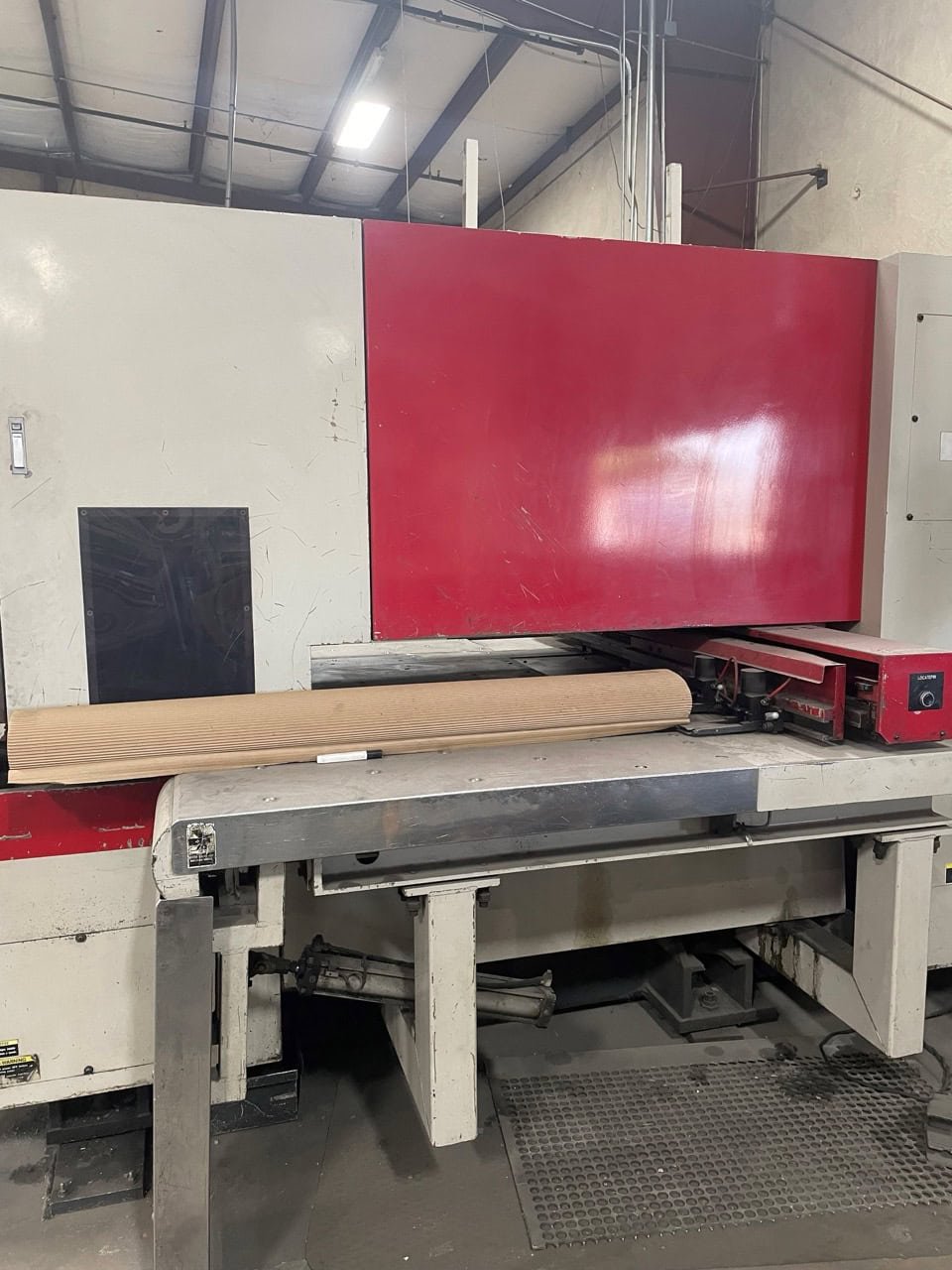

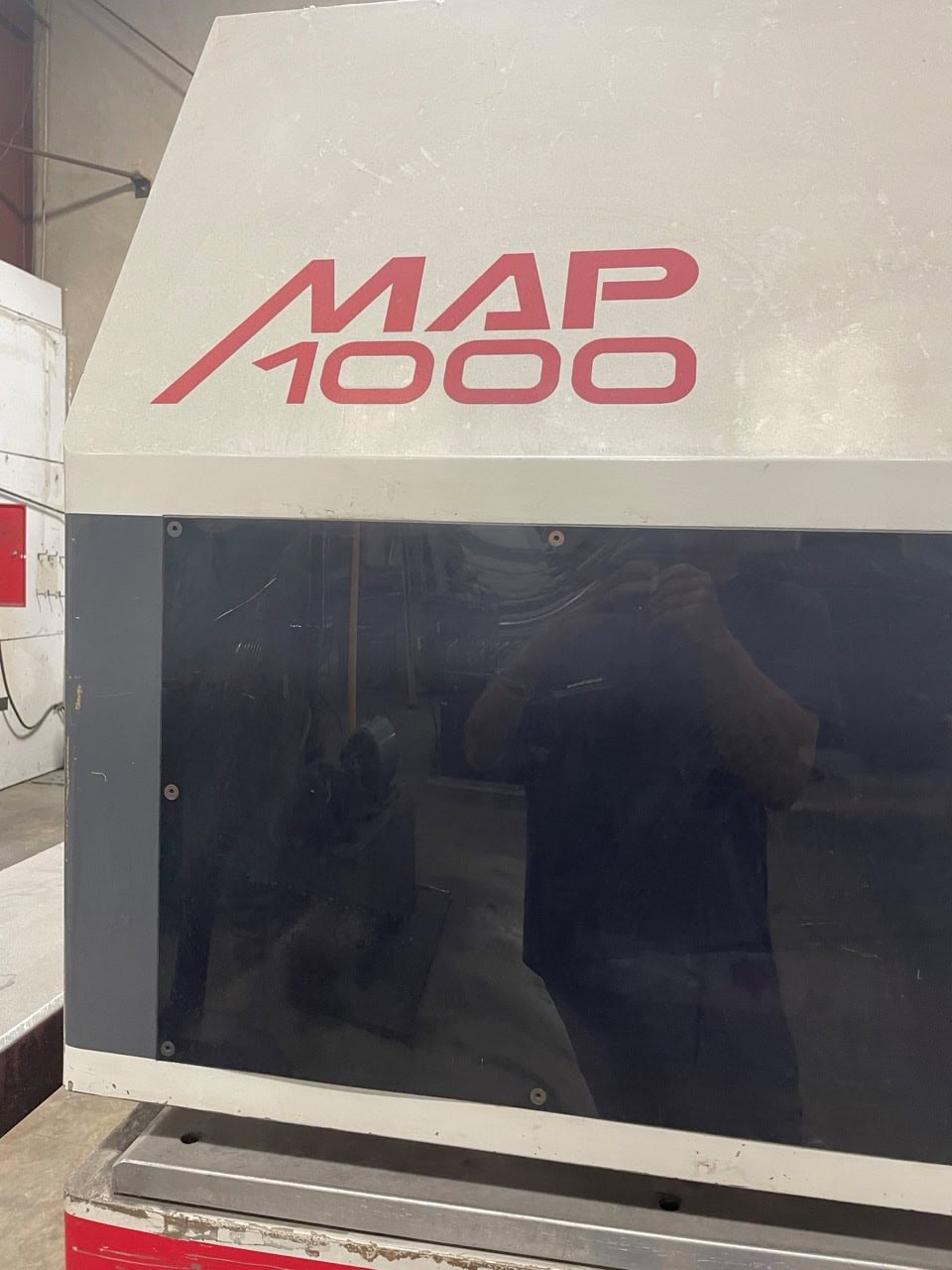

22 Ton Nisshinbo M-100 Turret Punch Press, 1997

22 Ton Nisshinbo M-100 Turret Punch Press, 1997 - Image 2

22 Ton Nisshinbo M-100 Turret Punch Press, 1997 - Image 3

22 Ton Nisshinbo M-100 Turret Punch Press, 1997

Name: 22 Ton Nisshinbo M-100 Turret Punch Press, 1997
SKU: 20821151301
Availability: InStock

€ 11.900,00

Punching Force (Hydraulic Servo): 22 Ton Max Material Thickness: .250″ Max Hole Capacity In 14 Gauge: 3.5″ Max Hole Capacity In 250″: 1.125″ Max Workpiece Size: 39.375″ x 49.6″ Hits Per Minute On 1″ Moves: 240 Hits Per Minute (Nibble Mode): 450 Approximate Shipping Weight: 28,000 Lbs. Electric: 460, 3 Phase

SKU: 20821151301

Category: Turret Punches

Description

Description

Punching Force (Hydraulic Servo): 22 Ton
Max Material Thickness: .250″
Max Hole Capacity In 14 Gauge: 3.5″
Max Hole Capacity In 250″: 1.125″
Max Workpiece Size: 39.375″ x 49.6″
Hits Per Minute On 1″ Moves: 240
Hits Per Minute (Nibble Mode): 450
Approximate Shipping Weight: 28,000 Lbs.
Electric: 460, 3 Phase
