Description
2400° F
Work Zone Size: 12″ wide × 12″ high × 24″ deep
Load Capacity: Up to 200 lbs
Temperature Control:
±1 °C controllability
±3 °C or better uniformity
3-zone PID-controlled system
Vacuum Performance:
0.1 Torr in approx. 7 minutes
10⁻⁵ Torr in approx. 15 minutes
250 mm diffusion pump (3,000 l/s)
Mechanical roughing pump (46 cfm)
Hold pump (6 cfm)

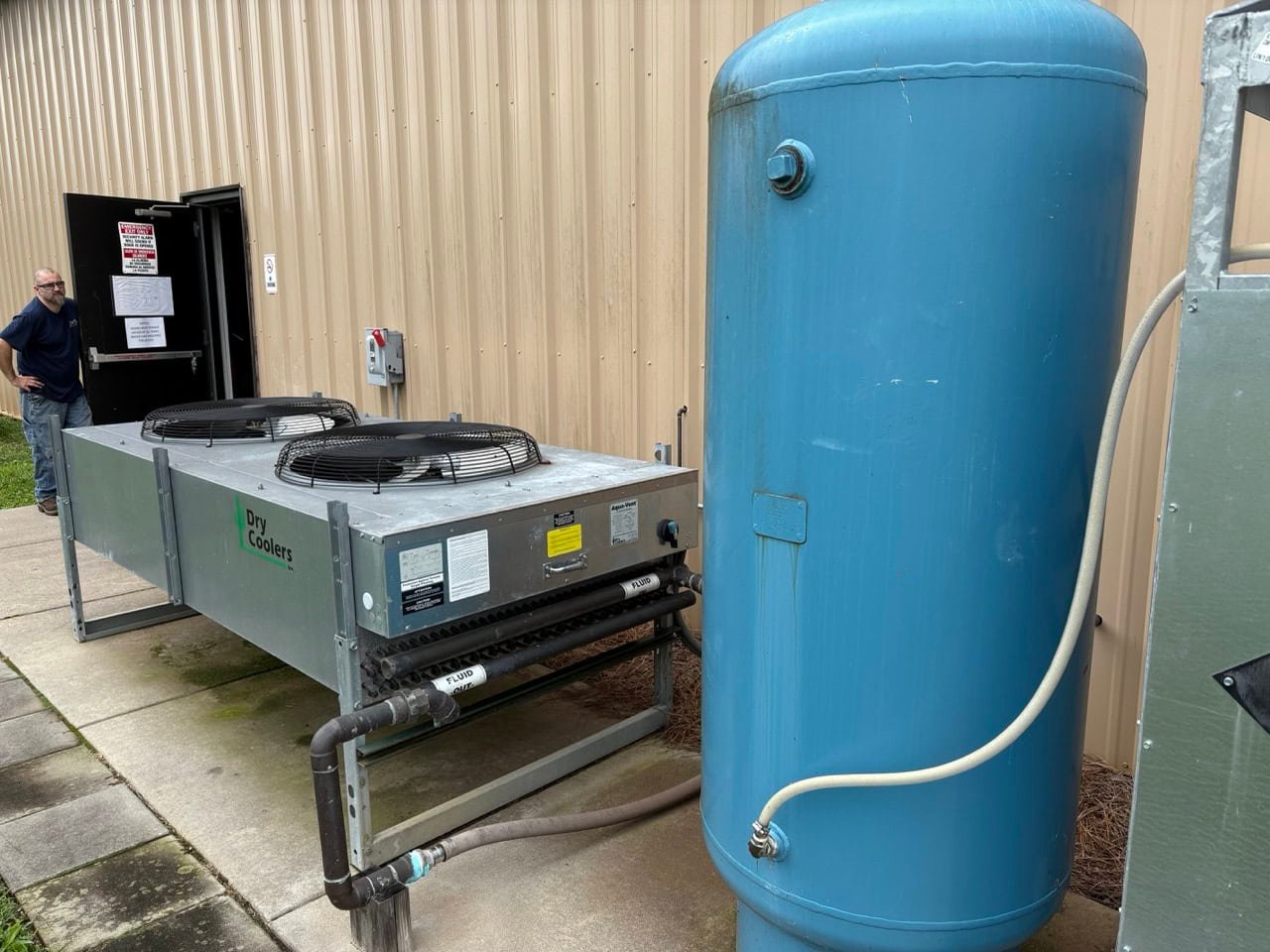

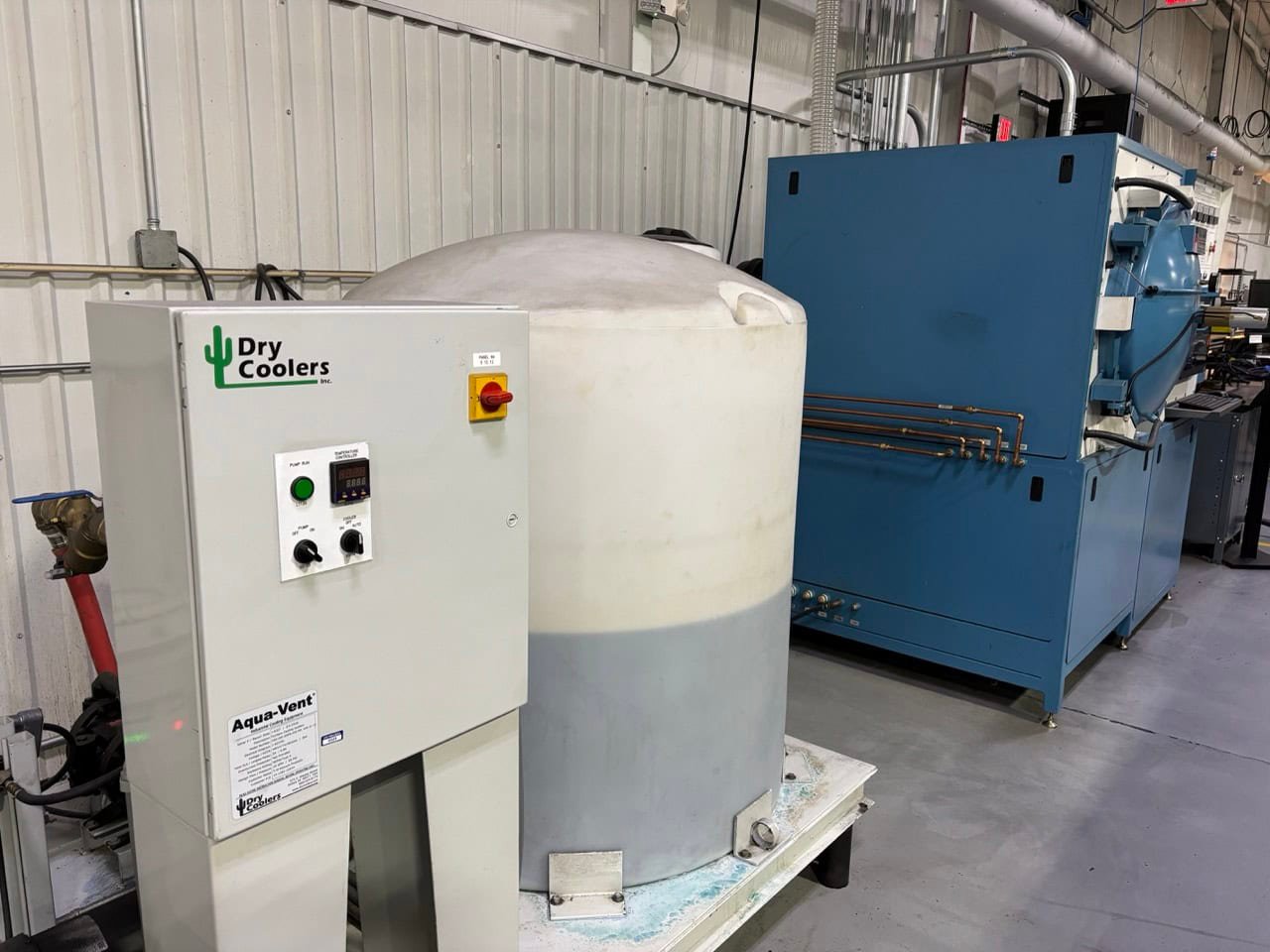

Cooling System:
10 HP blower delivering 4,200 cfm
18-directional vent system
Fully integrated inert gas quick-cool system
Chamber Construction:
All stainless steel, double-wall, water-jacketed

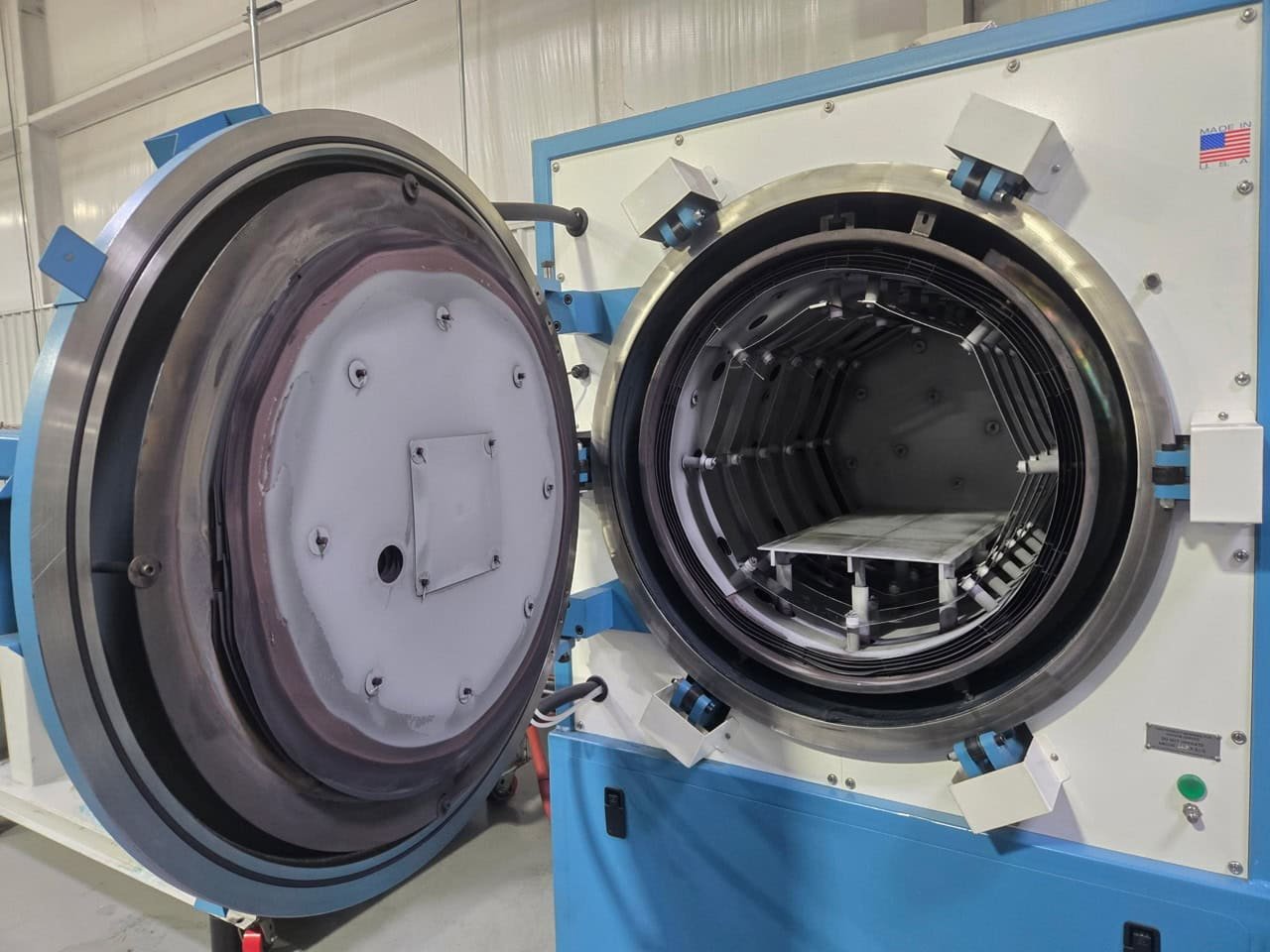

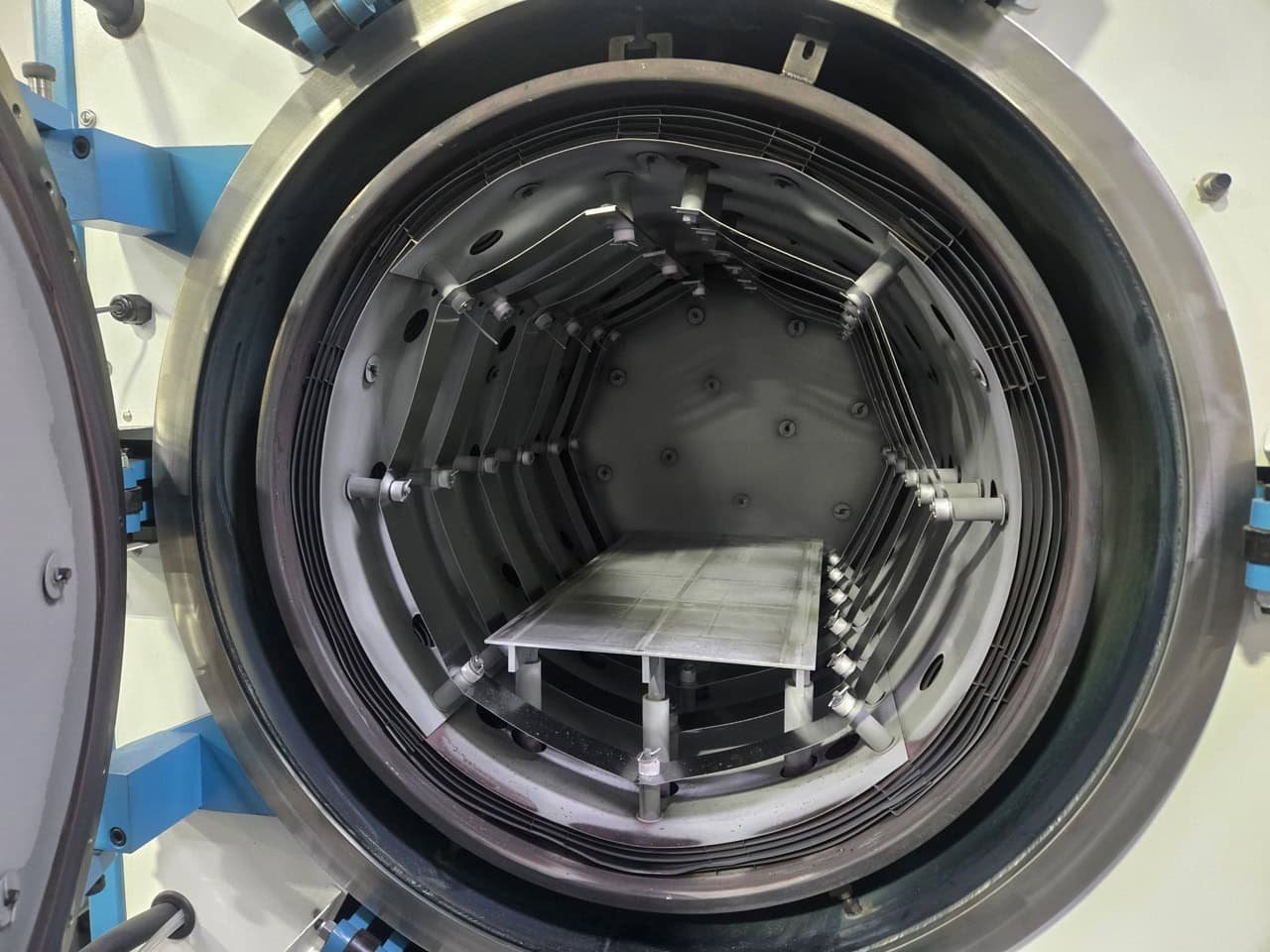

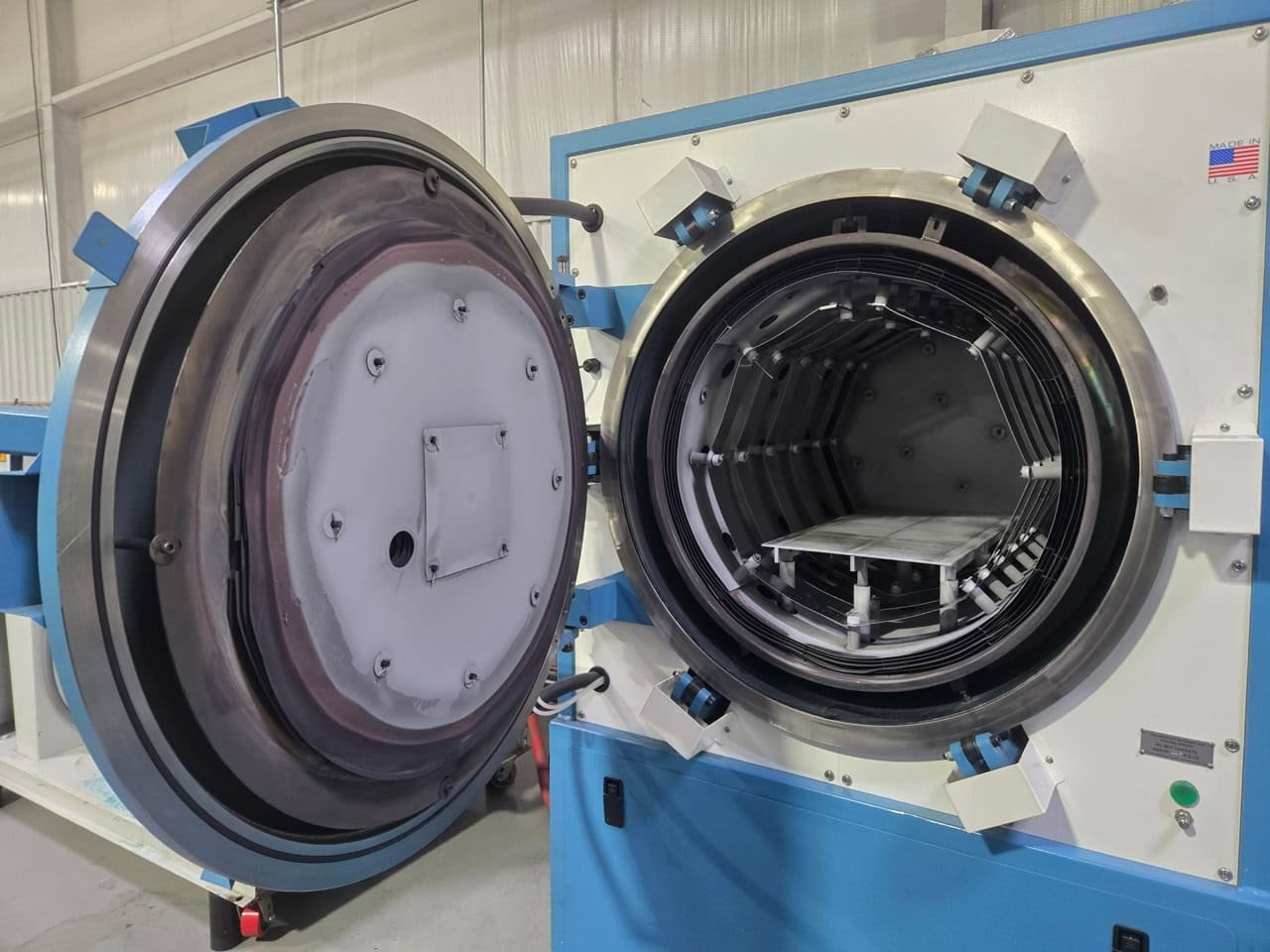

Removable hot zone
Heat Pack thermal shielding

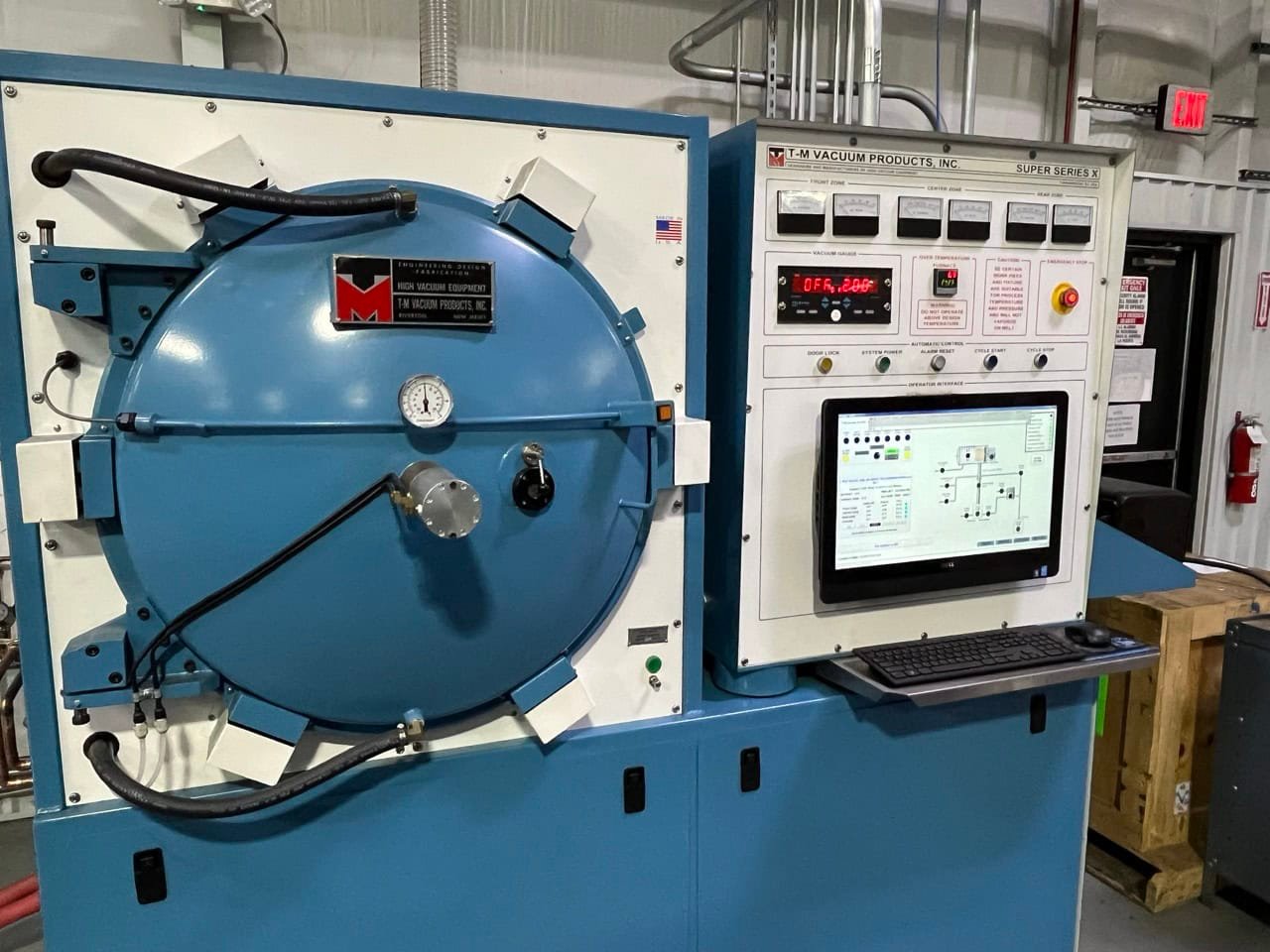

Control System:
PC-based full automation
Recipe storage and HMI interface (23″ touchscreen)
Data logging and Ethernet communication
UPS power backup
Pressure Range: High vacuum to 2 bar standard, up to 6 bar optional
