Description
Specifications

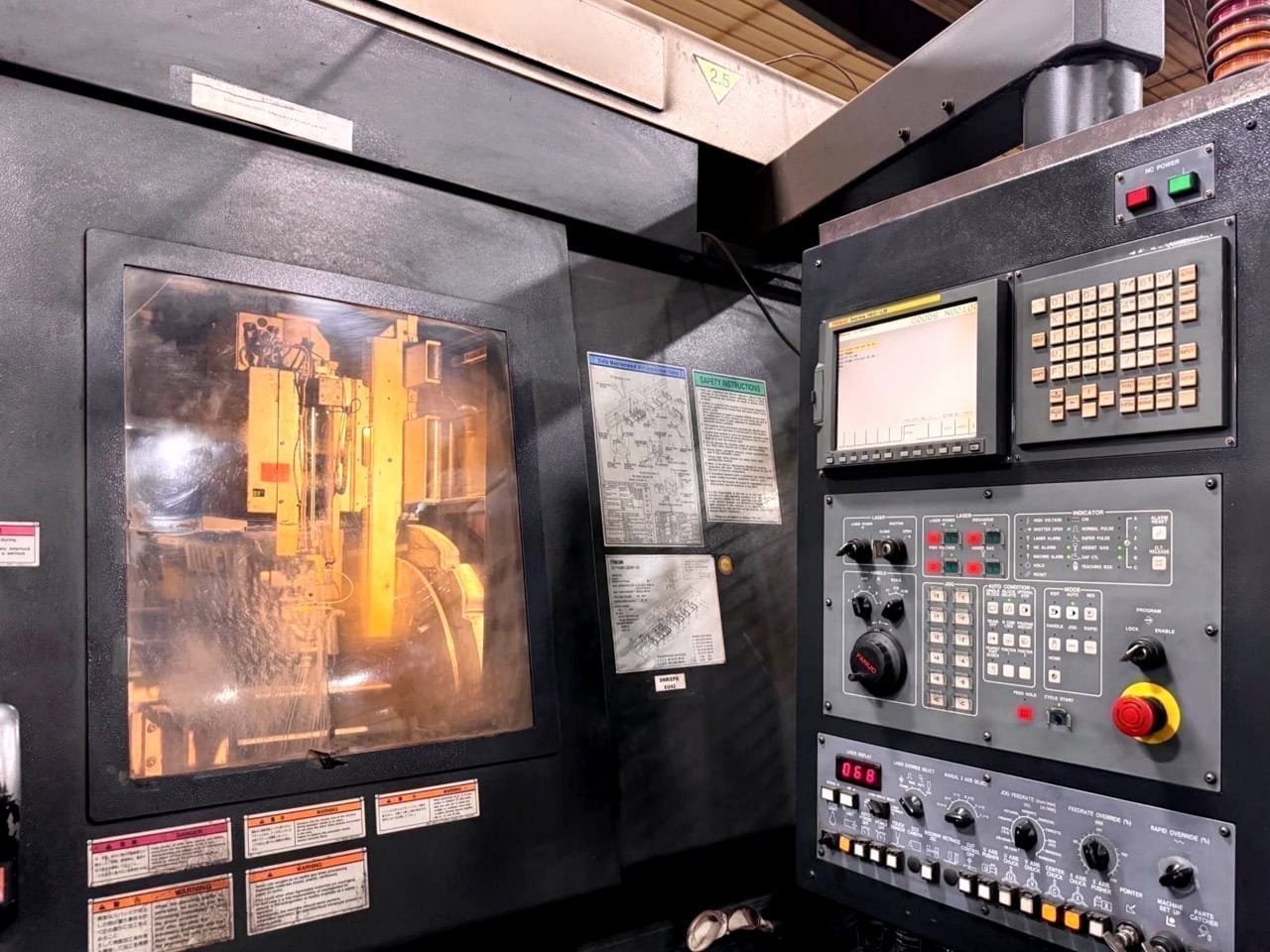

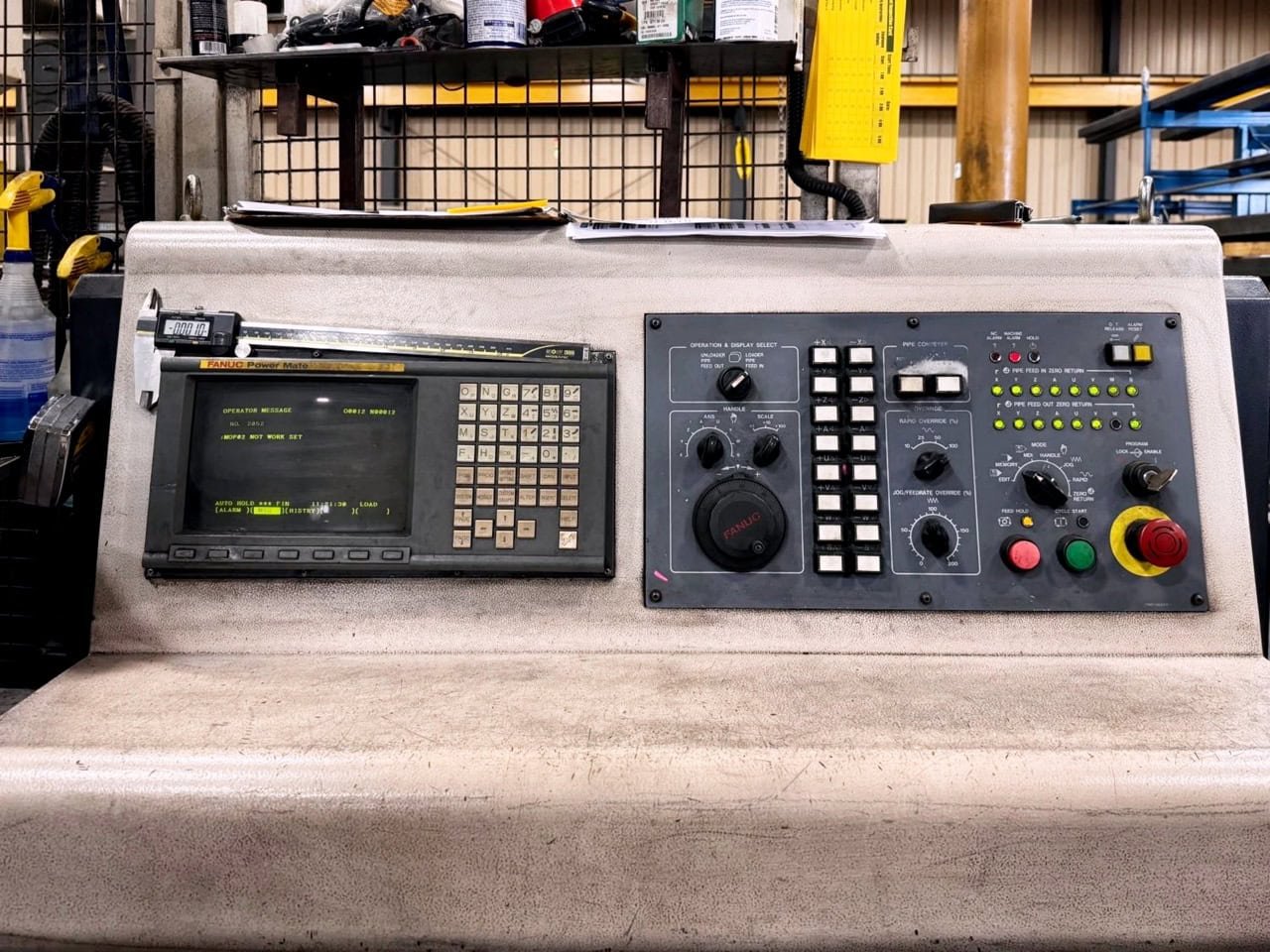

Control: Fanuc Series 160i-LB
Power Output: 2.5 KW
Cutting Head Type: 3D
Max Round Pipe Diameter: 6″
Max Material Length: 26′
Max Workpiece Weight: 728 lbs.
Number Of Programmable Axis: 6
Max Square Tube Size: 6″
Material Unloading: Automatic-5 Stations
Number Of Material Chucks: 4
X Chuck Left/Right: 352.6”
U Chuck Left/Right: 345.6”
V Chuck Left/Right: 91.14”
Y Head Back/Forth: 38.78”
Z Head Up/Down: 14.57”
A Head Rotation: ± 360 Degrees
B Head Swing: ±135 Degrees

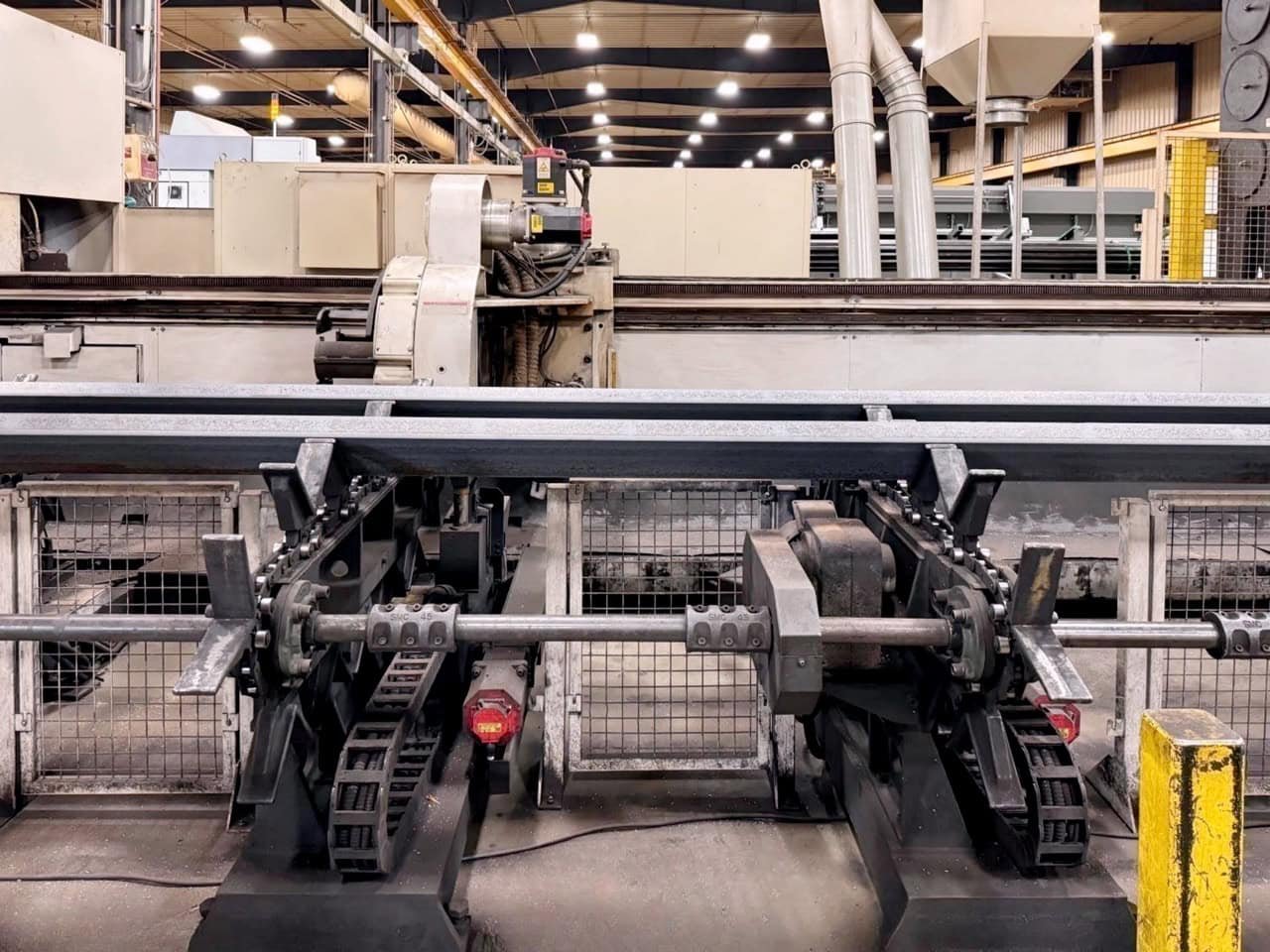

Material Loading: Automatic-5 Stations
Other Profile Capabilities: C, I/H Beam, Angle
Equipped With:
Fanuc Series 160i-LB

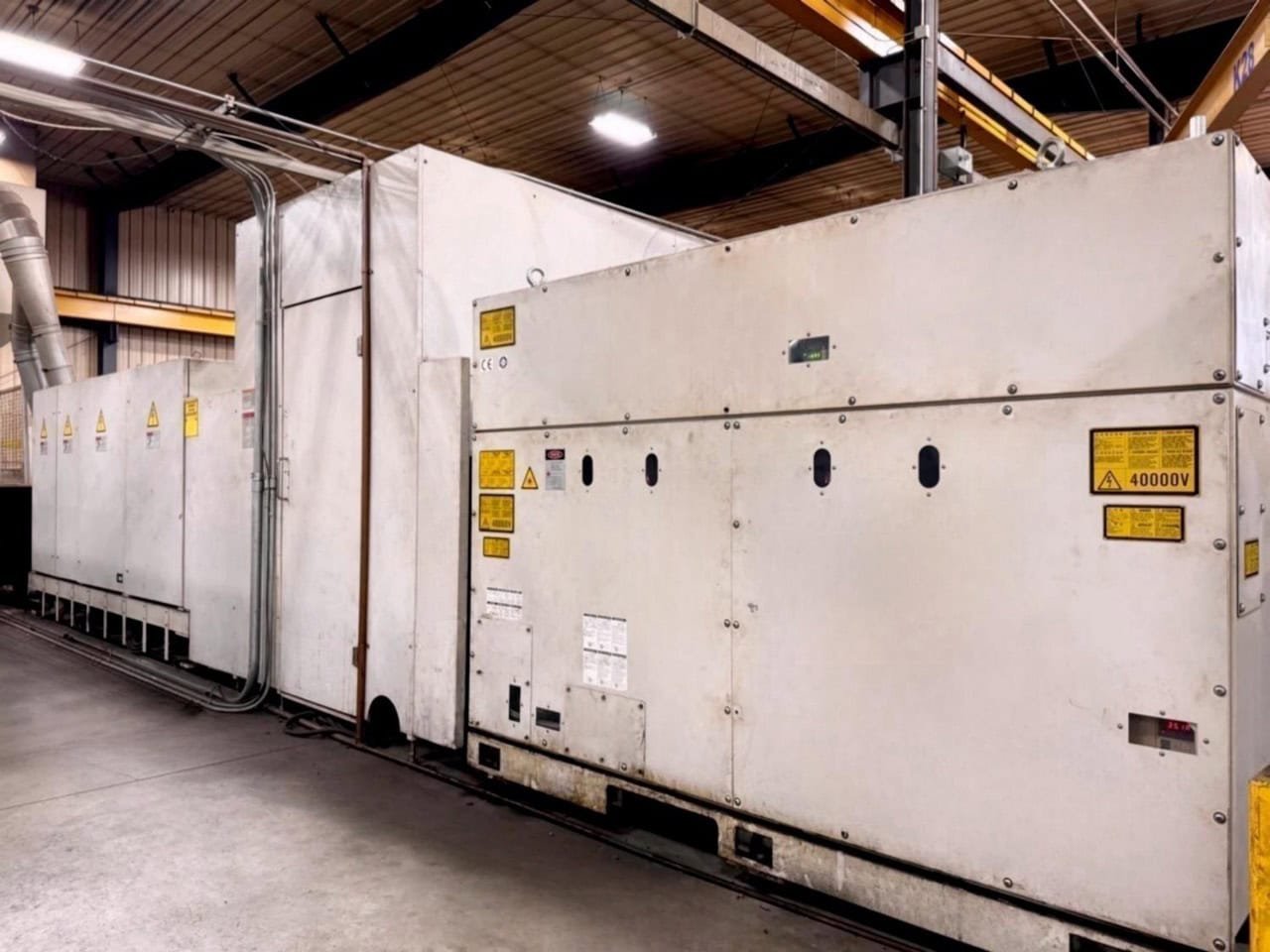

2.5 KW Resonator

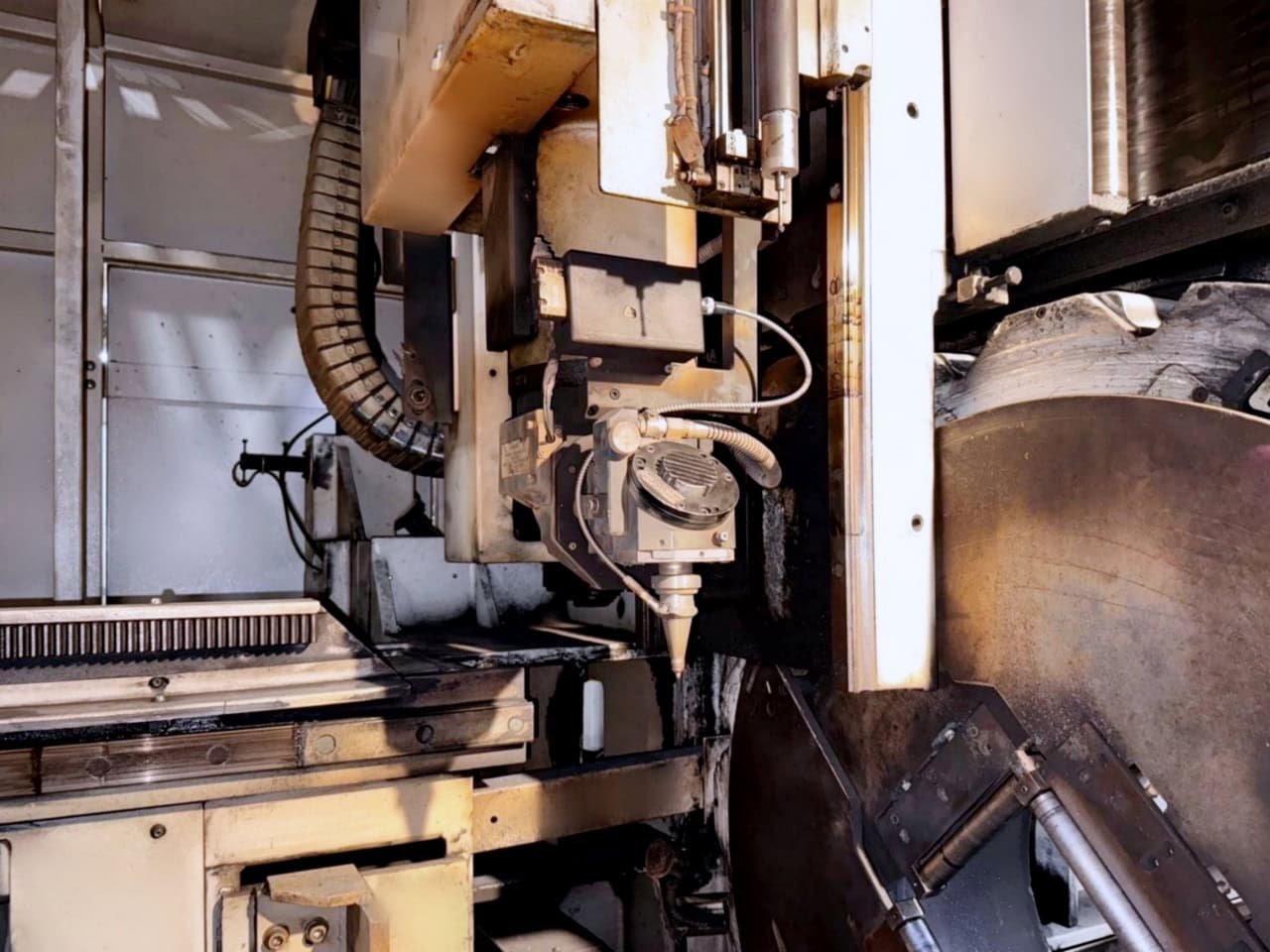

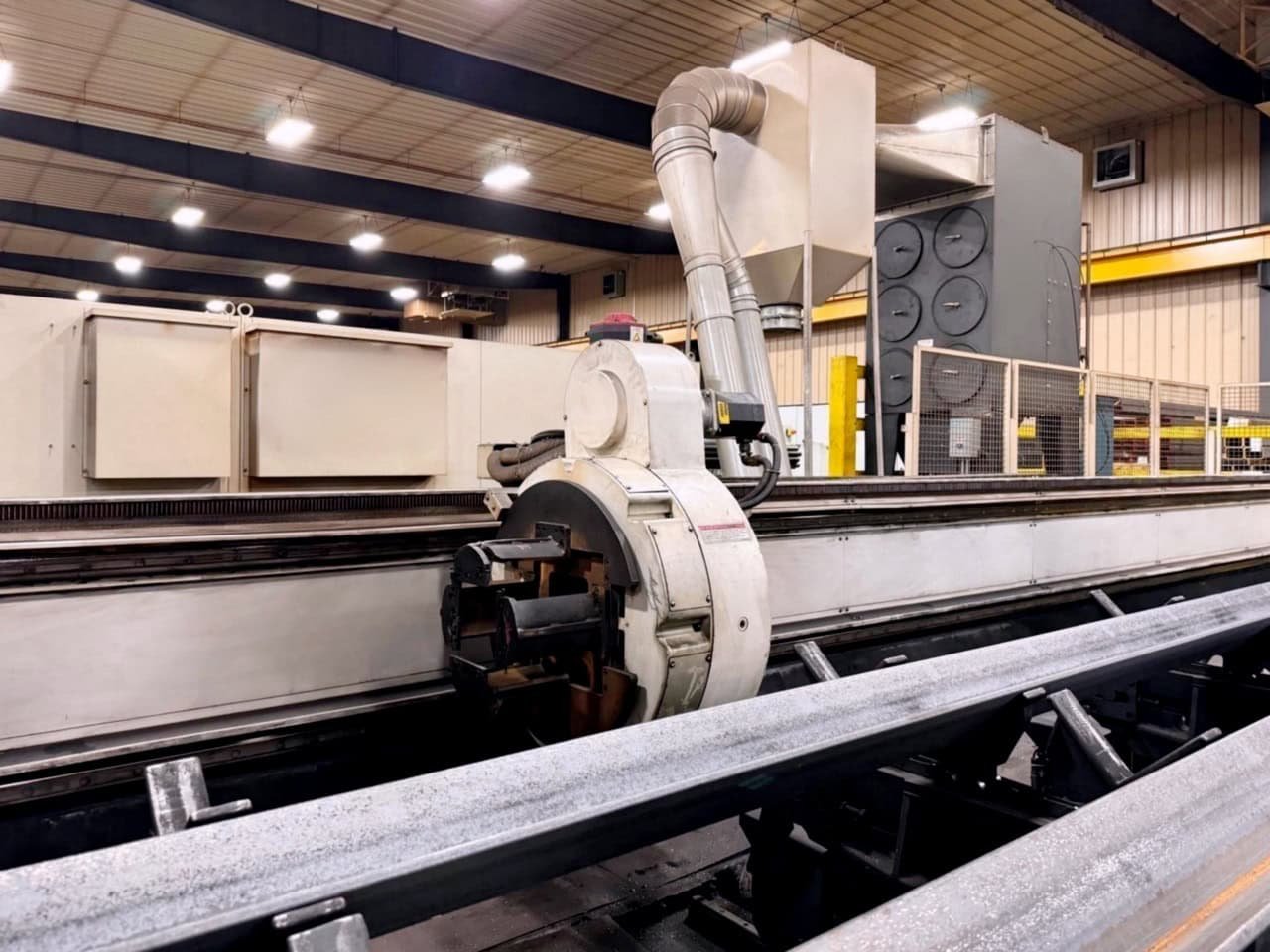

3 D Cutting Head
6 Programmable Axis

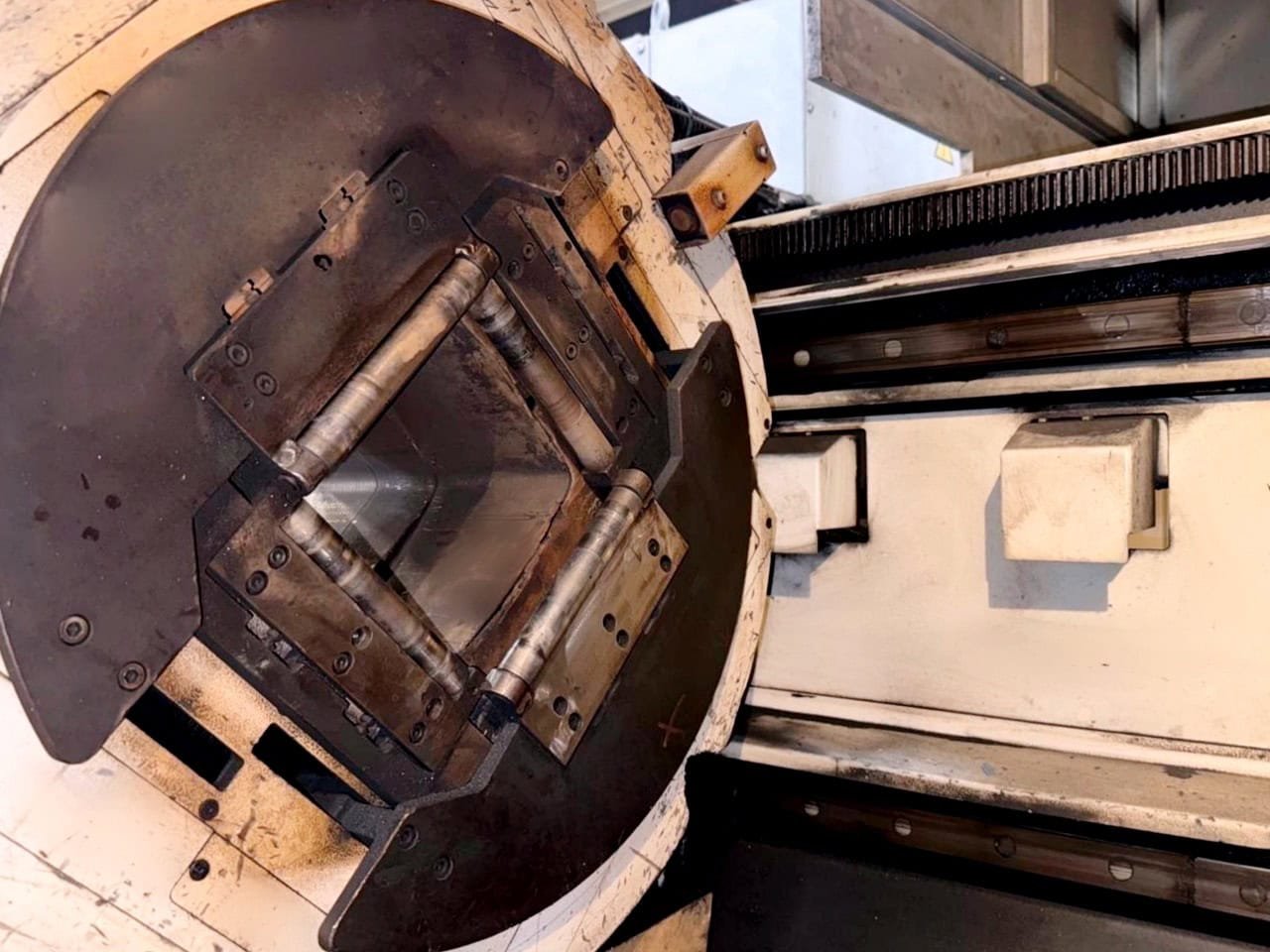

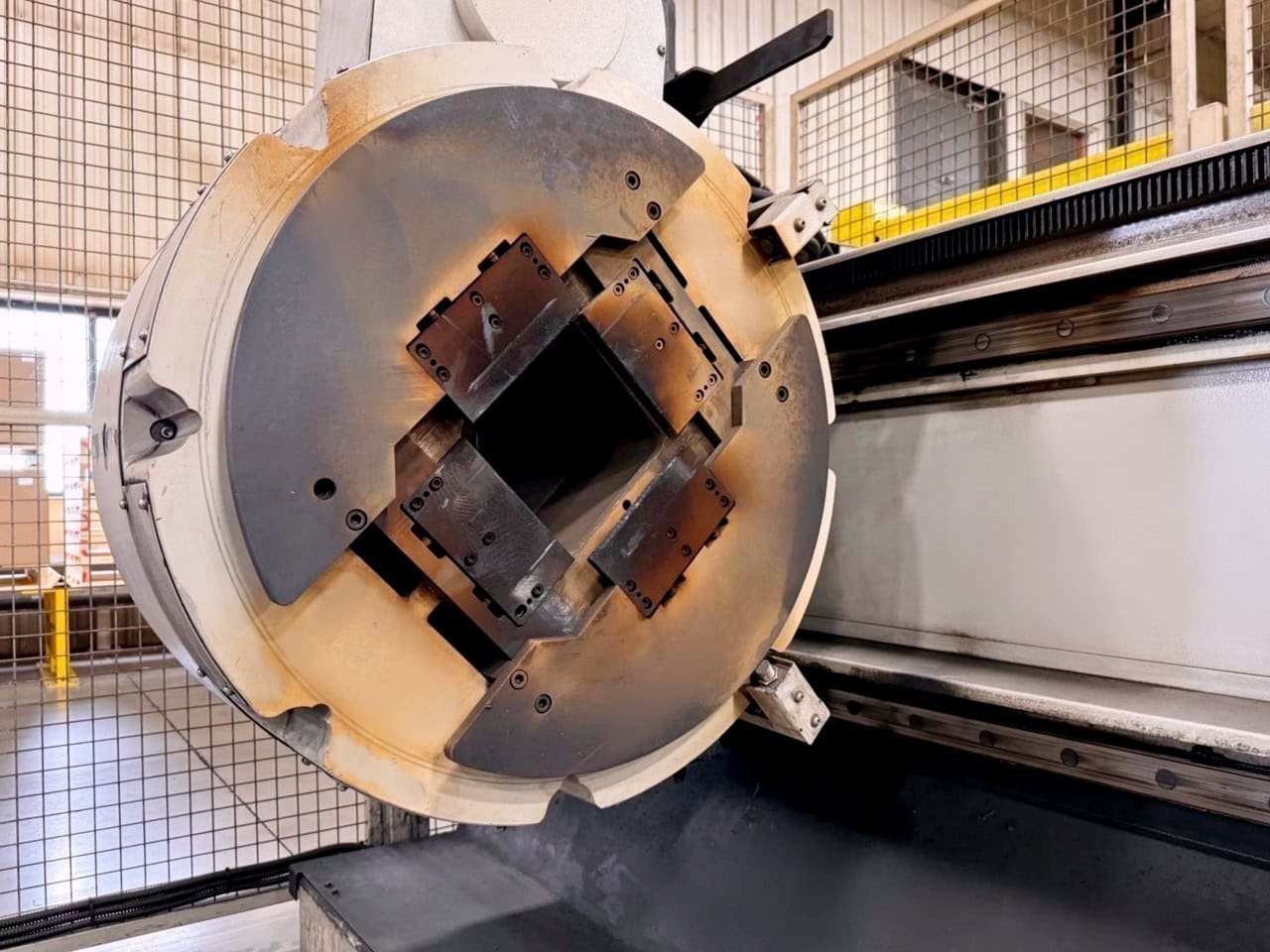

(4) Material Chucks
Work Piece Clamping Chucks

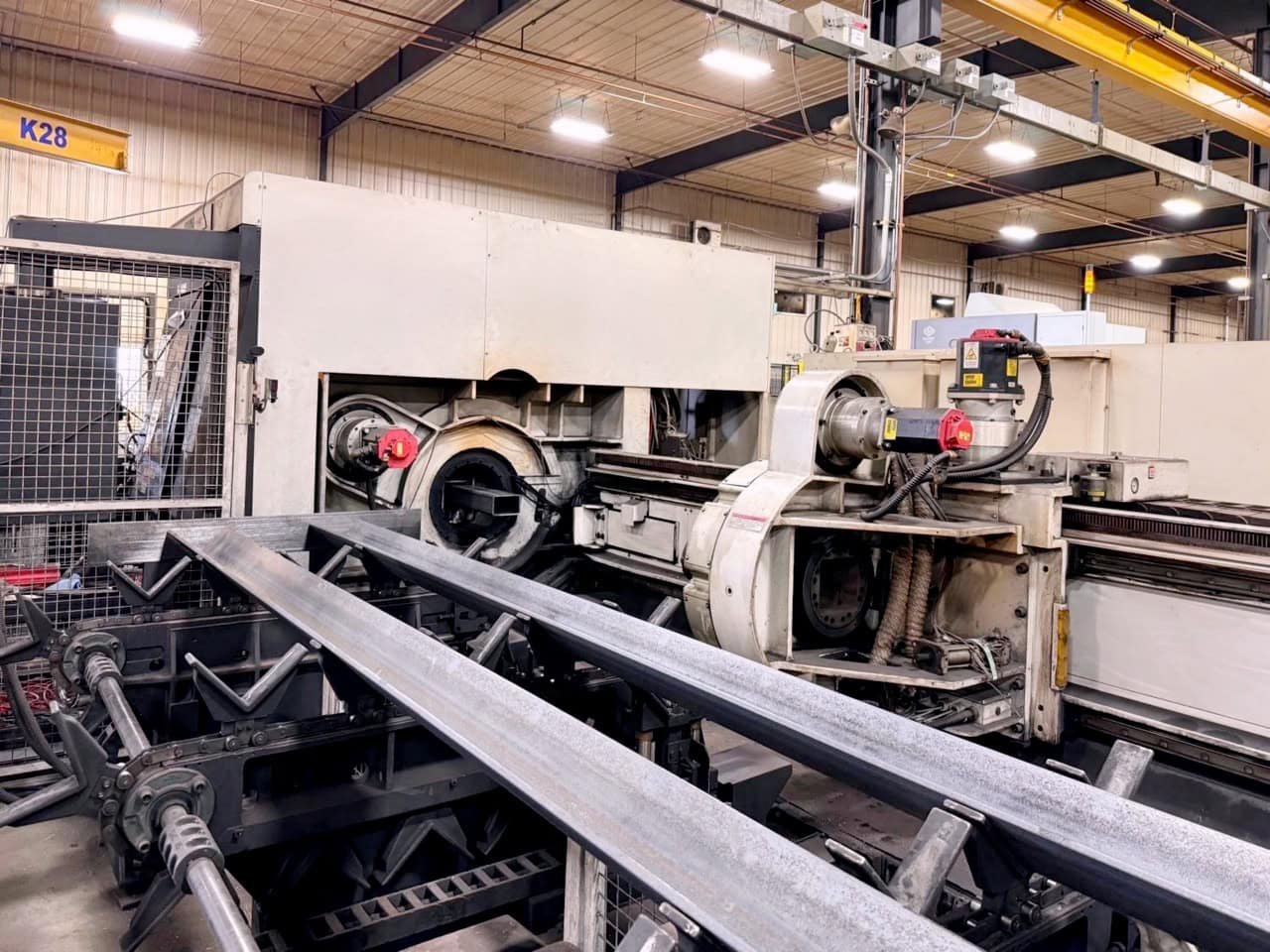

Auto Load/Unload
Auto Feed
Auto Pipe Measurement
Auto Profile Centering

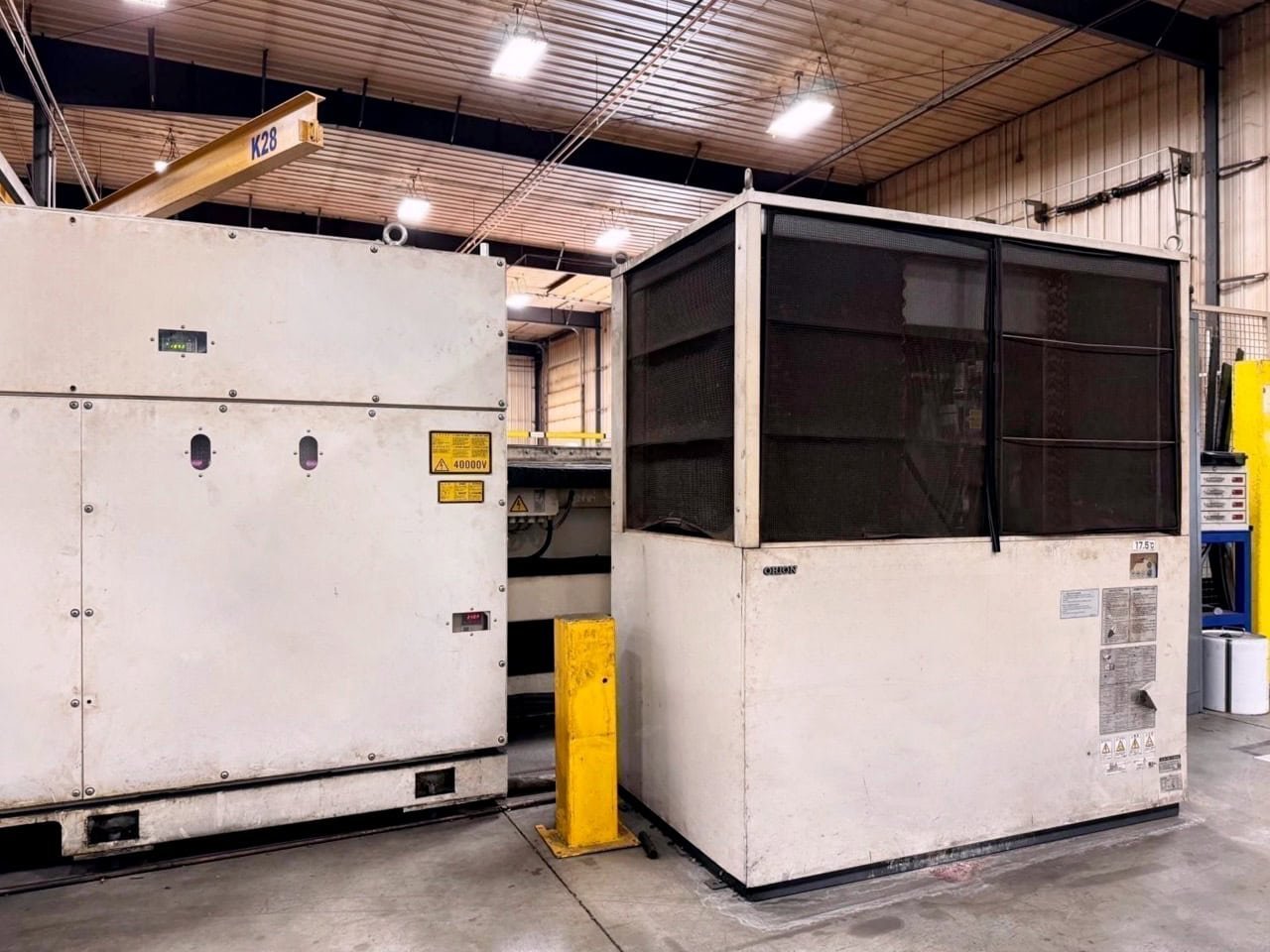

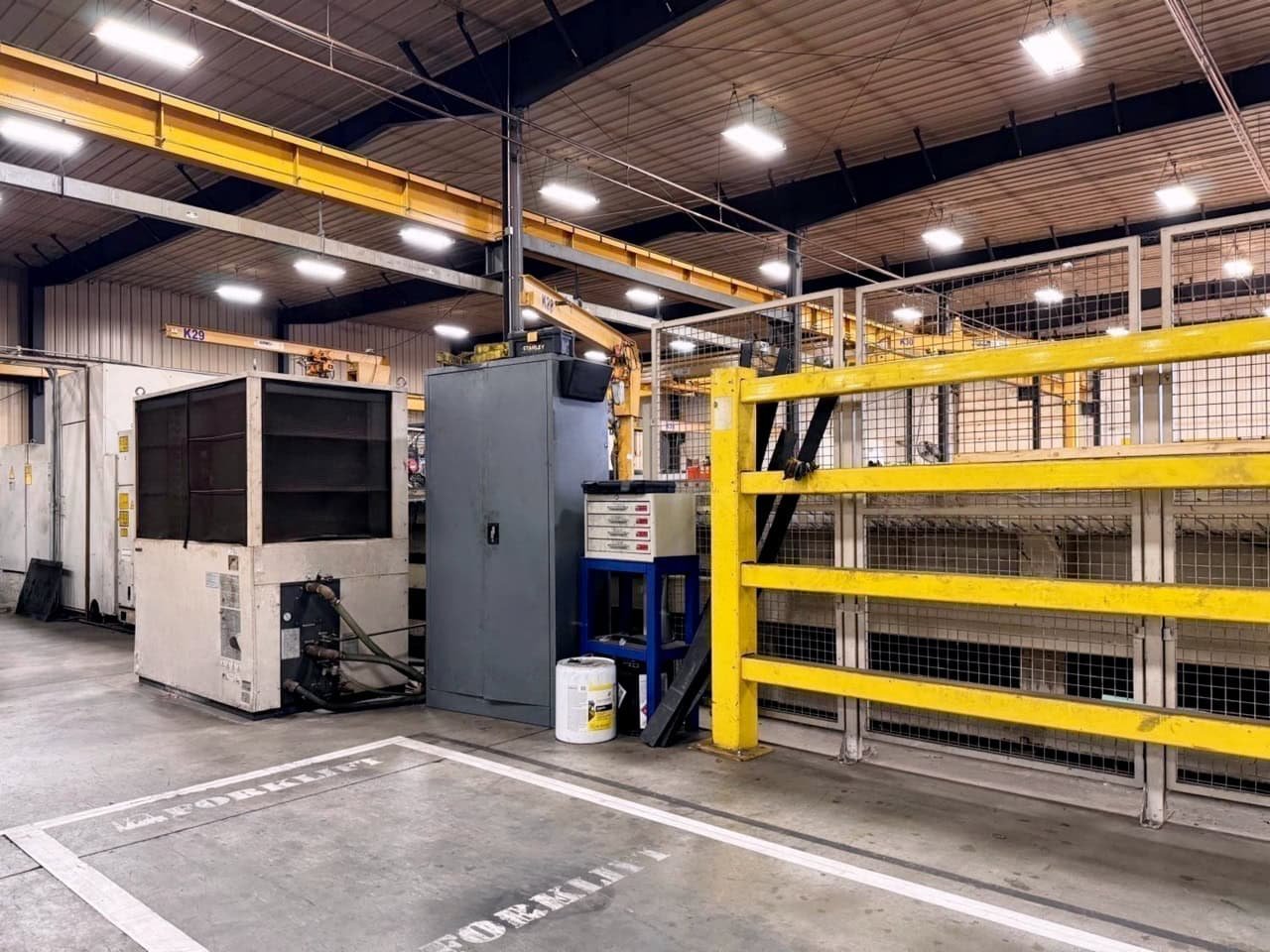

Chiller Unit
