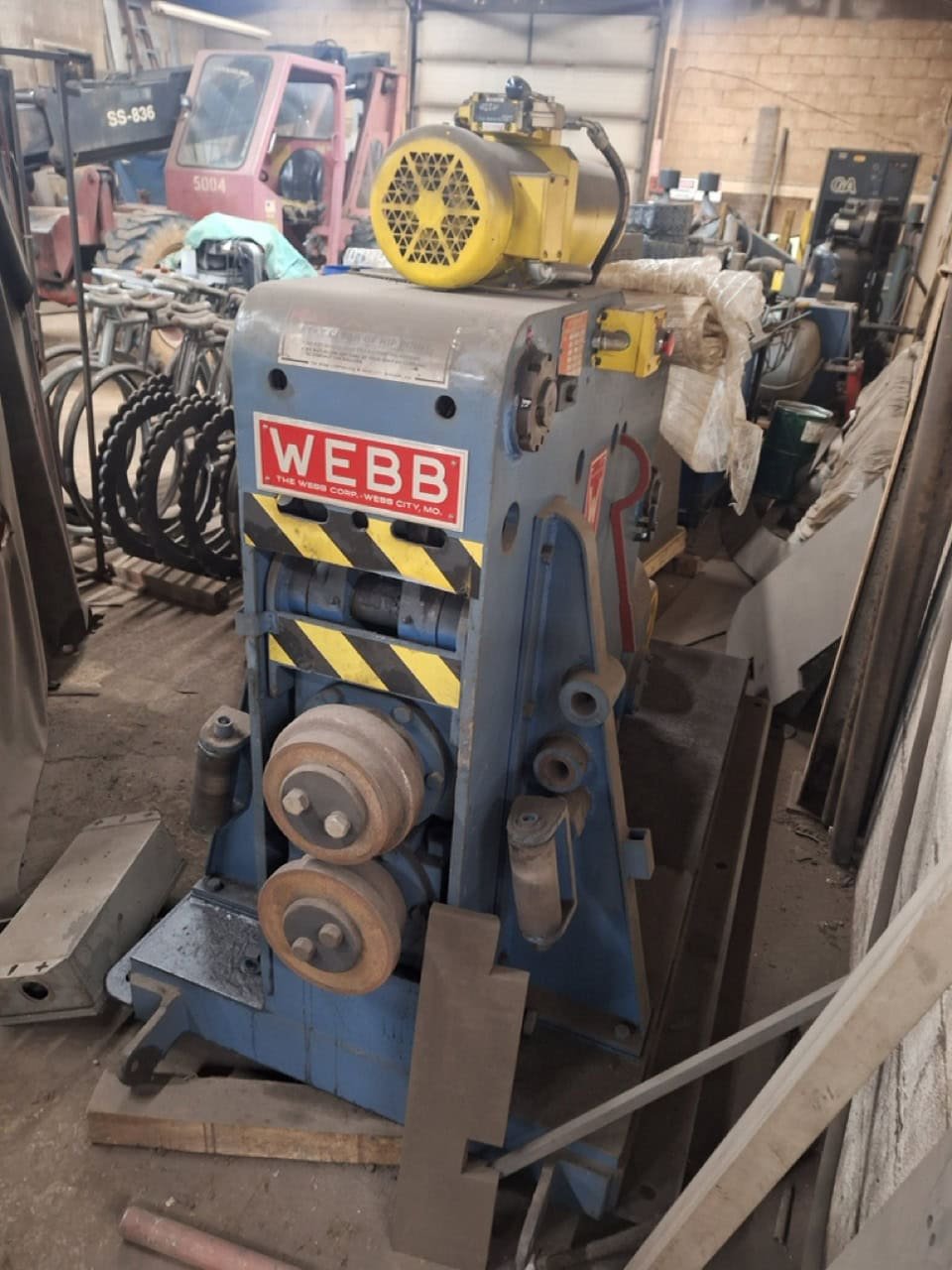

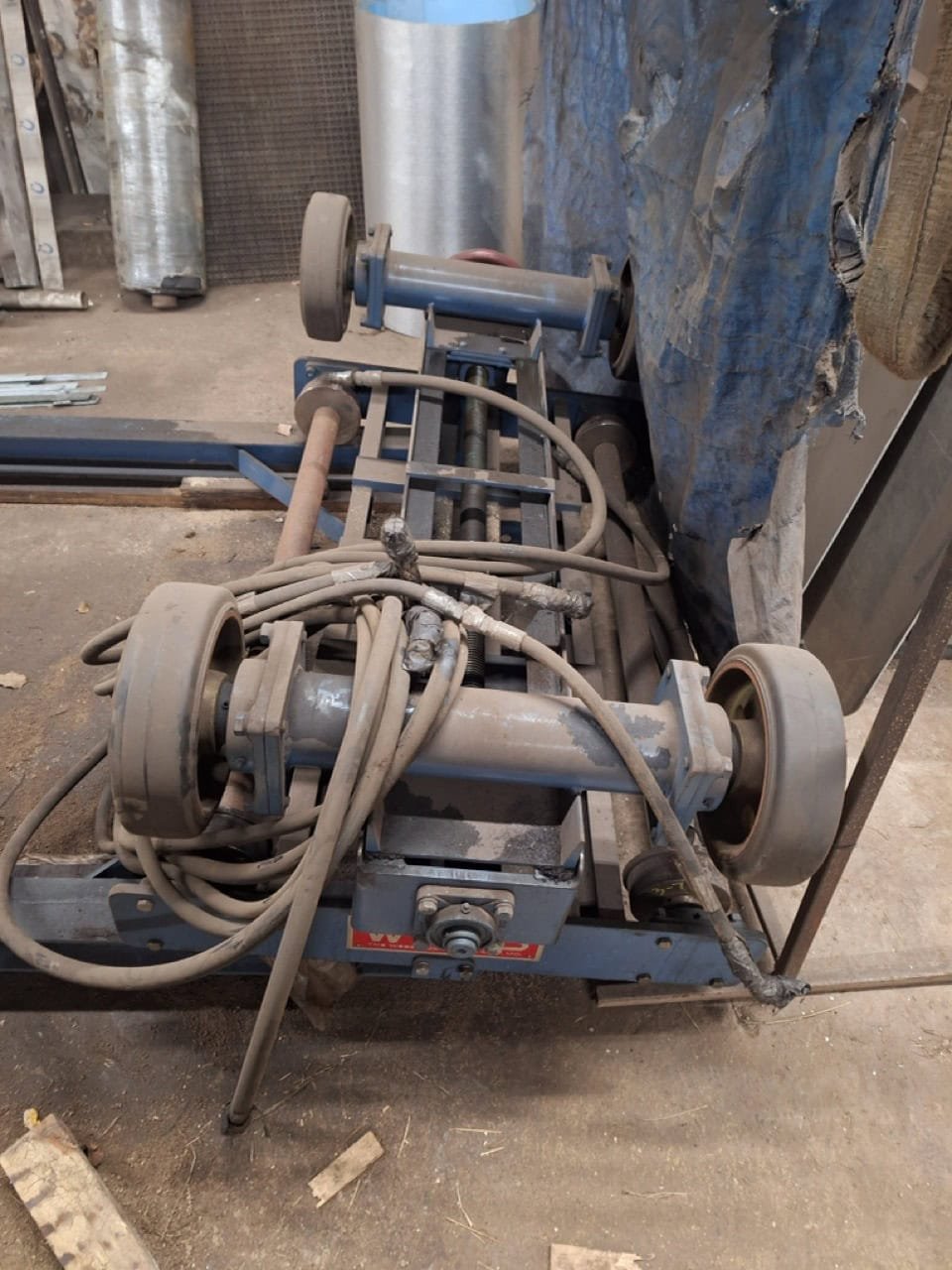

3/8″ Webb M4T3 Offset Forming Machine, 1961/2011 – Factory Refurbished, Non Rotating
3/8″ Webb M4T3 Offset Forming Machine, 1961/2011 – Factory Refurbished, Non Rotating - Image 2
3/8″ Webb M4T3 Offset Forming Machine, 1961/2011 – Factory Refurbished, Non Rotating - Image 3
3/8″ Webb M4T3 Offset Forming Machine, 1961/2011 – Factory Refurbished, Non Rotating - Image 4

3/8″ Webb M4T3 Offset Forming Machine, 1961/2011 – Factory Refurbished, Non Rotating

€ 49.900,00

Max Material Thickness: 3/8″ Min Thickness With Std. Dies: 1/8″ Min to Max Material Opening: 1/8″ Std No. of Material Settings: 5 Rolling Speed: 24 fpm Min Shell Diameter: 18″ Max Shell Diameter w/ Turntable: 6″ Roll Motor: 7.5 HP Adjusting Motor: 1.5 HP Turntable Capacity: 3000 lbs Approximate Shipping Wt: 4500 lbs Approximate Shipping […]

SKU: 33145804115
Category:

Description

Max Material Thickness: 3/8″
Min Thickness With Std. Dies: 1/8″
Min to Max Material Opening: 1/8″
Std No. of Material Settings: 5
Rolling Speed: 24 fpm
Min Shell Diameter: 18″
Max Shell Diameter w/ Turntable: 6″
Roll Motor: 7.5 HP
Adjusting Motor: 1.5 HP
Turntable Capacity: 3000 lbs
Approximate Shipping Wt: 4500 lbs
Approximate Shipping Wt Turntable: 900 lbs
Overall Length w/o Turntable: 86″
Length With Turntable: 182″
Overall Height: 56″
Overal Width: 44.5″
