Description
Worktable X Y: (mm) 3048 x 1524
Z axis stroke: (mm) 150
Technical specifications:
Maximum positioning speed: (m/min) 120
Positioning tolerance: (mm) ‡0.1
Focusing lens: 5″ and 7.5″ with autofocus
Assist gases: nitrogen, oxygen and auxiliary
Maximum pressure at the nozzle: (bar) 20
Laser source:
Type of source: CO,- SLAB
Method of excitation: radio frequency
Maximum power: (W) 3000
Power regulation: (W) 300 – 3000
Quality factor: K>0.9
Consumption of premixed laser gas: (NI/h) <0.2^3
Cutting capacity: (thicknesses) 0.5 – 20
Steel: (mm) 0.5 – 20
Stainless steel, with or without protective film: (mm) 0.5 – 10
Aluminium: (mm) 0.5 – 6
Equipped With:

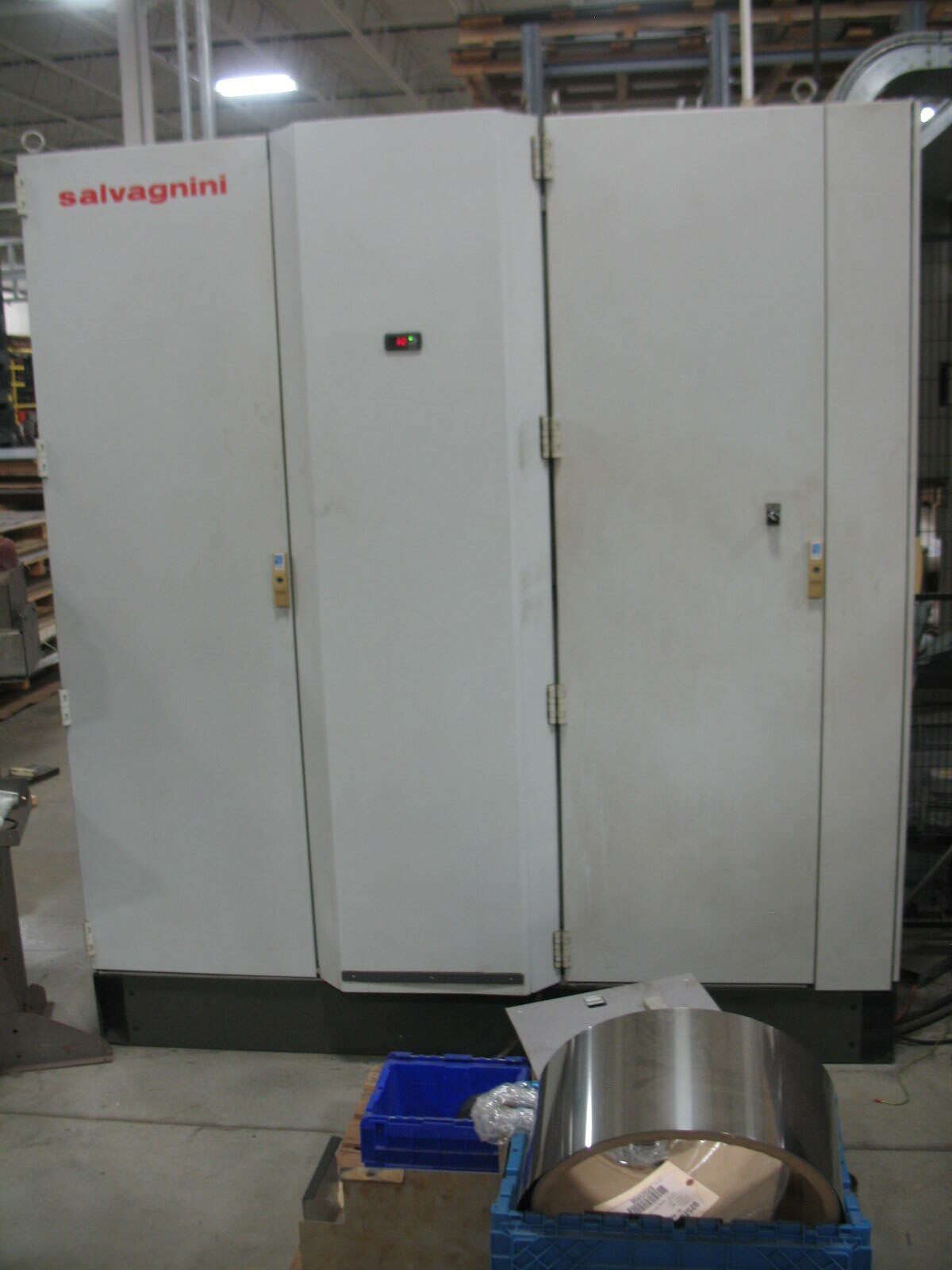

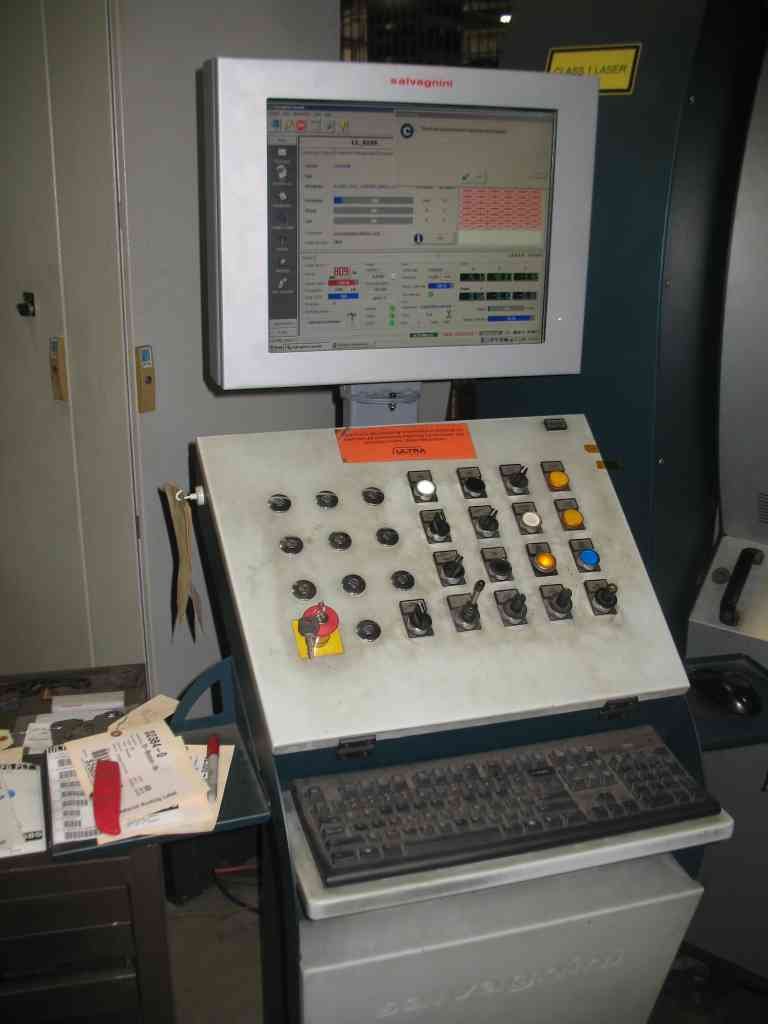

CNC control: SALVAGNINI

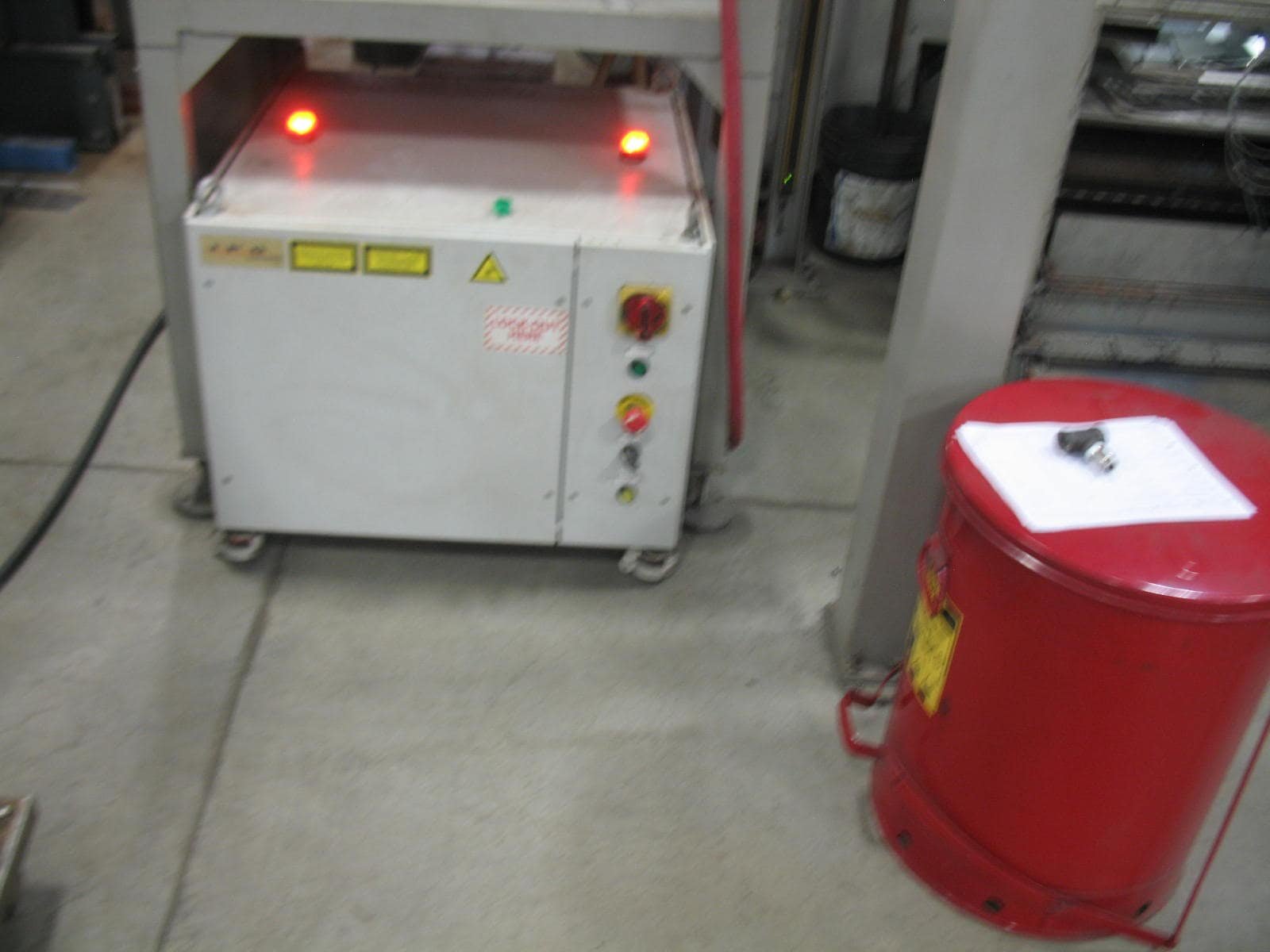

Laser source: IPG
Semi-automatic sheet loading system

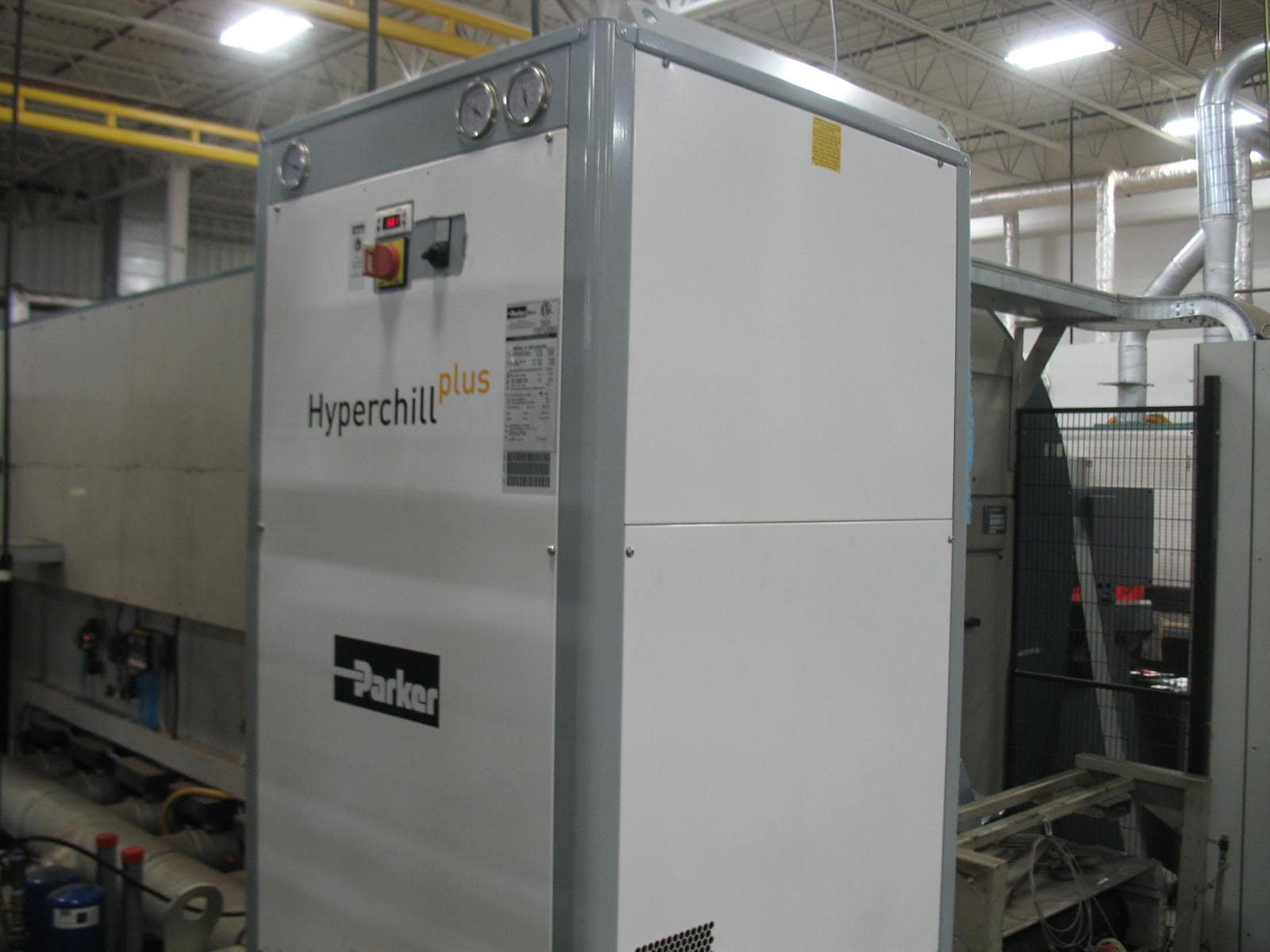

Machine cooling system: Parker Chill- ICEP010-WAGP3T0000000

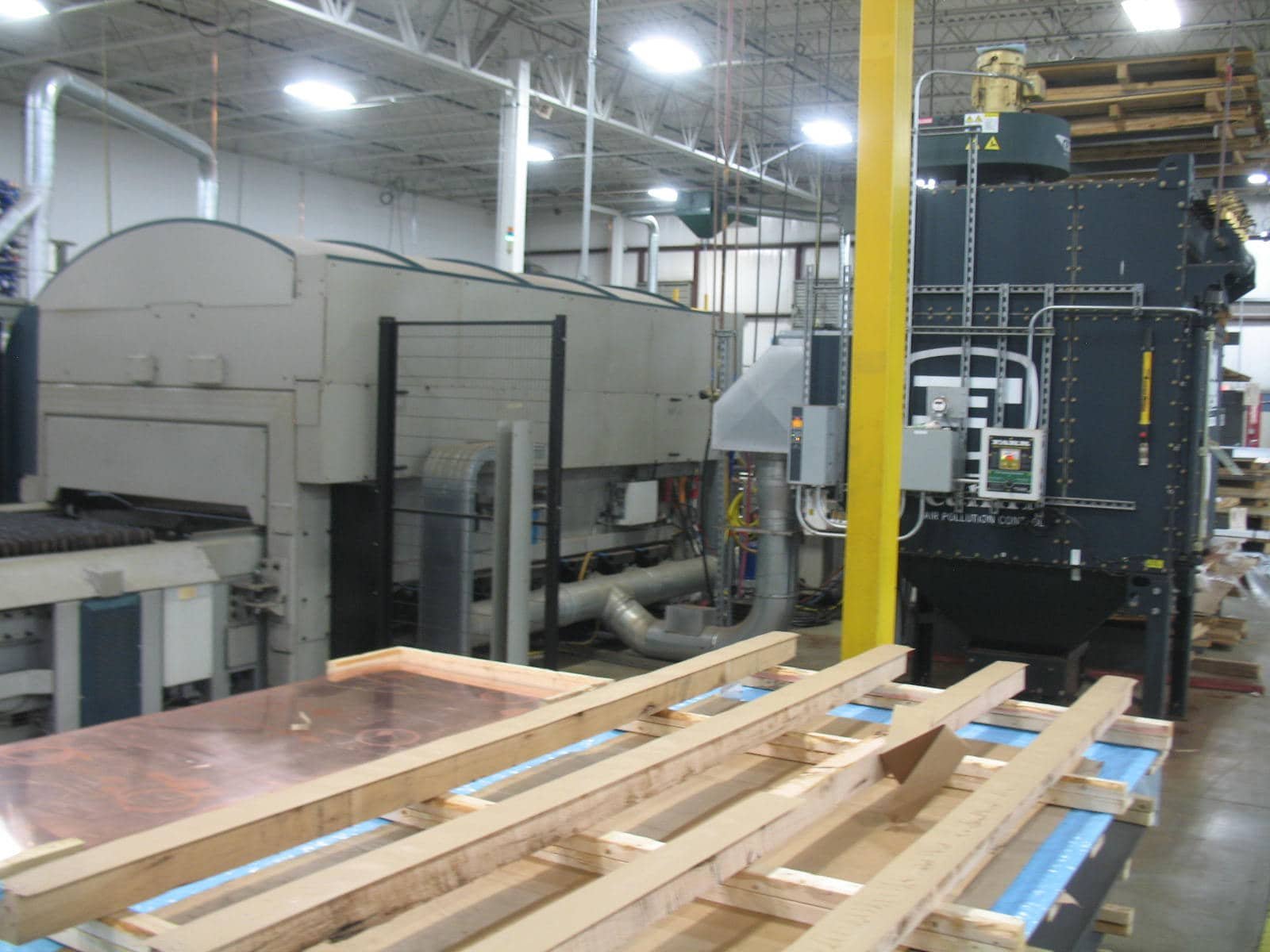

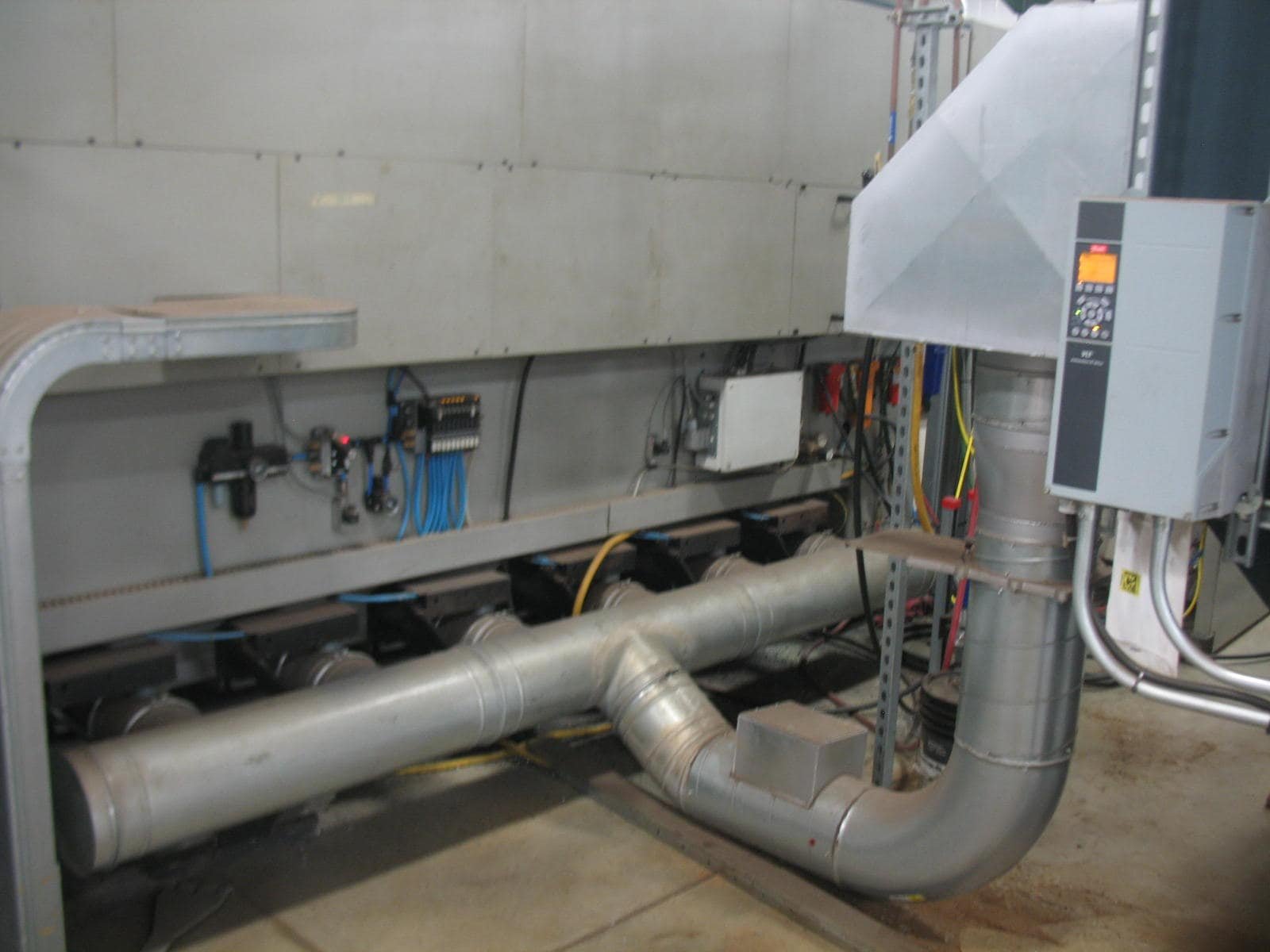

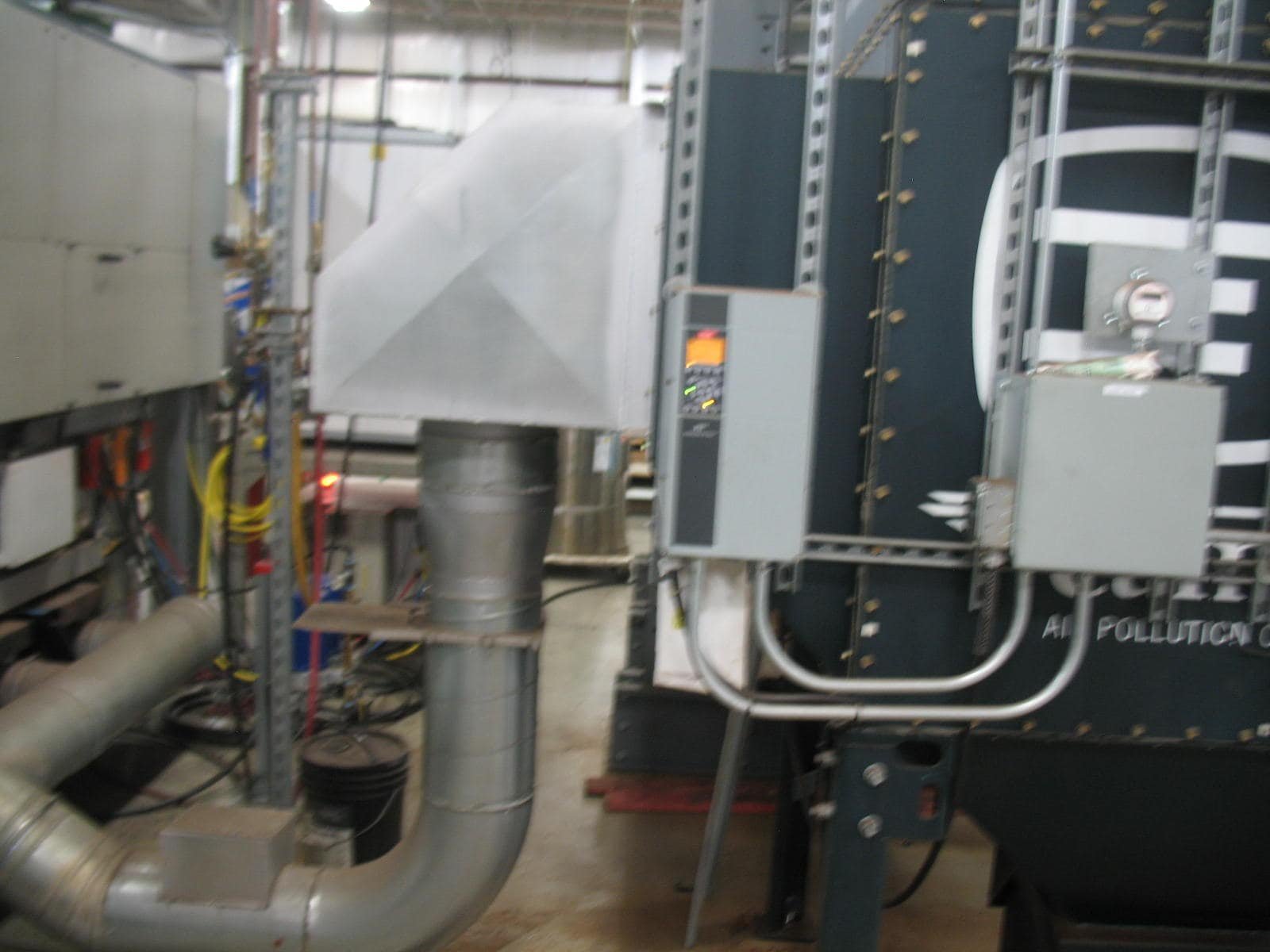

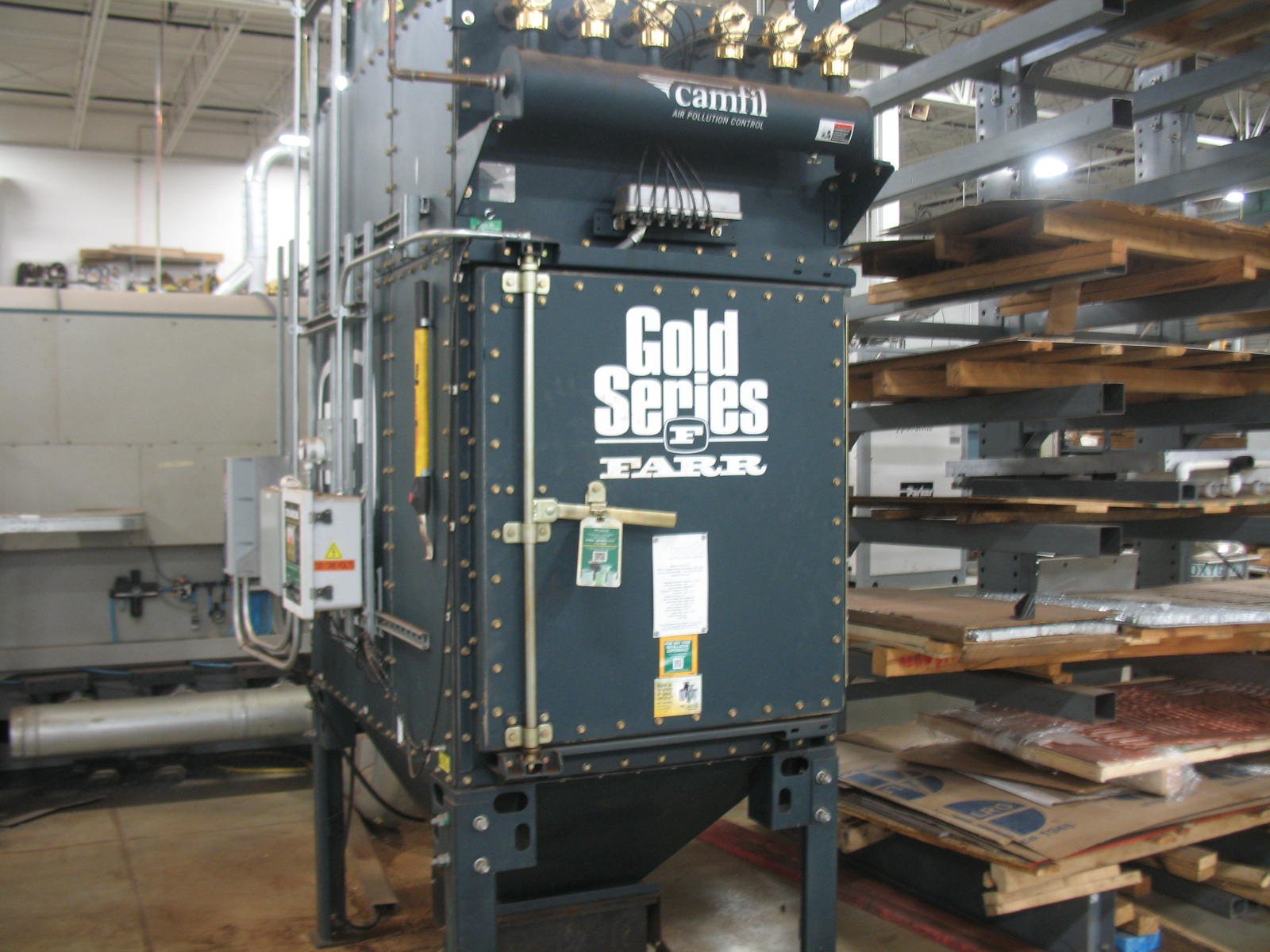

Dust extraction system: AMFIL FARR GOLD SERIES COLLECTOR MODEL GS6

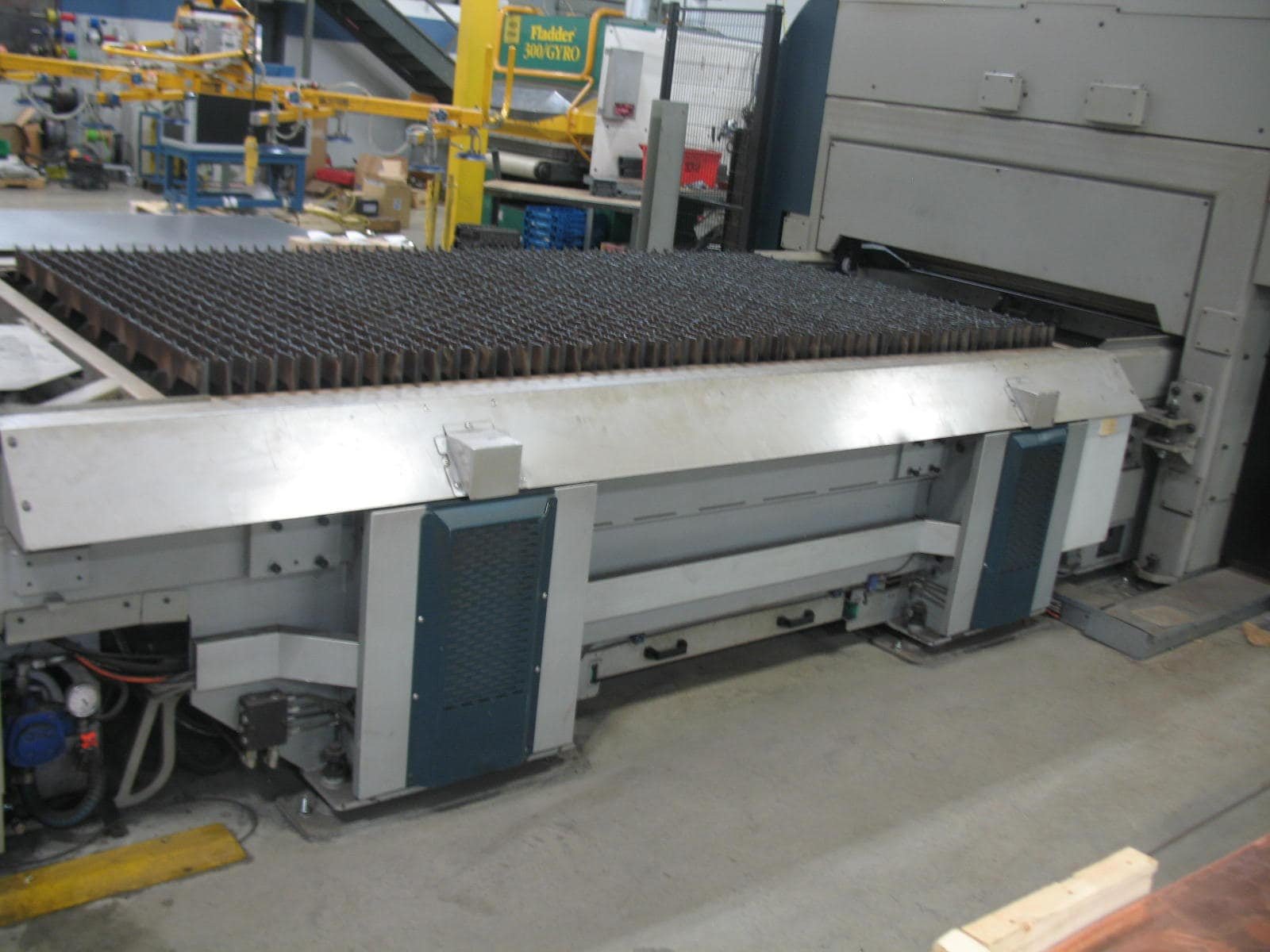

Interchangeable tables
