Description
Features

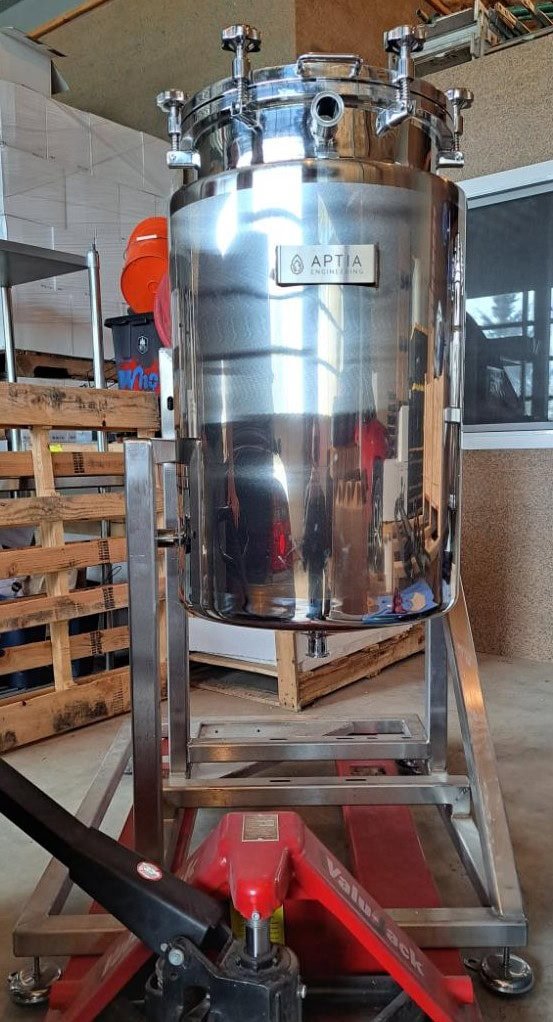

35 Gallon / 132 Liter tank volume
Rated for full vacuum and +15 PSI internal pressure (not an ASME pressure vessel)
Designed with top mount glass manway for process observation
Dimpled jacket
Insulation under exterior stainless-steel skin

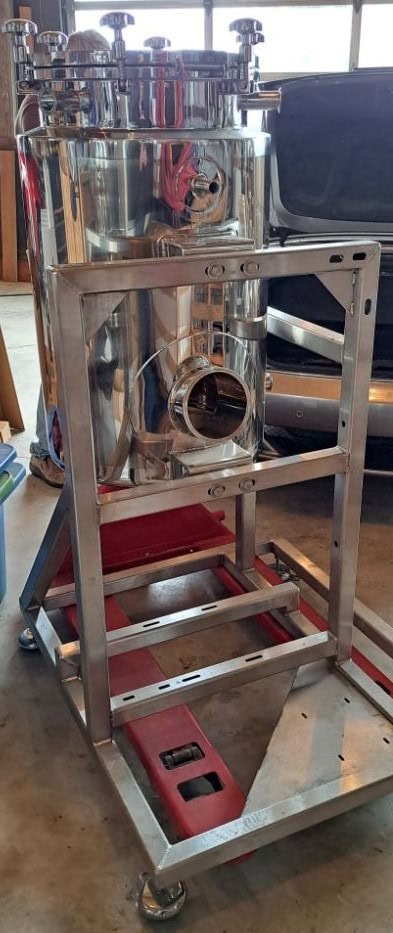

Reinforced 6″ TC side-entry nozzle for side-mount agitator
Full diameter top manway can be completely removed for easy cleaning
Approx. Support Frame & Tank Dimensions: ~50” L x 36” W x 65″ H
Port Locations
· Top Ports:

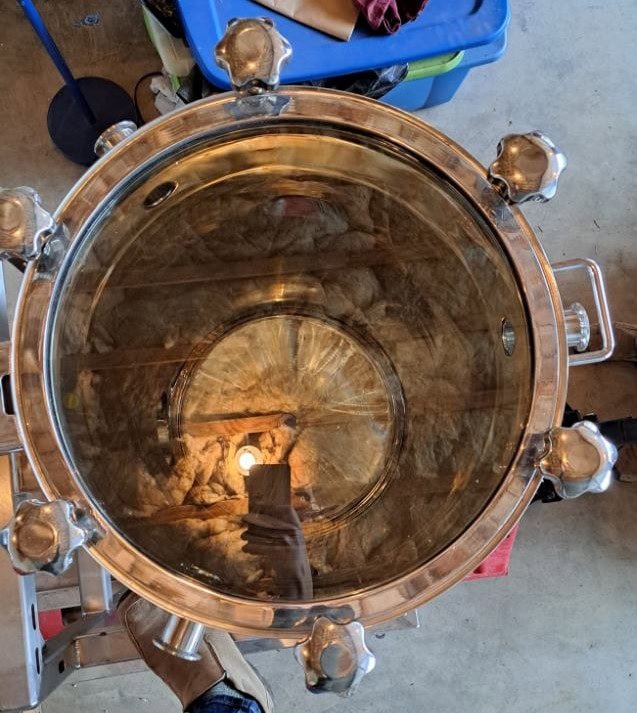

QTY1 – 18” Top Manway (completely removable)
· Side Ports:
QTY3 – 1.5” TC (located up high on side of tank)
QTY1 – 1.5” TC (located down low through side of tank)
QTY1 – 6” TC (reinforced for mixer mount)
QTY1 – 3/4” MNPT Heating / Cooling Media Outlet (located up high on side of tank)

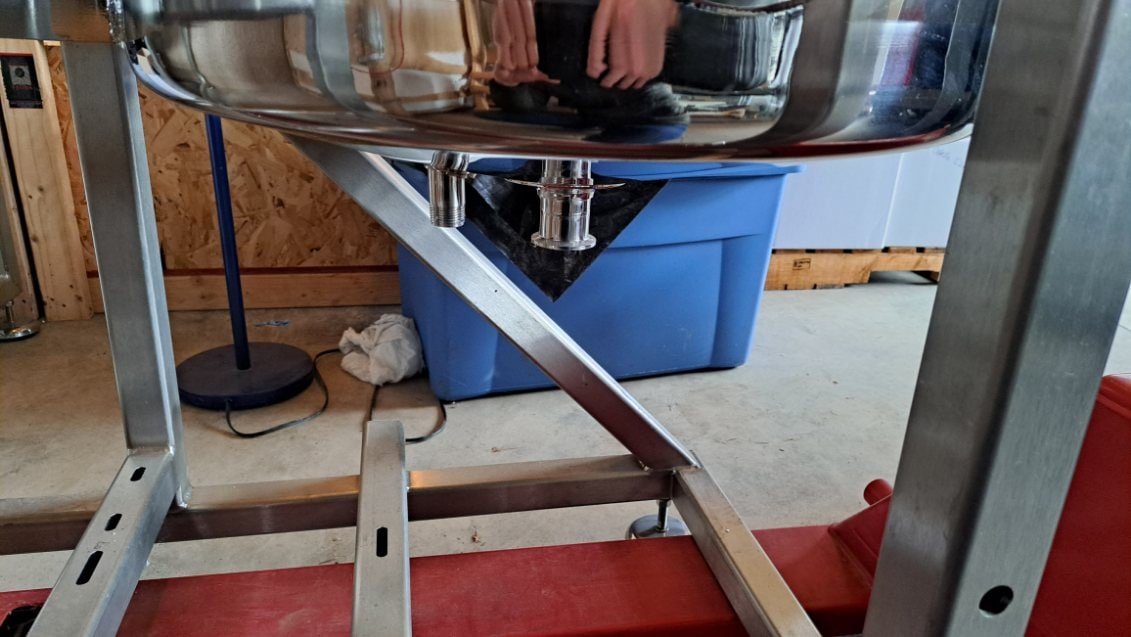

· Bottom Ports:
QTY1 – 1.5” TC (center bottom drain)
QTY1 – 3/4” TC Heating / Cooling Media Inlet
Additional specs available upon request, just let us know.
