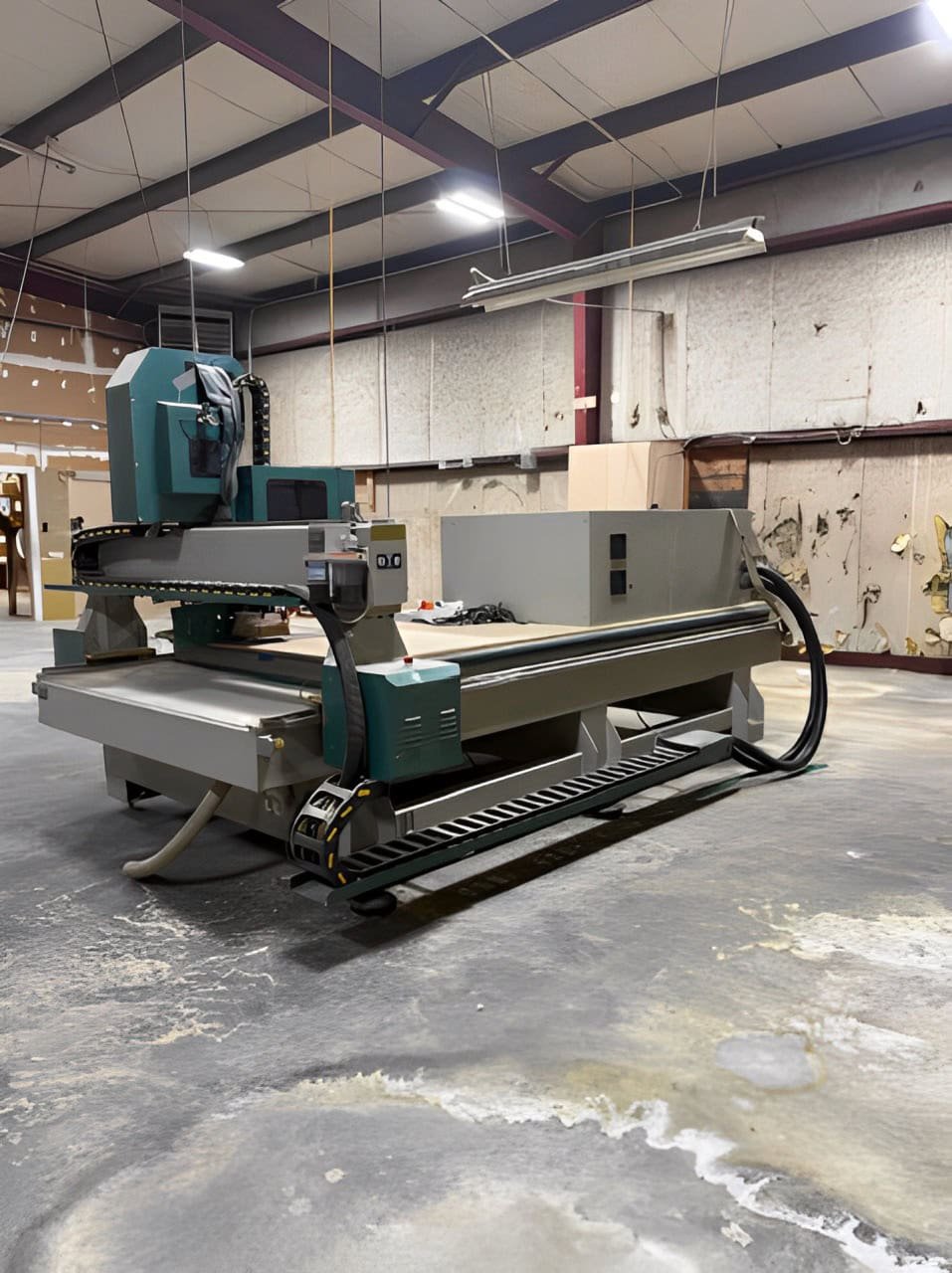

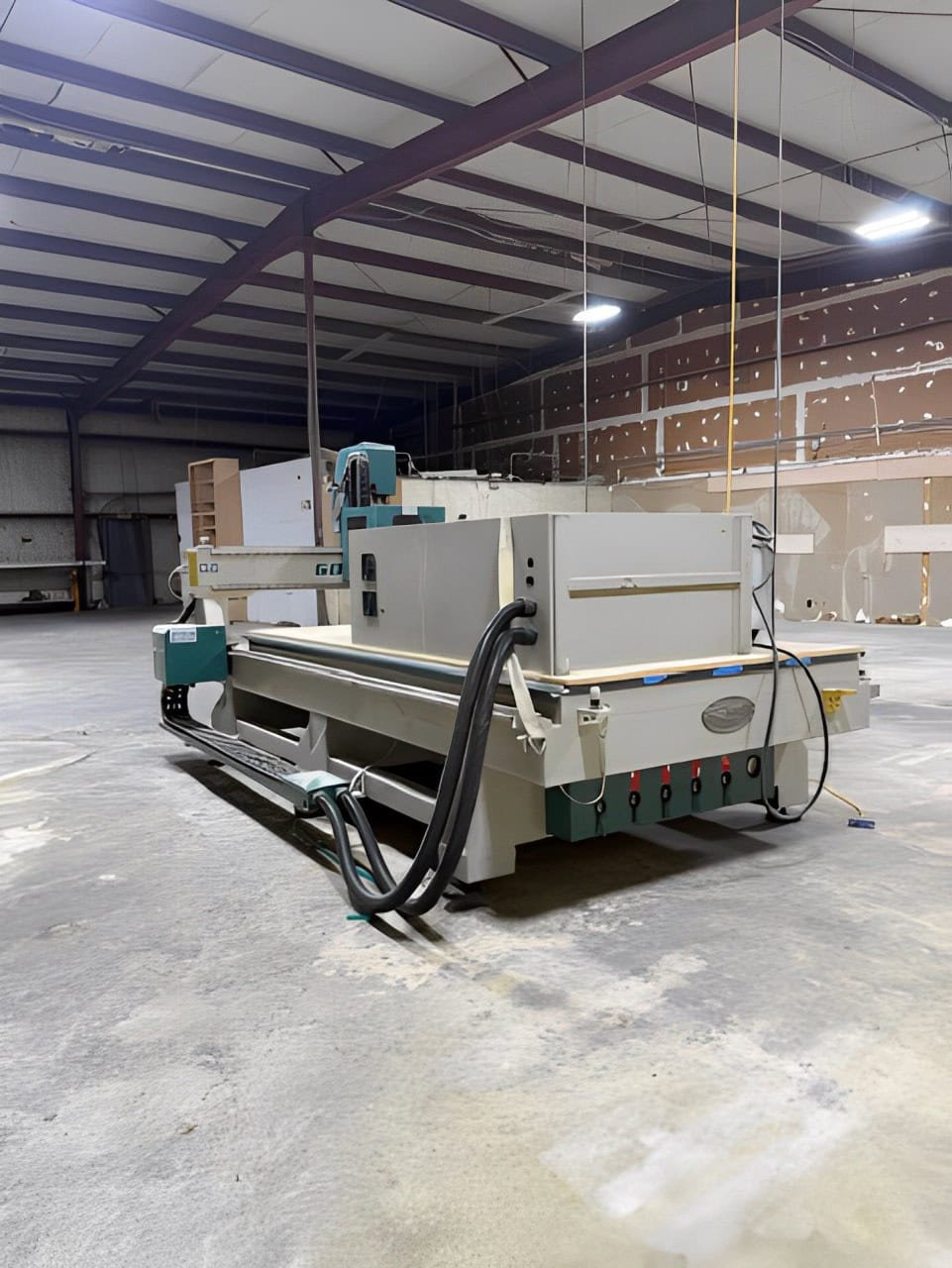

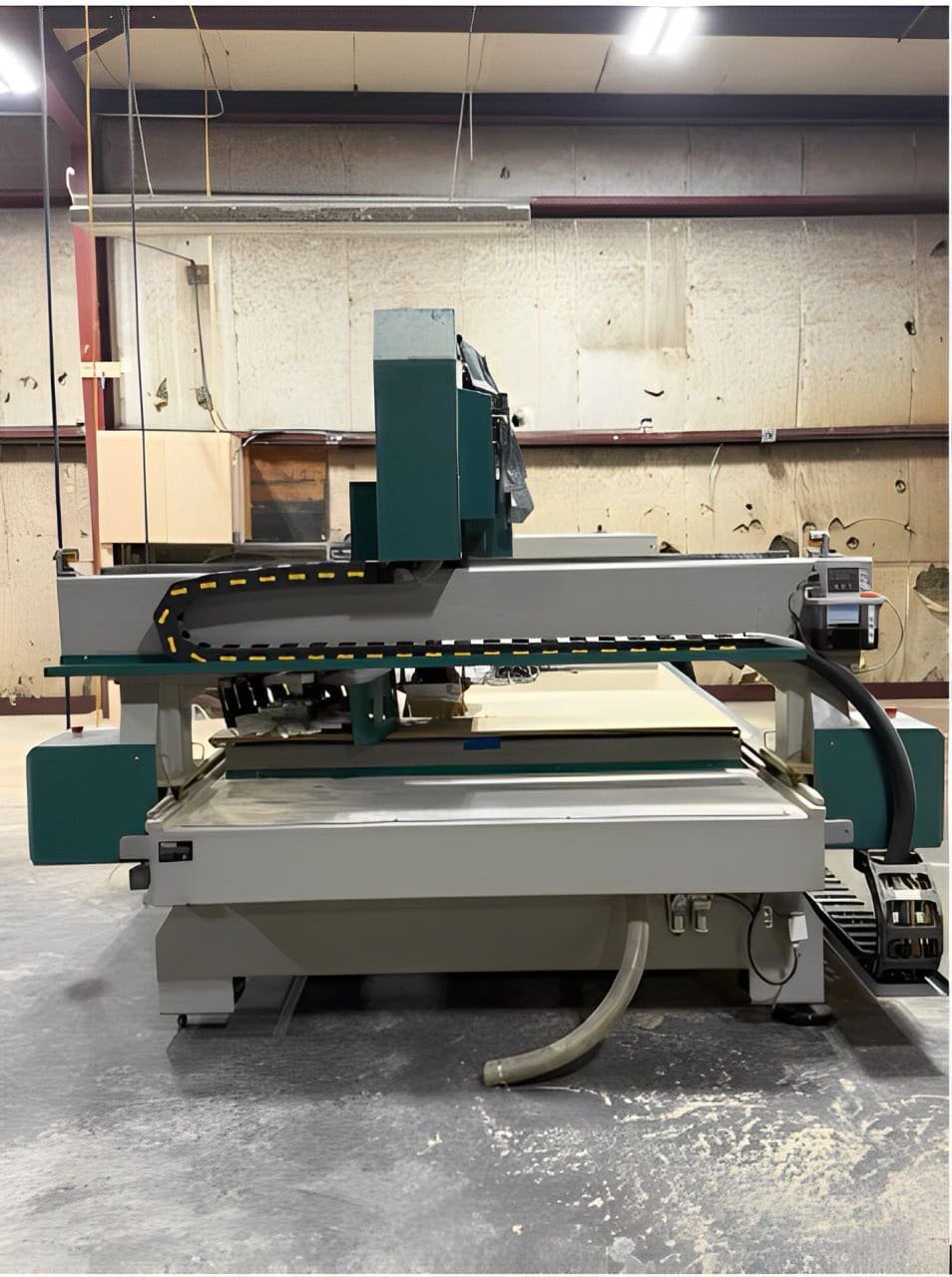

Description
Required power source: 220V, 3-phase, min. 30A circuit
Spindle motor: 6 HP, 220V
X-, Y- and Z-axis motors: AC Servo, 7.1A
Cutting area: 51″ x 98-1/2″
Z-axis travel: 11″
X- and Y- travel Speed: 1500 IPM
Z- travel speed: 400 IPM
Spindle speed: 0-18000 RPM
Collet Size: 1/4″, 1/2″
Collet Type: ER32
Footprint: 122-1/2″ L x 56-1/2″ W
Overall dimensions: 85″ W x 124″ D x 72″ H
Approximate shipping weight: 2535 lbs.
Yaskawa 850W Servo Motor
10 HP Vacuum Pump
6-Zone vacuum table
