Description

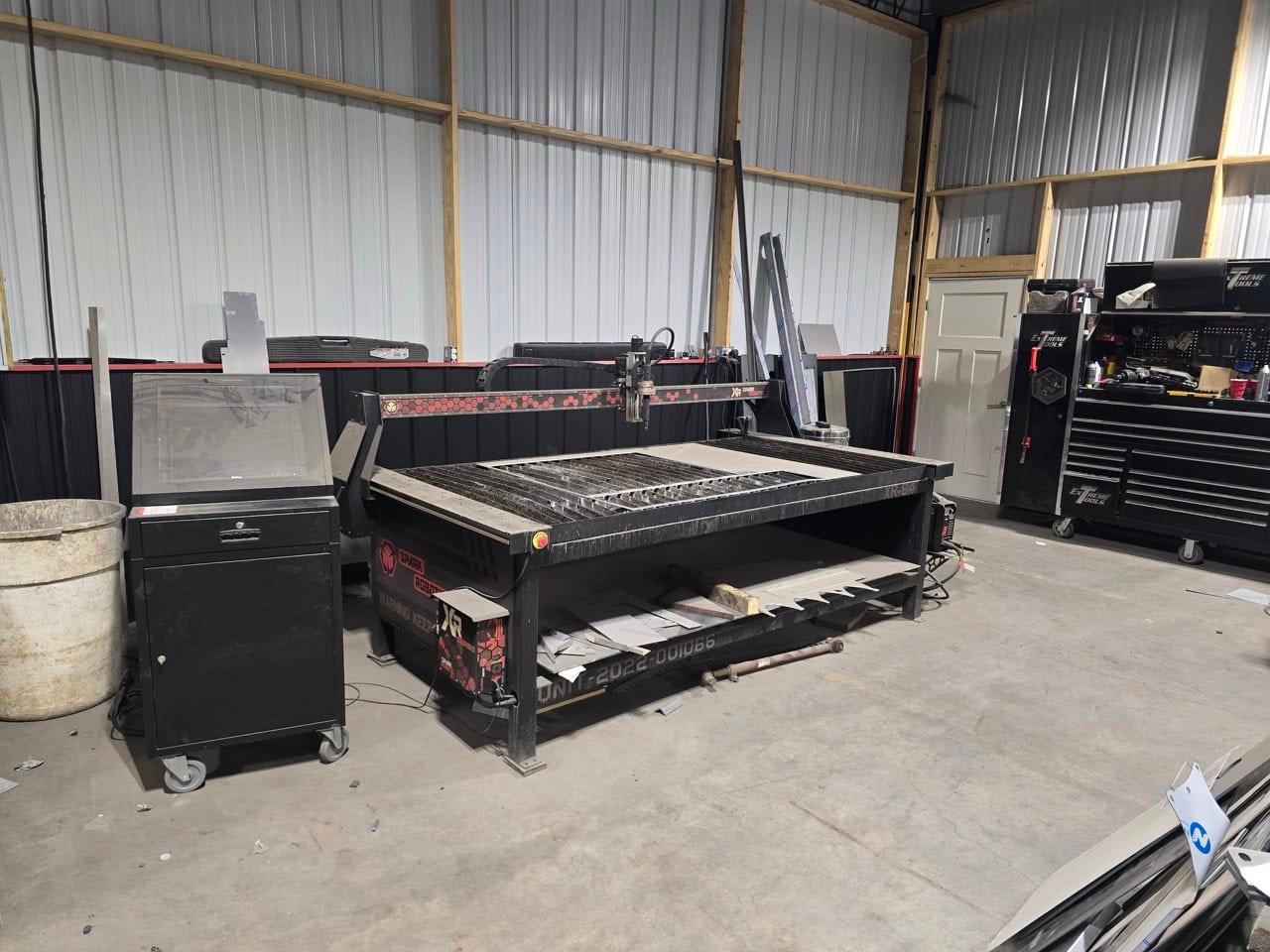

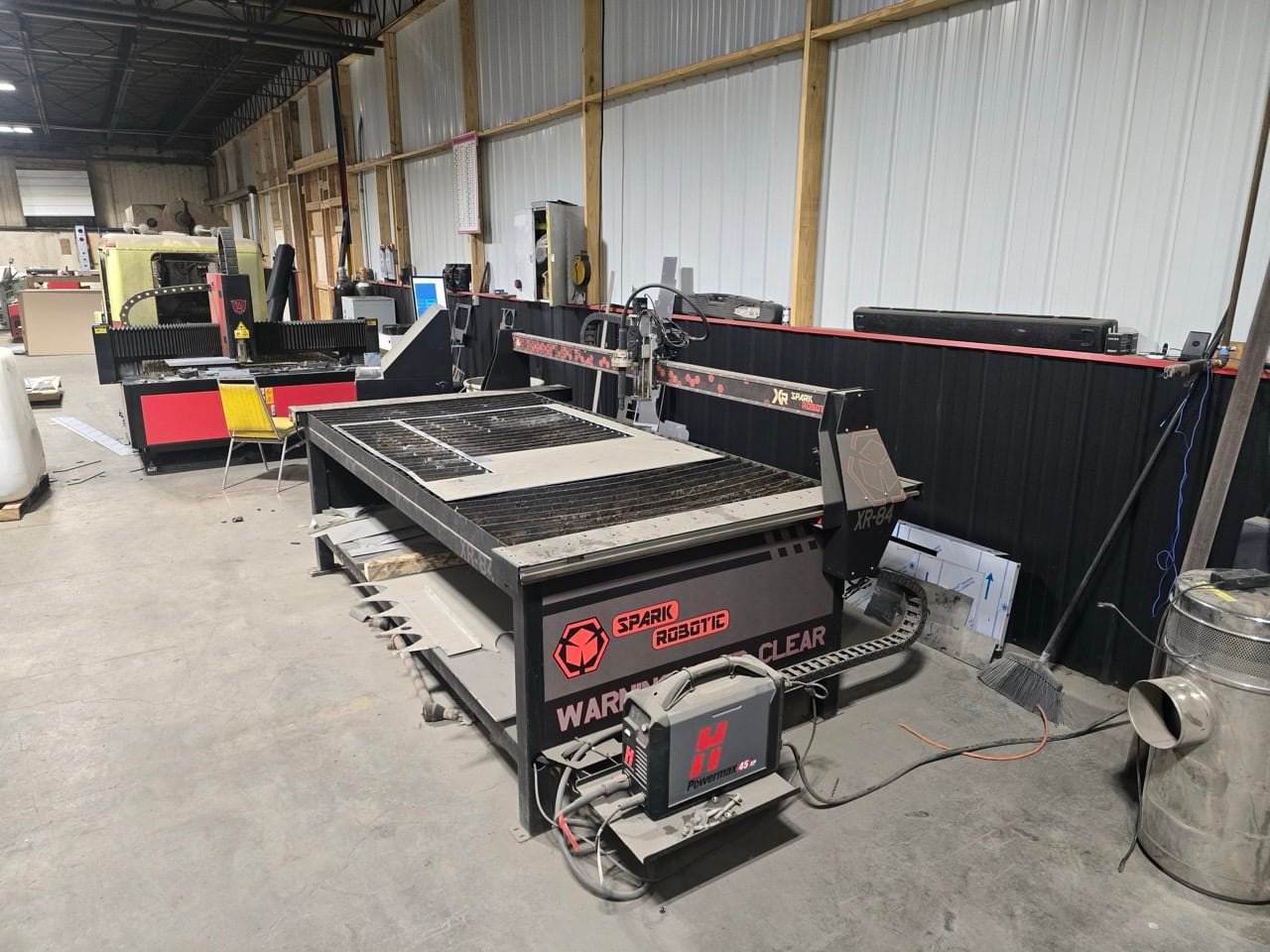

Table: 4′ x 8′
Max Cut Capacity: 5/8″”
Style: Gantry/Bridge
Hypertherm Powermax 45XP:
Input voltage/Input current (single phase): 240v 1 phase/33 amps (50 Amp Breaker required)
Input voltage/Input current (3 phase model): 400v 3 phase/11 amps
Output current: 10 – 45 amps
Duty Cycle @ 40Fc: 45 amps @ 50%
Dimensions (L x W x H): 426 x 172 x 348 mm
Weight with torch: 16 kg
Air supply flow rate: 170 l/min
Generator requirement: 8 – 10 kva
