Description
Year: 2002
Approx. Shipping Weight: 32,500 Lbs.
Specifications:

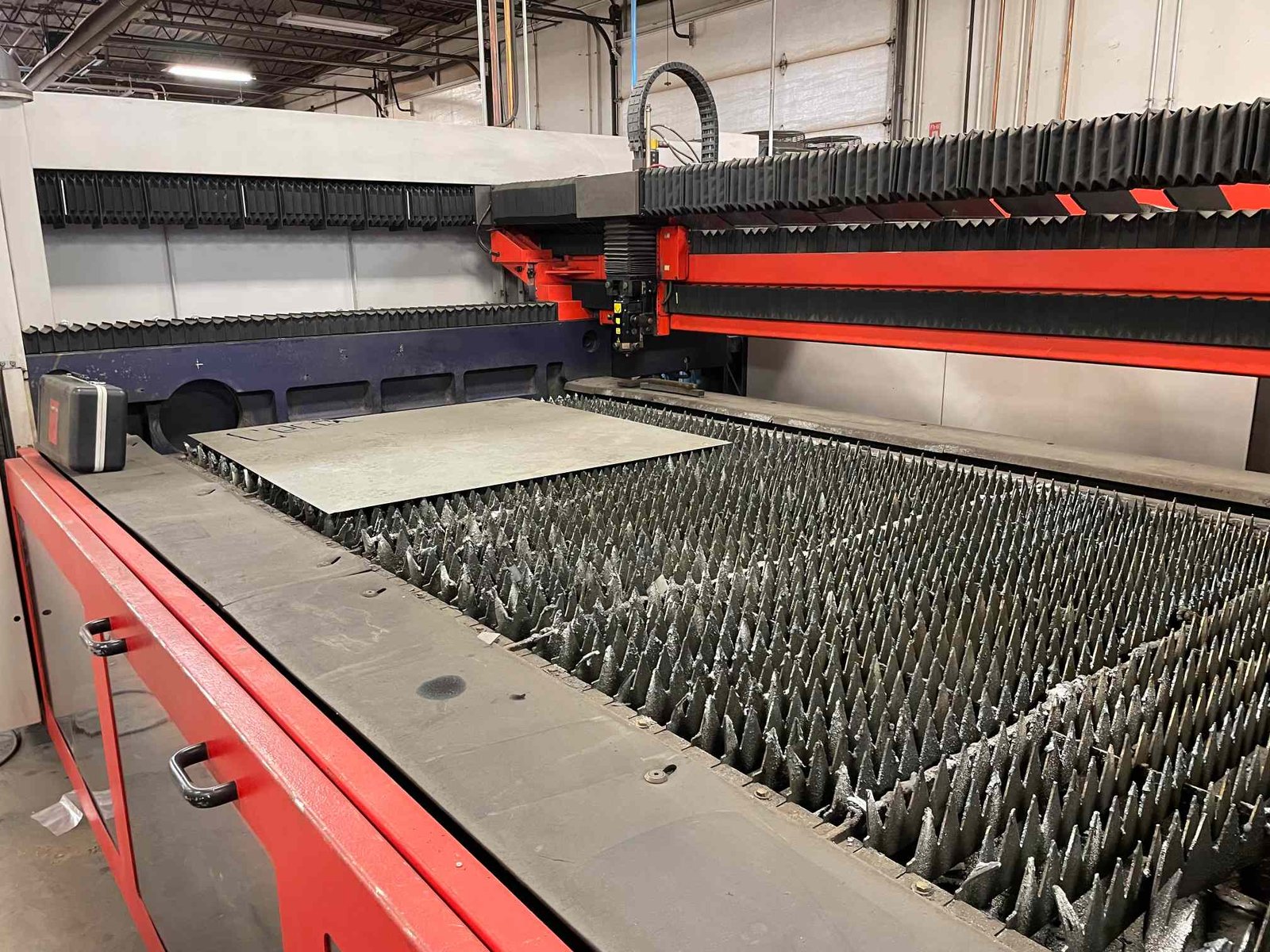

Table Size: 5′ x 10′

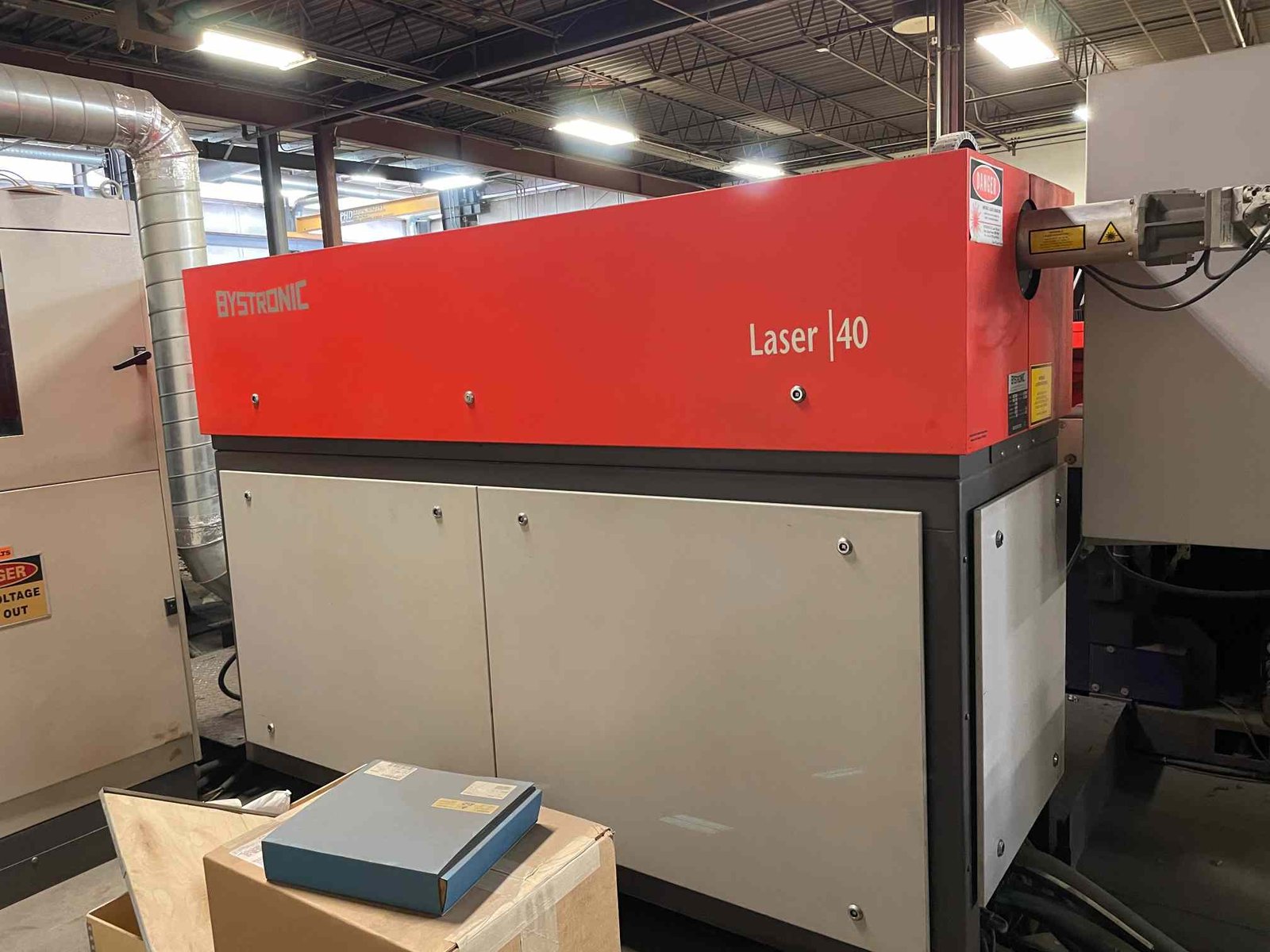

Laser Rating: 4,000 Watts
Cutting Velocity: 1900 In/Min
Positioning Speed (Per Axis): Maximum 4727 In/Min
Positioning Speed (Simultaneous): Maximum 6654 In/Min
Part Accuracy: ± .001 In/Ft (± .1 Mm/M)
Part Repeatability: ± .002 In. (± .05 Mm)
Polarization: Circular
Wavelength: 10.6 ?m
Air Supply: 90 Psi (6 Bar)
Air Requirement: 700 Scfh (20 Nm3/H)
Cooling Water: Closed Cooling Circuit
Approximate Power Requirements: 36.8 KVA
Electrical: 480V / 3 Ph
Equipped With:

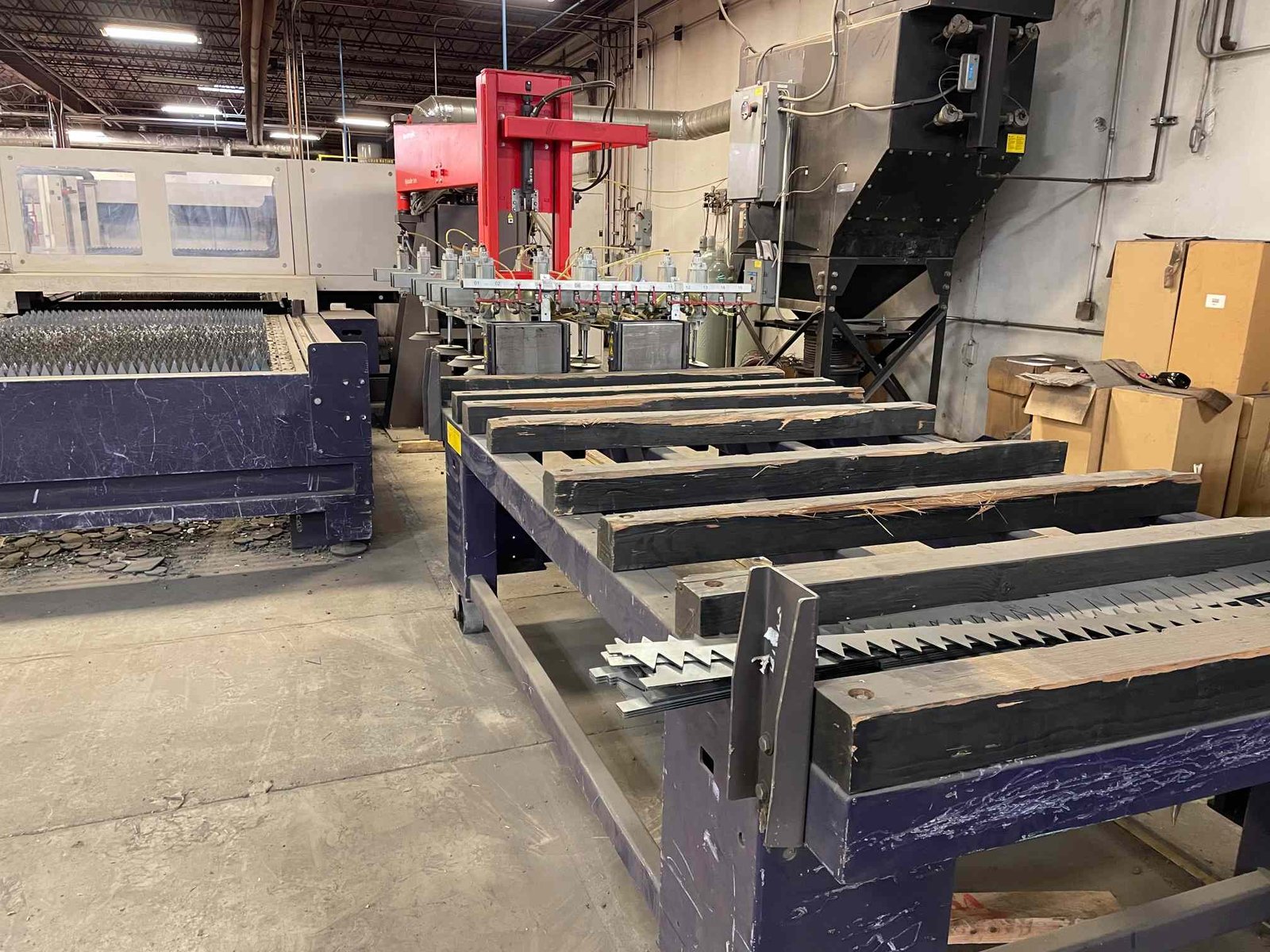

Byloader 3015
