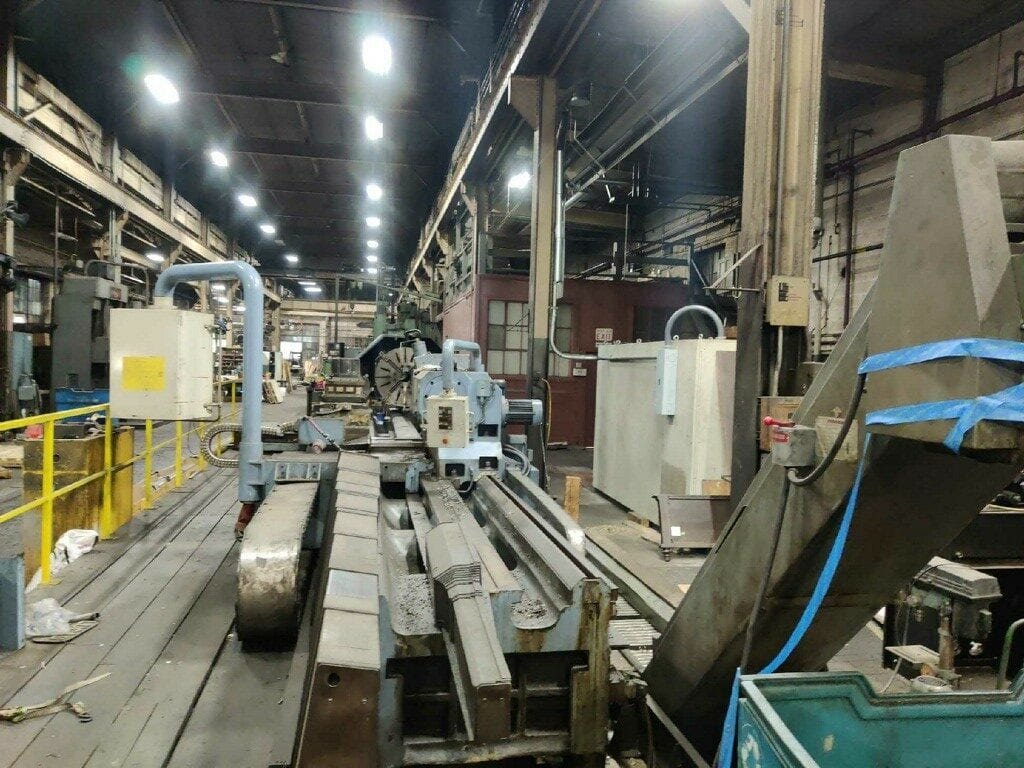

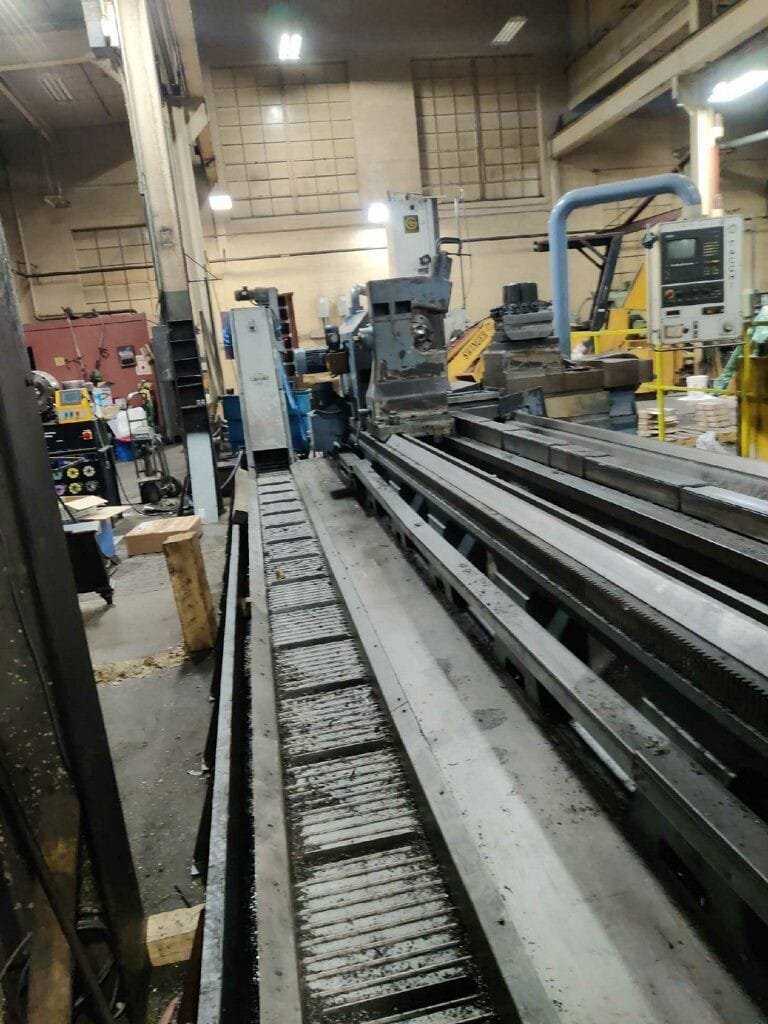

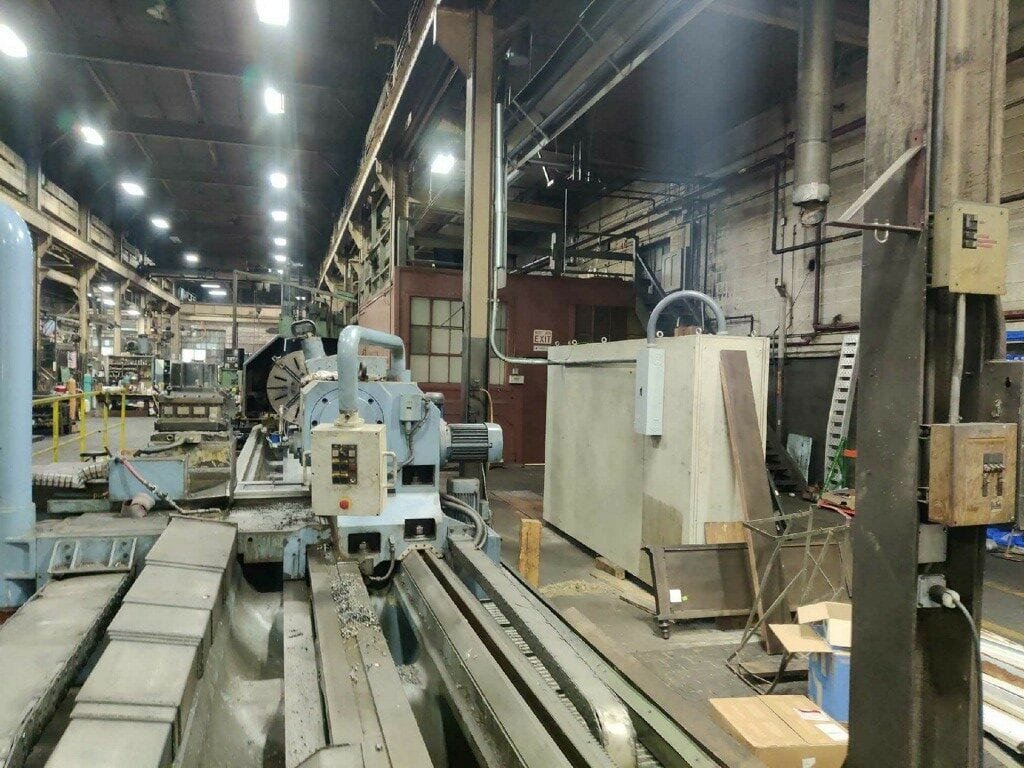

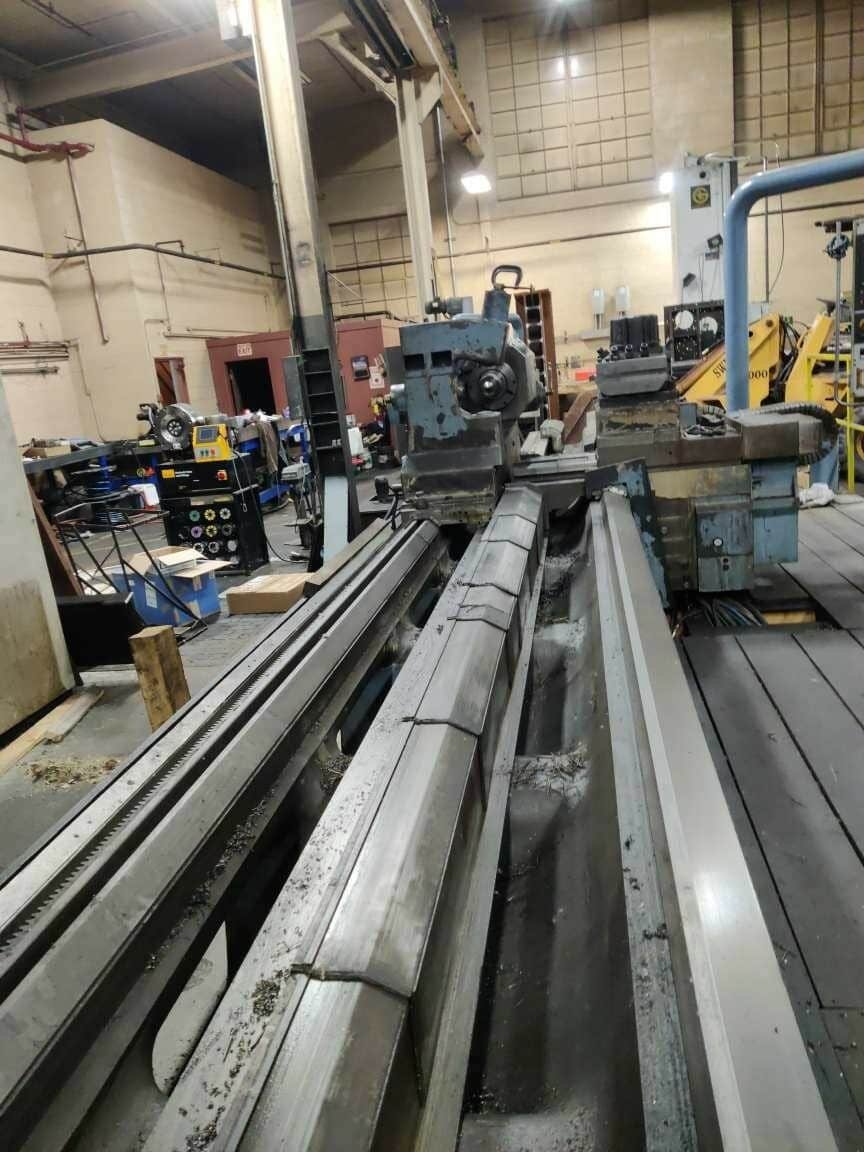

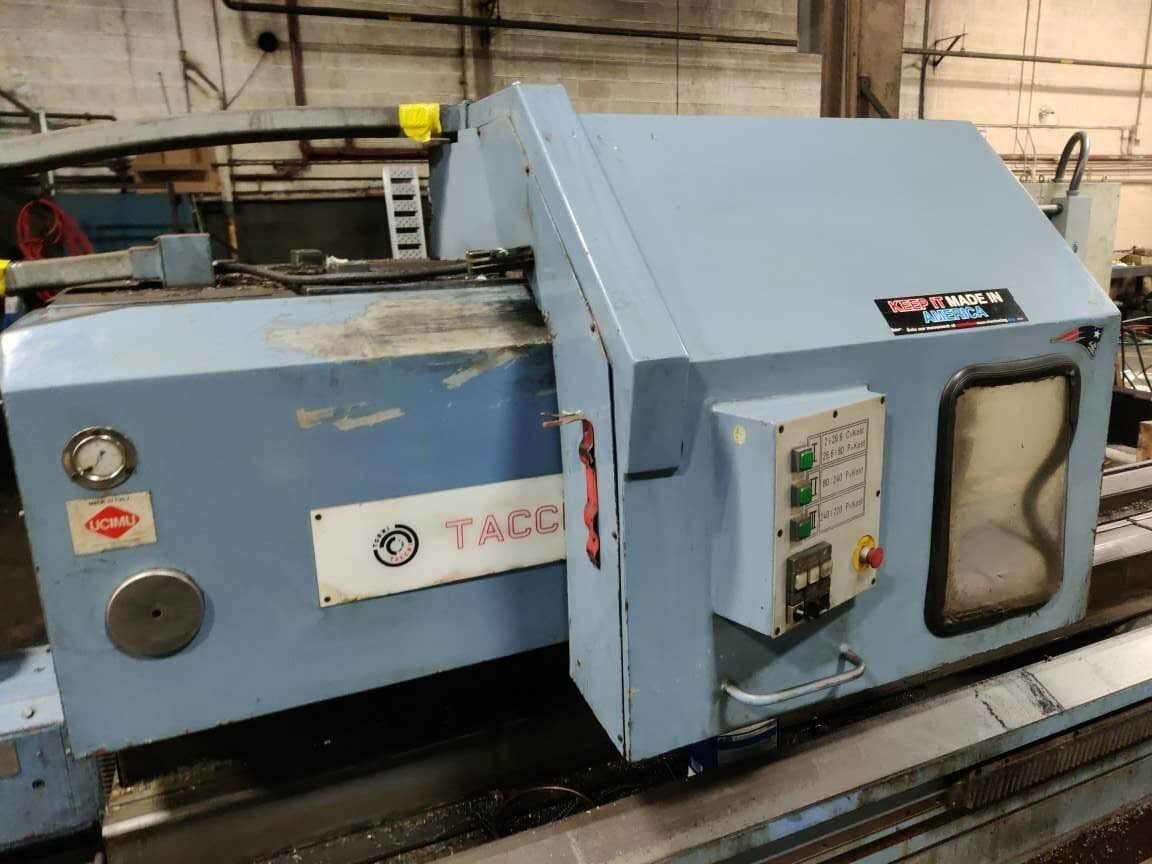

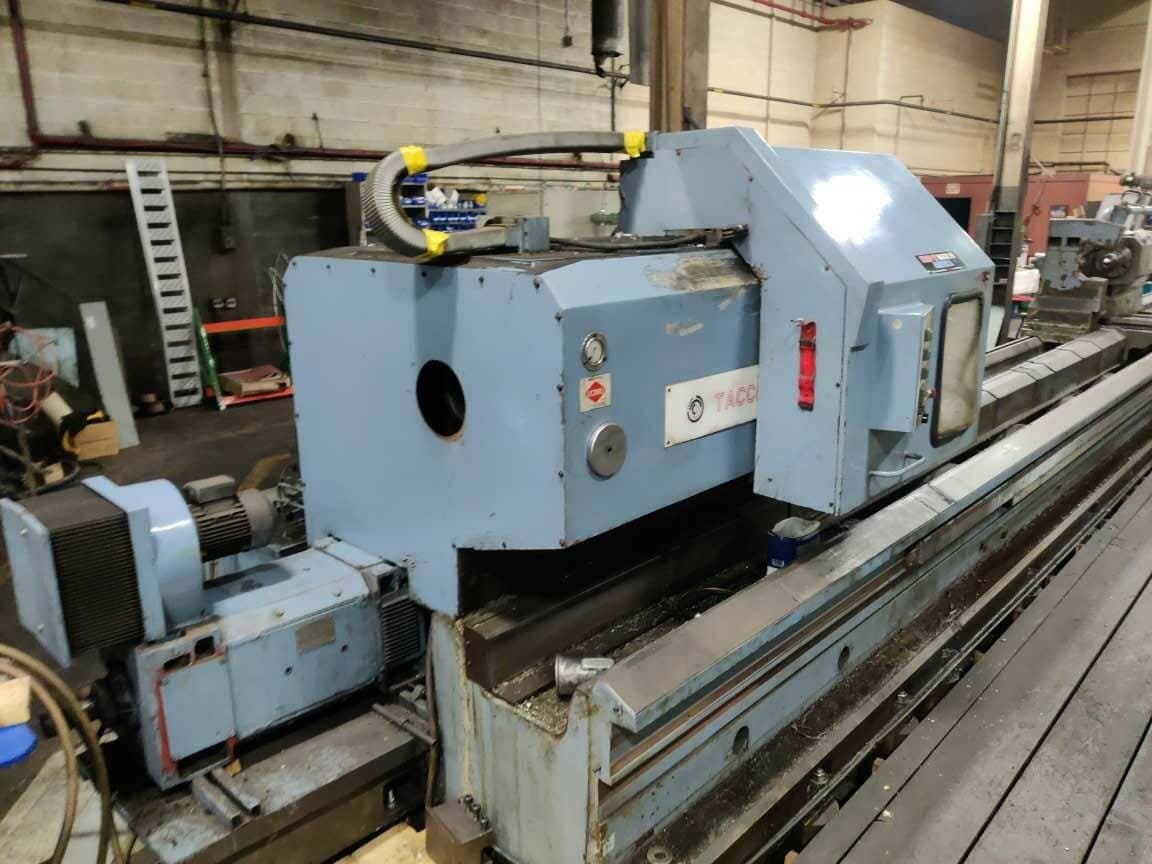

45″ x 275″ Tacchi HD3 CNC Lathe – 36″ Chuck, 1992 – Steady Rests, Video Available
45″ x 275″ Tacchi HD3 CNC Lathe – 36″ Chuck, 1992 – Steady Rests, Video Available - Image 2
45″ x 275″ Tacchi HD3 CNC Lathe – 36″ Chuck, 1992 – Steady Rests, Video Available - Image 3
45″ x 275″ Tacchi HD3 CNC Lathe – 36″ Chuck, 1992 – Steady Rests, Video Available - Image 4
45″ x 275″ Tacchi HD3 CNC Lathe – 36″ Chuck, 1992 – Steady Rests, Video Available - Image 5
45″ x 275″ Tacchi HD3 CNC Lathe – 36″ Chuck, 1992 – Steady Rests, Video Available - Image 6
45″ x 275″ Tacchi HD3 CNC Lathe – 36″ Chuck, 1992 – Steady Rests, Video Available - Image 7
45″ x 275″ Tacchi HD3 CNC Lathe – 36″ Chuck, 1992 – Steady Rests, Video Available - Image 8
45″ x 275″ Tacchi HD3 CNC Lathe – 36″ Chuck, 1992 – Steady Rests, Video Available - Image 9

45″ x 275″ Tacchi HD3 CNC Lathe – 36″ Chuck, 1992 – Steady Rests, Video Available

€ 54.900,00

Maximum Swing Over Bed: 45.27″ Maximum Swing Over Saddle: 31.49″ Distance Between Centers: 275.59″ Weight Between Centers Without Rests: 22,000 Lbs Spindle Speeds: 2-720 Rpm Number of Speed Ranges: 3 Main Motor: 80 HP Spindle Nose: 11″ Spindle Hole Diameter: 4.13″ Longitudinal Feeds, Variable: 0-236 Ipm Cross Feeds, Variable: 0-236 Ipm Tailstock Quill Diameter: 5.51″ […]

SKU: 14377127482
Category:

Description

Maximum Swing Over Bed: 45.27″
Maximum Swing Over Saddle: 31.49″
Distance Between Centers: 275.59″
Weight Between Centers Without Rests: 22,000 Lbs
Spindle Speeds: 2-720 Rpm
Number of Speed Ranges: 3
Main Motor: 80 HP
Spindle Nose: 11″
Spindle Hole Diameter: 4.13″
Longitudinal Feeds, Variable: 0-236 Ipm
Cross Feeds, Variable: 0-236 Ipm
Tailstock Quill Diameter: 5.51″
Tailstock Quill Travel: 11.81″
Internal Taper: Morse #6
Machine Dimensions:

Equipped With:

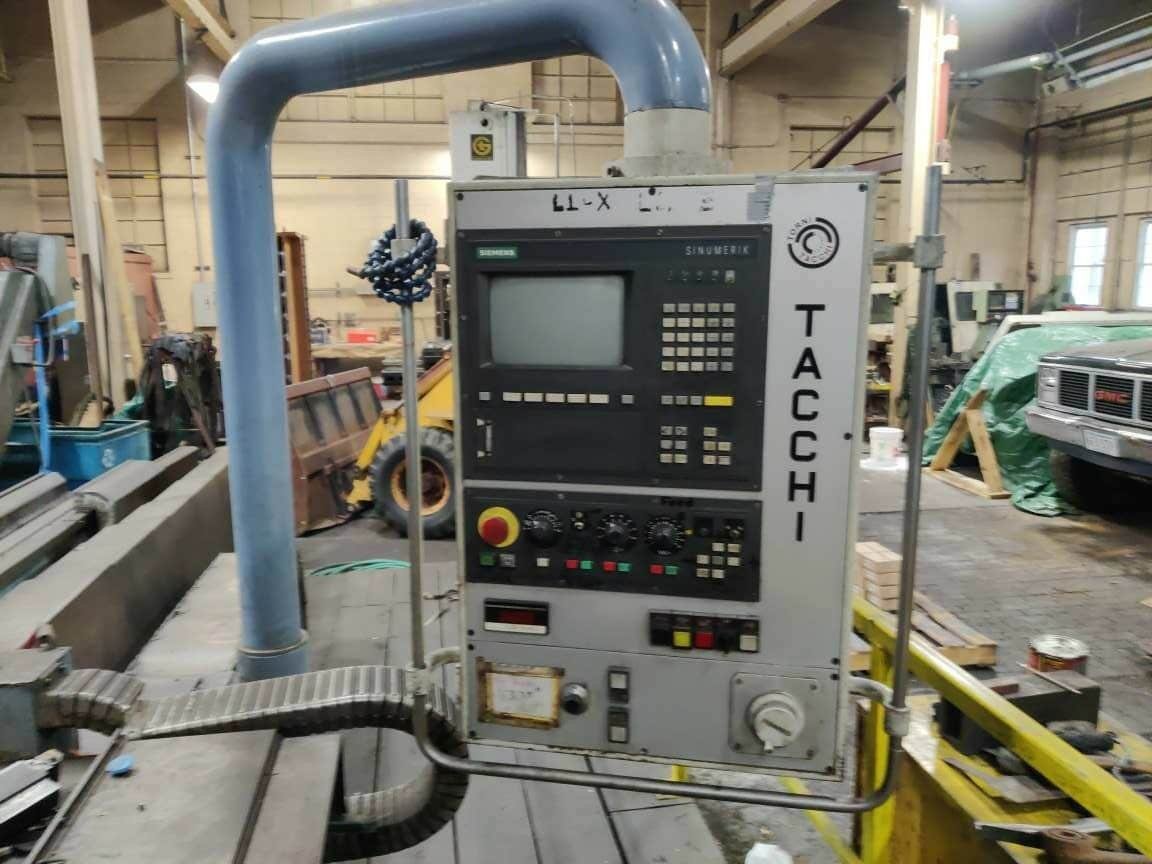

Siemens 810 CNC Control
4-Position Turret
36″ 4-Jaw Chuck
(3) Steady Rests
Chip Conveyor
