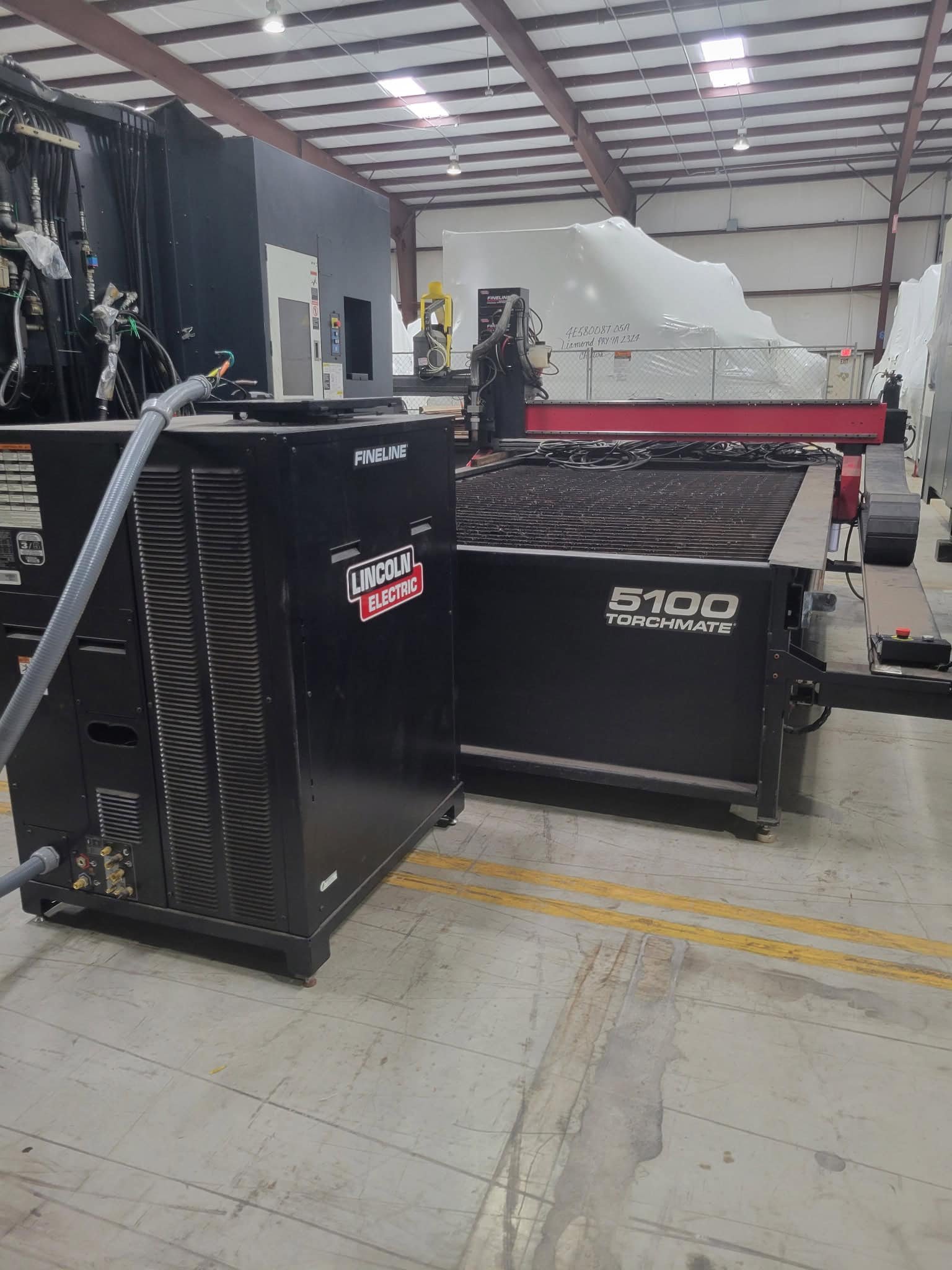

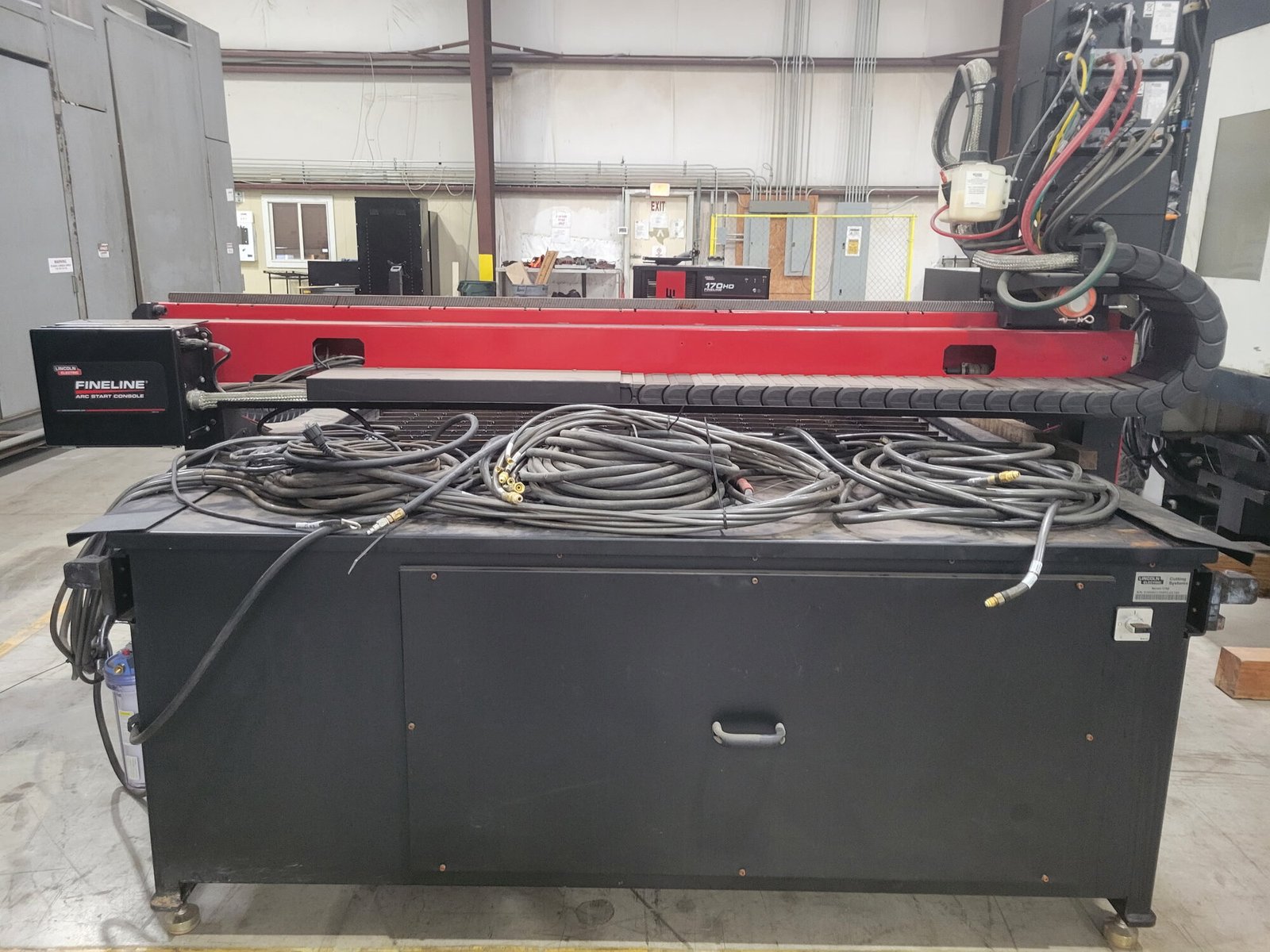

Description

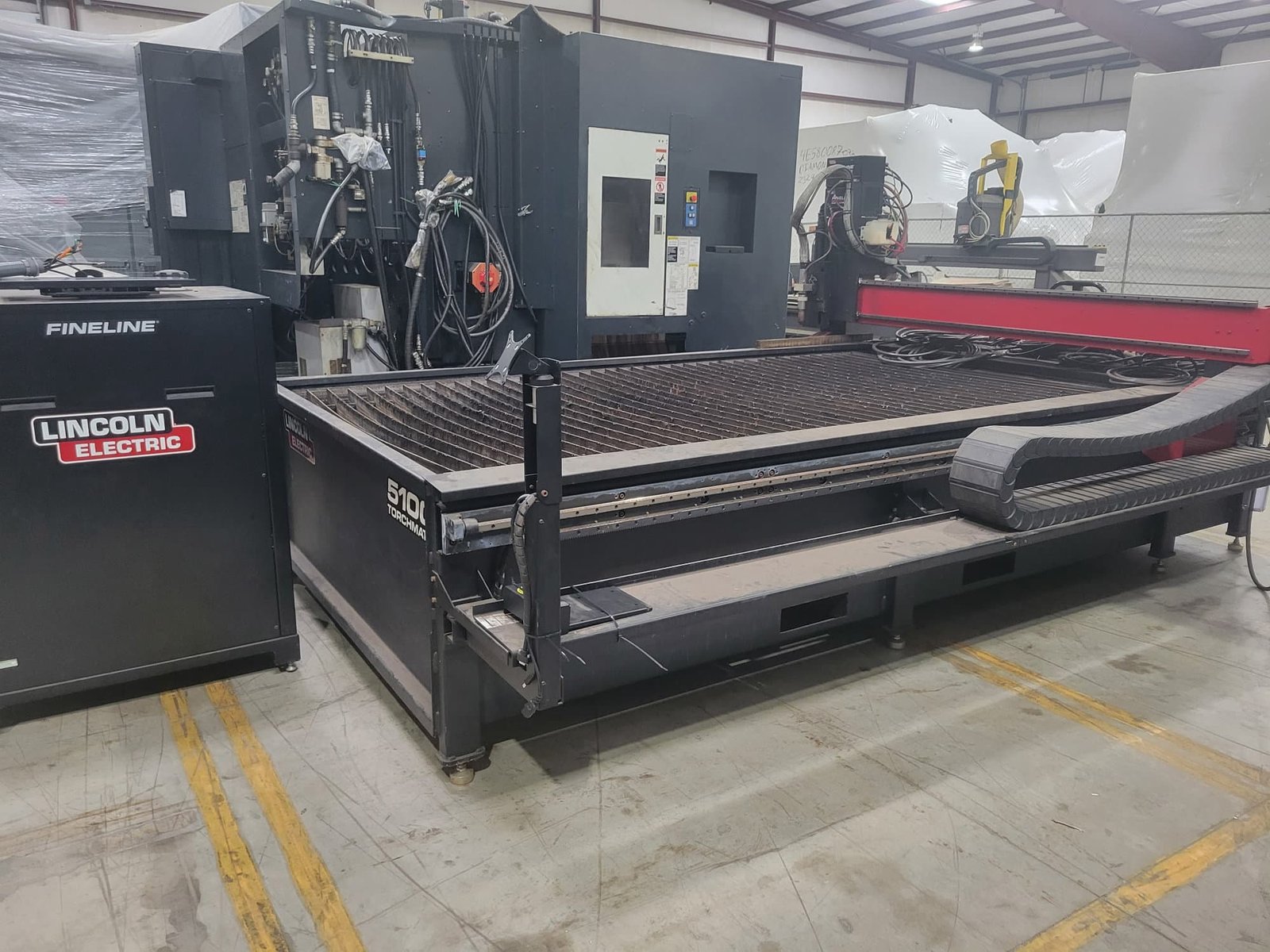

Water Table
Height Control
• Ohmic Sensing
• Automatic Torch Arc Voltage Height Control
• 6” Z-axis Travel

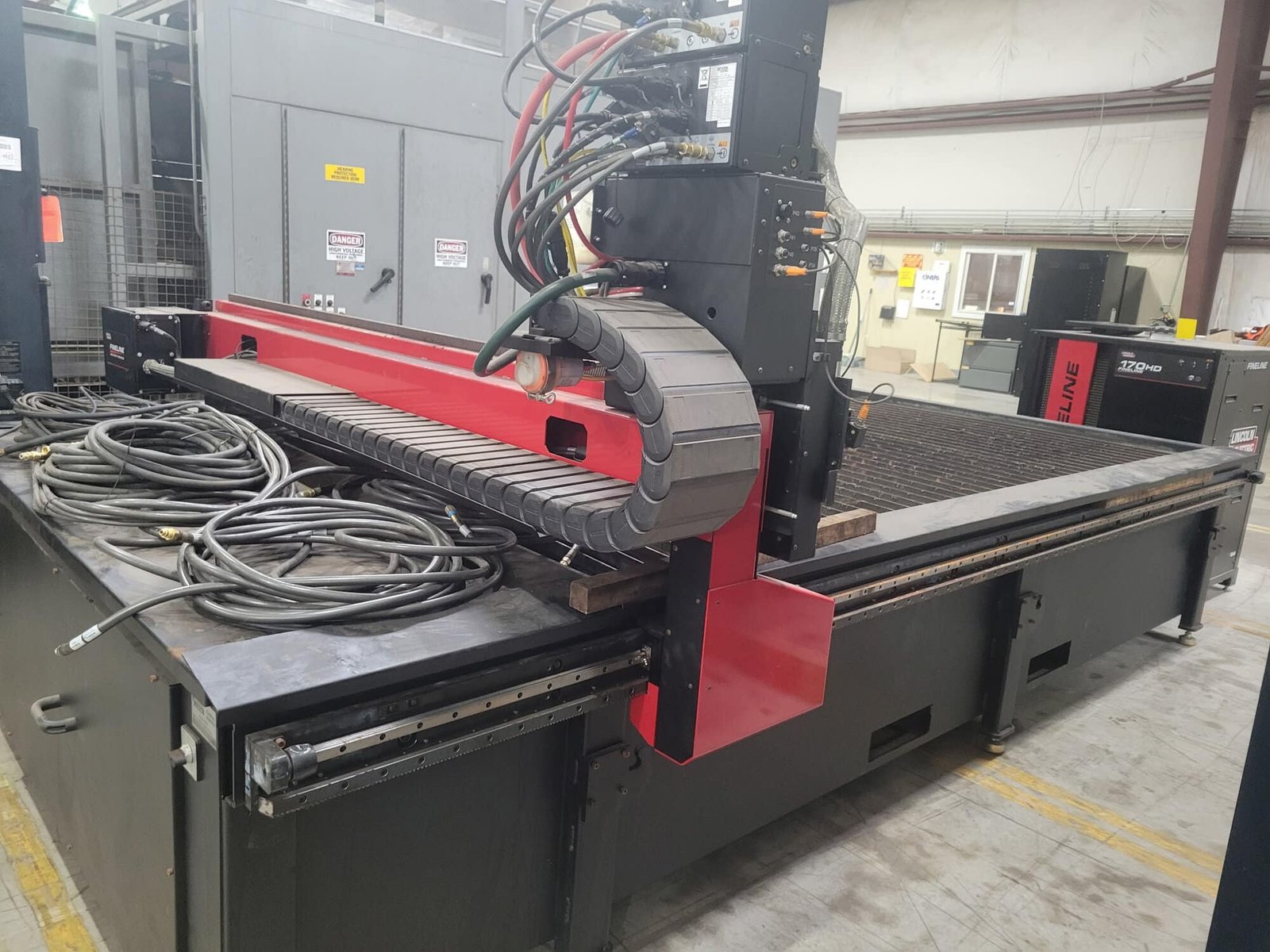

Bevel Cutting Capabilities
• +/-45° Cut, Dependent on Material Thickness and Plasma
Configuration
Software
• Easy-To-Use Lincoln Electric User Interface
• Optional CAD/CAM with Irregular Part Nesting
Fume Extraction (Optional Accessory)
• 1,030 to 1,438 ft3
/min or 61,800 to 89,990 ft3
/hr
• Automatic Filter Cleaning, Pressure Controlled
Input Power
• 120V / 1Ph / 60Hz Machine
• 380-575V / 3Ph / 50-60Hz
Machine Size
• 60 ̋ x 120” (1524mm x 3048mm) Cutting Area
• 113.5 ̋ x 166” (2882.9mm x 4216.4mm) Footprint
Plate Capacity
• Holds Up to 4” (102mm) 5’x10’ (1524mm x 3048mm) Plate Mild
Steel
Weight [ Configuration Dependent.]
• Estimated 6,600 lbs [2993.71 kg] dry shipping weight
• See OSHA guidelines for proper forklift procedures
Motors
• Servo Motors Fitted with Rotary Glass Encoders Drive
System
• Helical Gear Rack and Hardened Pinion with Lubrication
System

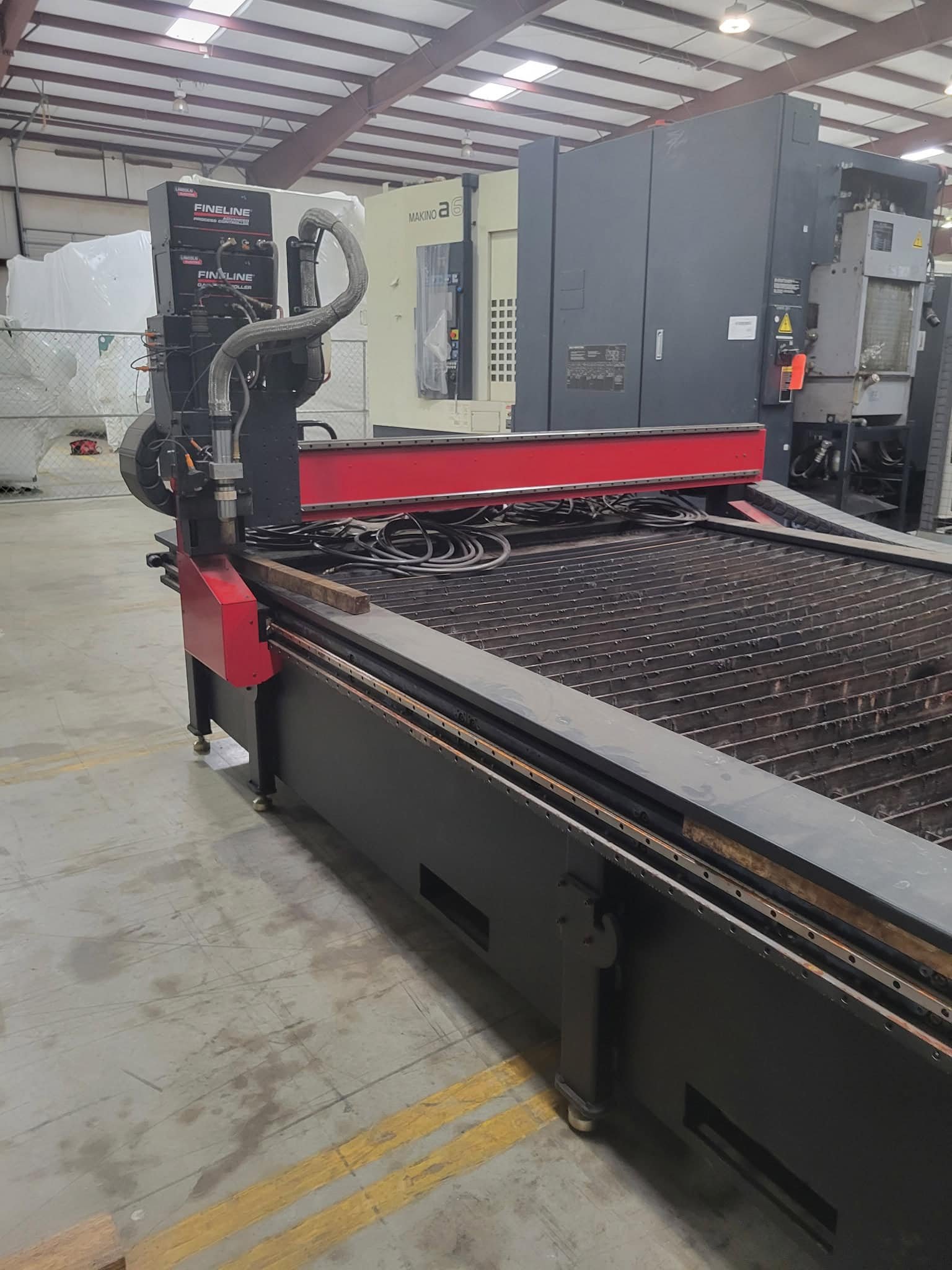

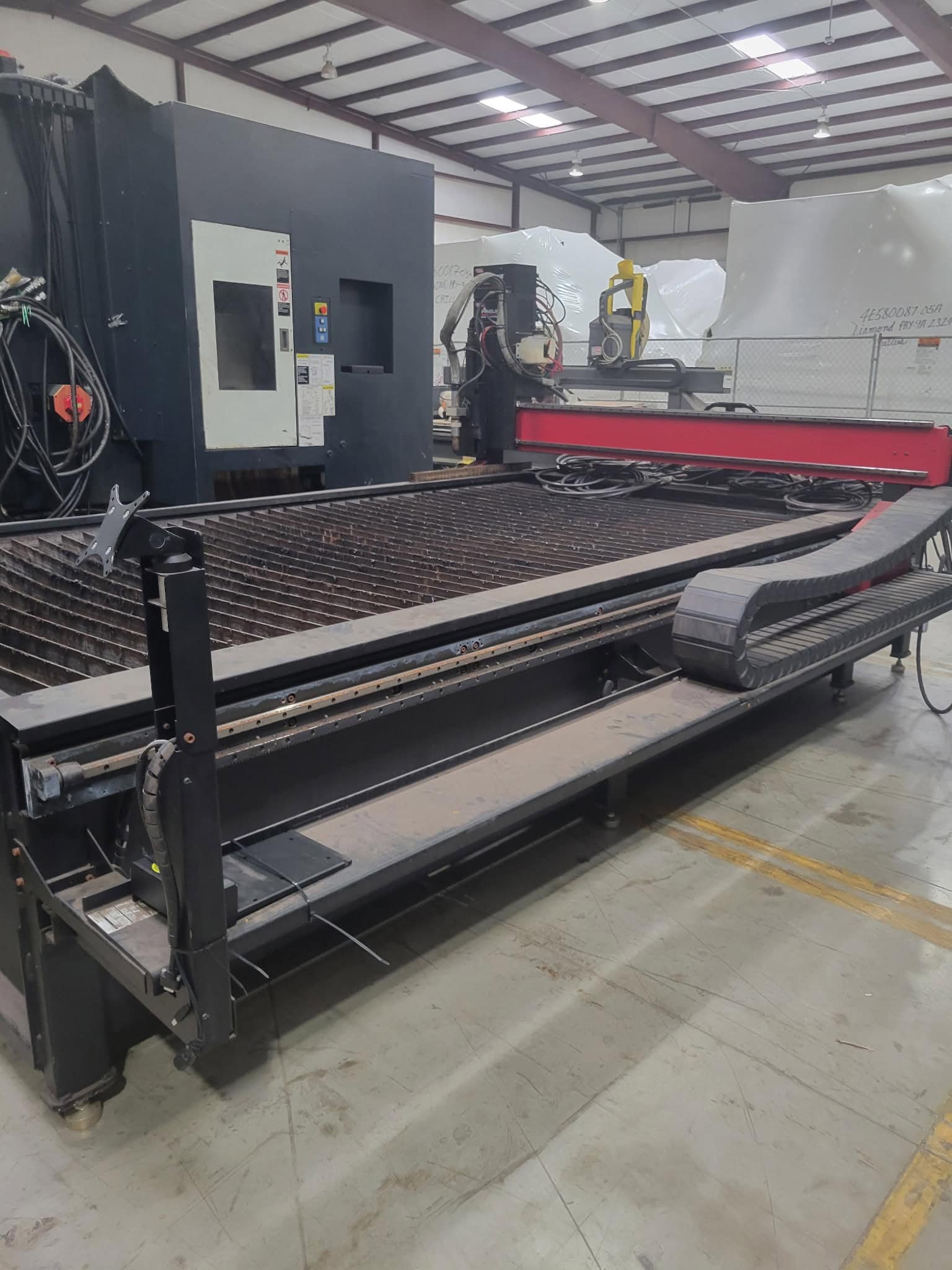

Linear Guidance
• Profile Linear Rail
Acceleration Rate
• 0.05g (0.03g bevel)
Deceleration Rate
• 0.05g (0.03g bevel)
