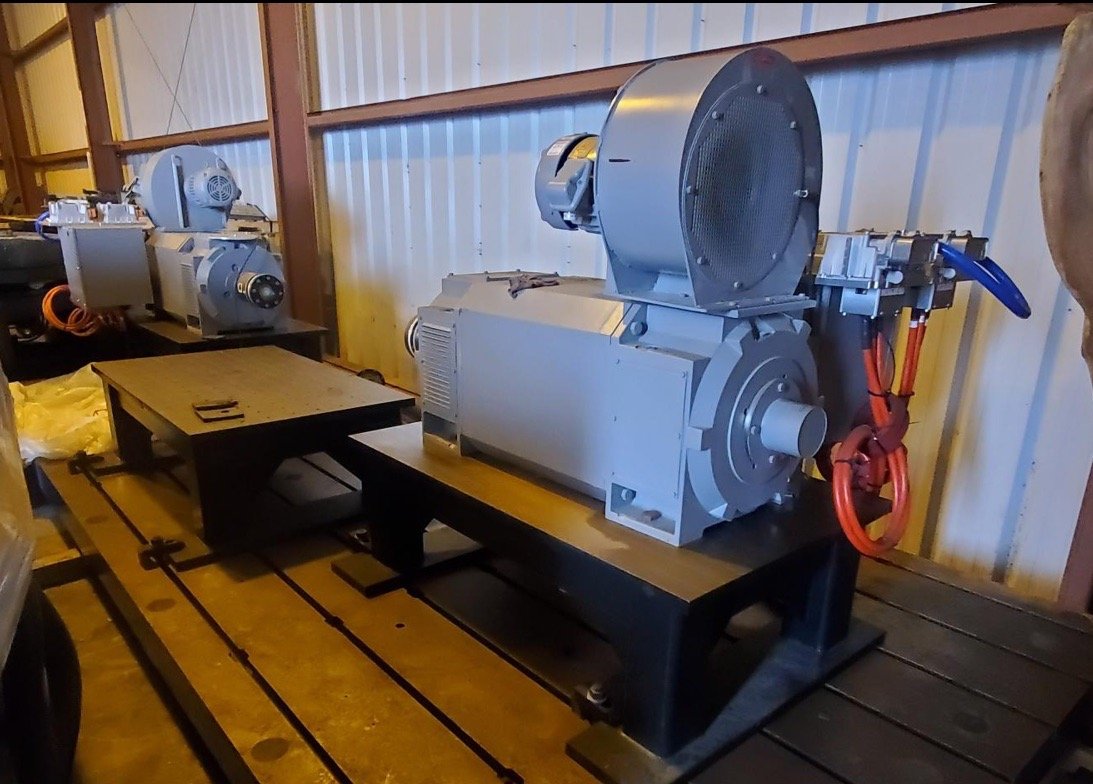

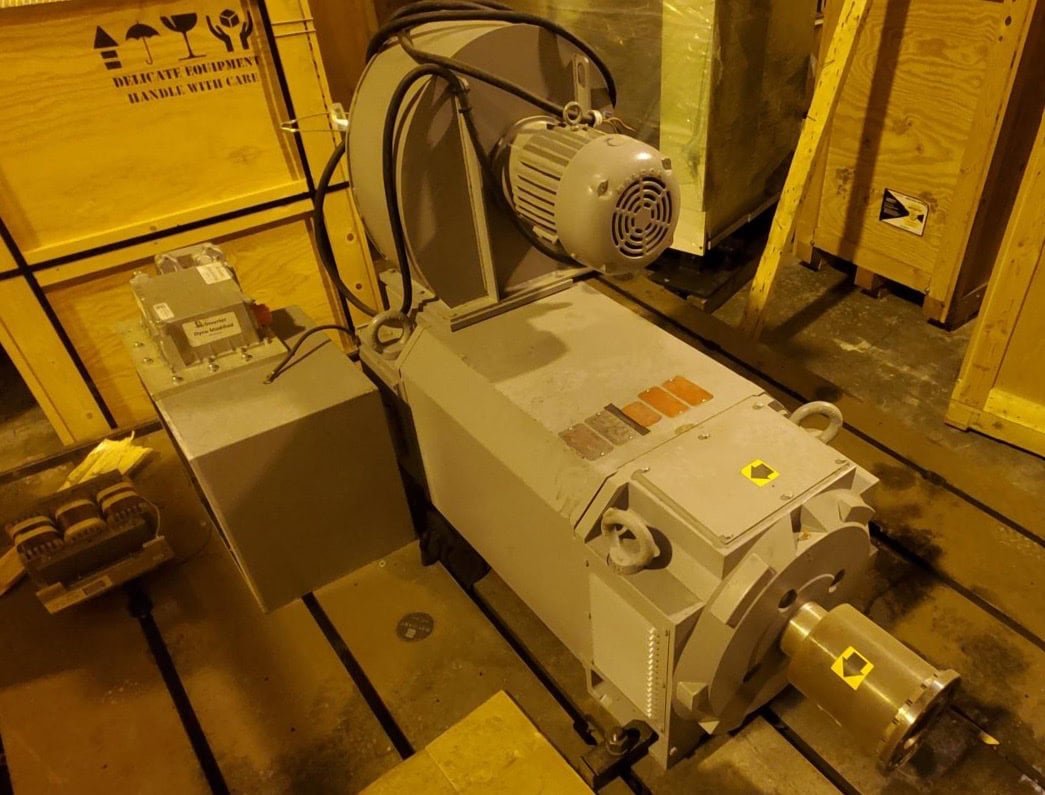

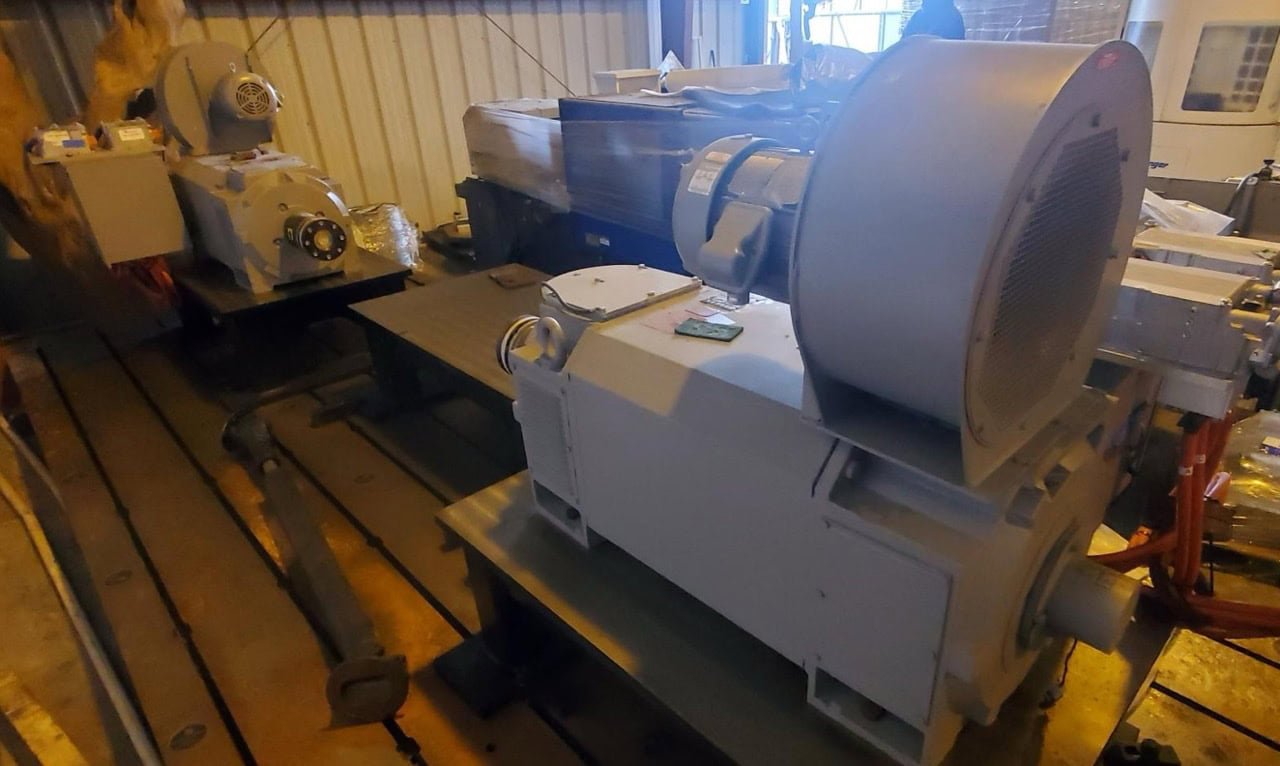

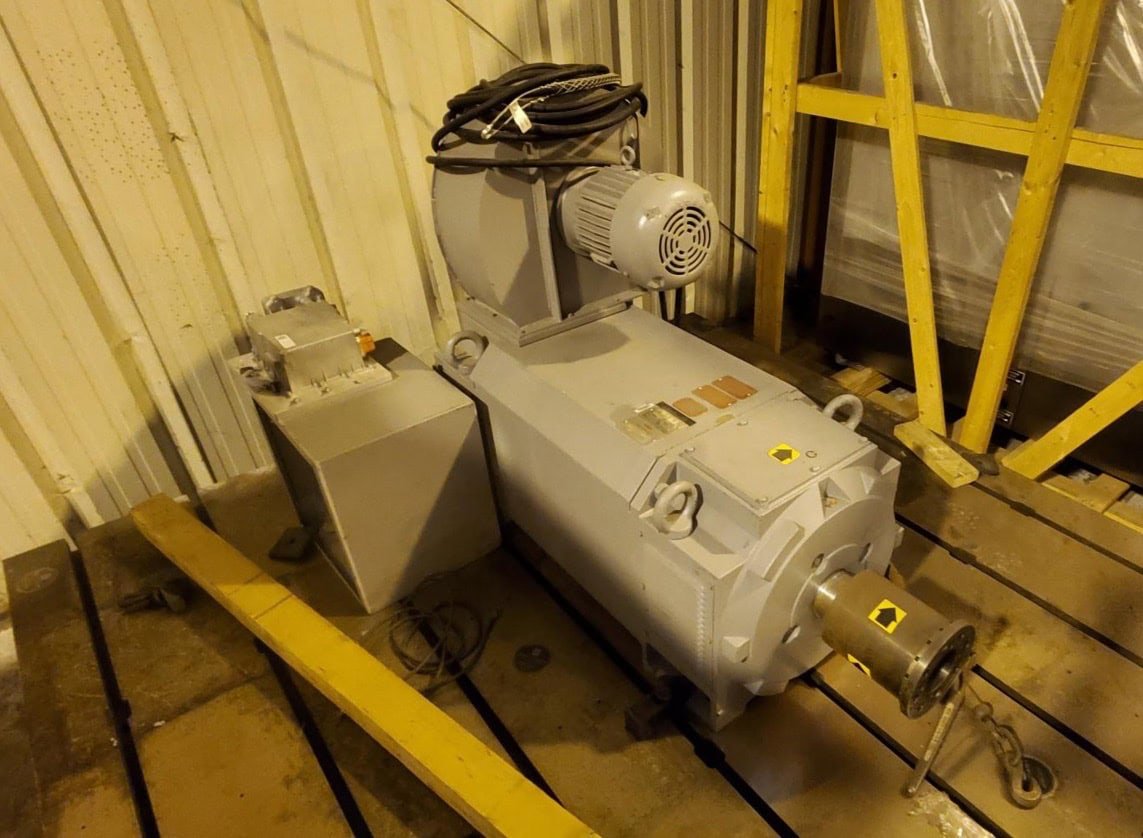

500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available!
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 2
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 3
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 4
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 5
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 6

500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available!

€ 49.900,00

Priced Each Model Number R44-A000-0158 Frame Size RL4440Z Horsepower Range 400 – 500 HP Operating Point 1 400 HP @ 900 RPM, 772 A, 250V, 60 Hz Operating Point 2 400 HP @ 2160 RPM, 370 A, 600V, 144 Hz Operating Point 3 500 HP @ 2600 RPM, 249 A, 600V, 173.3 Hz Maximum Safe […]

SKU: 43543012203
Category:

Description

Priced Each

Model Number R44-A000-0158
Frame Size RL4440Z
Horsepower Range 400 – 500 HP
Operating Point 1 400 HP @ 900 RPM, 772 A, 250V, 60 Hz
Operating Point 2 400 HP @ 2160 RPM, 370 A, 600V, 144 Hz
Operating Point 3 500 HP @ 2600 RPM, 249 A, 600V, 173.3 Hz
Maximum Safe Speed 2750 RPM
Voltage Range 250V – 600V
Frequency Range 60 – 173.3 Hz
Service Factor 1.00
Insulation Class H
Enclosure Type DPG-FV (Force Ventilation)
Operating Temperature -25°C to +40°C
