Description
Motors: Four 620 oz Stepper
Belt Drive: 3:1 gear reduction
Gear Engagement: Spring loaded precision, Rack and Pinion Drive
X&Y Axis Rails: Dual 20mm Linear Guides

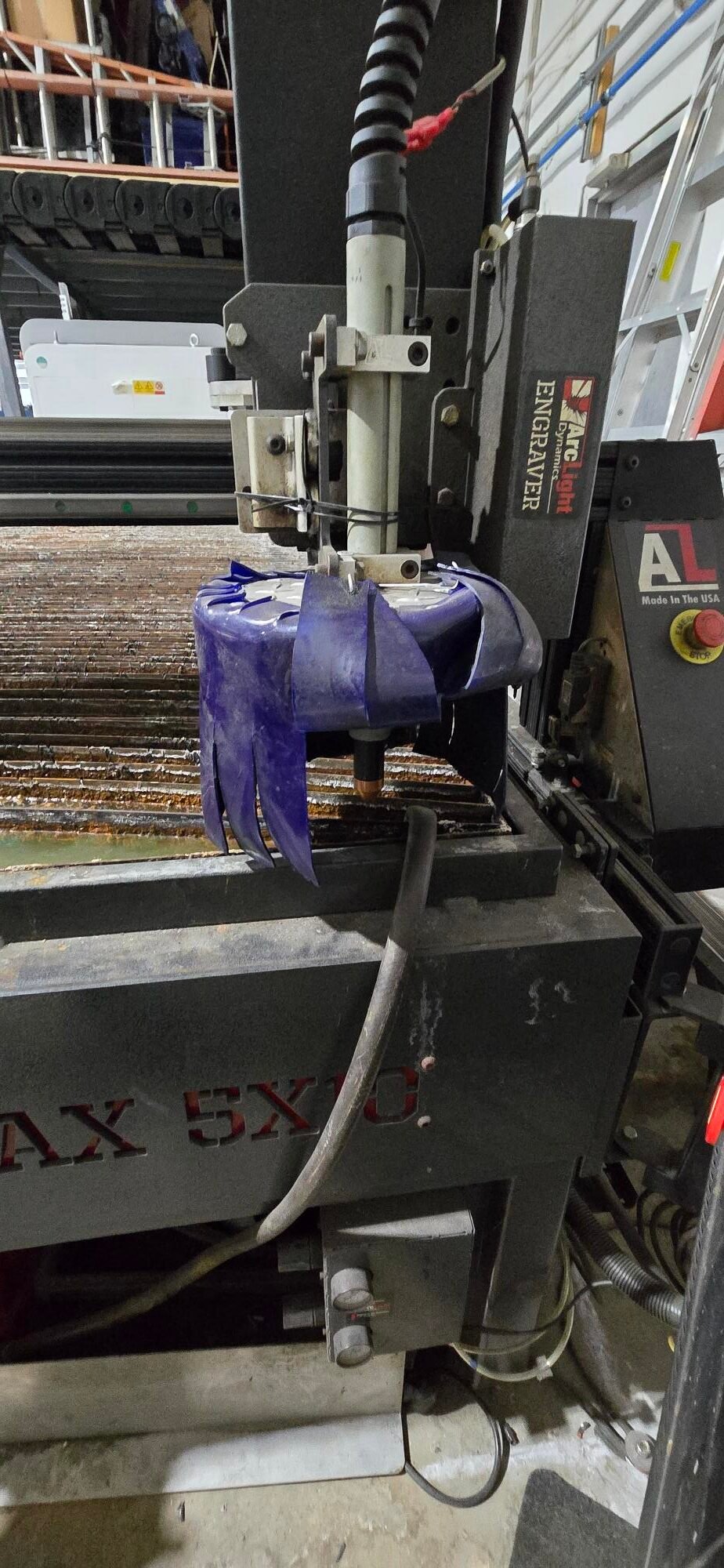

Z-Axis: Anti-backlash lead screw w/floating head & magnetic torch mount
Traverse Speed: 600 IPM
Max Cut Speed: 600 IPM

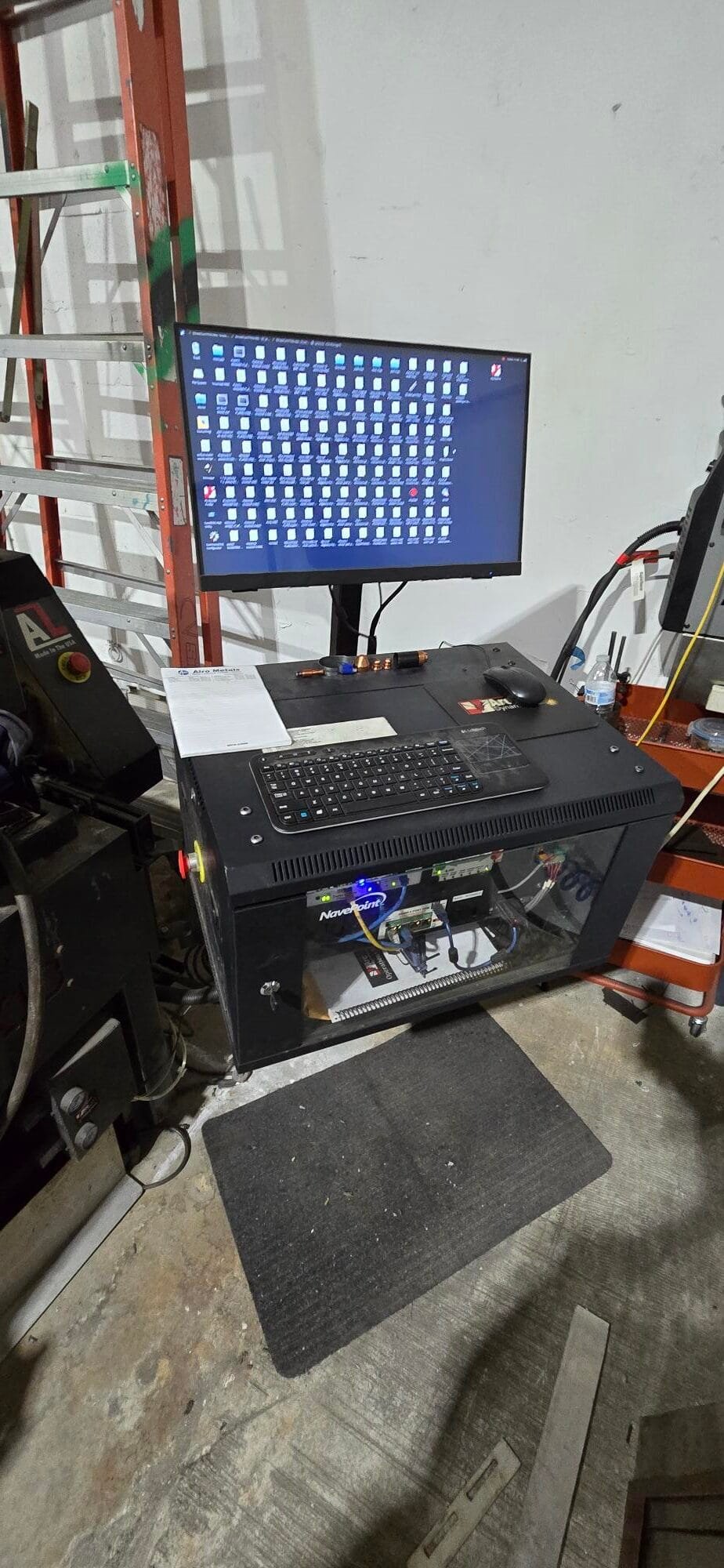

Controller: CoreCNC Delta 3 Phase 2
Slat Spacing: 1.5″ Apart standing
Gantry Clearnence: 7″ Standard
Overall Dims: 88’wx143″Lx60″H
Size at Base: 70″Wx133″L
Cutting Envelope: 62″W X 124:L
Cabinet: 21.5″ x 17.75″
Water Capacity 300 Gallons
Weight: 2500 lbs

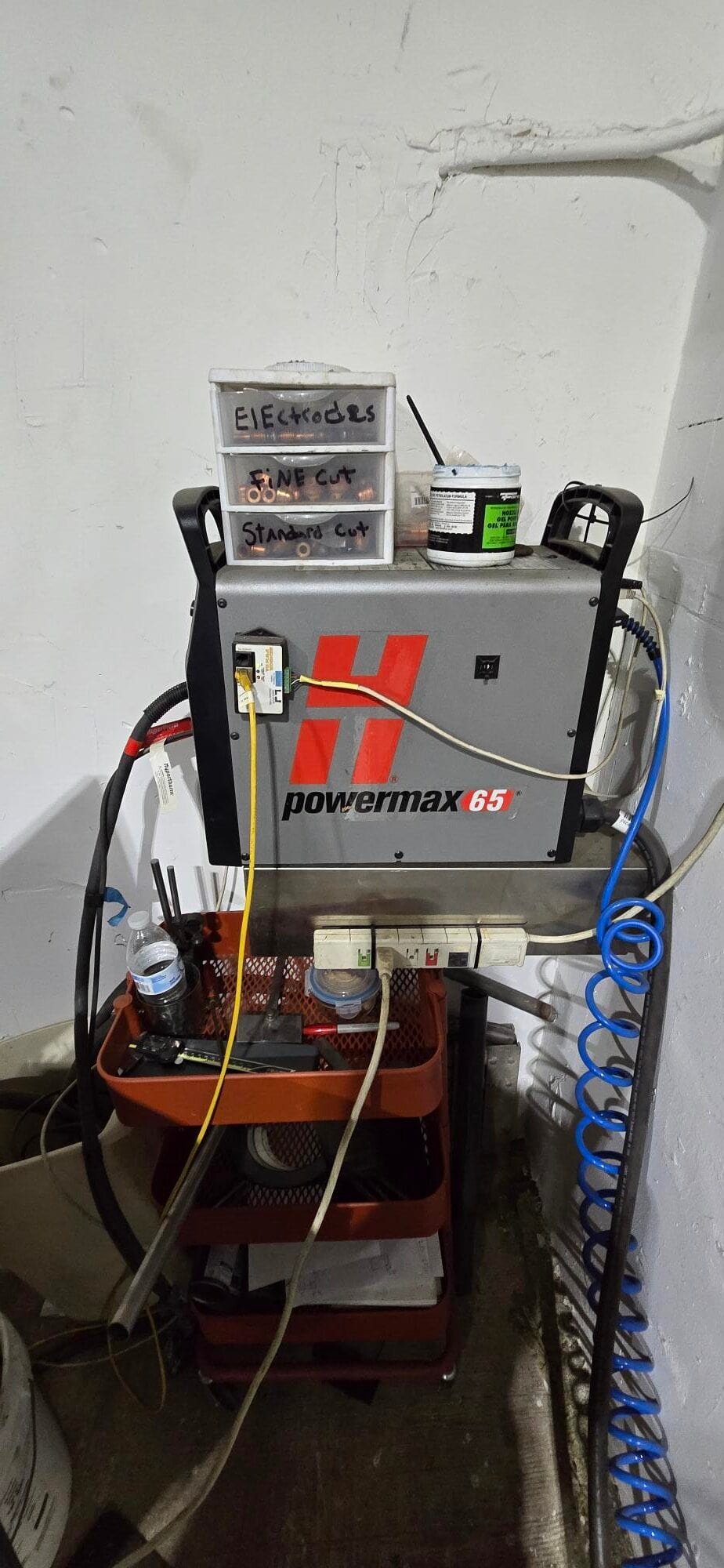

Hypertherm powermax 65
