Description

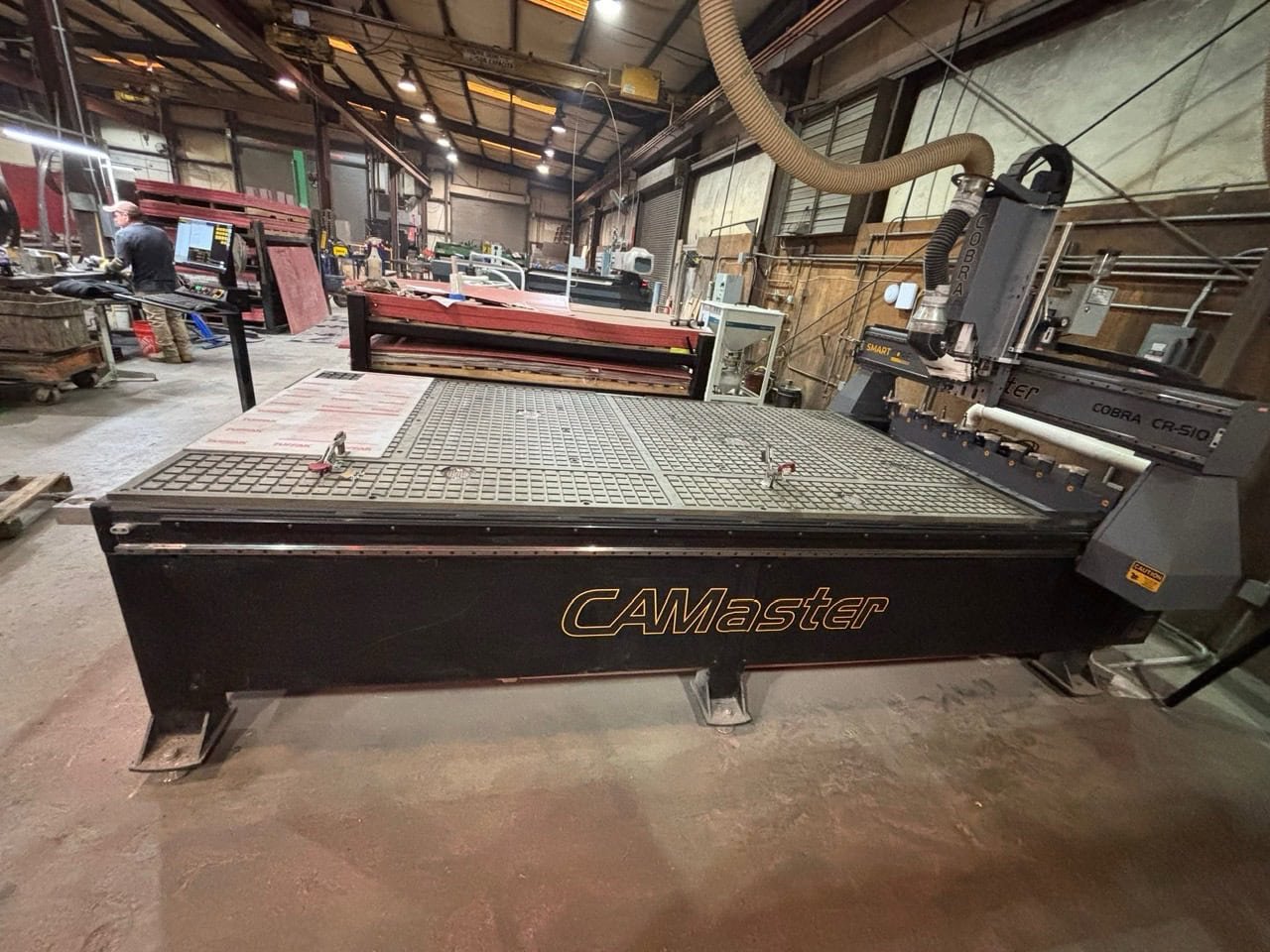

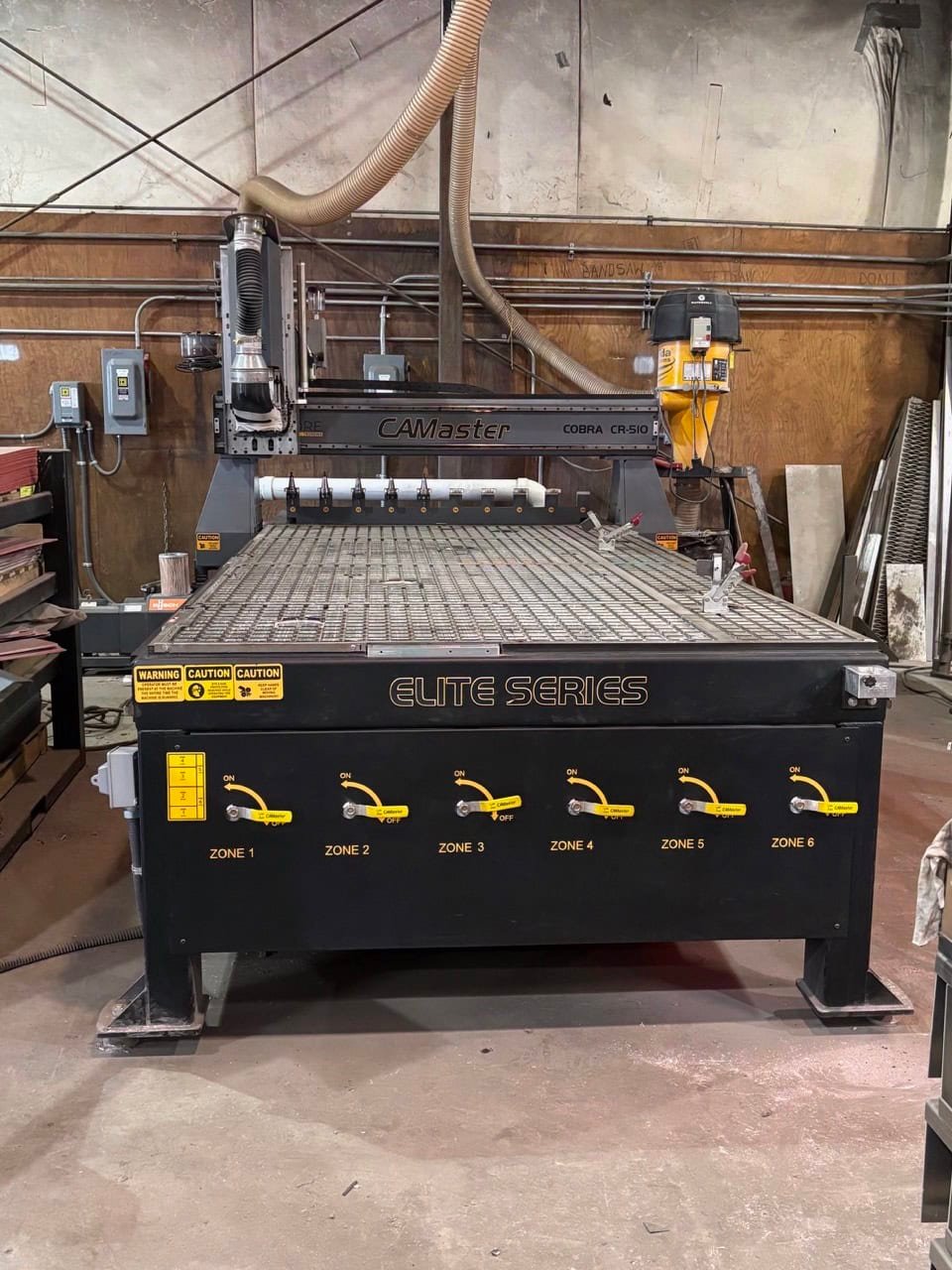

Table Size: 5’x10′
Cutting Area: 61 inches x 121 inches
Z-Axis Clearance: 10 inches
Weight: Approximately 3,250 lbs
Spindle Power: 12 HP HSD Automatic Tool Change (ATC) spindle
Tool Changer: 10-position automatic tool changer
Drive System: Digital AC servo motors on all axes with planetary gearboxes
Rapid Traverse Speed: Up to 2,500 inches per minute (IPM)
Cutting Speed: Up to 1,500 IPM

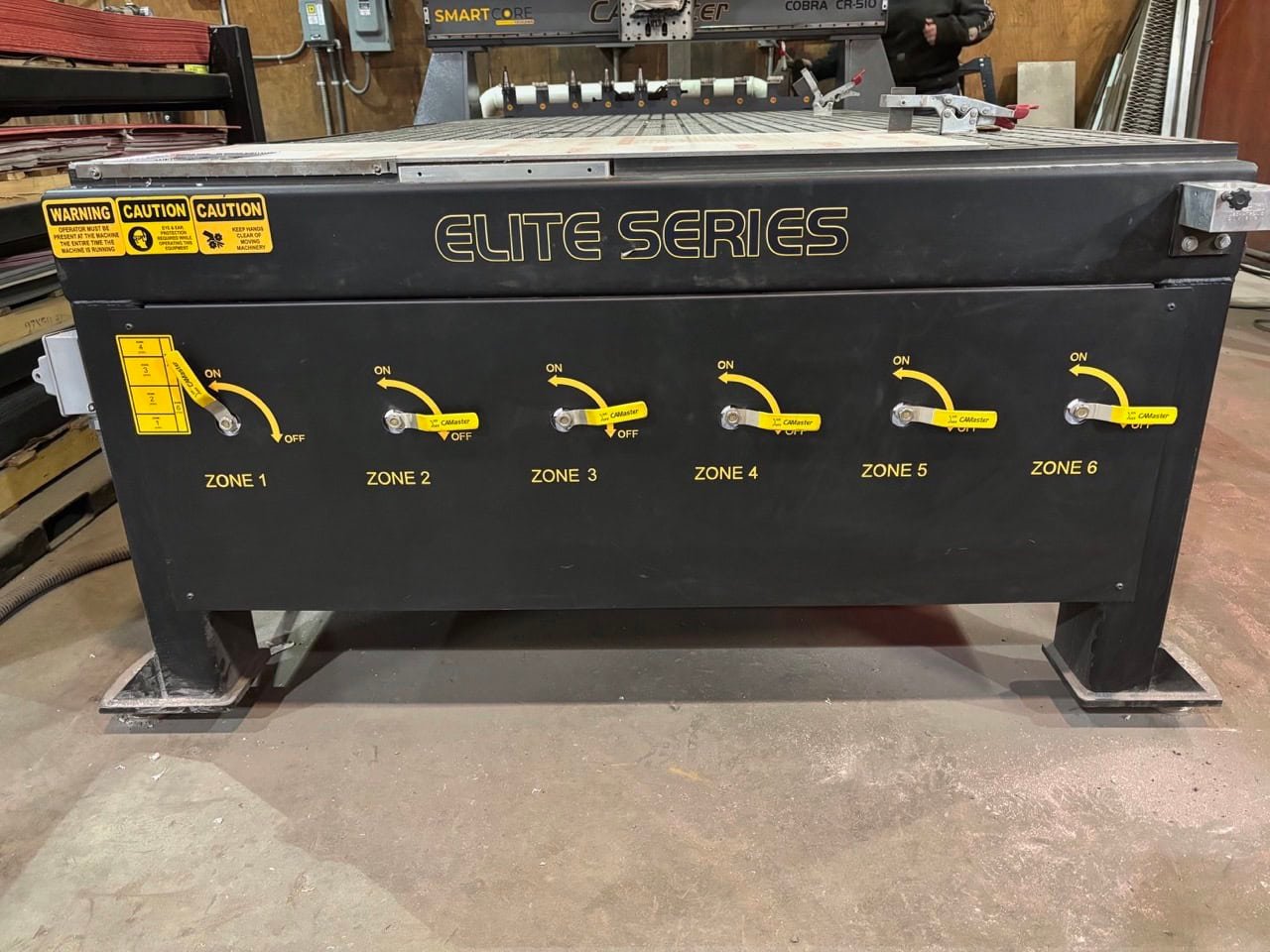

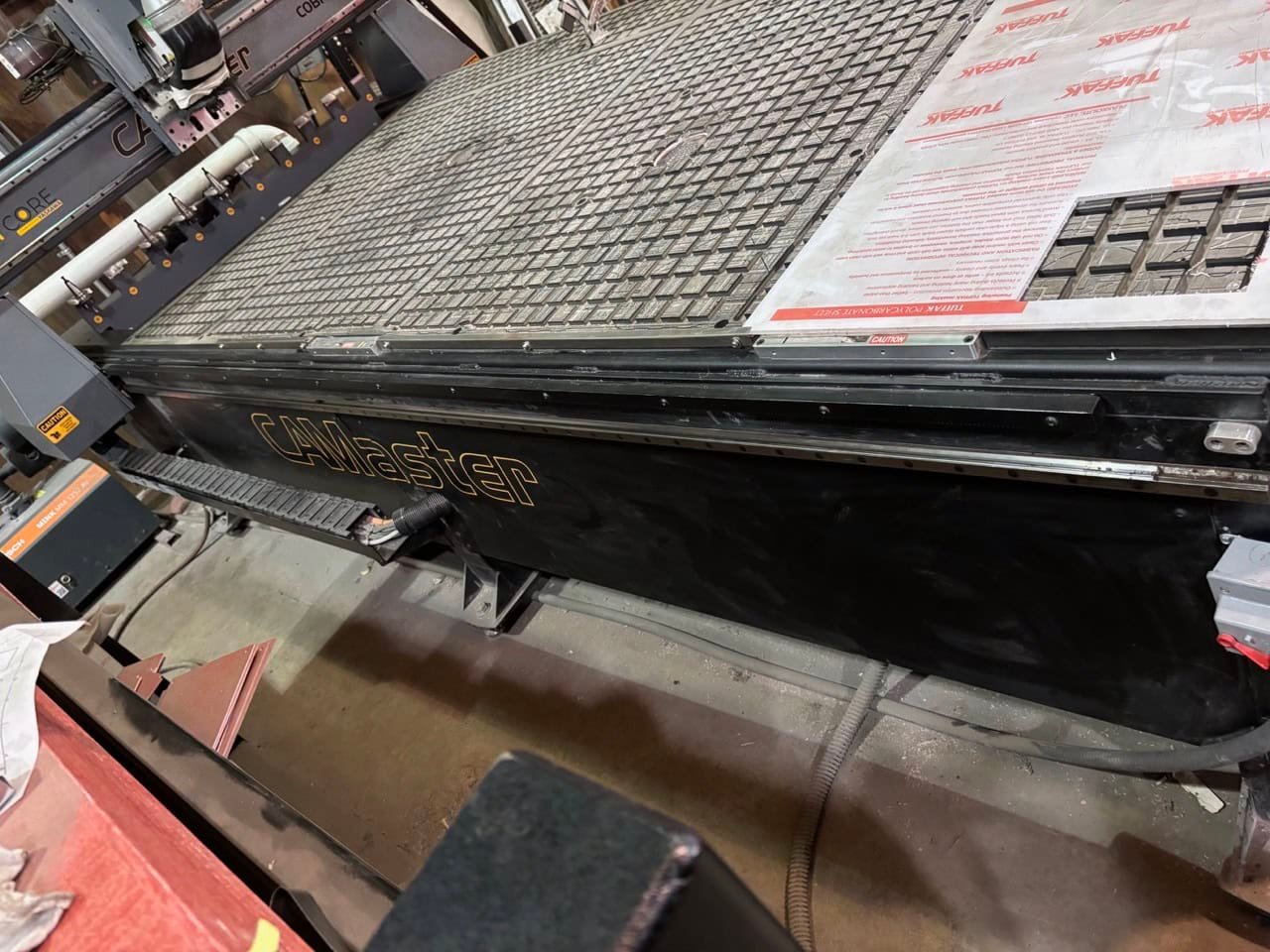

Table Surface: Phenolic vacuum table top
Frame Construction: All-steel welded frame with all-steel gantry and supports
Controller: SmartCore CNC motion controller
Approximate Hours: 600
