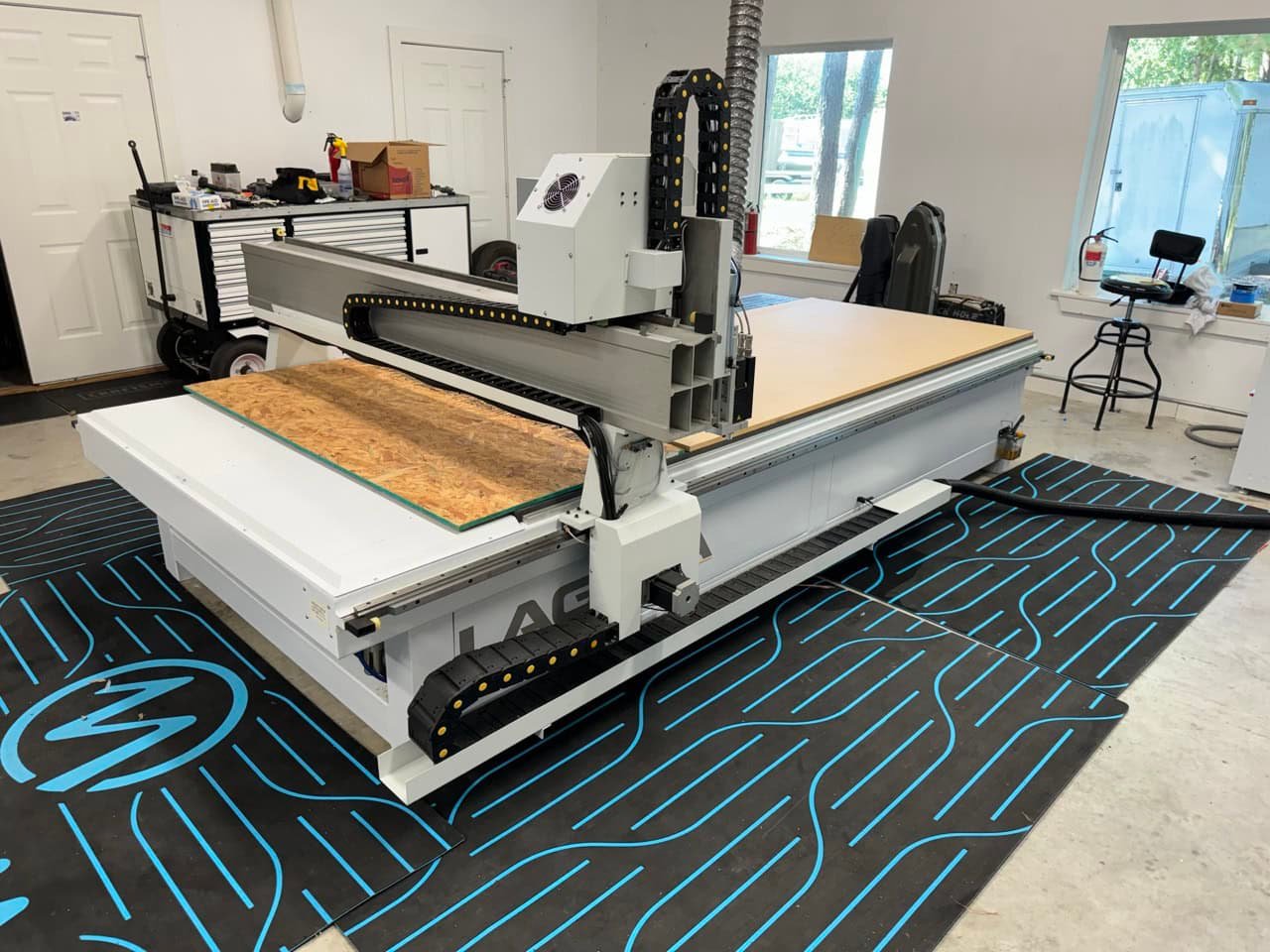

Description

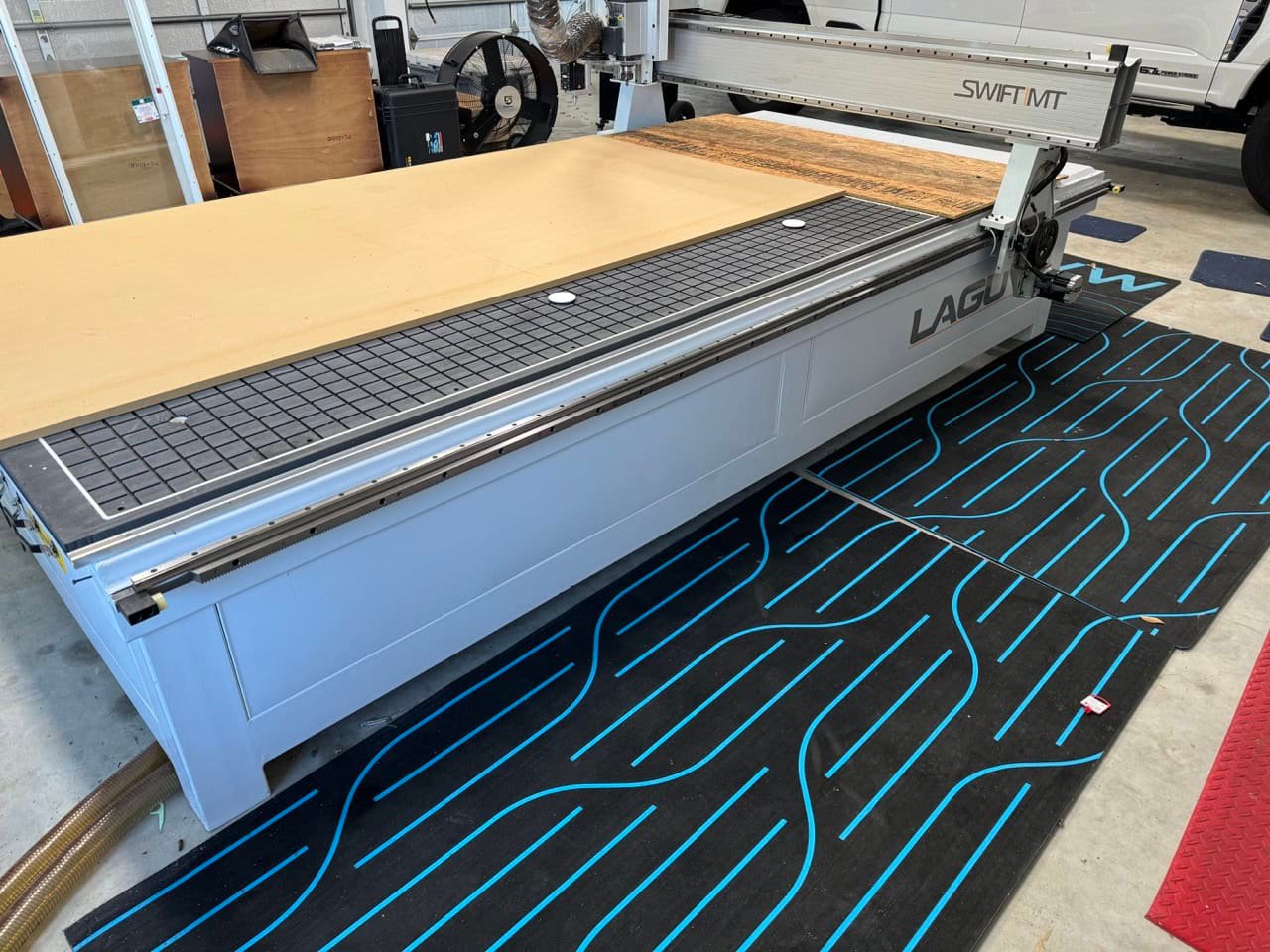

Table Size: 5’x10′
Gantry Rapid Travel: 900 in/min
Max. Cutting Speed: 600 in/min

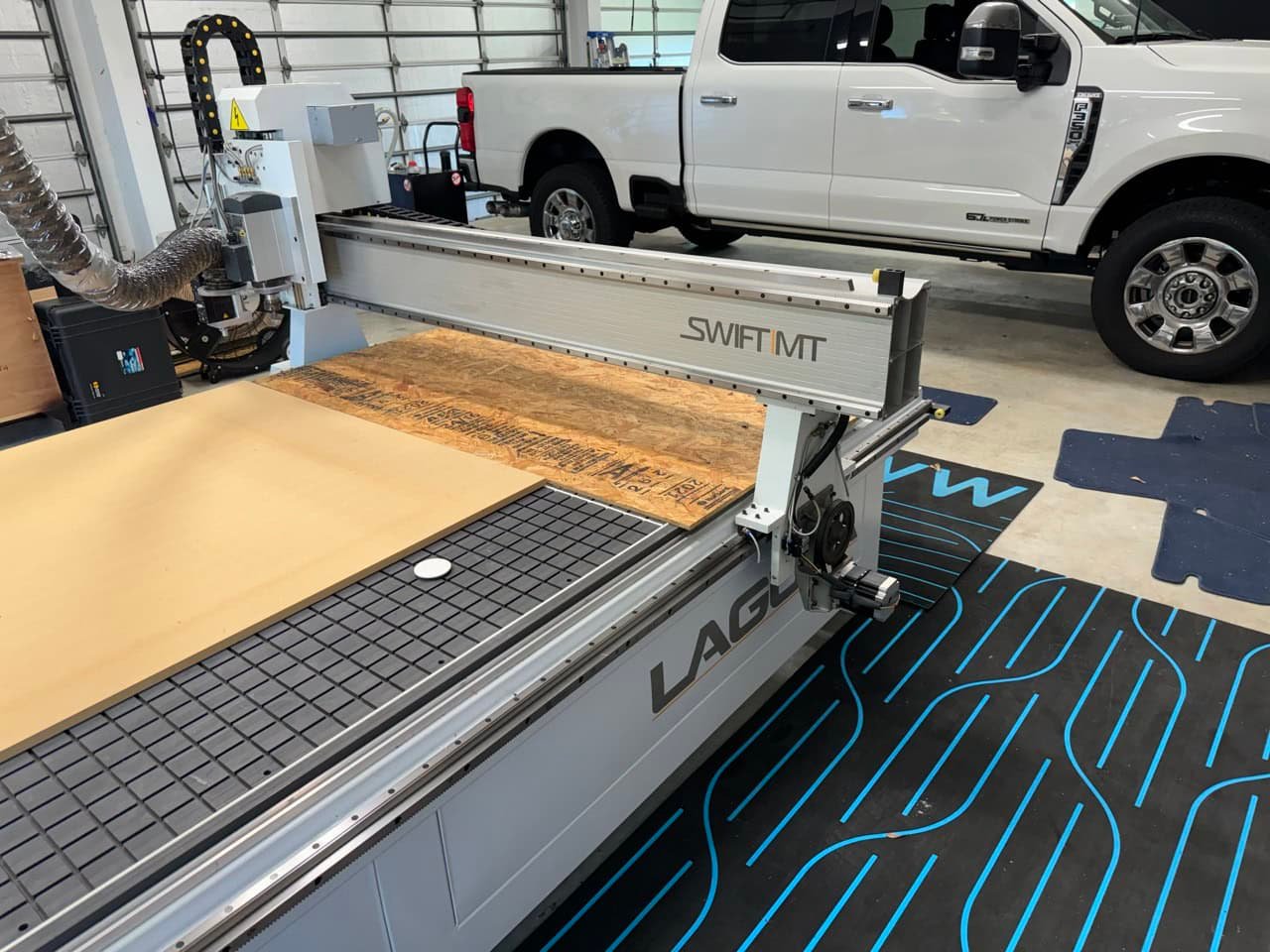

Gantry Height: 8″
Gantry Clearance: 7″
Spindle Power: 6 HP Liquid Cooled
Spindle RPM: 6,000-24,000 RPM
X & Y Axis: Helical Rack and Pinion
Z-Axis: Ground Ball Screw
Dimensions: 69″x160″x78″
Equipped With:
VCarve Pro Software
6 HP HSD Spindle
10 HP Delta MS300 VFD Inverter for Spindle
Laguna Vision System
Tangential Knife System
49″x97″ Ecocam Drag Knife Table Cutting Mat

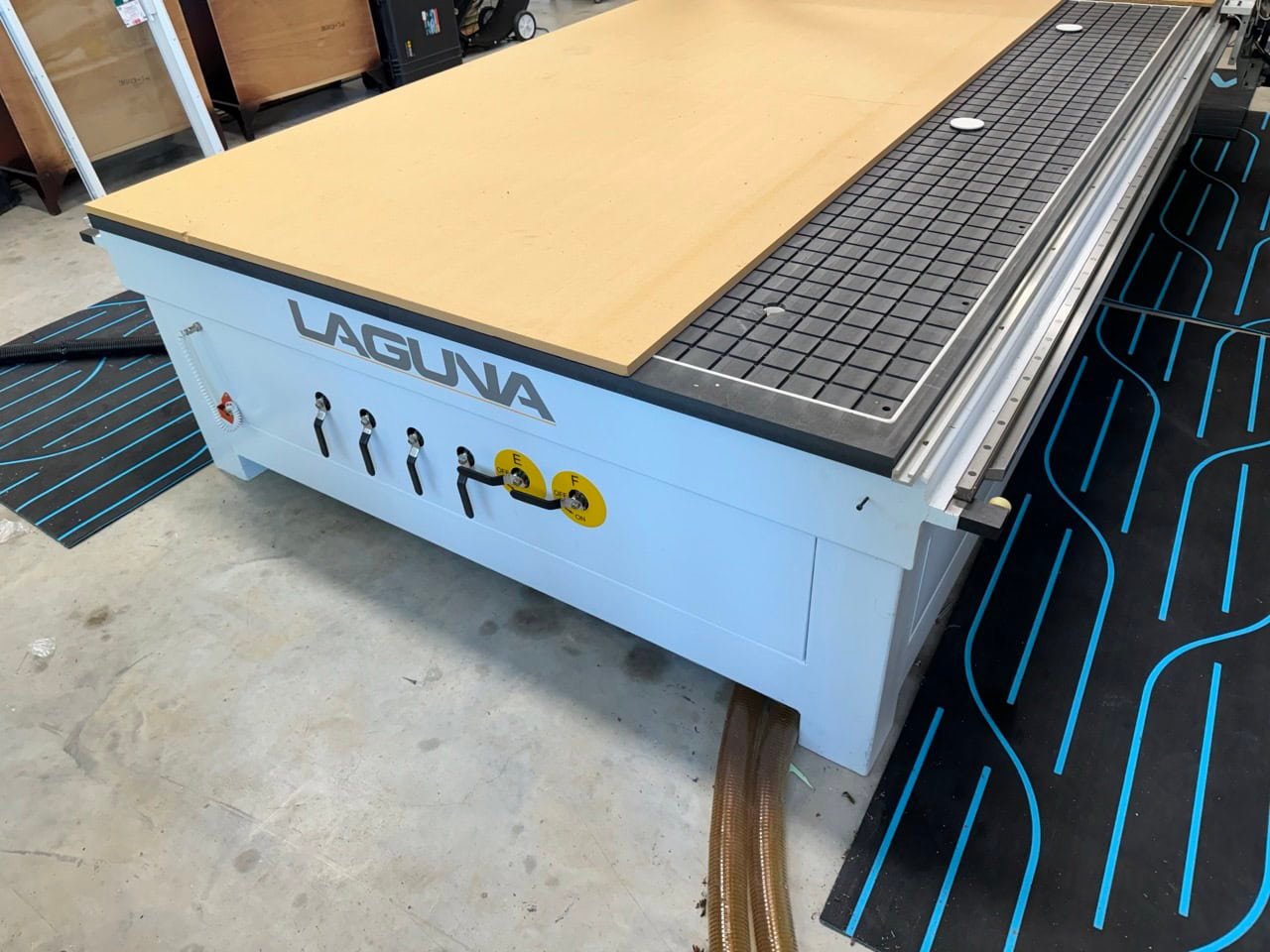

6 Zone Vacuum System
One-Piece Welded All-Steel Frame
Laguna Vision System

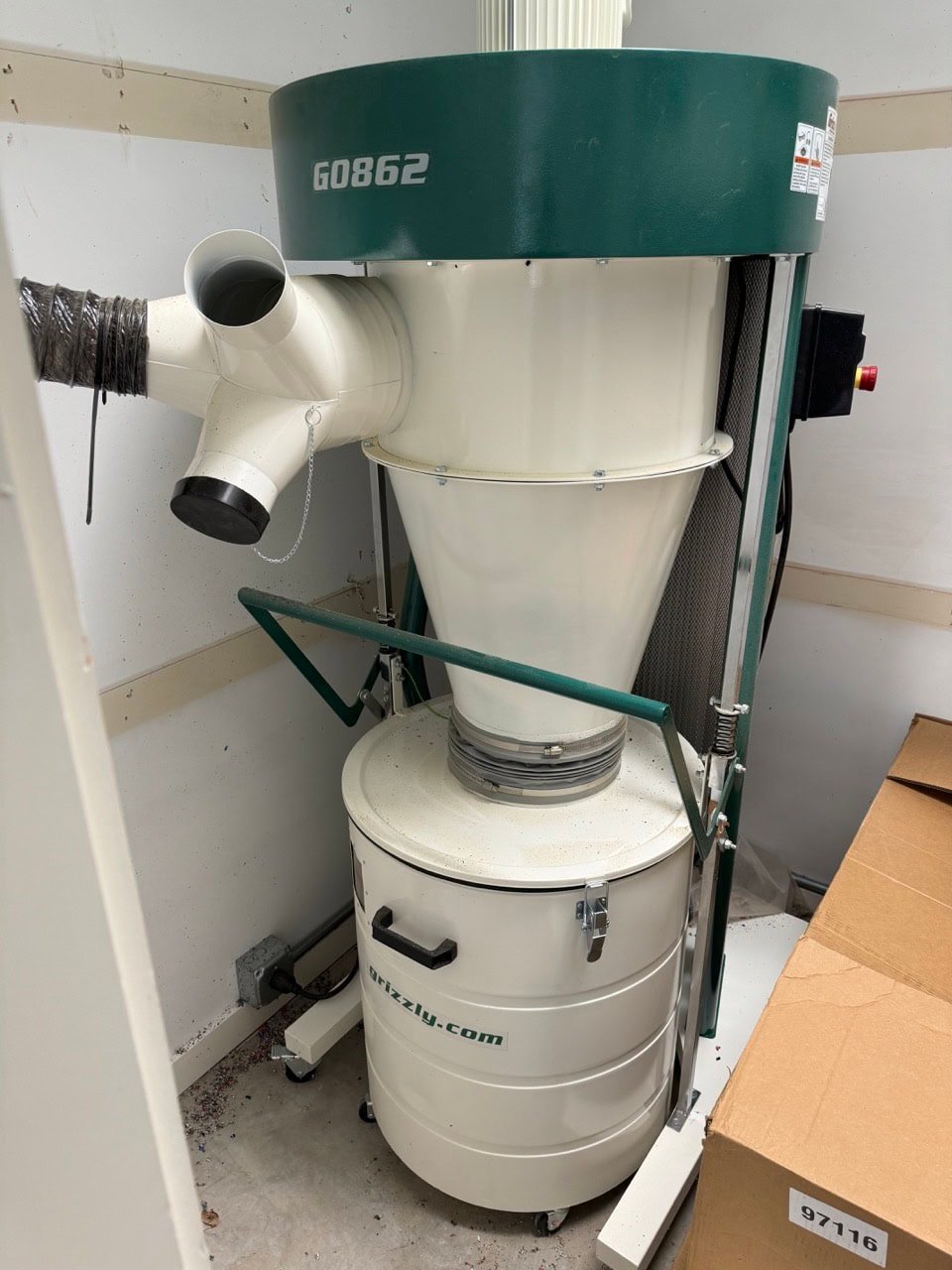

Grizzly Dust Collector

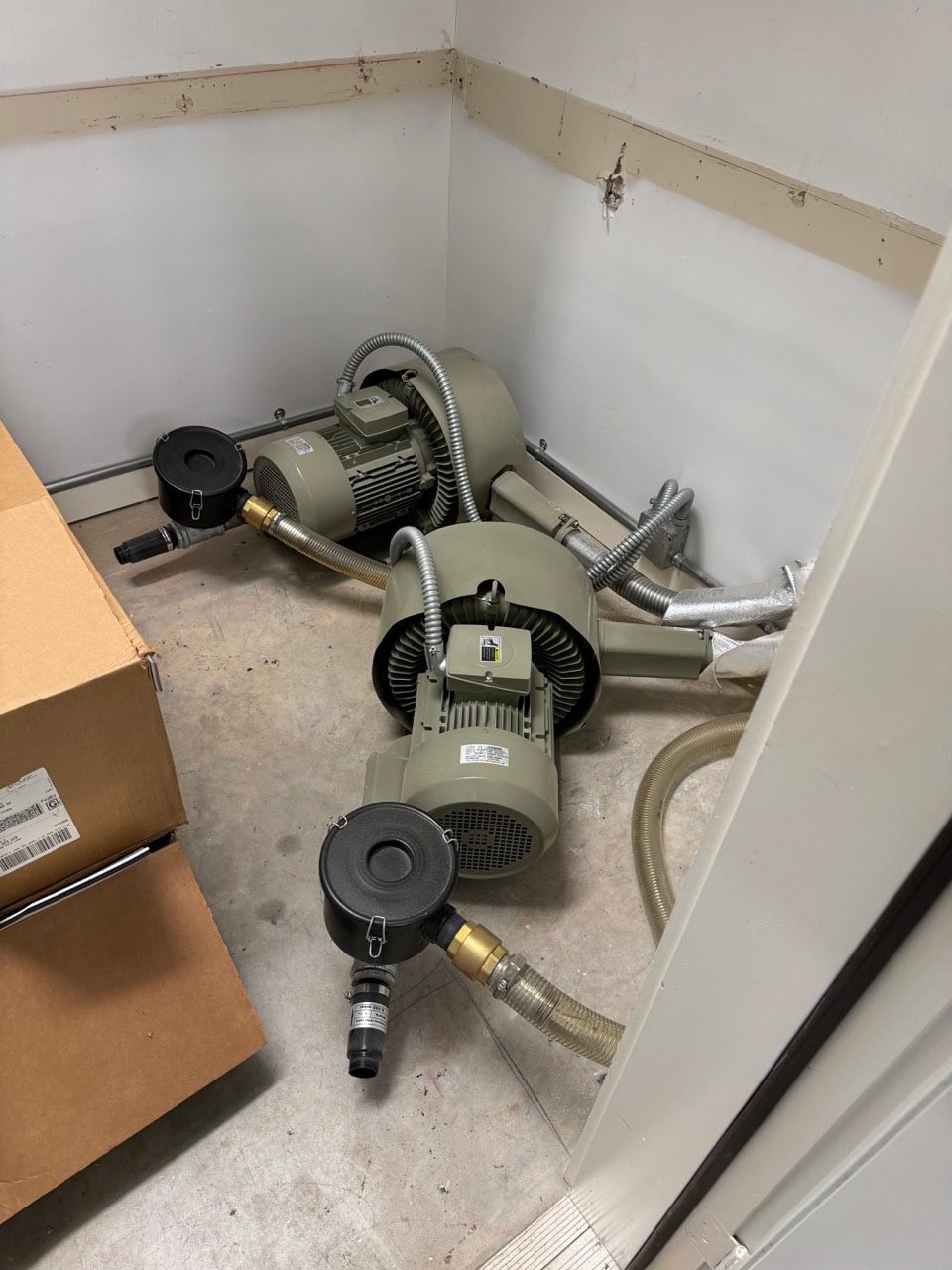

(2) Becker 10 HP Vacuum Pumps
(2) 15 HP Delta VFD Inverter for Vacuum Pumps
Tooling
Approximately 20 Cutting Hours
