Description

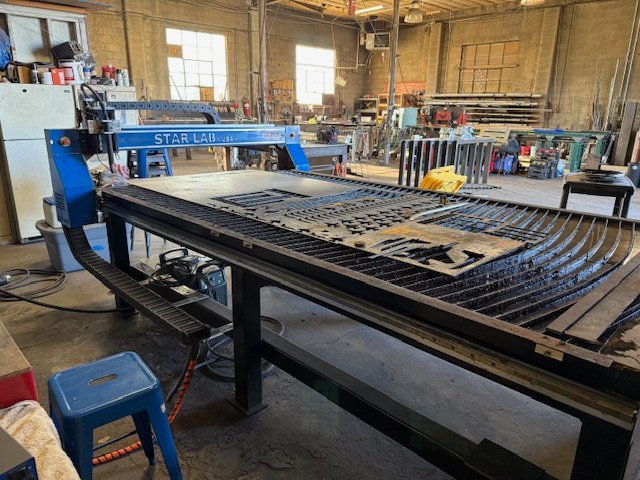

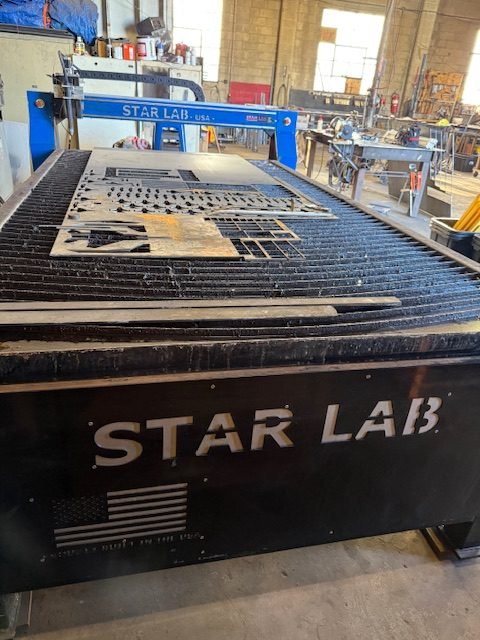

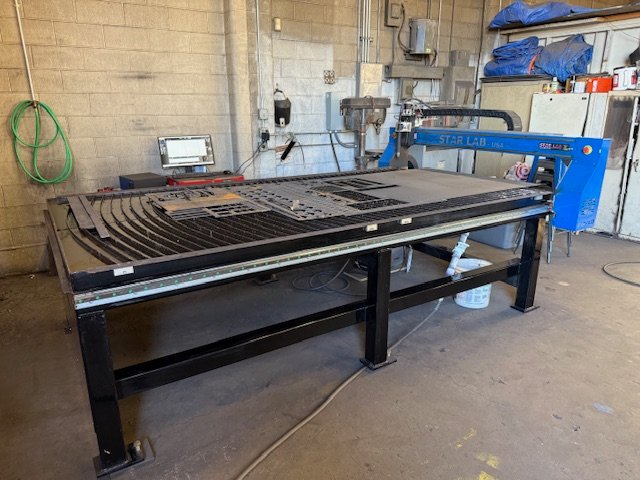

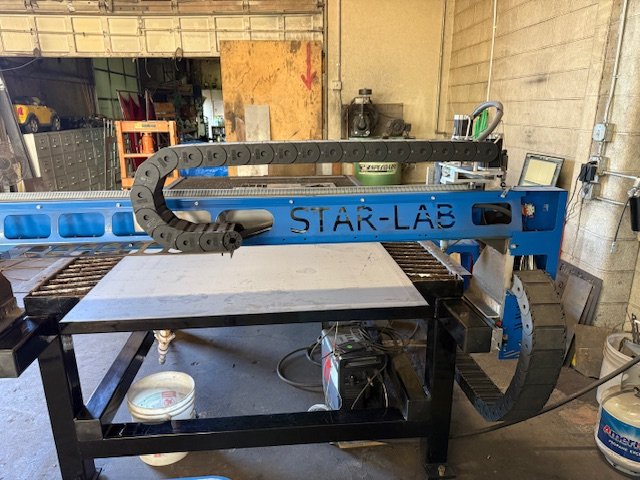

X-Axis Travel: Approx. 121.5″
Y-Axis Travel: Approx. 61.5″
Z-Axis Clearance: Approx. 8.0″
Cutting Speed: Up To 1,500 IPM
Duty Cycle: 60 Percent At 85 Amps On 230 To 600 Volt 3-Phase Or 480 Volt Single-Phase
Duty Cycle Alternate: 50 Percent At 85 Amps On 240 Volt Single-Phase
Duty Cycle Continuous: 100 Percent At 66 Amps On 3-Phase Or Single-Phase

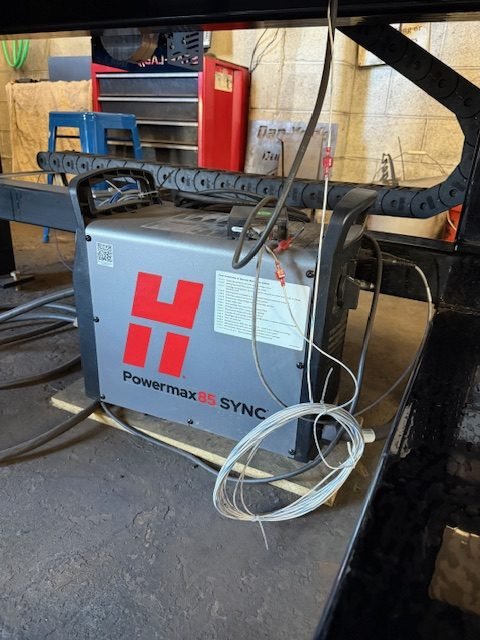

Power Source Dimensions: Approx. 19″ Deep × 9.2″ Wide × 17″ High
Power Source Weight: Approx. 67 Lbs CSA Version Or 52 Lbs CE Version
Gas Supply Requirements: Clean Dry Oil-Free Air Or Nitrogen At 75 To 120 PSI, 450 SCFH Flow

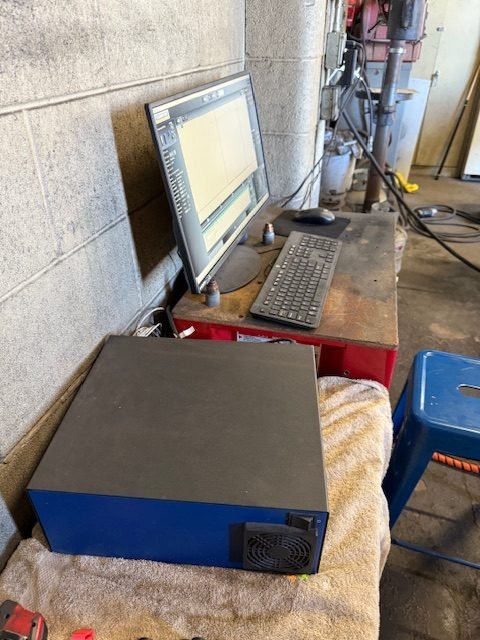

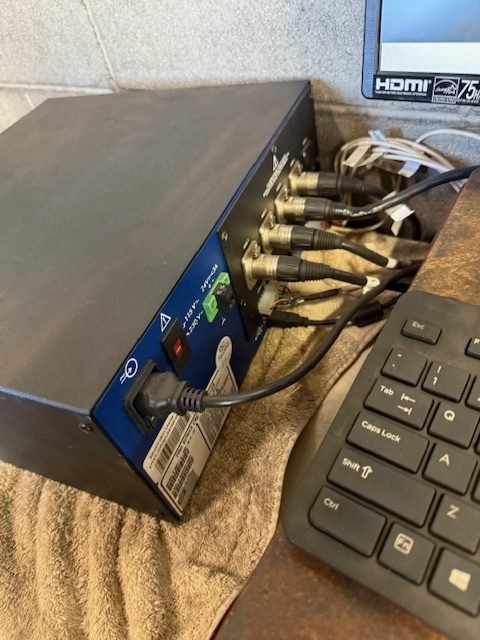

Control System: FlashCut CNC OS Pro v10.0 Or Linux/Windows Based Controller
Equipped With:
FlashCut CNC Software

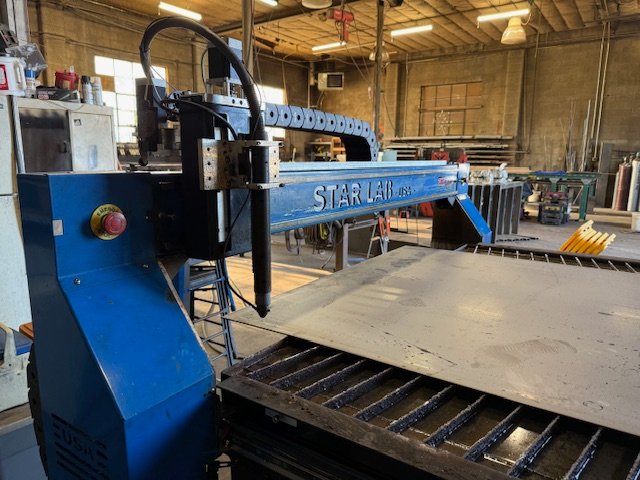

Magnetic Breakaway Torch
Dual-Drive Precision Gearing System
Auto-Home And Auto-Square Switches
Hardened Precision Rails With Wipers
OSHA Blue Powder-Coated Frame
Ball-Screw Driven Z-Axis
