Description

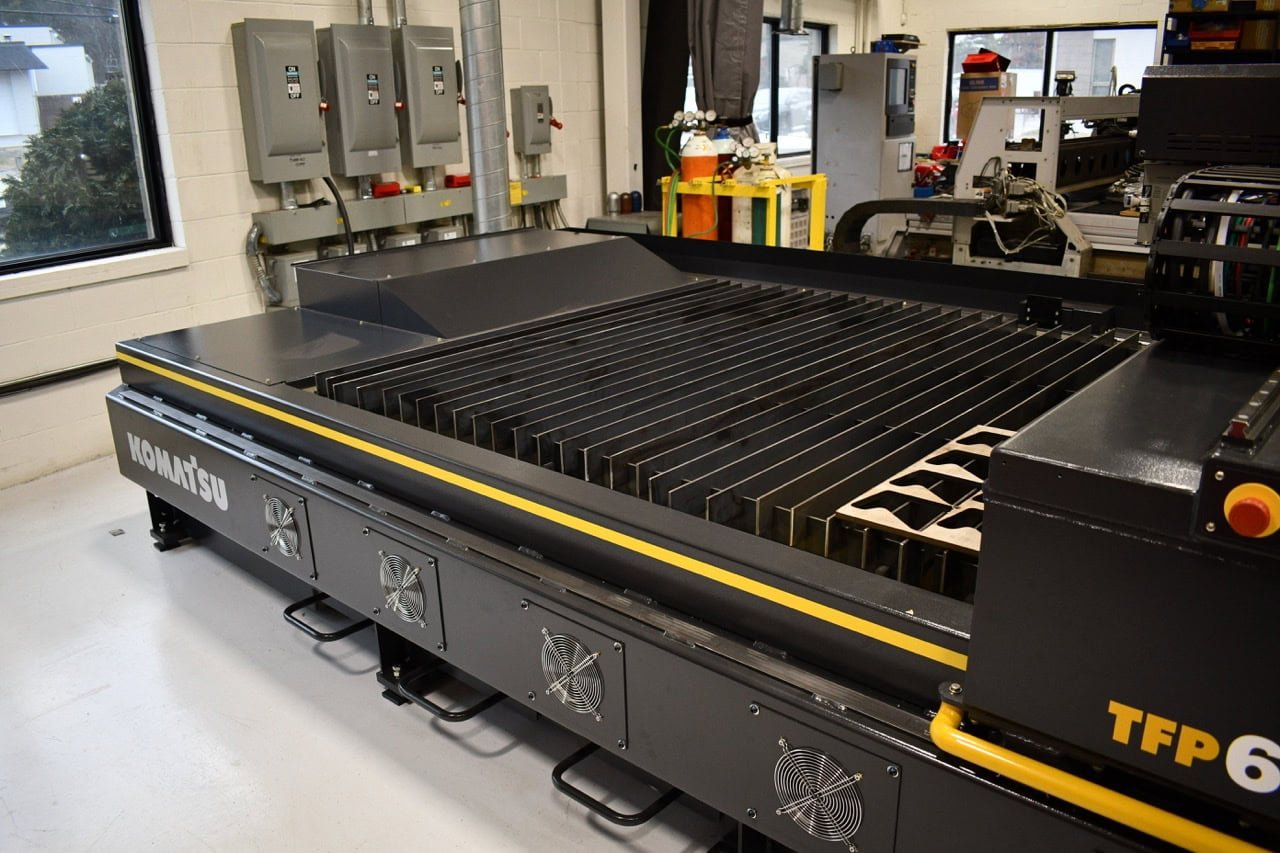

Max Workpiece Dimensions:72″x144″

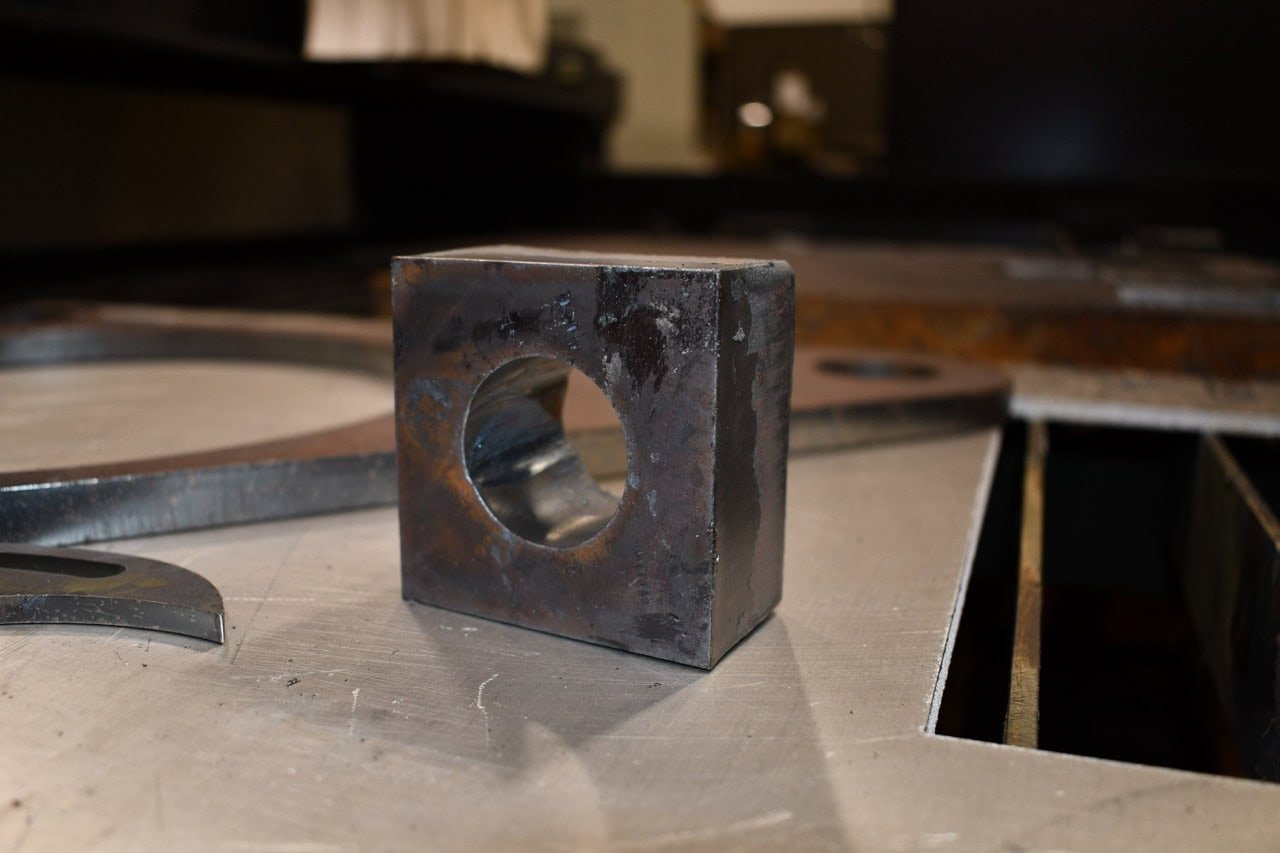

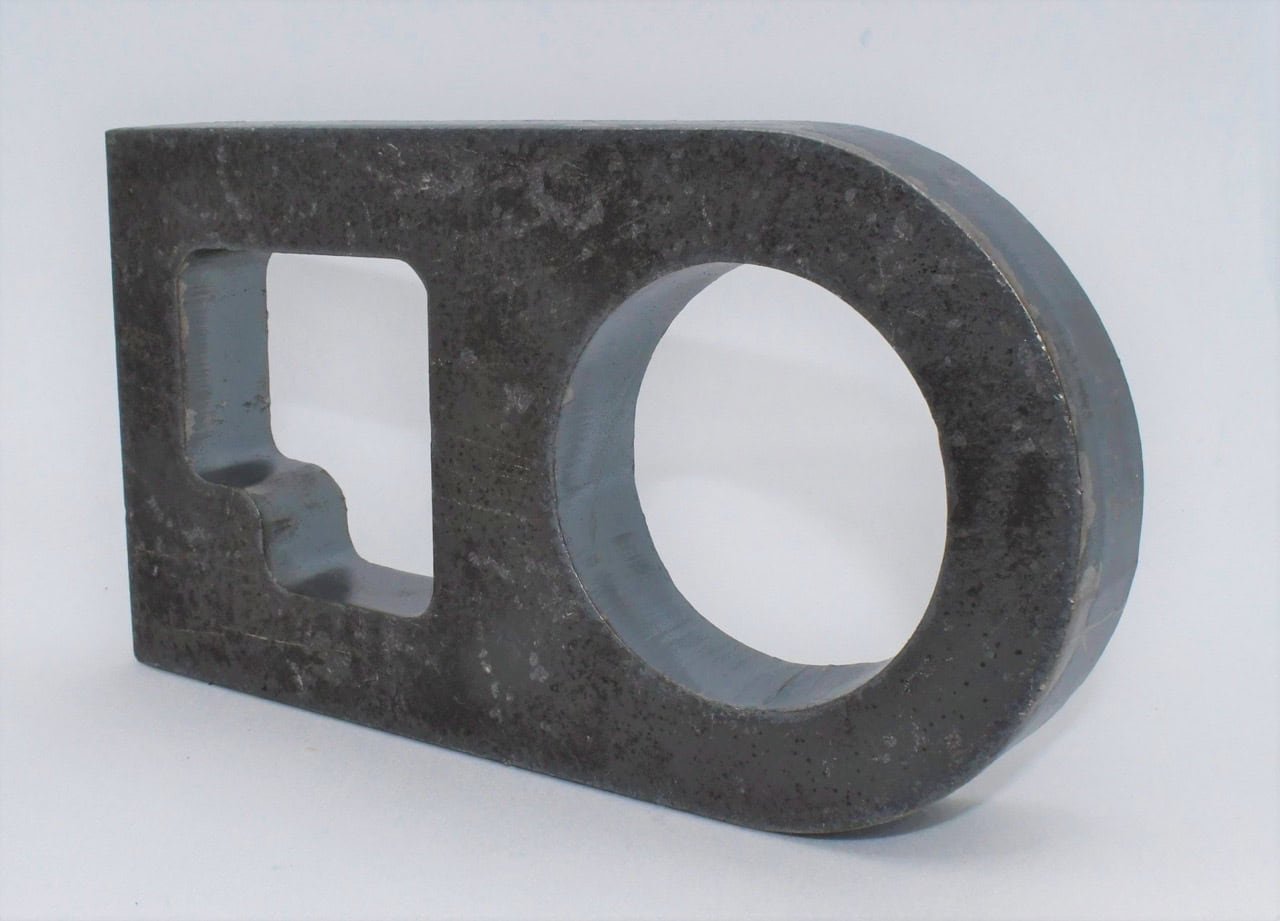

Max Material Thickness:0.59″
X Axis Travel:156.3″
Y Axis Travel:79.5″
Z Axis Travel:9.45″
X Axis Rapid Traverse: Max 590.55 in/min
Y Axis Rapid Traverse: Max 1574.8 in/min
Z Axis Rapid Traverse: Max 787.4 in/min
Positioning Accuracy:± 0.0039″
Repeatability:± 0.002″
Machine Weight: 9480 lbs

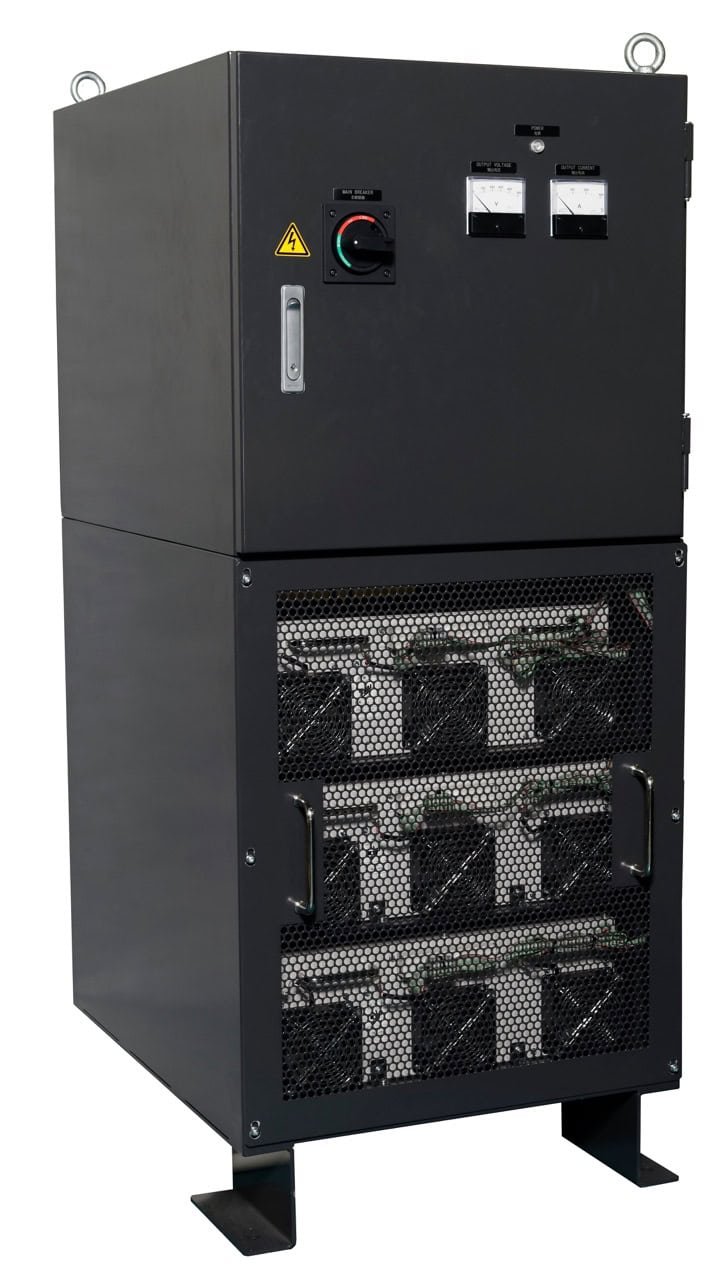

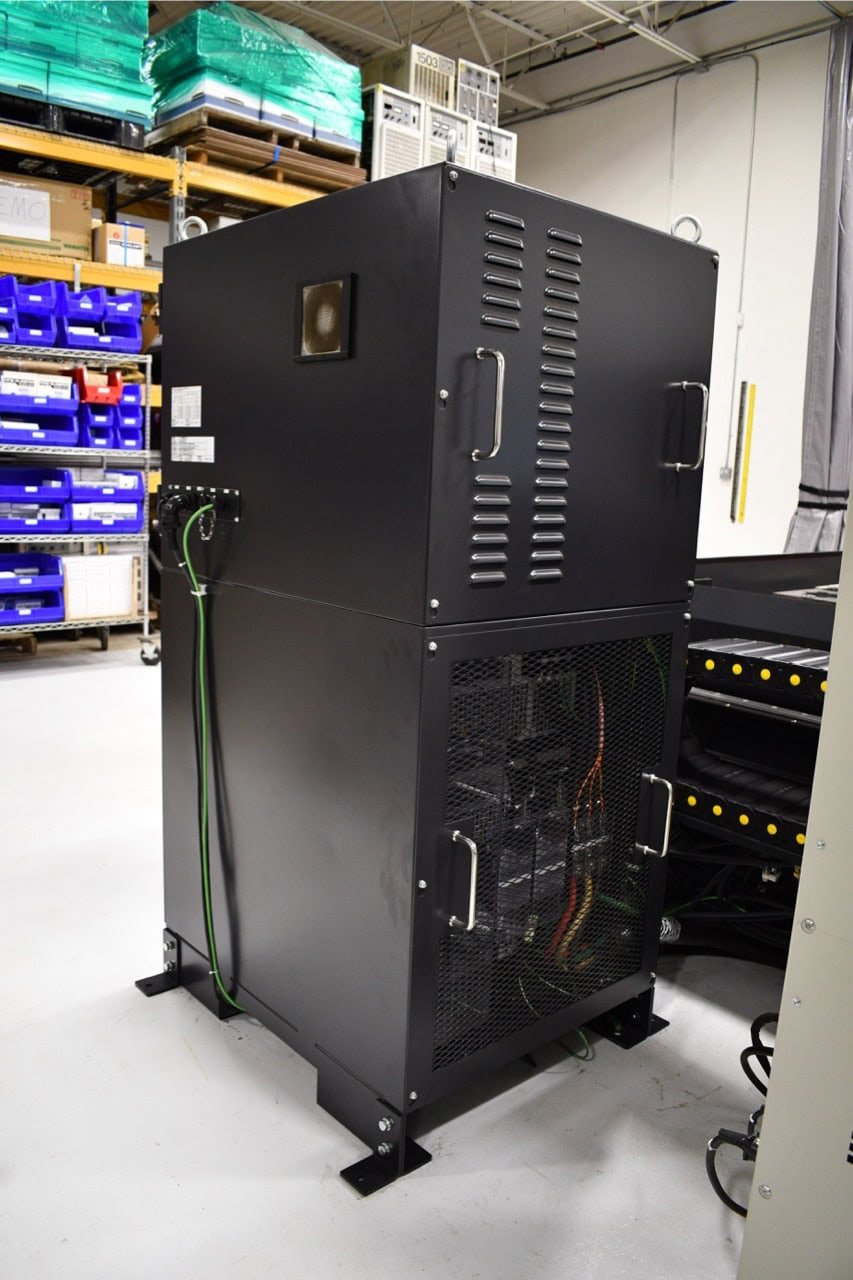

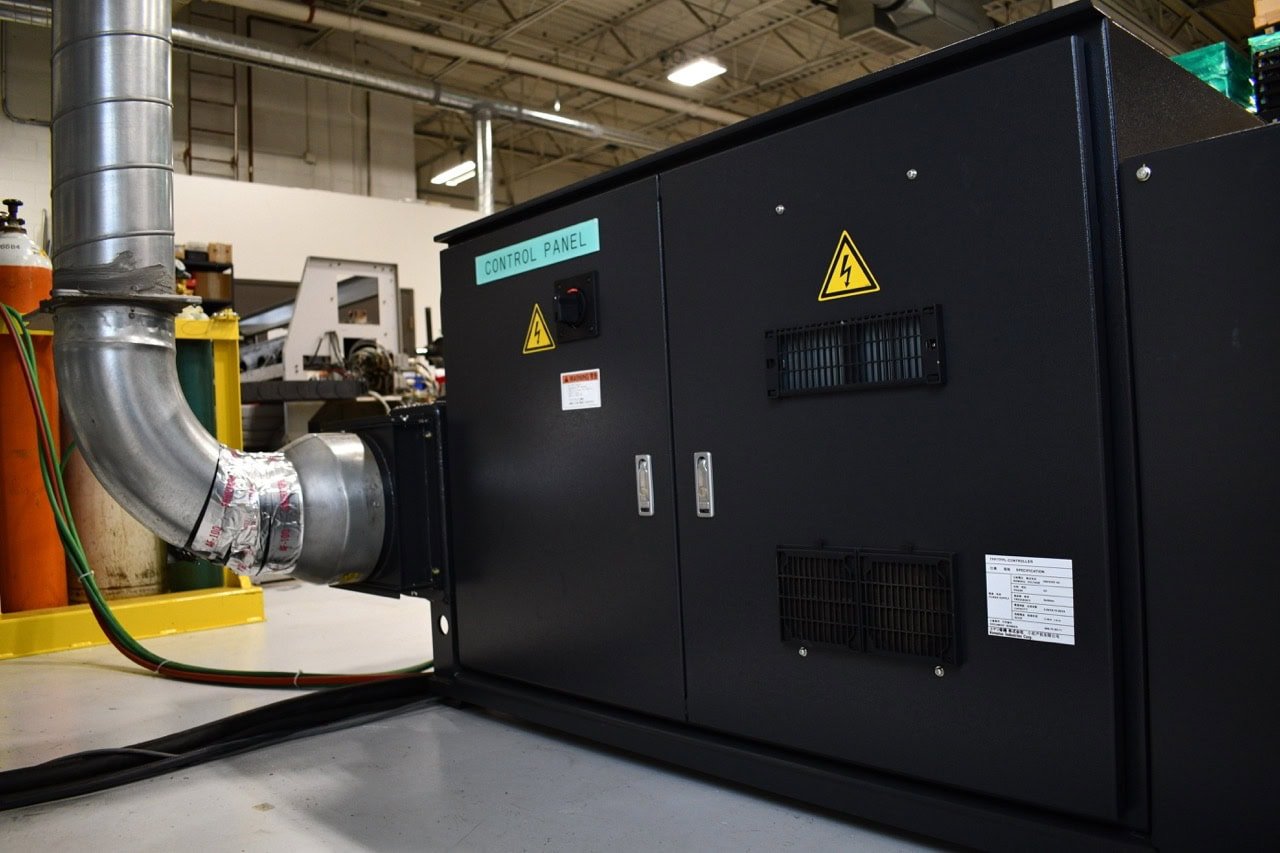

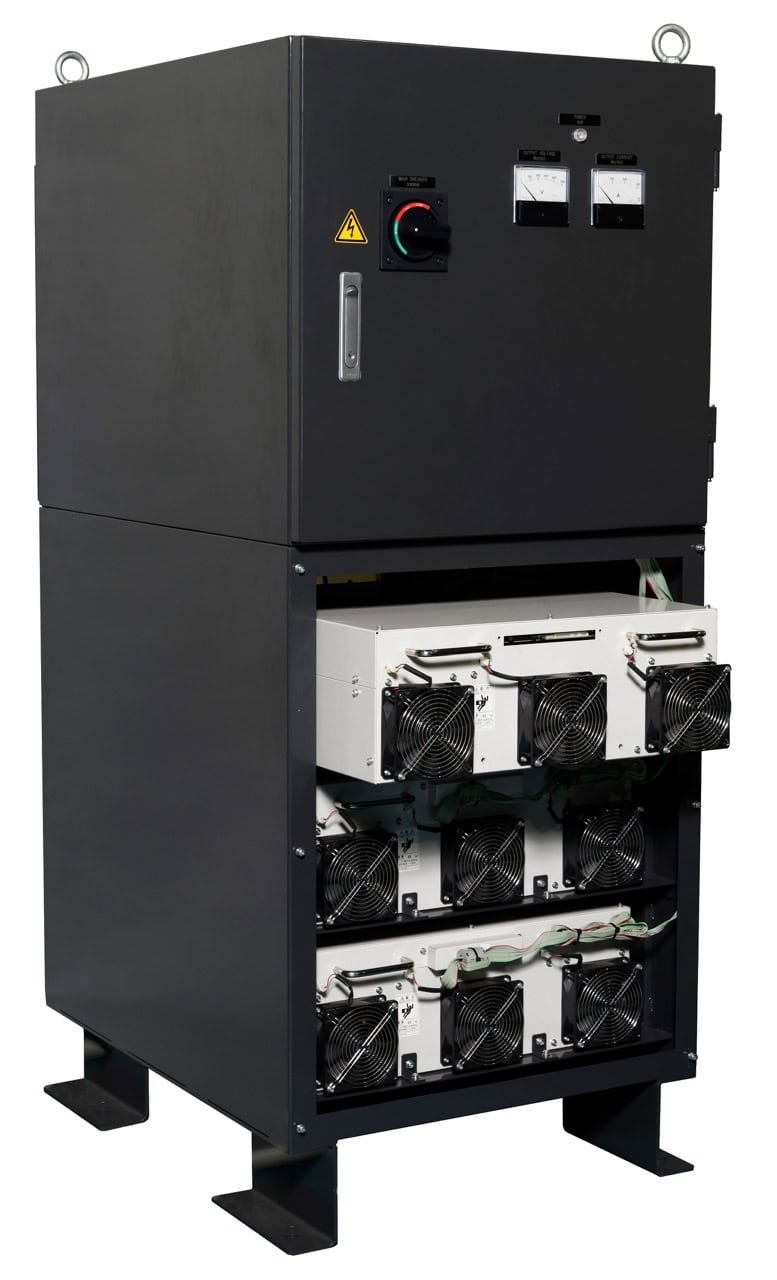

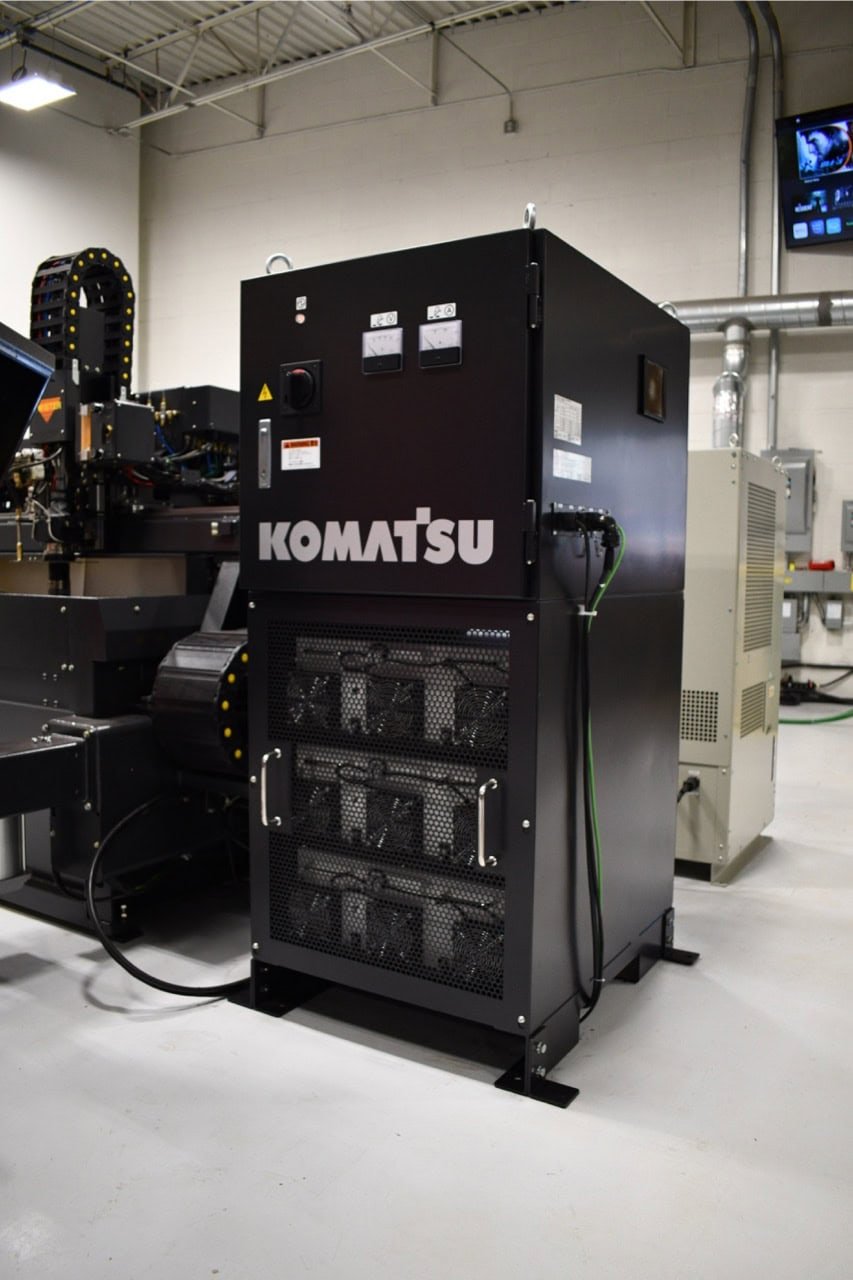

t Current:300 A/200 V/60 kW
Output Current Adjustable Range:10-300 A

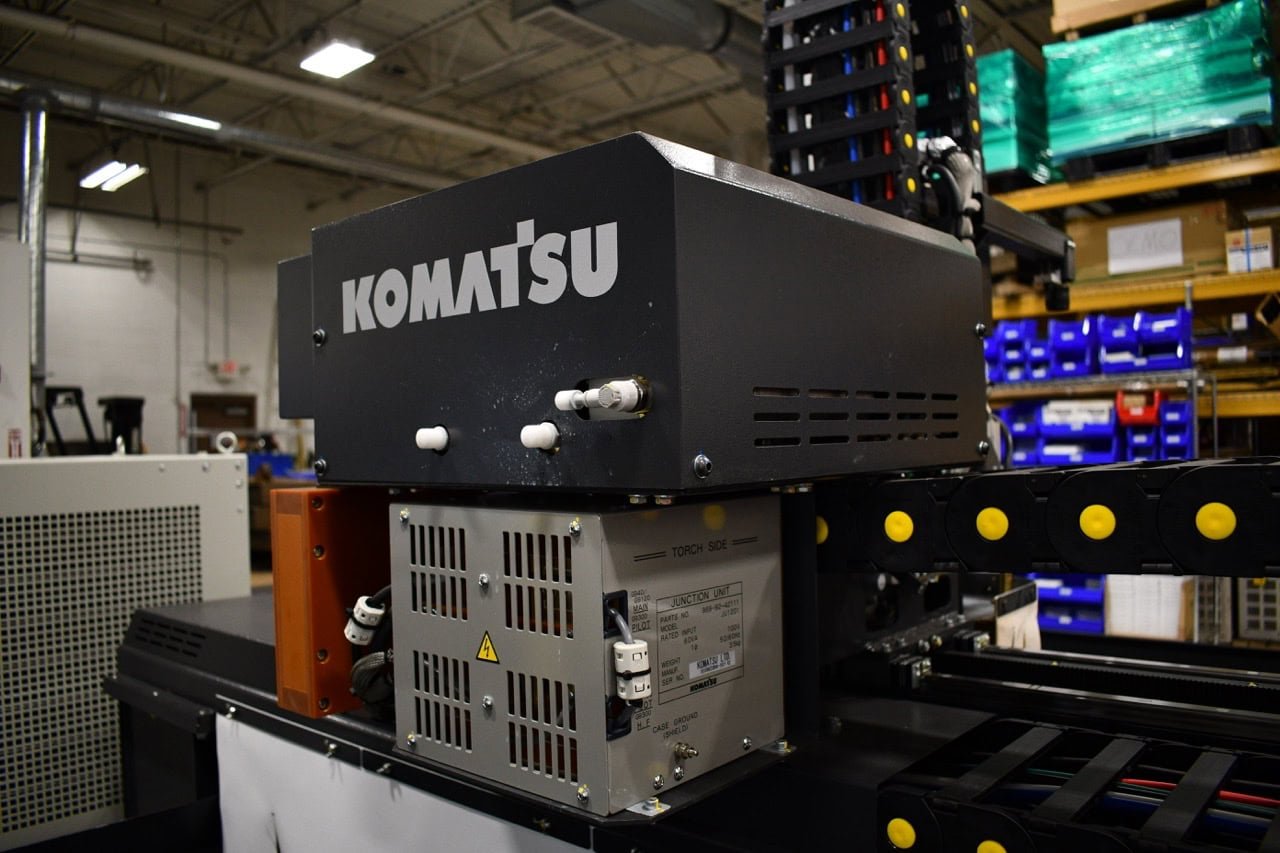

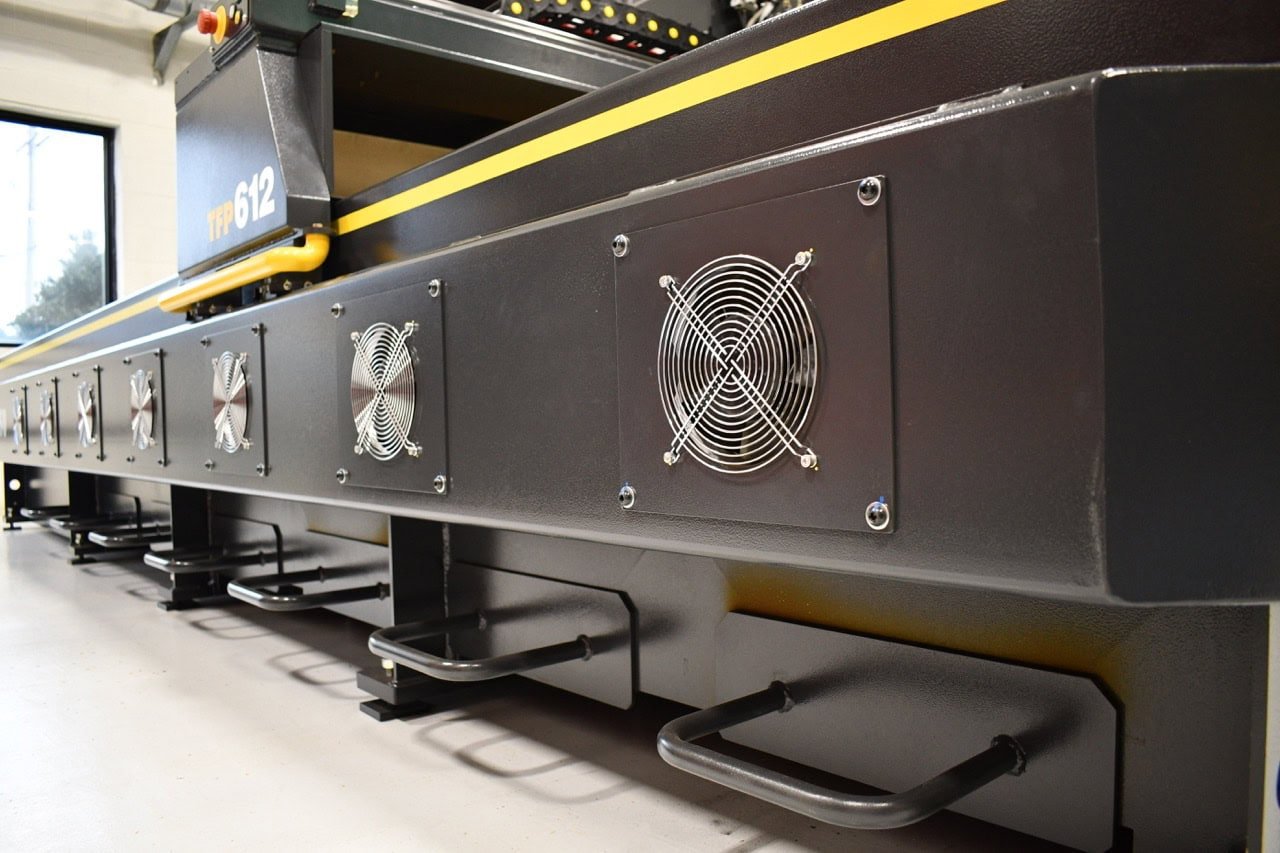

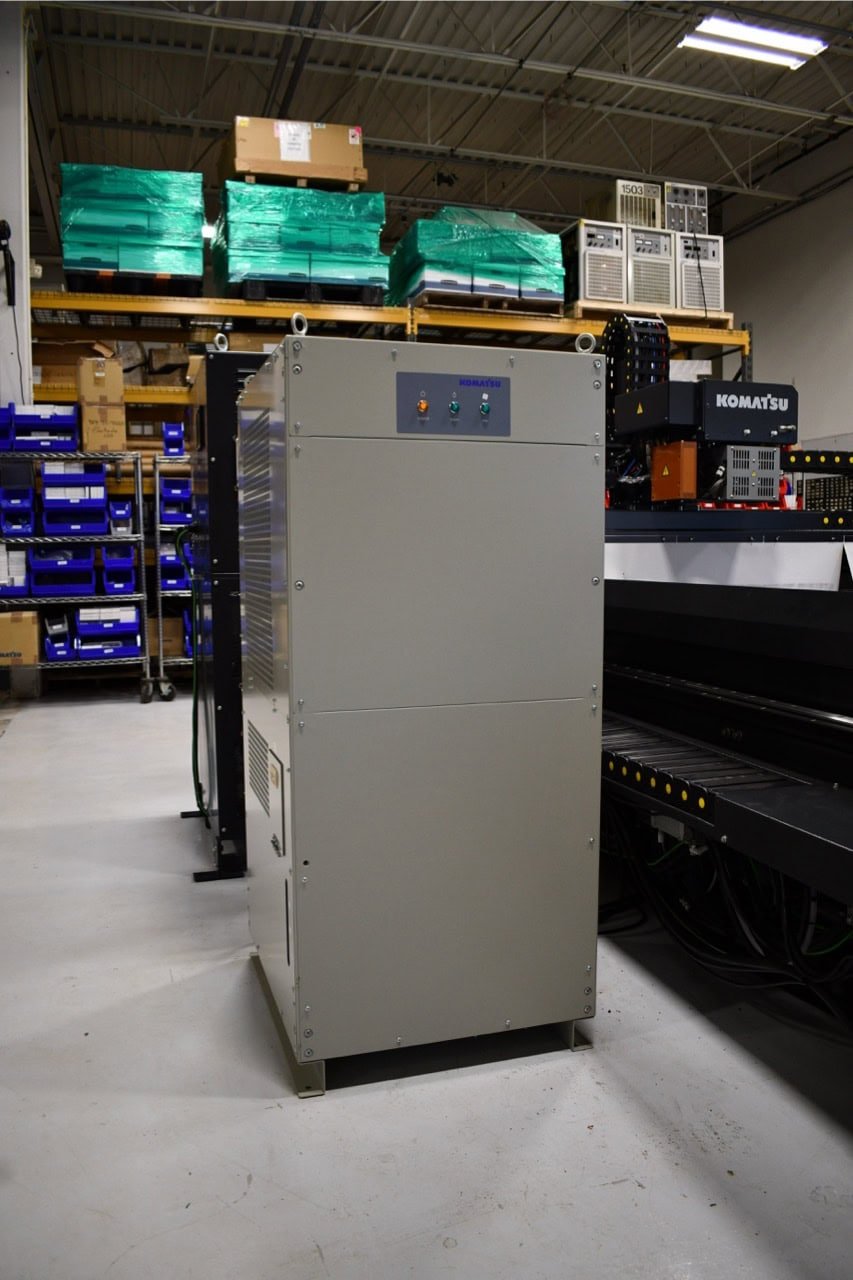

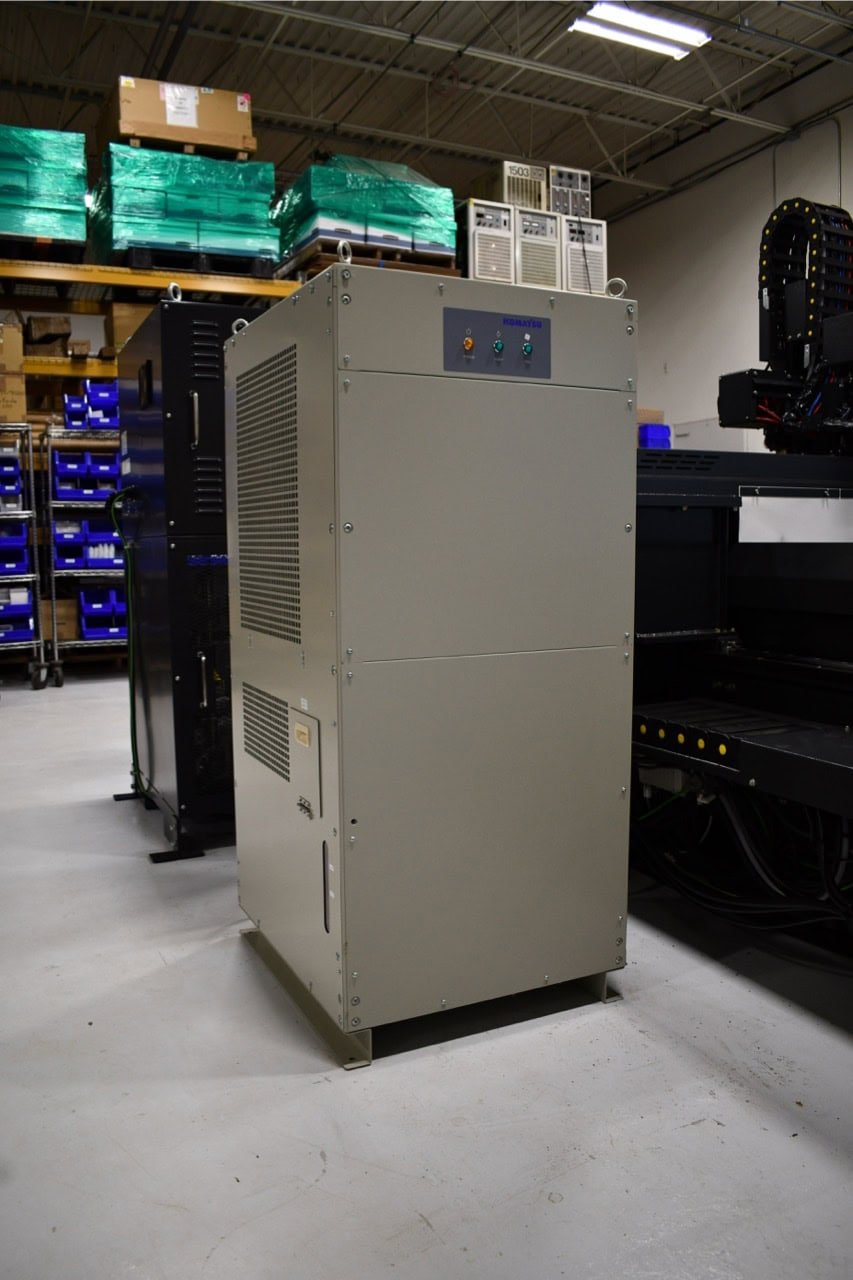

Cooler Unit System Type: Forced Air
Tank Capacity: 9 gal

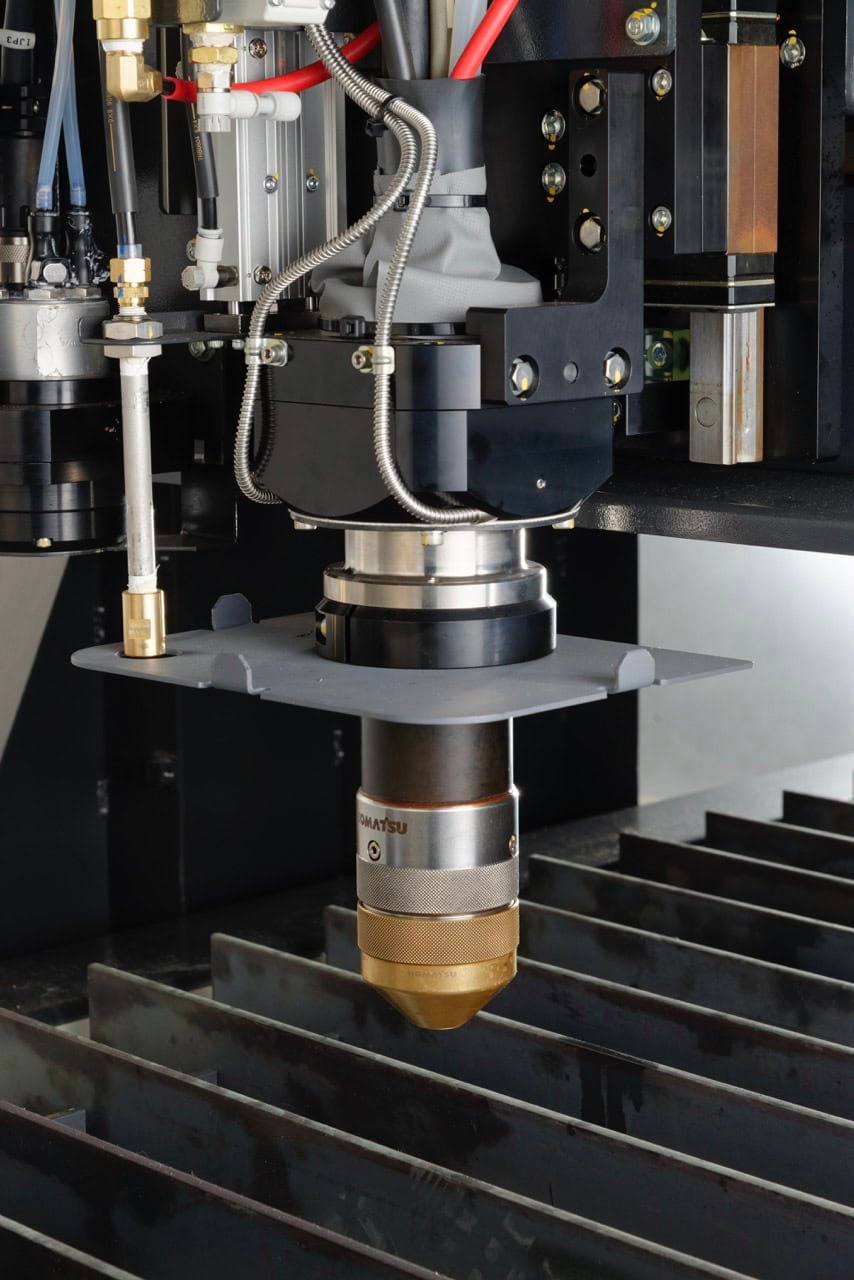

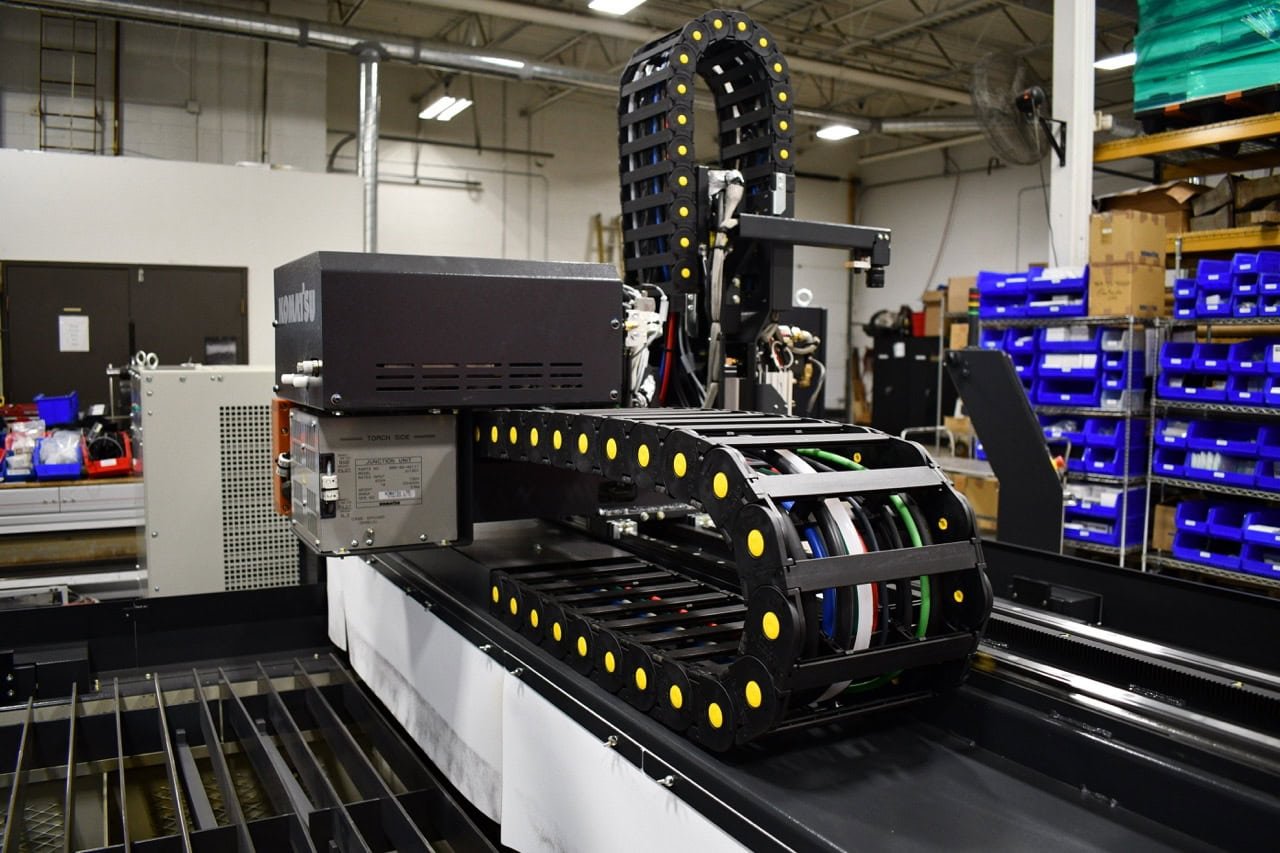

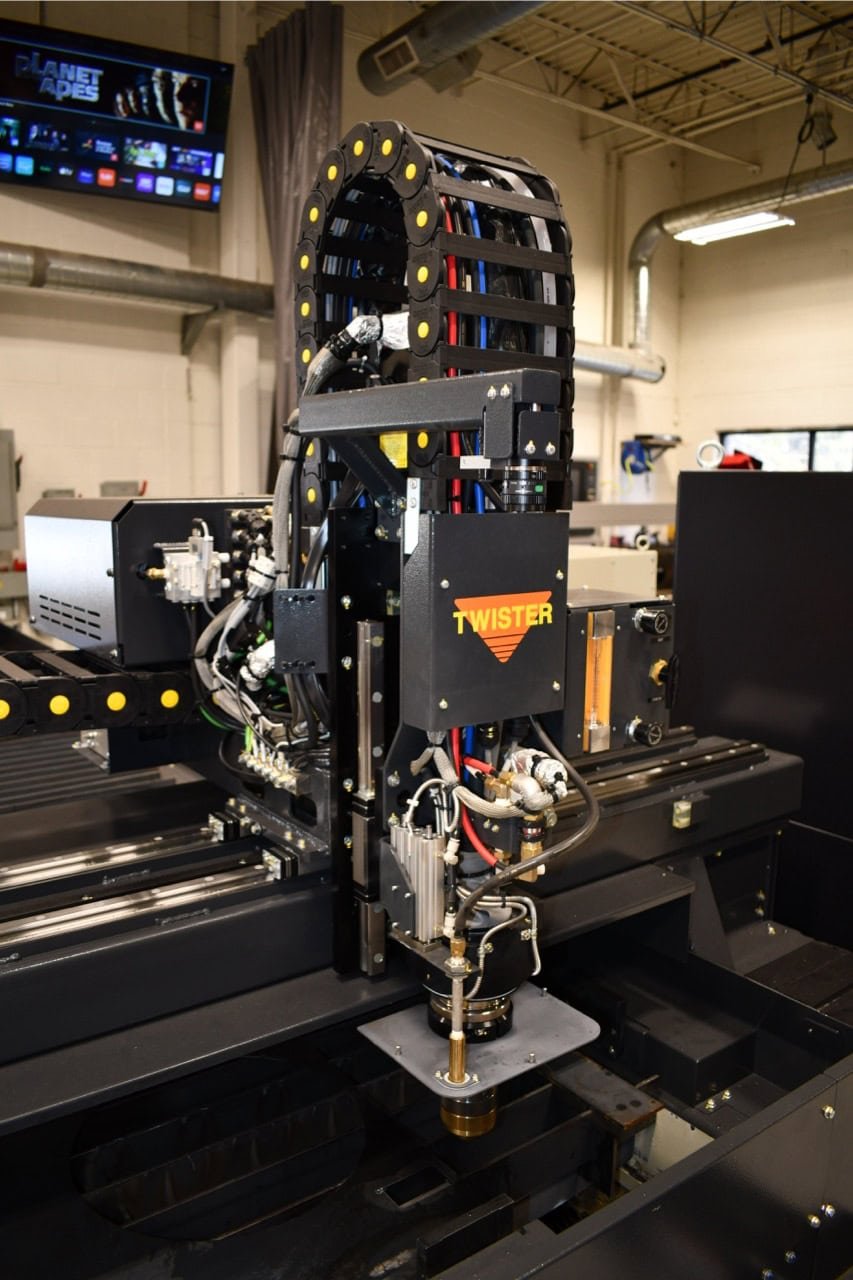

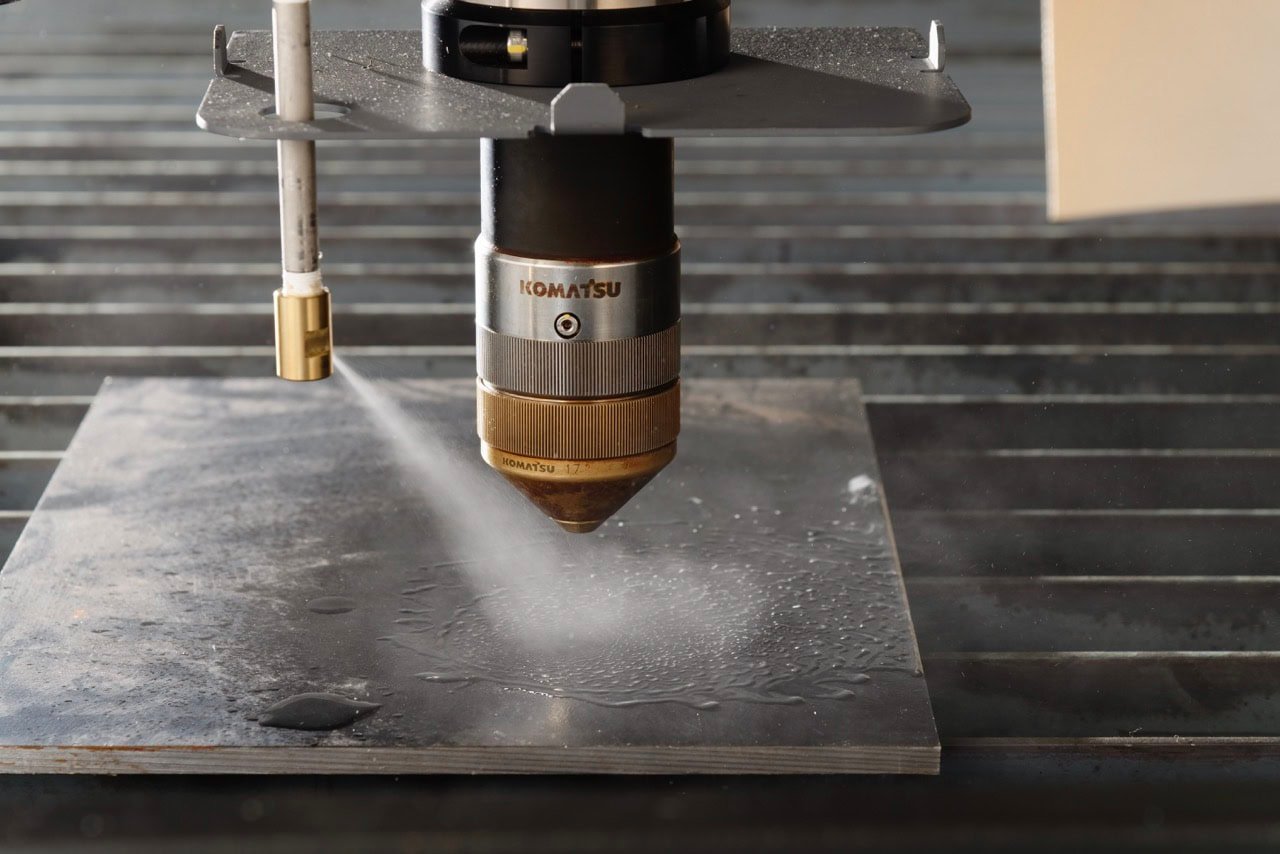

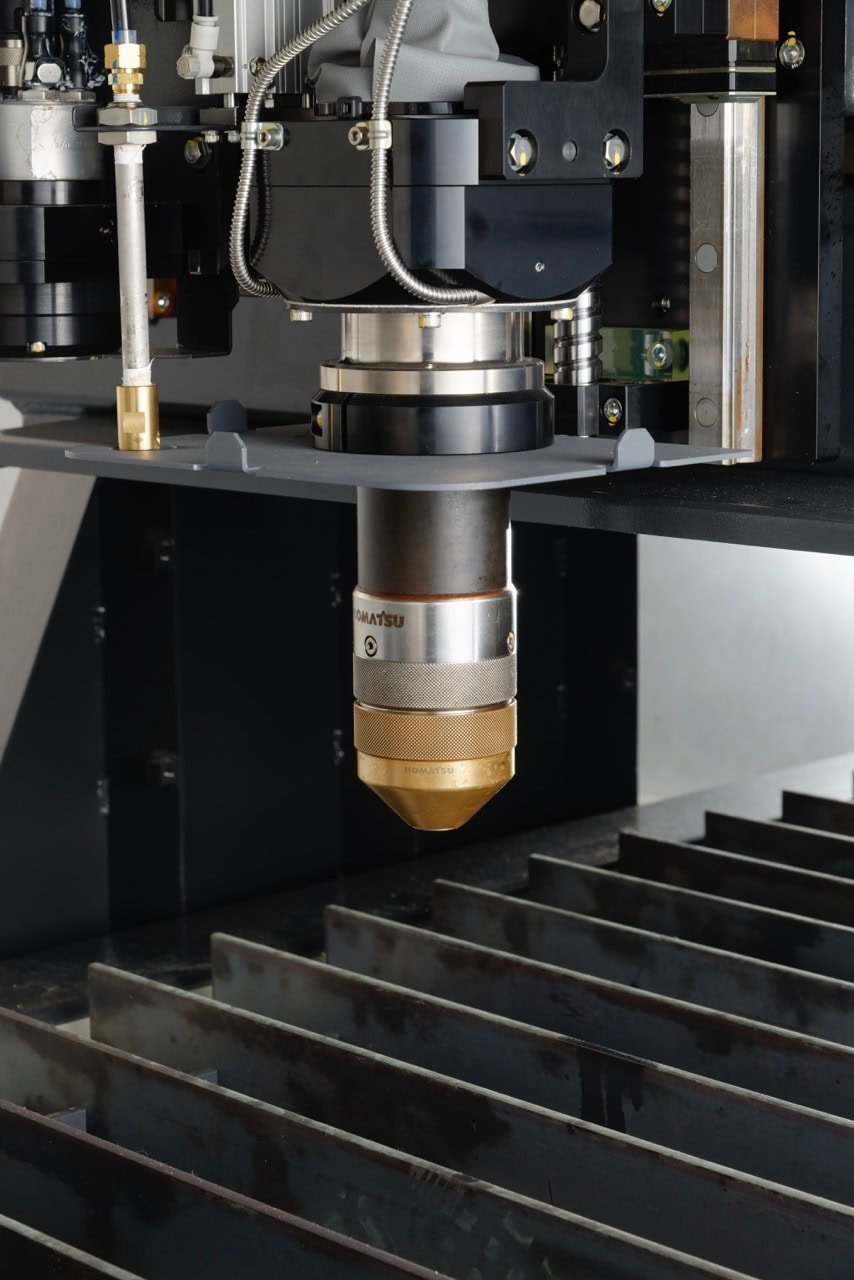

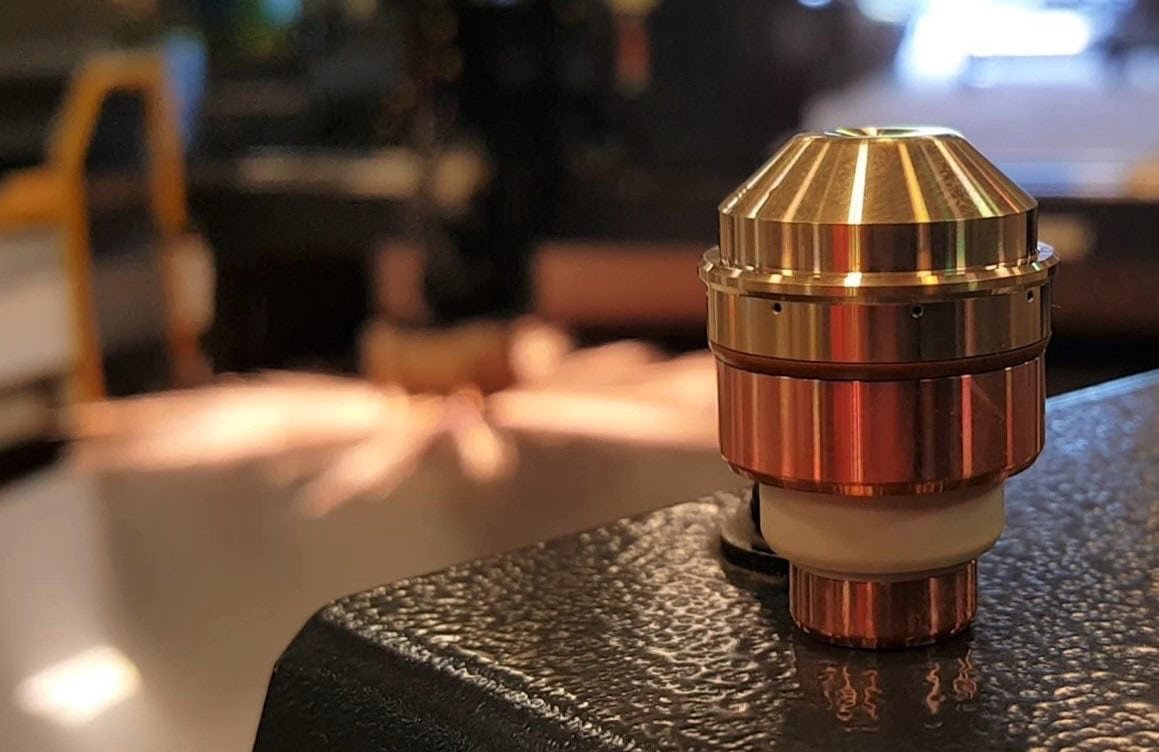

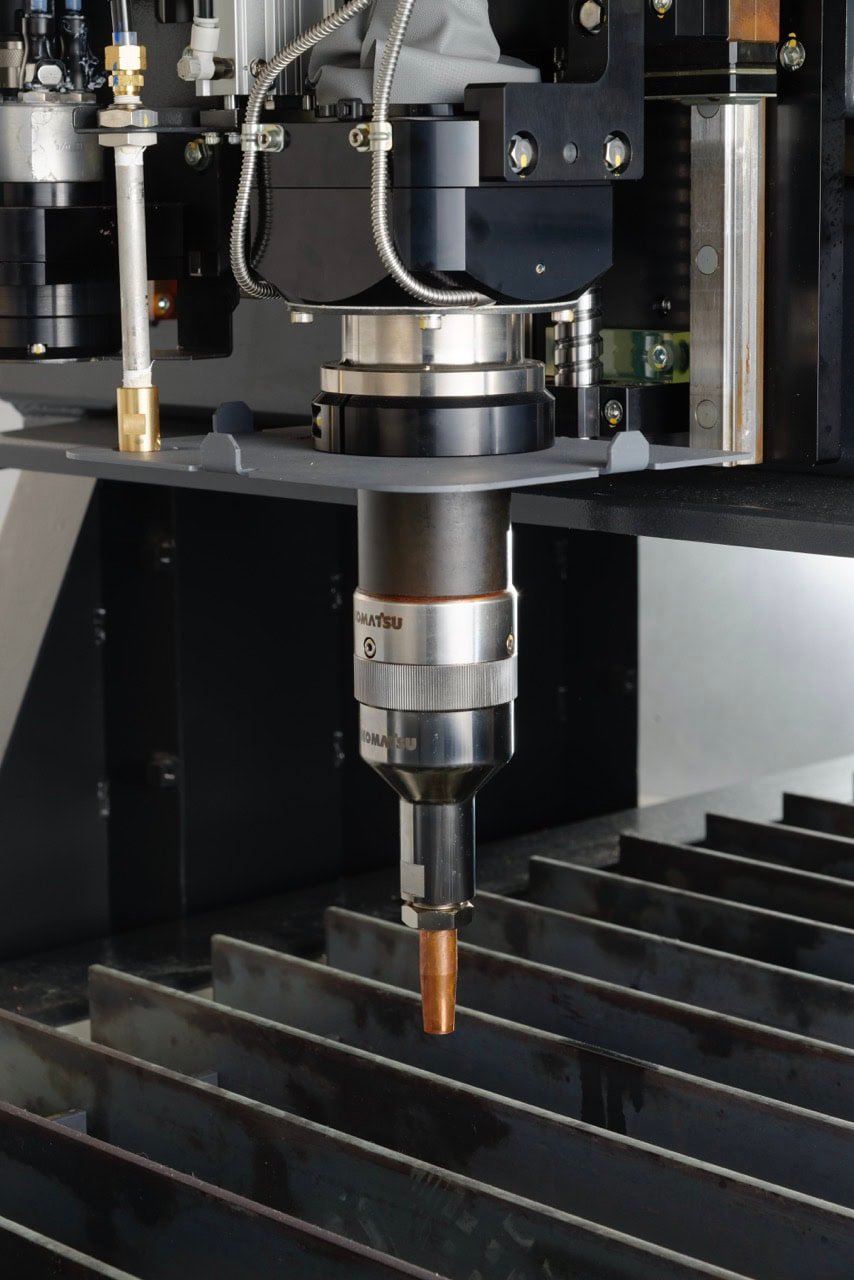

Torch Rated Current:300 A
Torch Cooling System: Water Cooling
Equipped With:

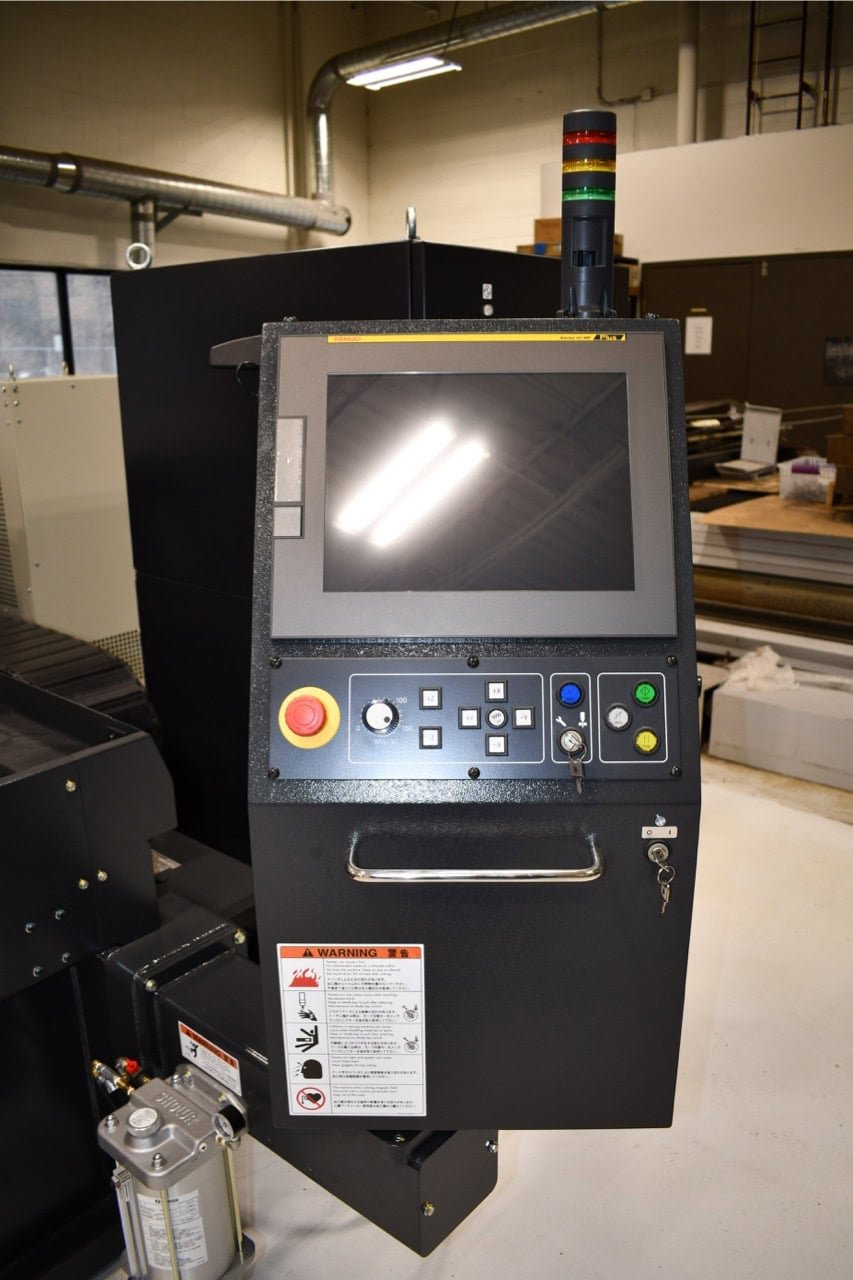

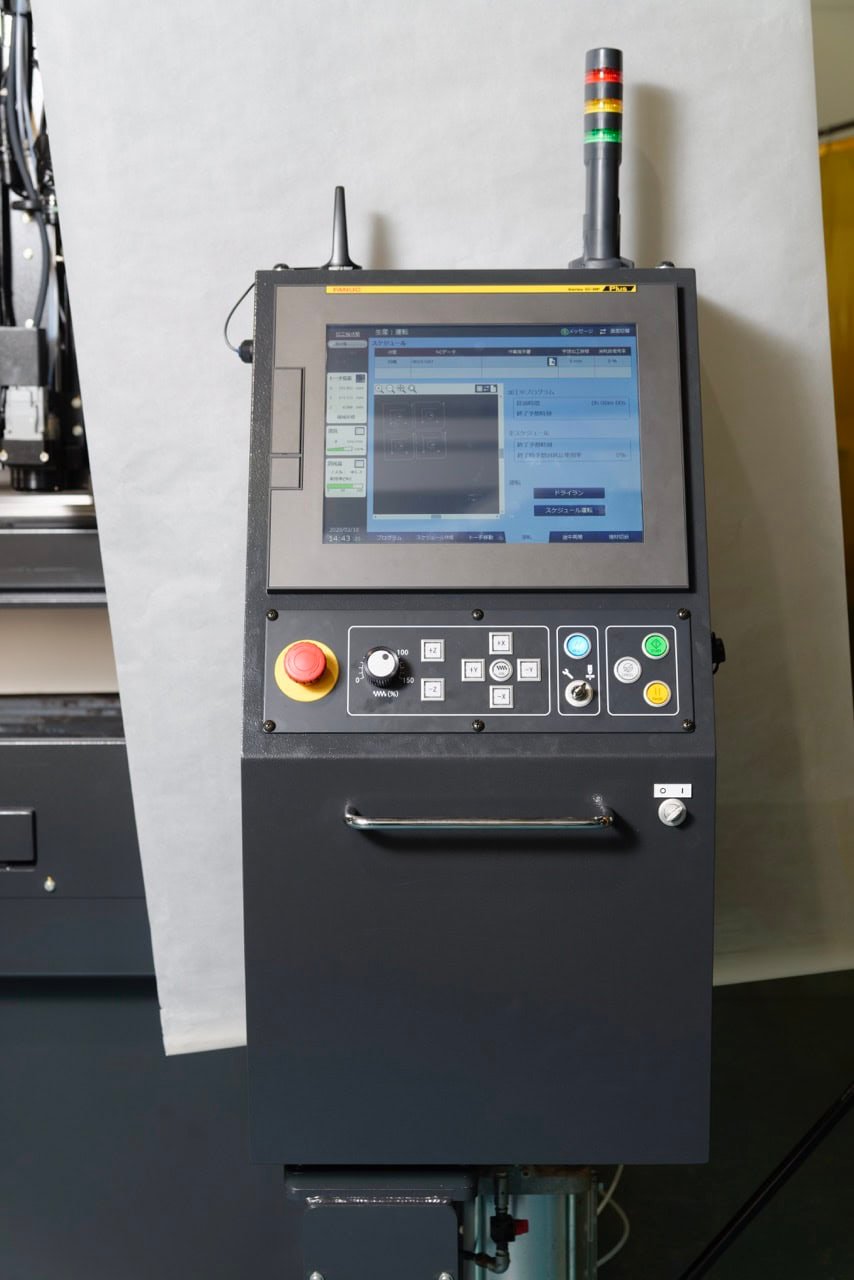

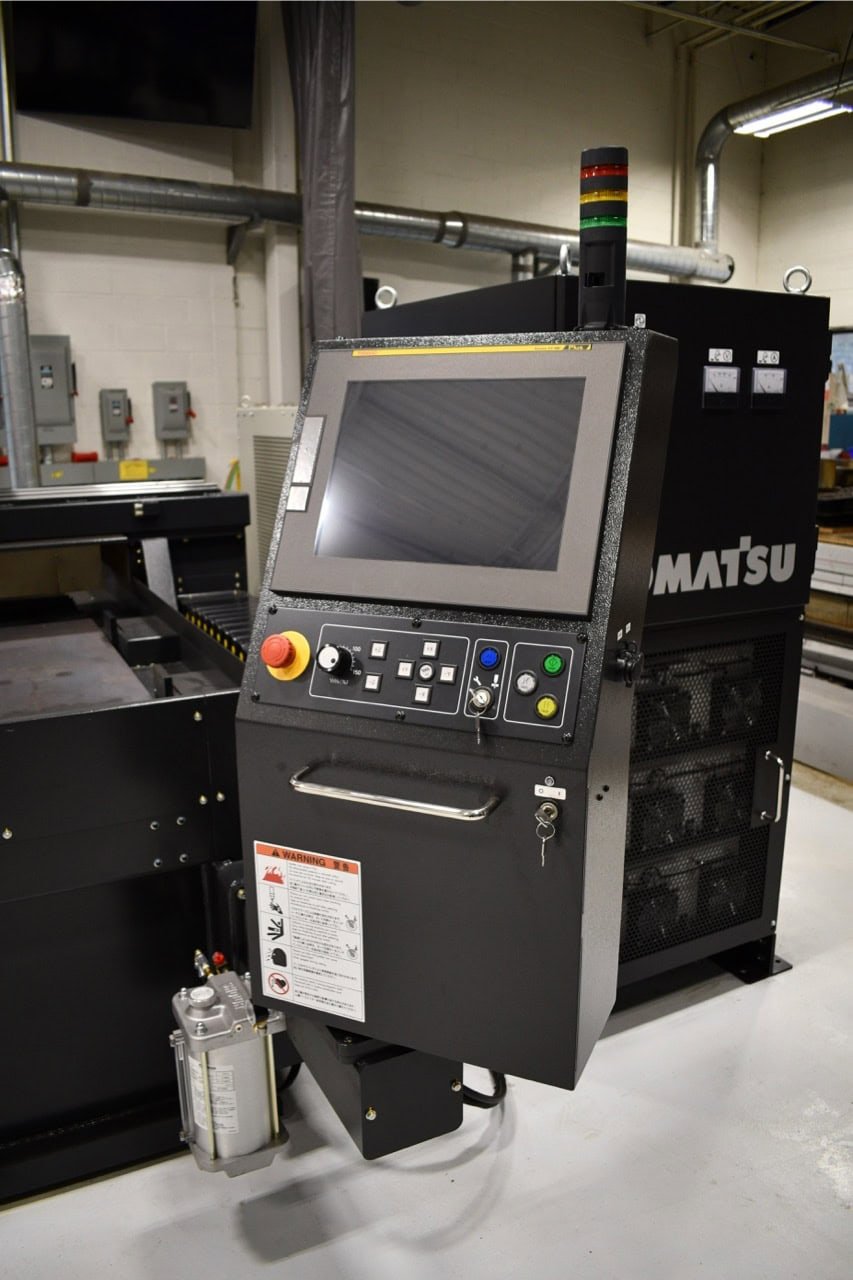

Fanuc 0i-MF CNC Control
Windows 10-IOT Panel Computer
2MB NC Editing Memory
400 Program Storage
15″ Color LCD Touch-Panel Display
