Description

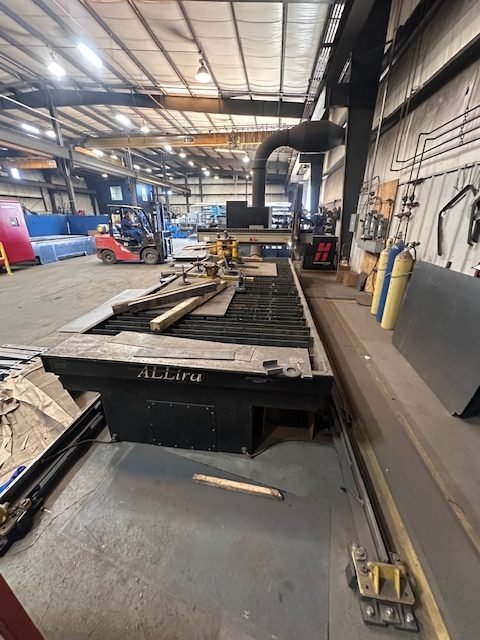

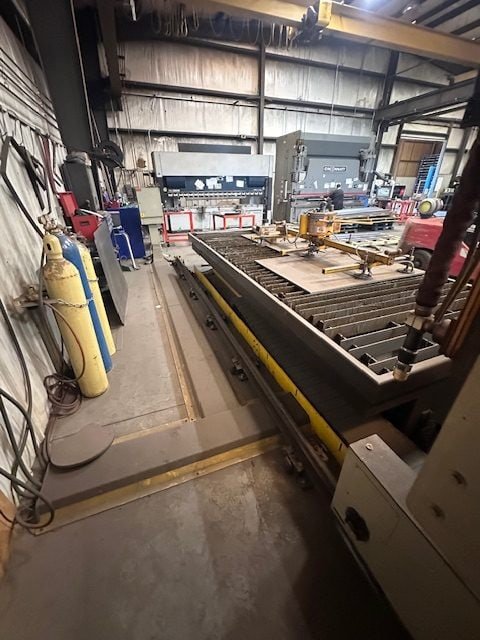

Table size: 6’x14′
Cutting capabilities
Mild Steel:
Dross-free cut: 1-1/4″
Production pierce: 1-1/2″
Maximum cut capacity: 2-1/2″
Stainless Steel:
Production pierce: 1-1/4″
Maximum cut capacity: 2″
Aluminum:
Production pierce: 1″
Maximum cut capacity: 2″
Electrical & Physical Specifications:
Output Voltage: 175 VDC
Output Current: 260 A
Duty Cycle: 100% at 104°F at 45.5 kW
Power Factor: 0.98 @ 45.5 kW output
Maximum Open Circuit Voltage (OCV): 311 VDC
Dimensions:
Height: 45.1″
Width: 32.1″
Length: 46.7″
Weight:
With Torch: 1250 lbs
Equipped With:

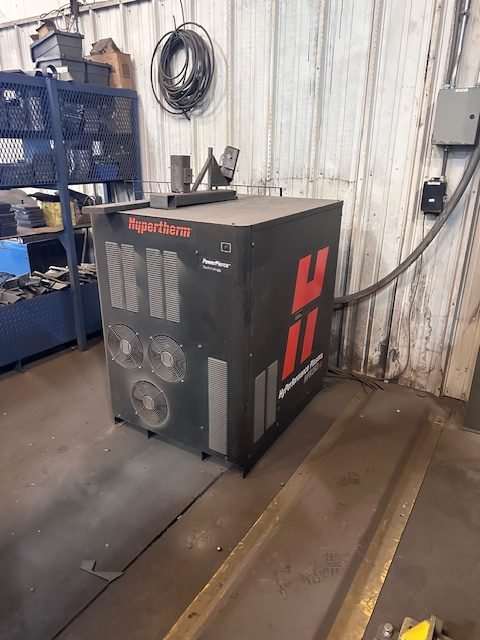

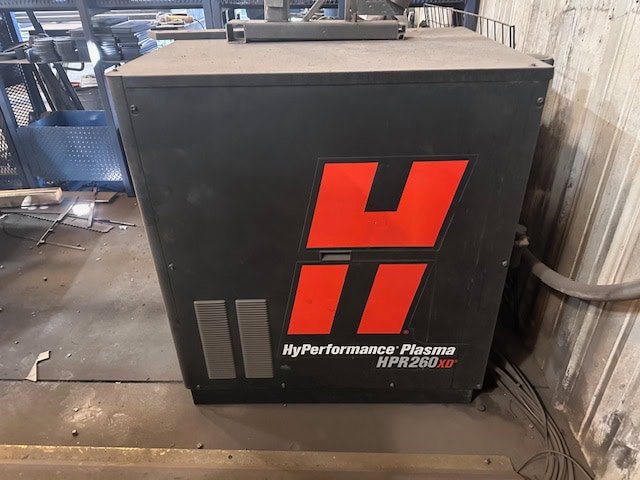

Hypertherm HPR260XD Plasma Source

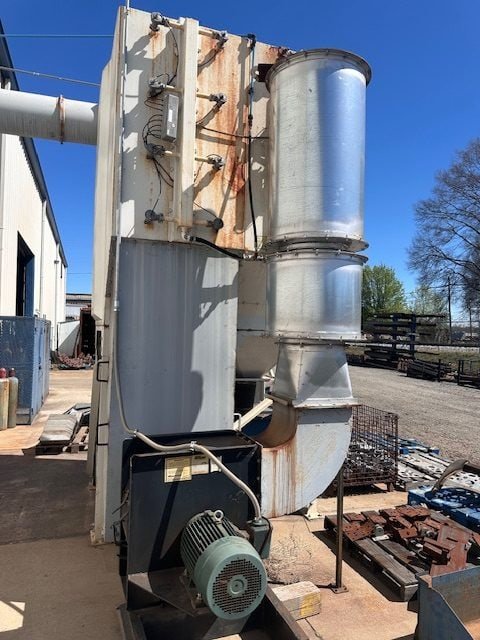

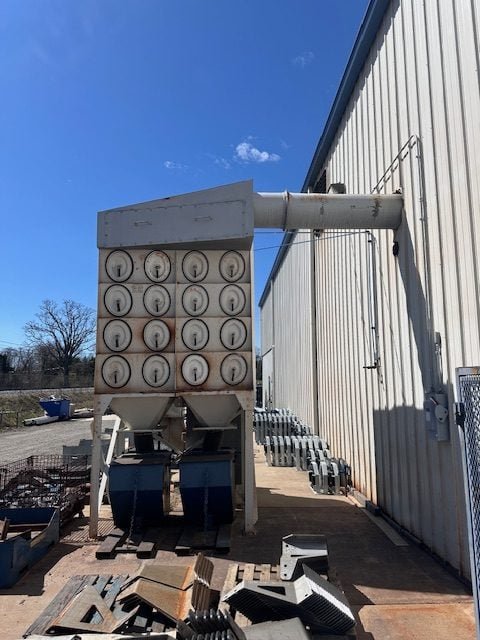

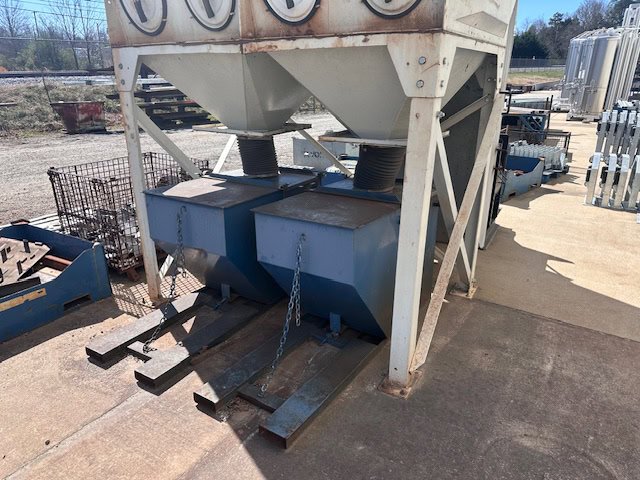

Dust Collector
