Description

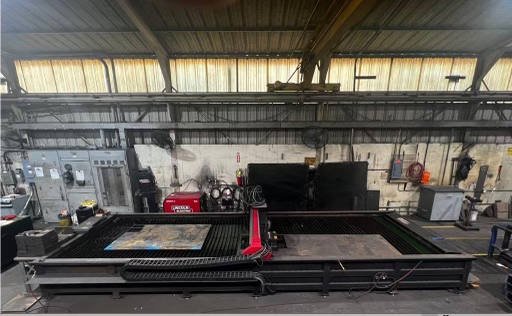

Cutting Area: 6′ x 22′
Cutting Capacity
FlexCut 80
FlexCut 125
Drive System:
Rack and Pinion X/Y-Axis 5:1 Reduction
Ball Screw/Linear Stage Z-Axis
Traverse Speed: up to 572 IPM
Cut Speed: up to 572 IPM
Model Features:
DXF, DWG Direct Import
Adjustable Water Height on Water Table
Low Backlash 5:1 Gearboxes
Durable Finish
Angled Support Slats for Increased Life
Standard Equipment:

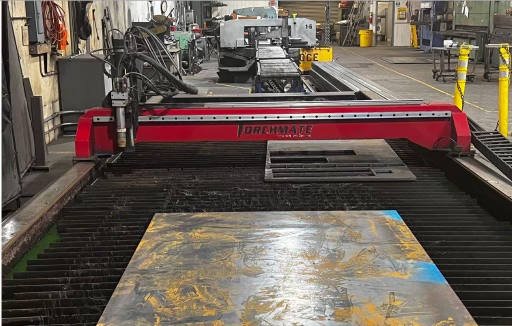

Water Table, Gantry, and Arc Voltage Height Control
Full Cable Carrier System

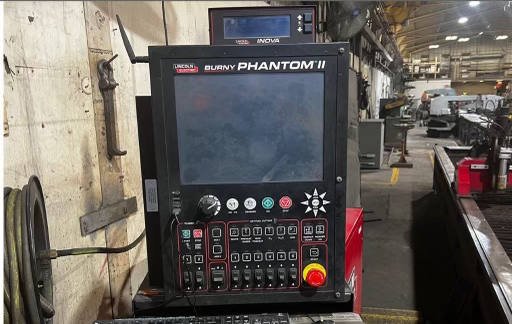

Visual Machine Designer Touchscreen Interface

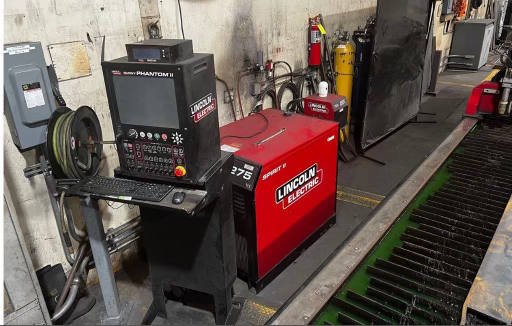

FlexCut 80 or FlexCut 125 Plasma Cutter
Electronics/ Motion System:
Two Y-Axis 380 oz. in. Step Motors
One X- Axis 380 oz. in. Step Motor
8 AMP Micro Stepping Drives
Motion Controller
Weight:
Approximately 3,739 lbs for 5′ x 10′ System with no Water
Input Air:
8 SCFM @ 90 PSI, Dry Air Filtered to Minimun 5 Micron
Equipped With:
Software: Sigma Nest, Torchmate CAD/CAM
Available Software:
BobCAD DXF Art Package
Torchmate CAD/CAM Professional Text Compose and Art Package
User Controls:
Full Featured Visual Machine Designer HMI
