Description:

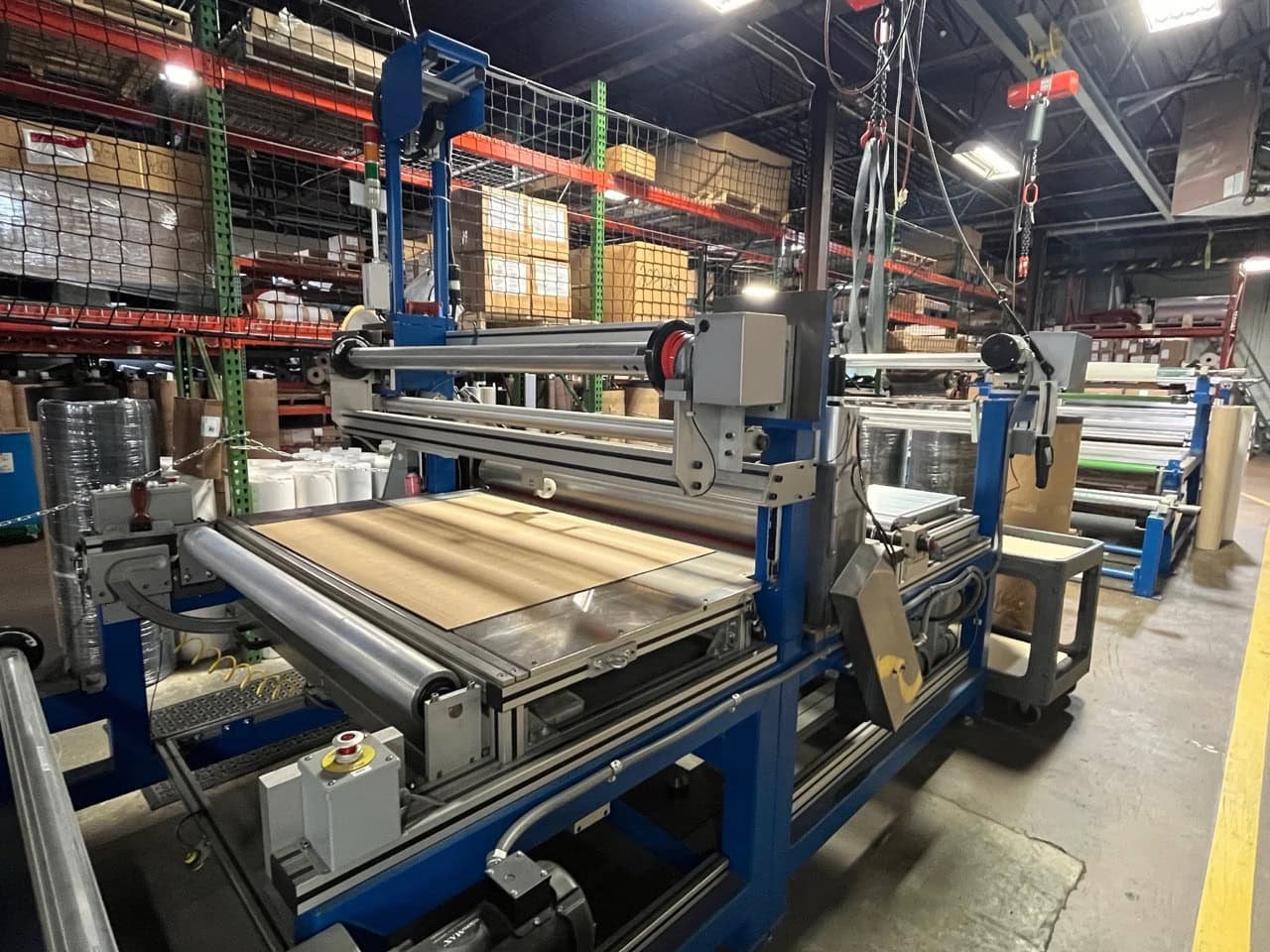

This laminating system is designed for applying pressure-sensitive adhesives (PSA) carried on release paper onto various substrates such as plastic film, rubber, and foam. Adhesive and substrate materials are unwound from supply rolls, guided into adjustable laminating rolls, and re-reeled on a take-up roll. Materials can also be discharged onto a flat surface for shorter, cut-to-length products.
Key Features:
Dual unwinds with adhesive & substrate air shafts
Edge guide sensors for both adhesive and substrate for precise alignment
Integrated HMI & gauge display for real-time process monitoring
Cut guides for both adhesive and substrate
Specifications:
Maximum material width: 60″
Overall dimensions: 11′ L x 7′ W x 9′ H
Electrical: 208/120V (4-wire), 3 phase, 30 amps, 60 Hz
Air: 80–120 PSI @ 5 SCFM
Largest motor: 1 HP
Additional specs on nameplate (attached)
Applications:
Multi-layer lamination of elastomers, foams, and films
PSA application with accurate edge alignment
