Description
60 Gallon / 225 Liter tank volume
Rated for full vacuum and +15 PSI internal pressure (not an ASME pressure vessel)
Designed to have a top-mount agitator installed for internal mixing
Dimple Jacket
Insulation under exterior stainless-steel skin f
Internal baffles

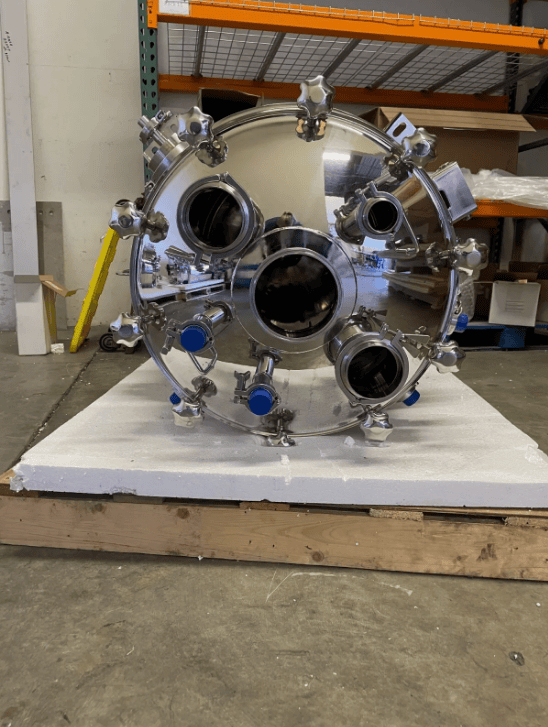

Full diameter top manway can be completely removed for easy cleaning
Approx. Tank Dimensions: ~43” H x 33” W
· Top Ports:
QTY1 – 24” Top Manway (completely removable)
QTY1 – 6” TC
QTY2 – 4” TC
QTY1 – 2” TC
QTY2 – 1.5” TC
· Side Ports:
QTY1 – 4” TC (located up high on side of tank)
QTY3 – 1.5” TC (located up high on side of tank)
QTY1 – 1.5” TC (located down low through side of tank)
QTY1 – 6” TC (for mixer mount)
QTY1 – 1” TC Heating / Cooling Media Outlet(located up high on side of tank)
· Bottom Ports:
QTY1 – 1.5” TC (center bottom drain)
QTY1 – 1” TC Heating / Cooling Media Inlet
