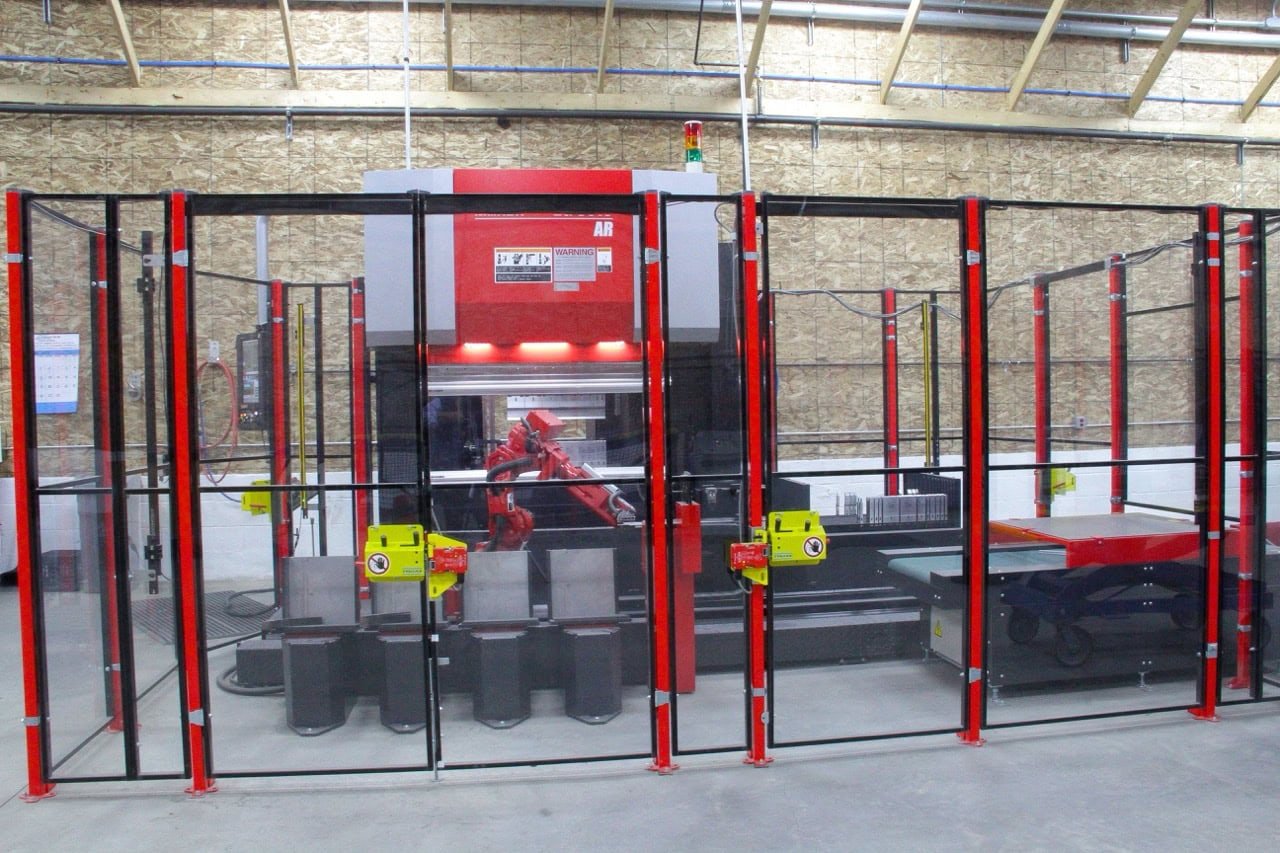

Description
Maximum Tonnage Capacity: 67 Tons
Maximum Bending Length: 53.1″
Stroke Length: 6″
Open Height: 16.5″
Approach Speed: 8.7″/sec.
Bend Speed: 1″/sec.
Return Speed: 8.7″/sec.
Floor Space: 211″ L x 154″ W x 105″ H
Weight Of Brake: 8,200 Pounds
Robot Specifications:
Axis Configuration: 6-Axis

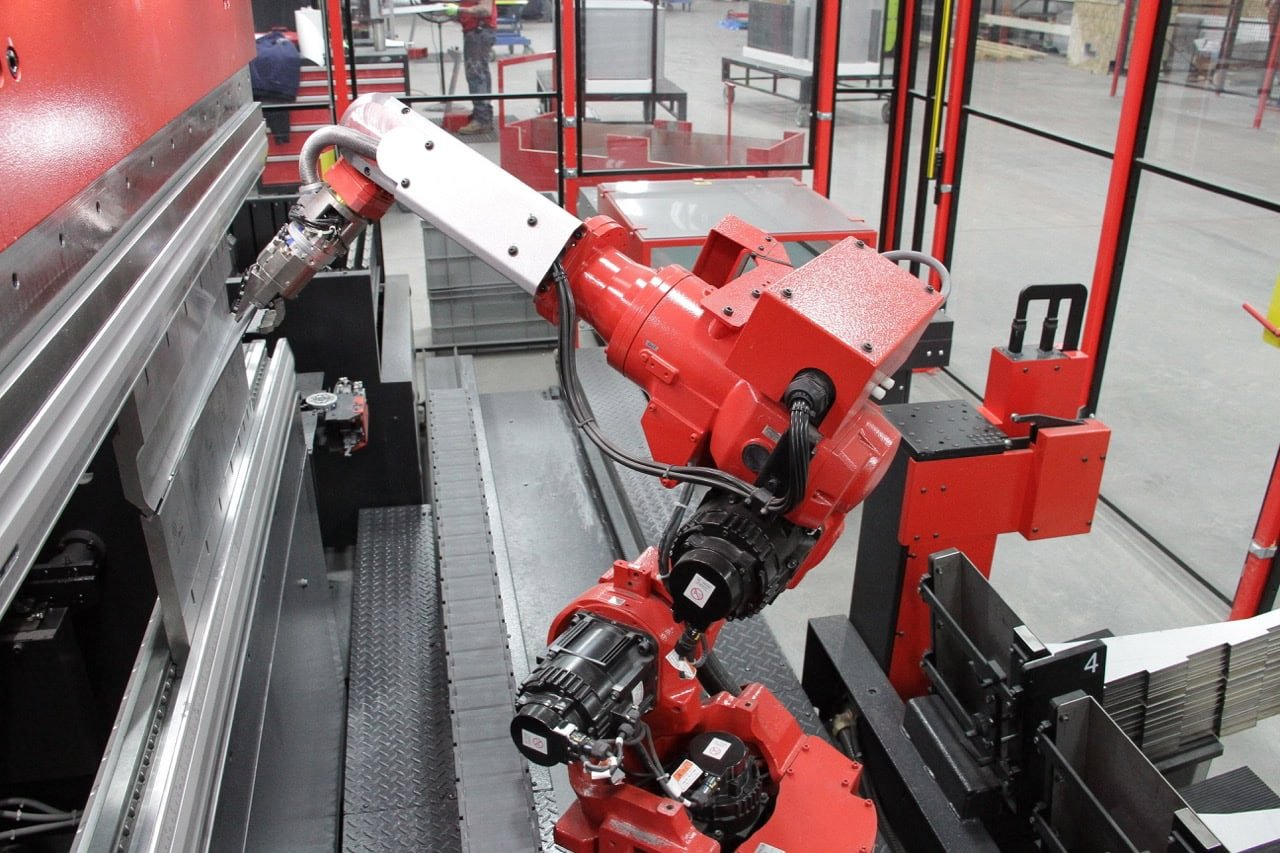

Carriage Axis: 120″
Max. Part Weight: 22 Pounds
Maximum Reach P-Point: 39.25″
Tool Holder Length: 49.2″
Max. Tool Length: 31.5″
Number Of Tools: 10
Equipped With:
– AMNC 3i CNC Control With Vertical 18.5″ Multi-Touch Display
– Dual Electric Servo Power Drive
– Automatic Tool Changer

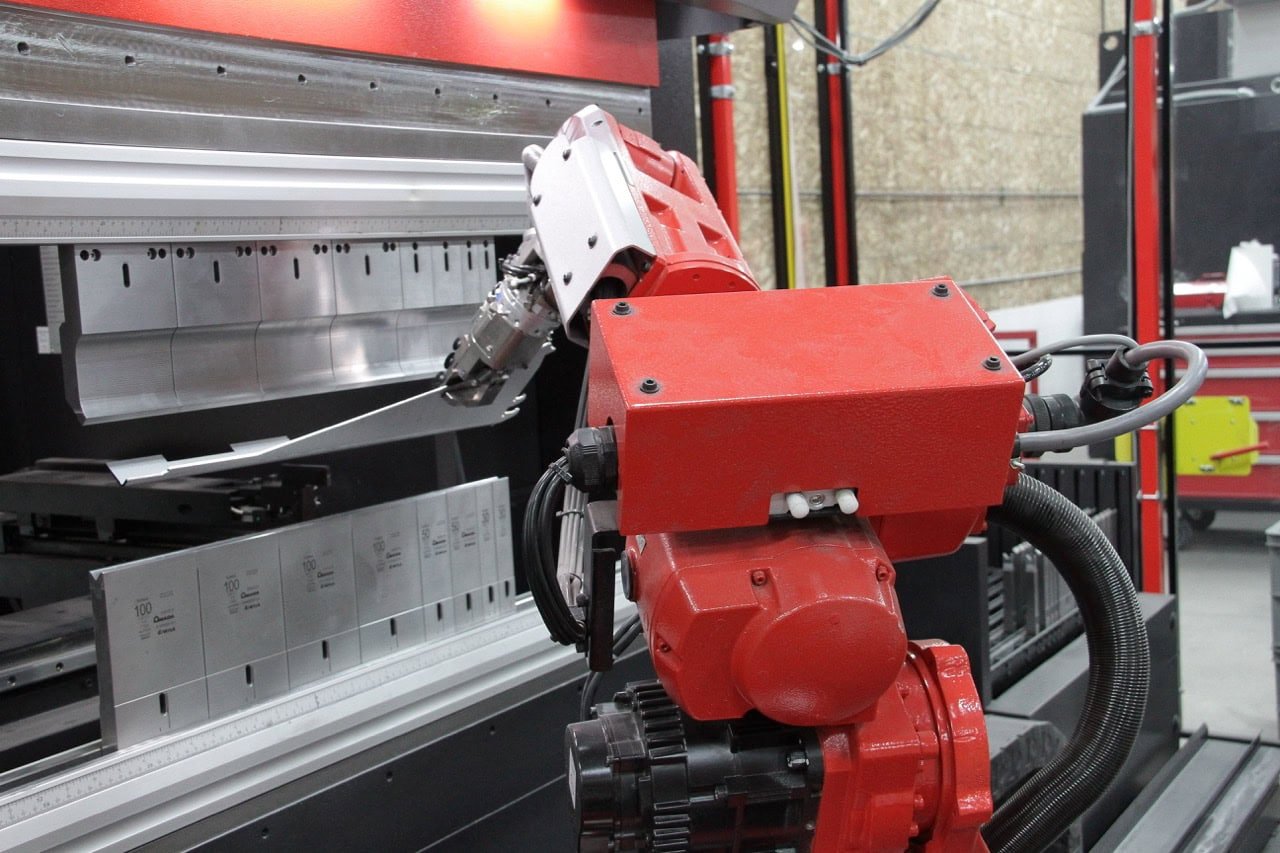

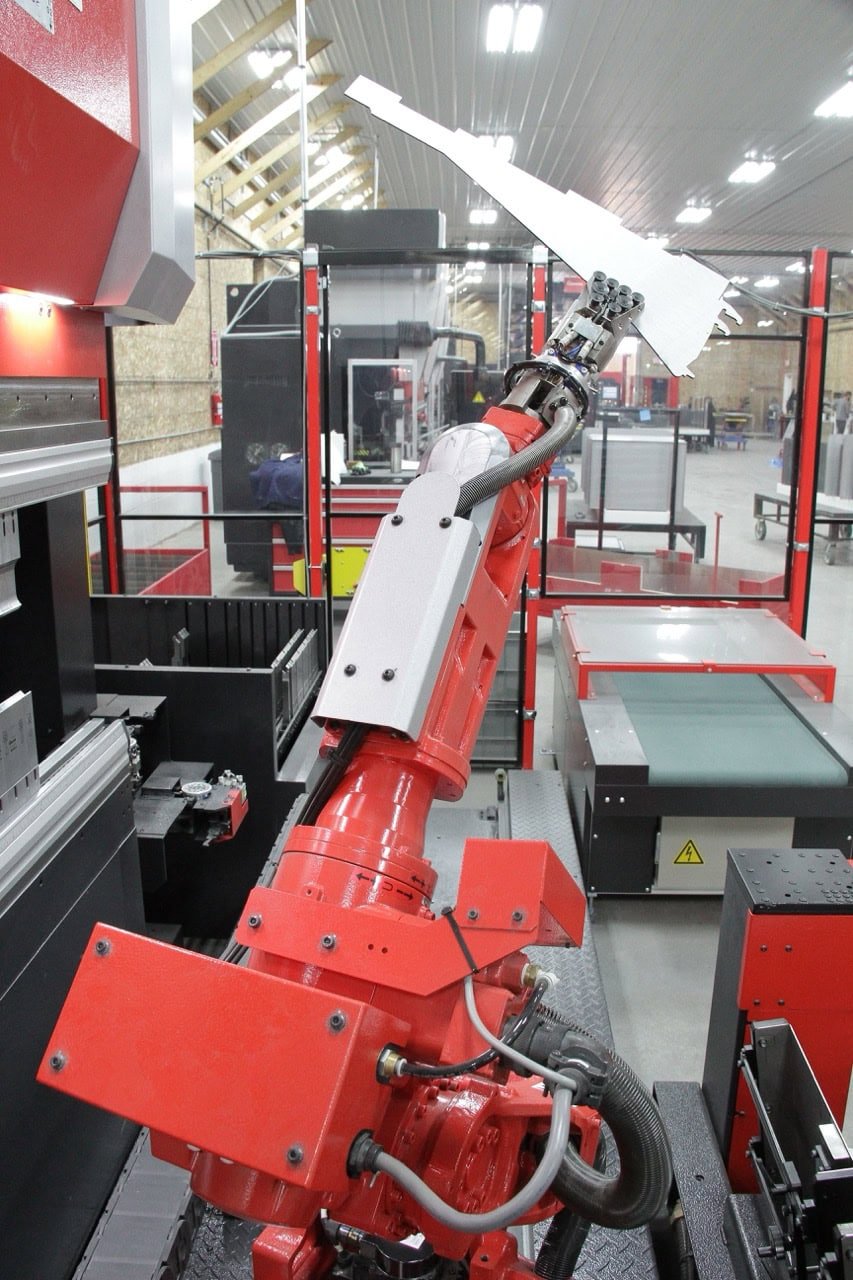

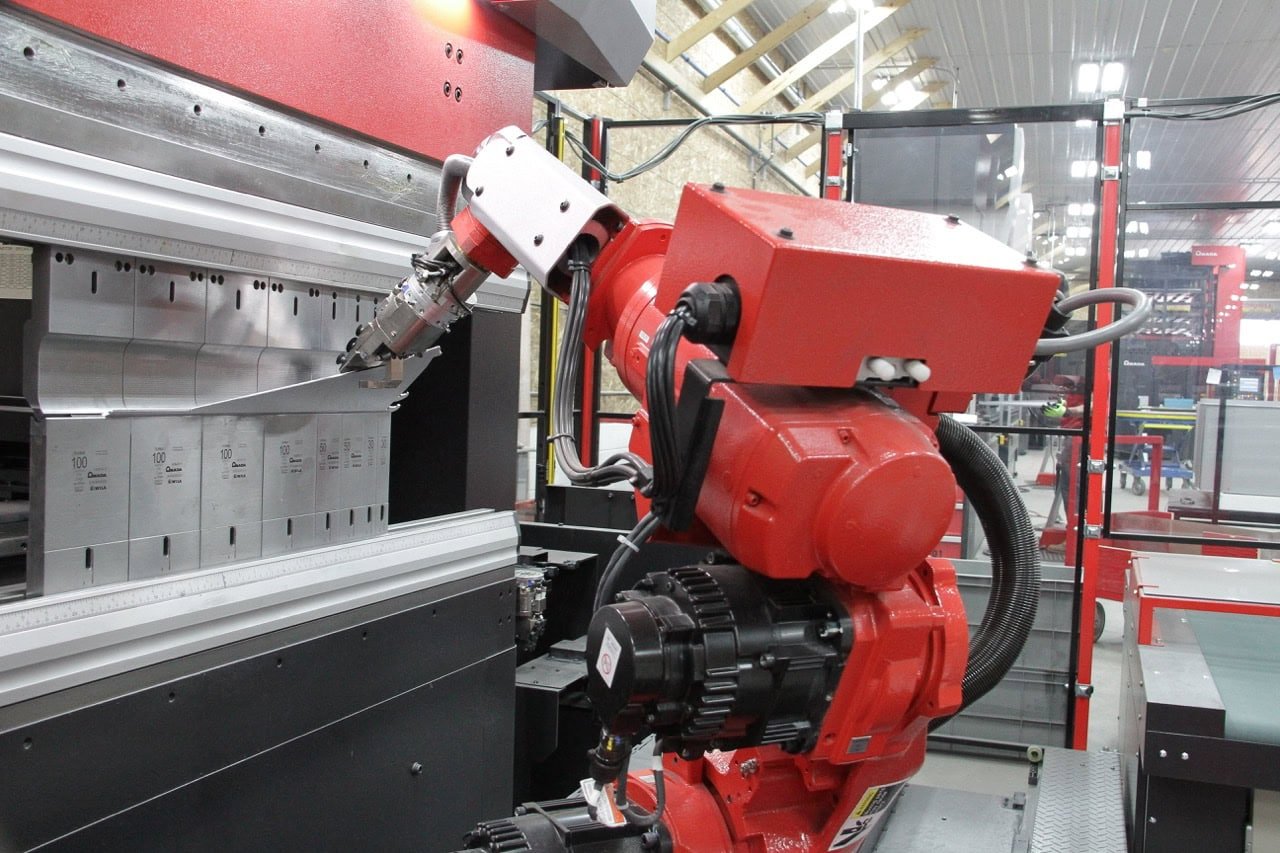

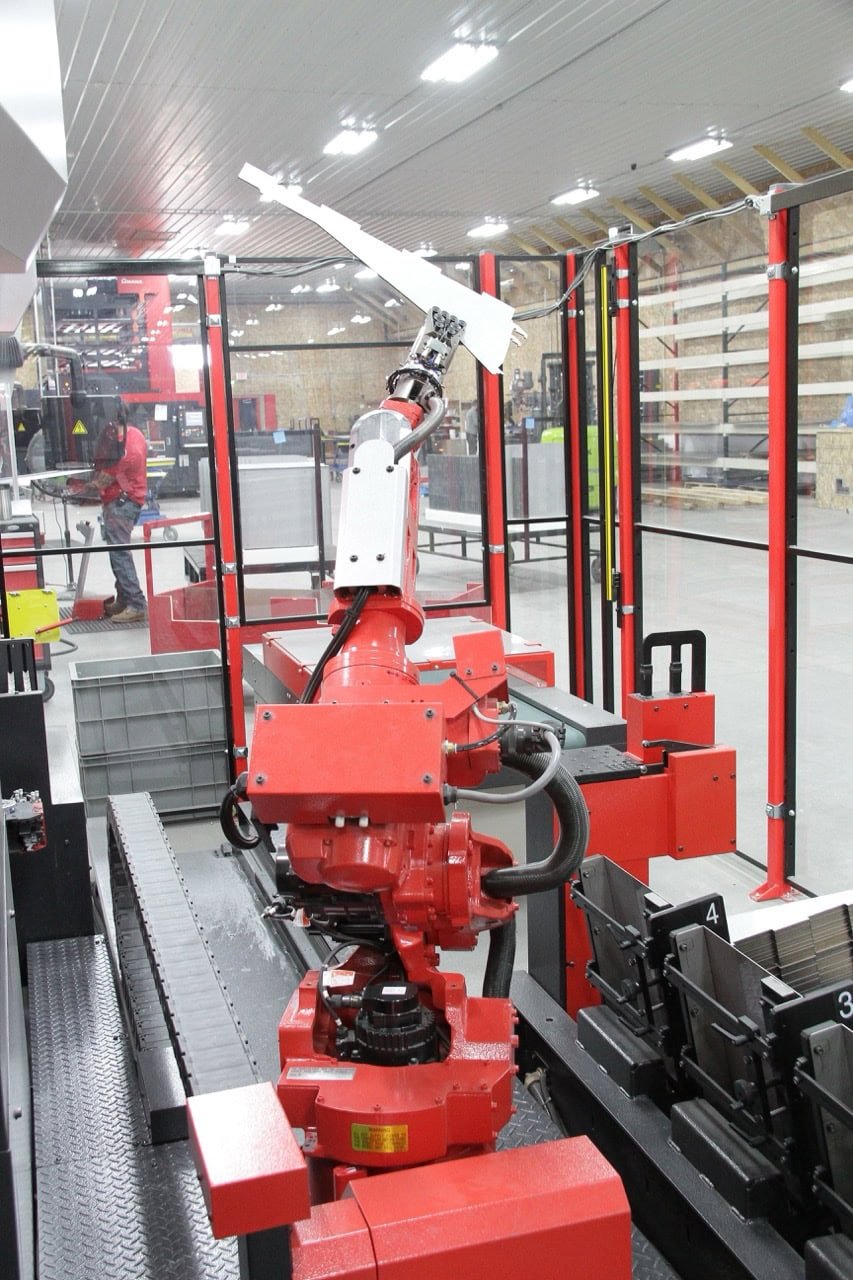

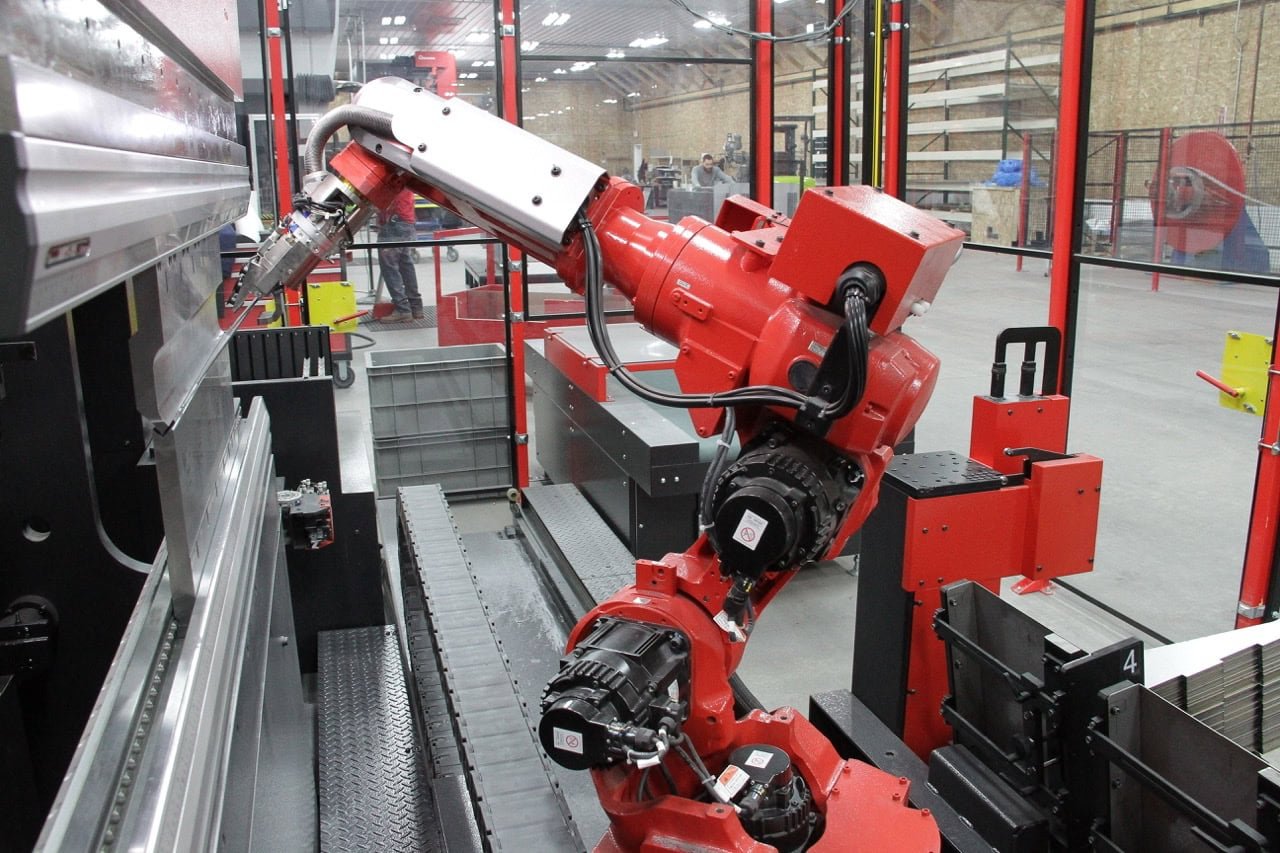

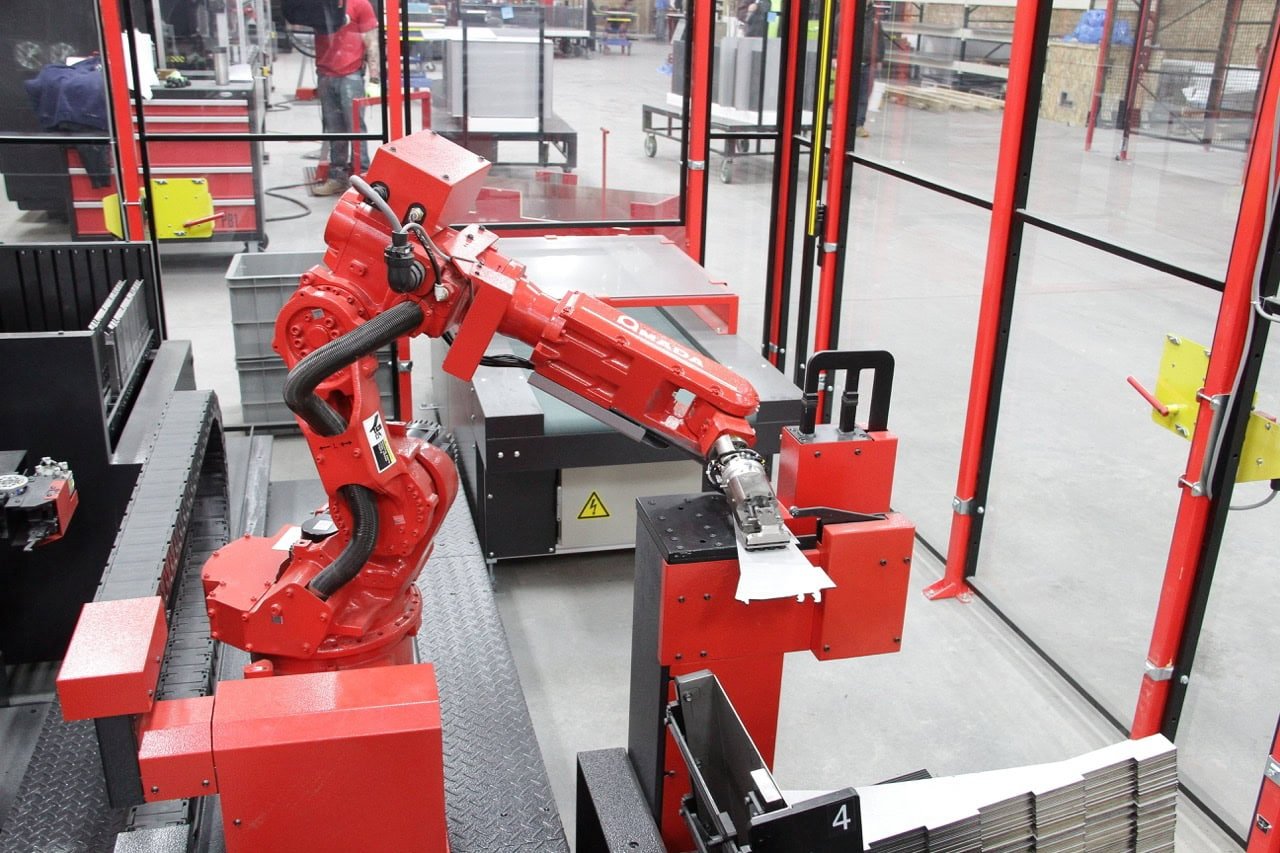

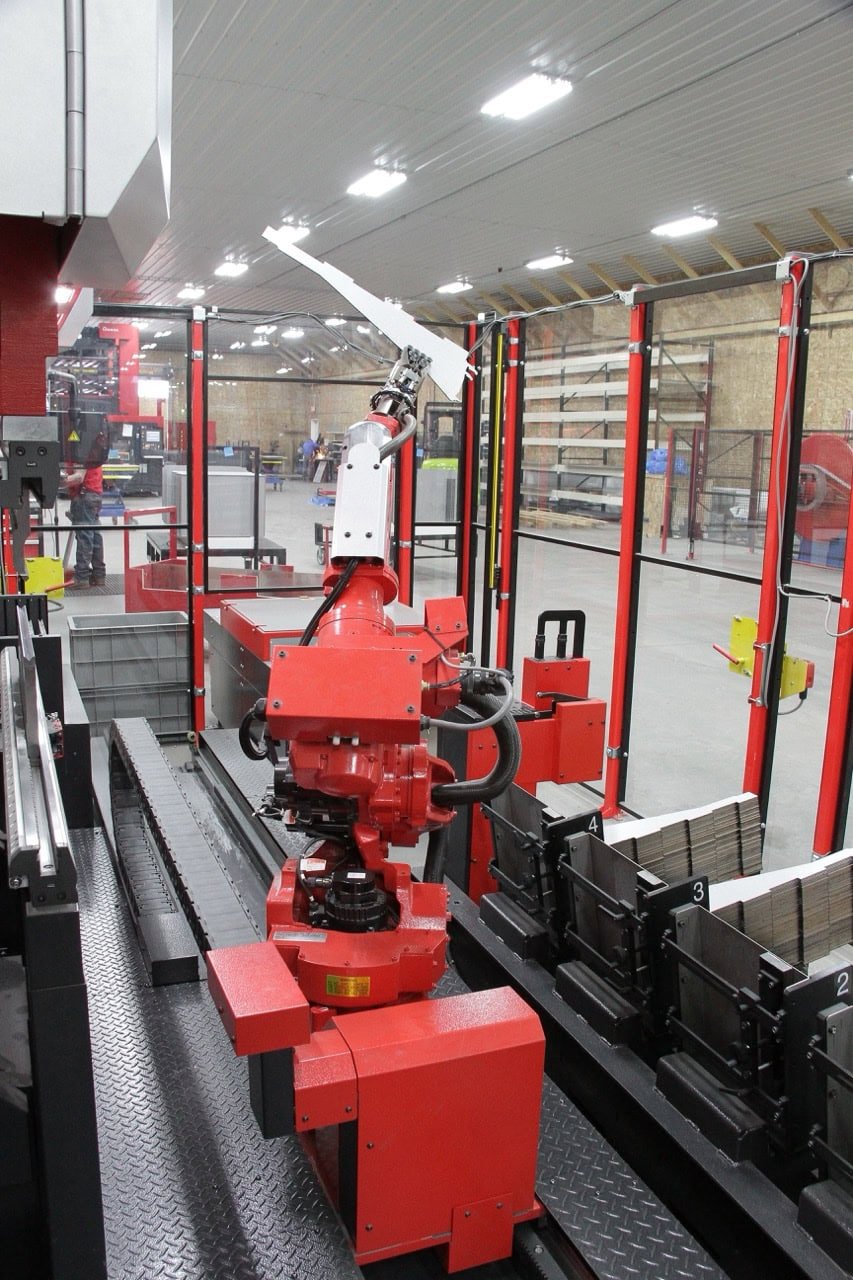

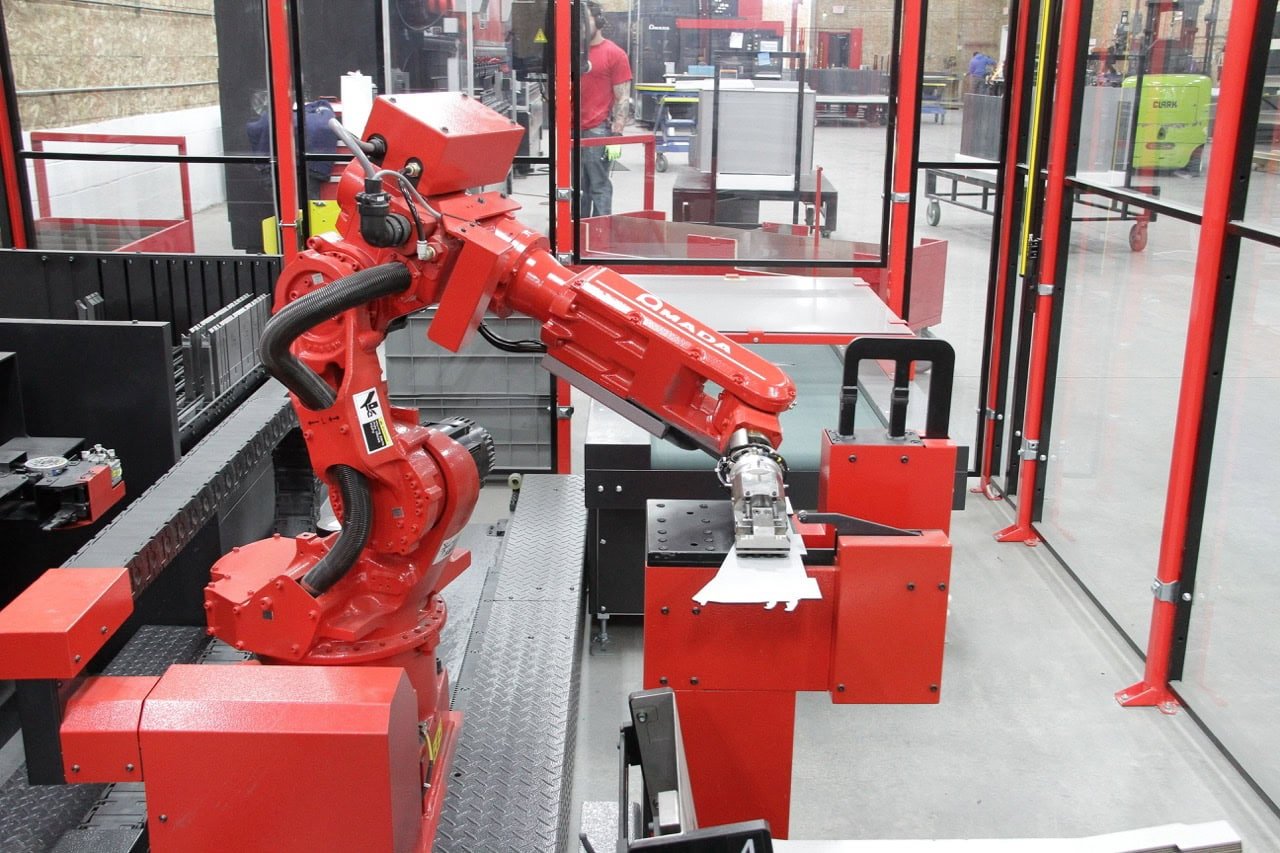

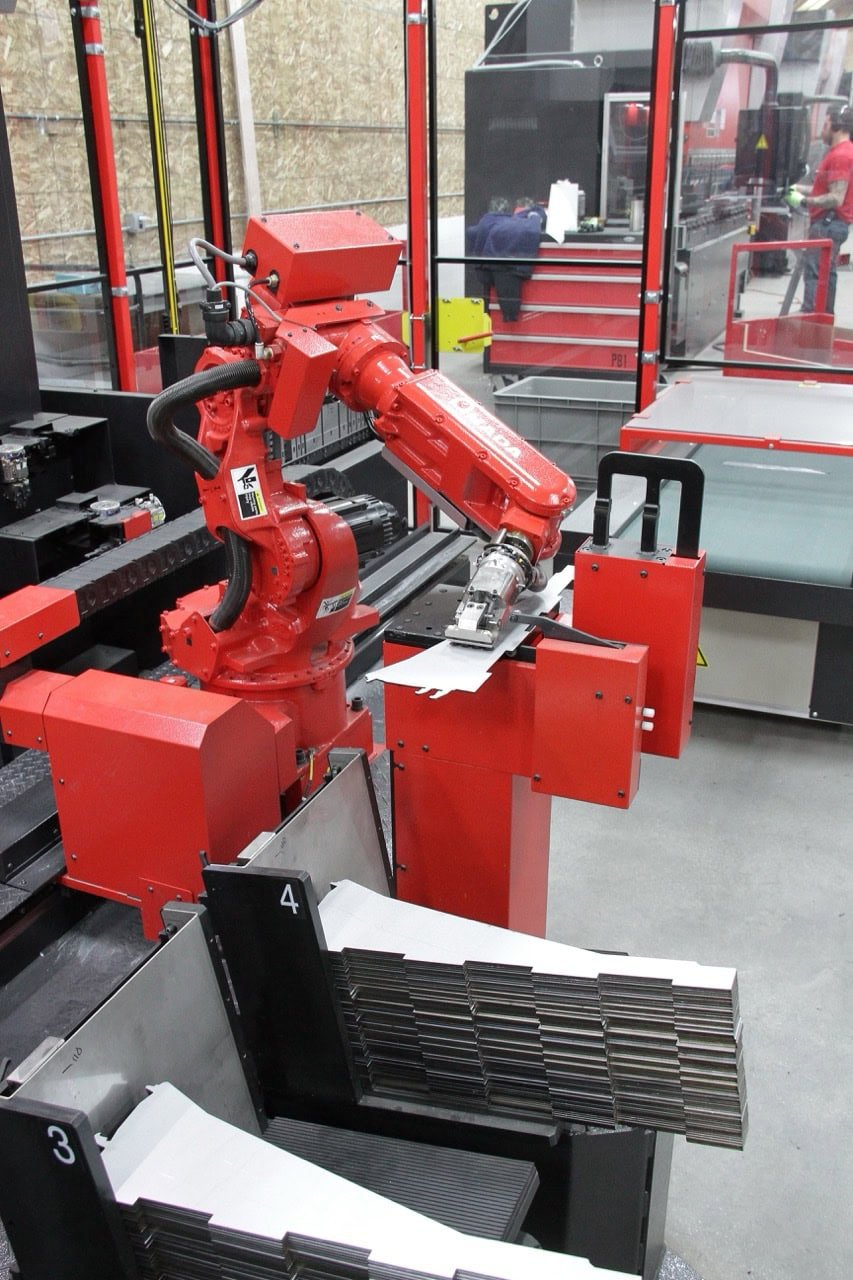

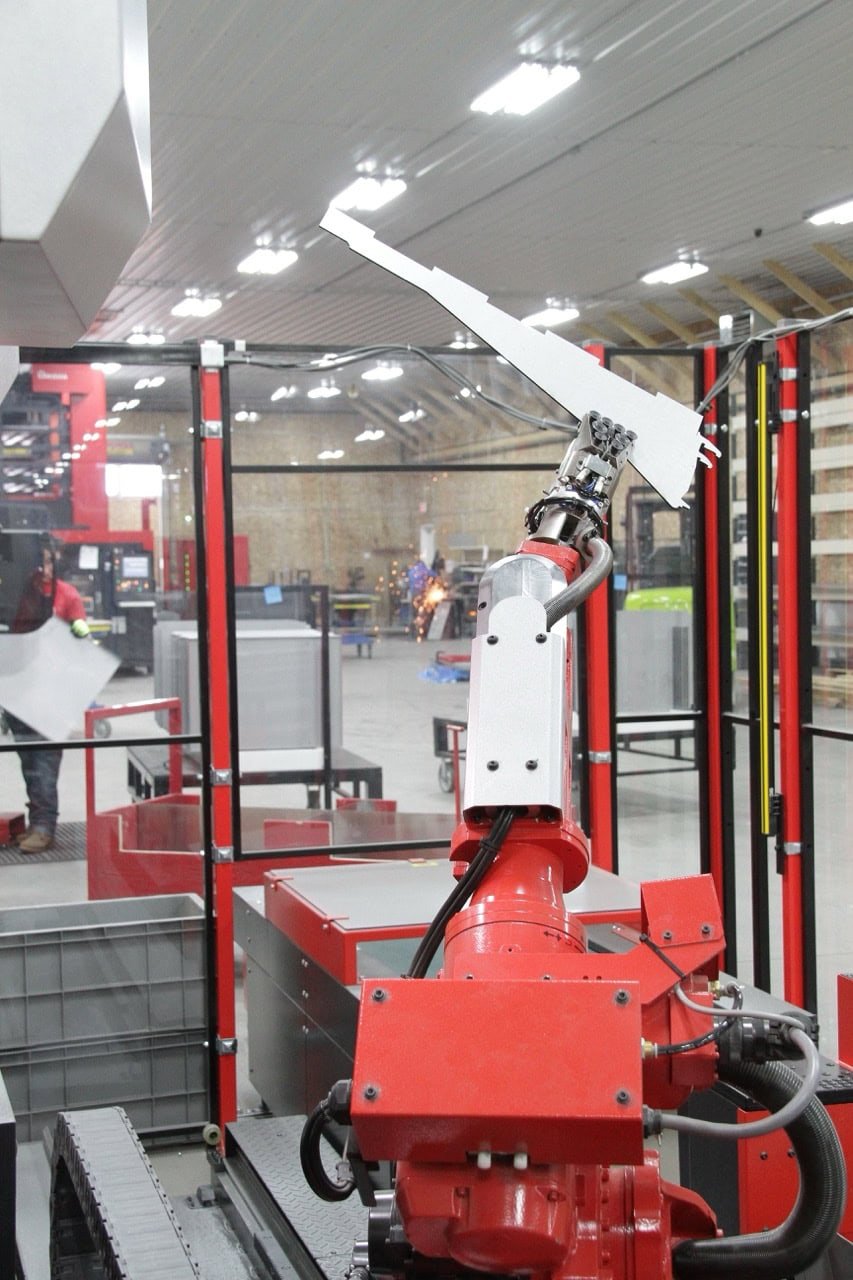

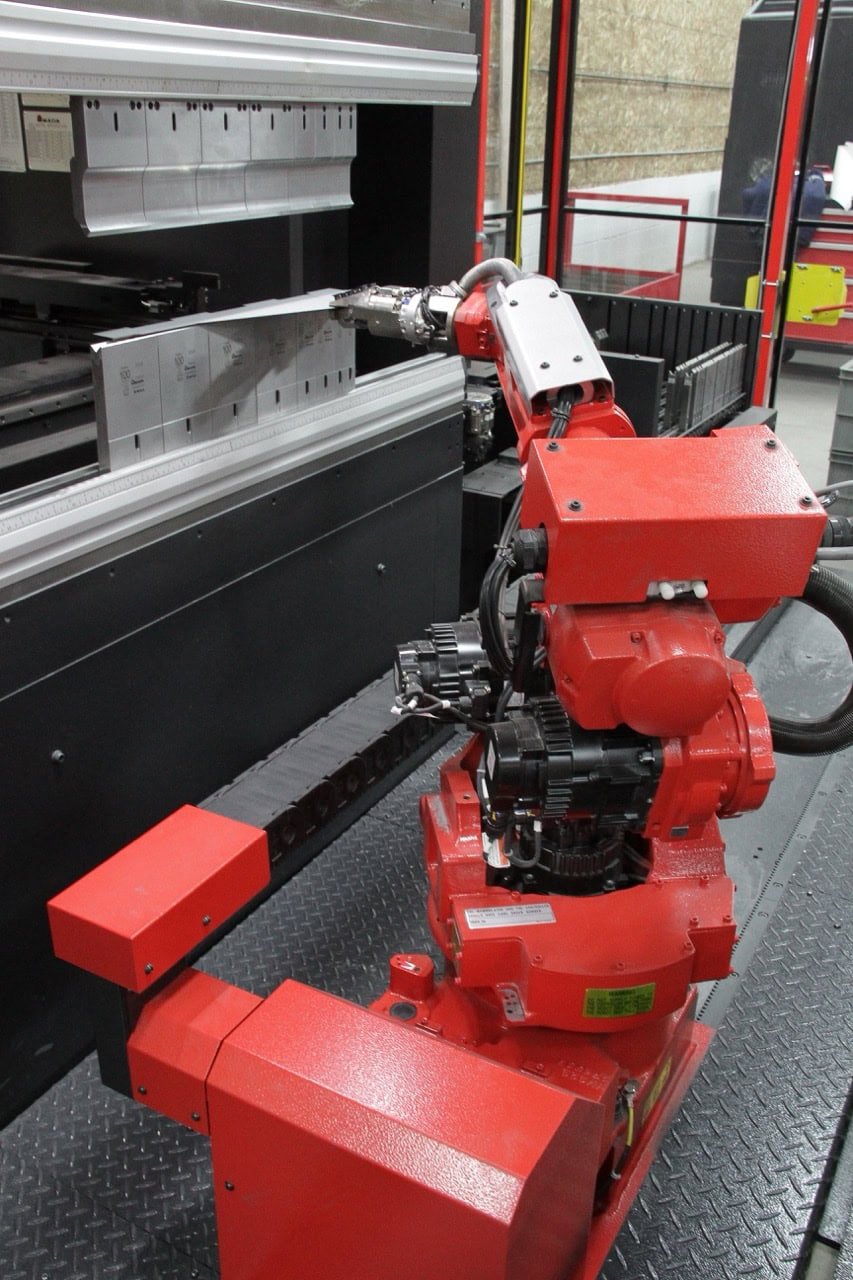

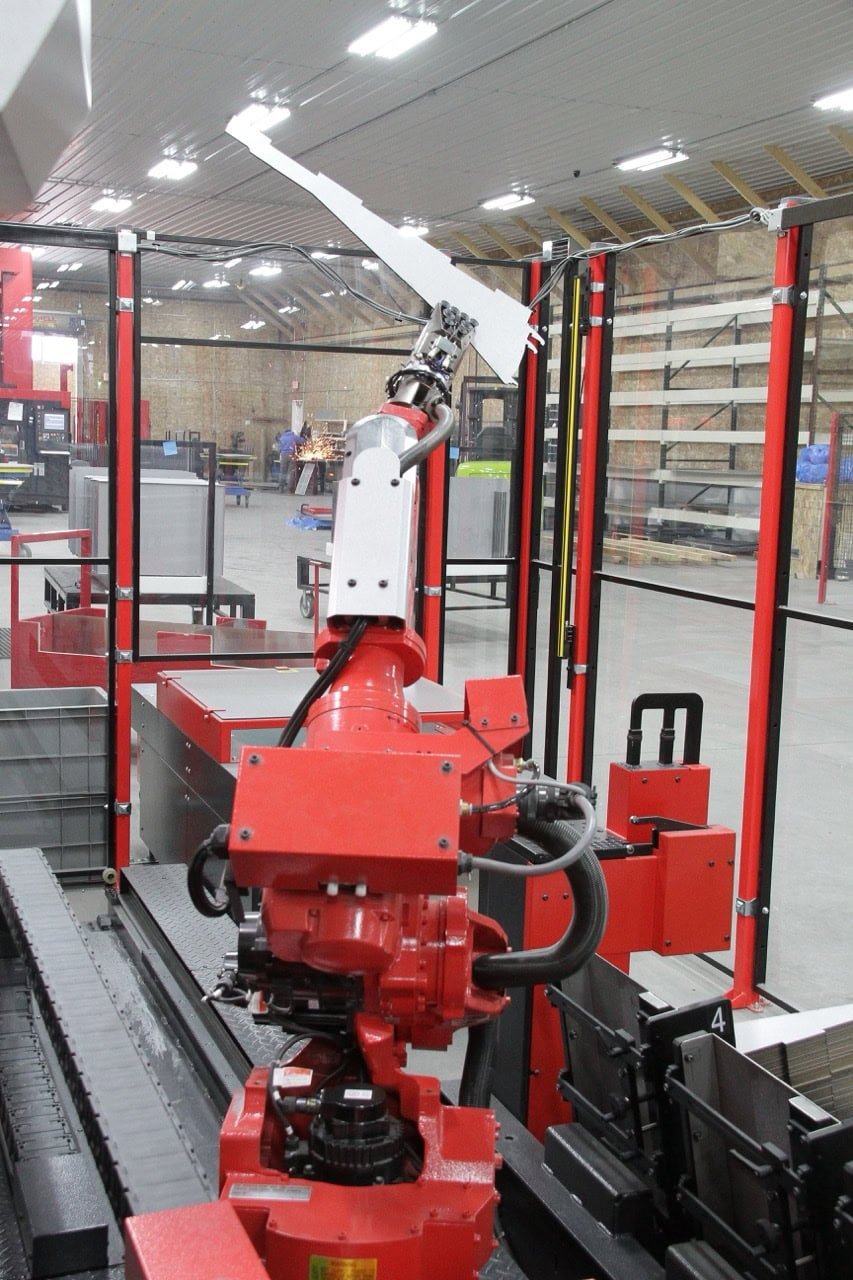

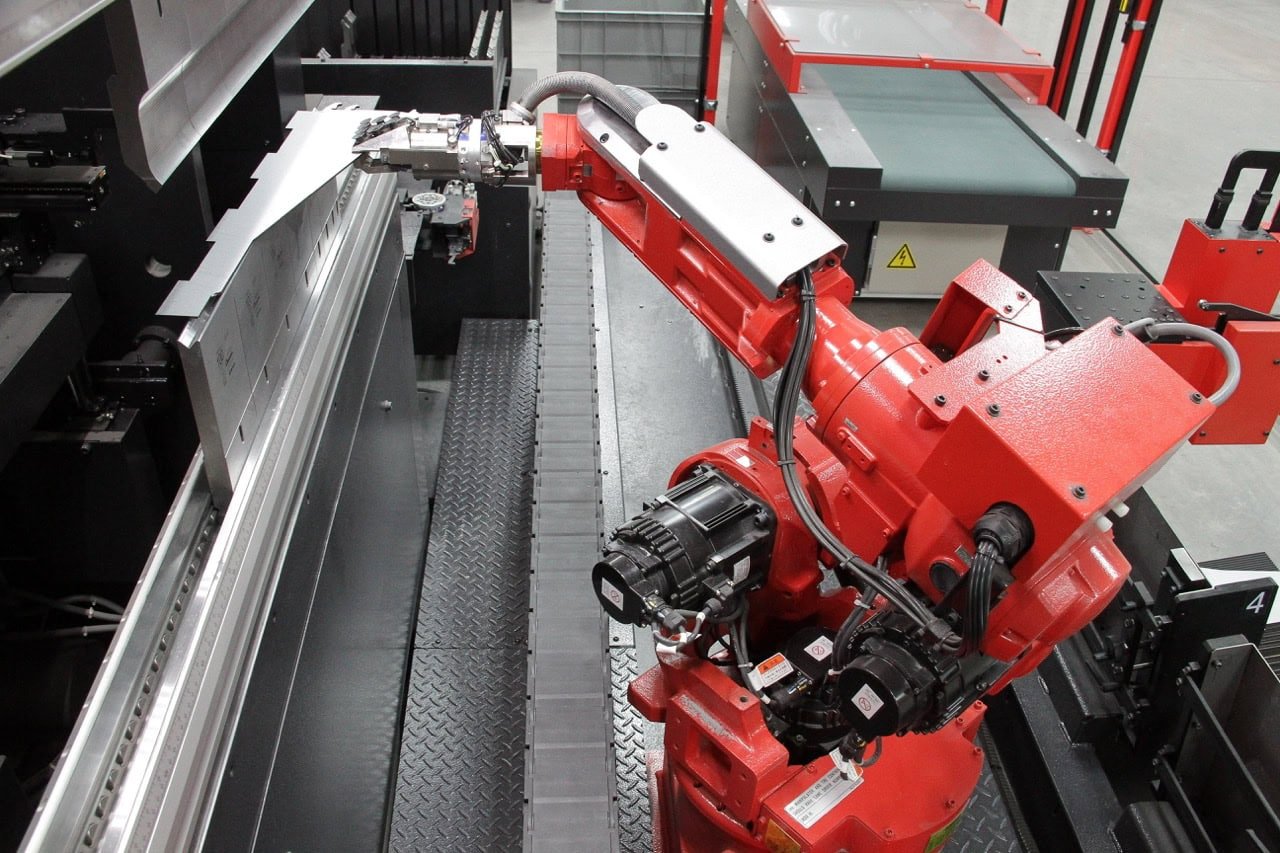

– Yaskawa MH6S-10 High Precision 7-Axis Bending Robot
– 7-Axis Potentiometer Backgauge With Side Gauge System
– High-Rigidity Frame For Large Open Height And Stroke

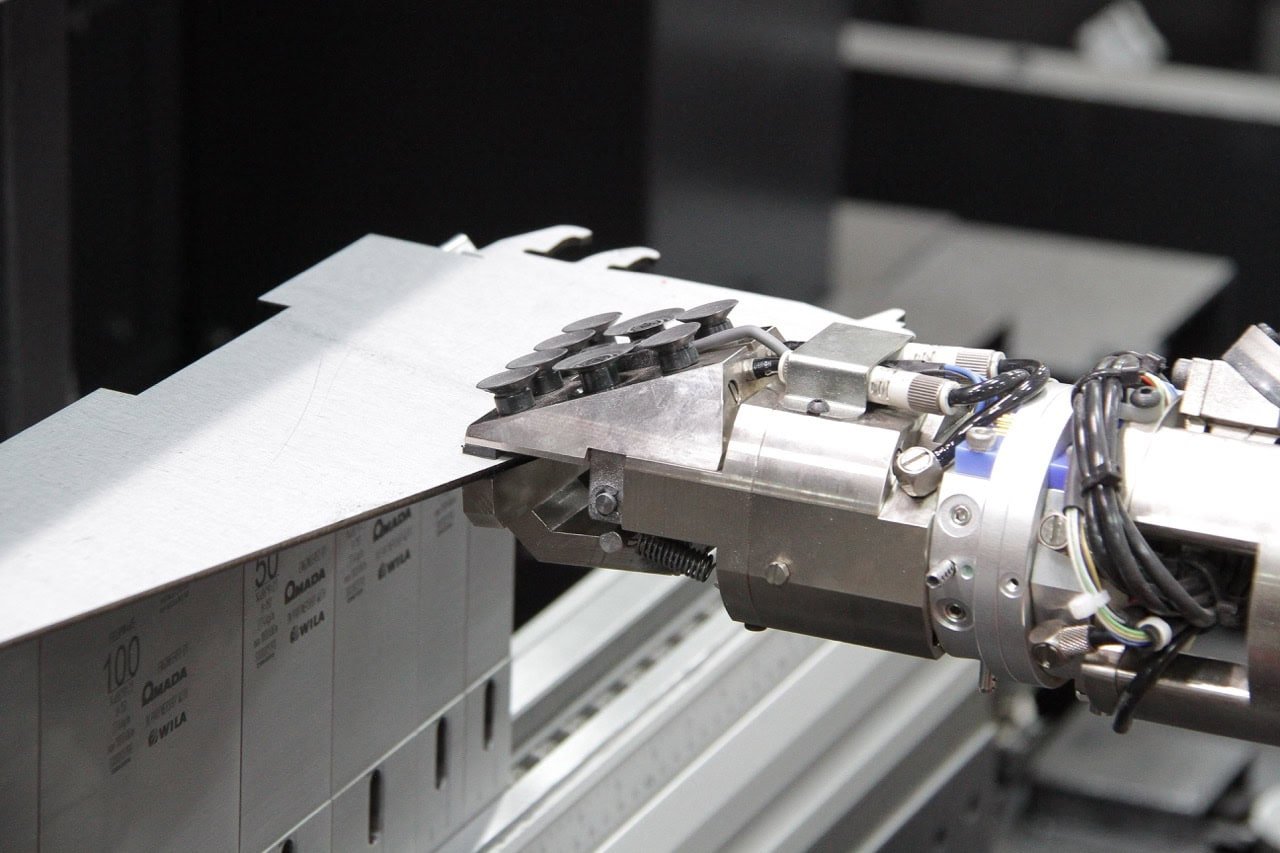

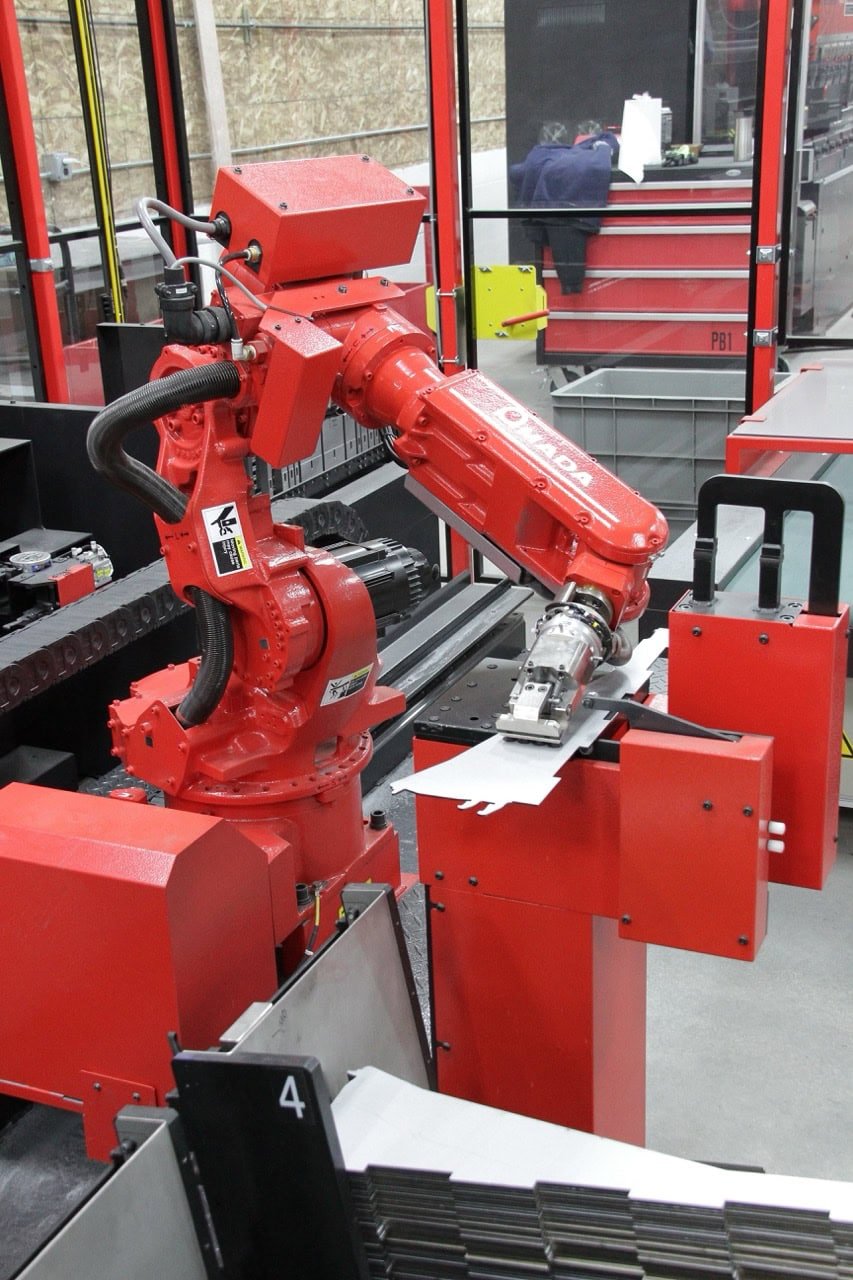

– 3 Gripper Station, Seamless Tool Change To Production

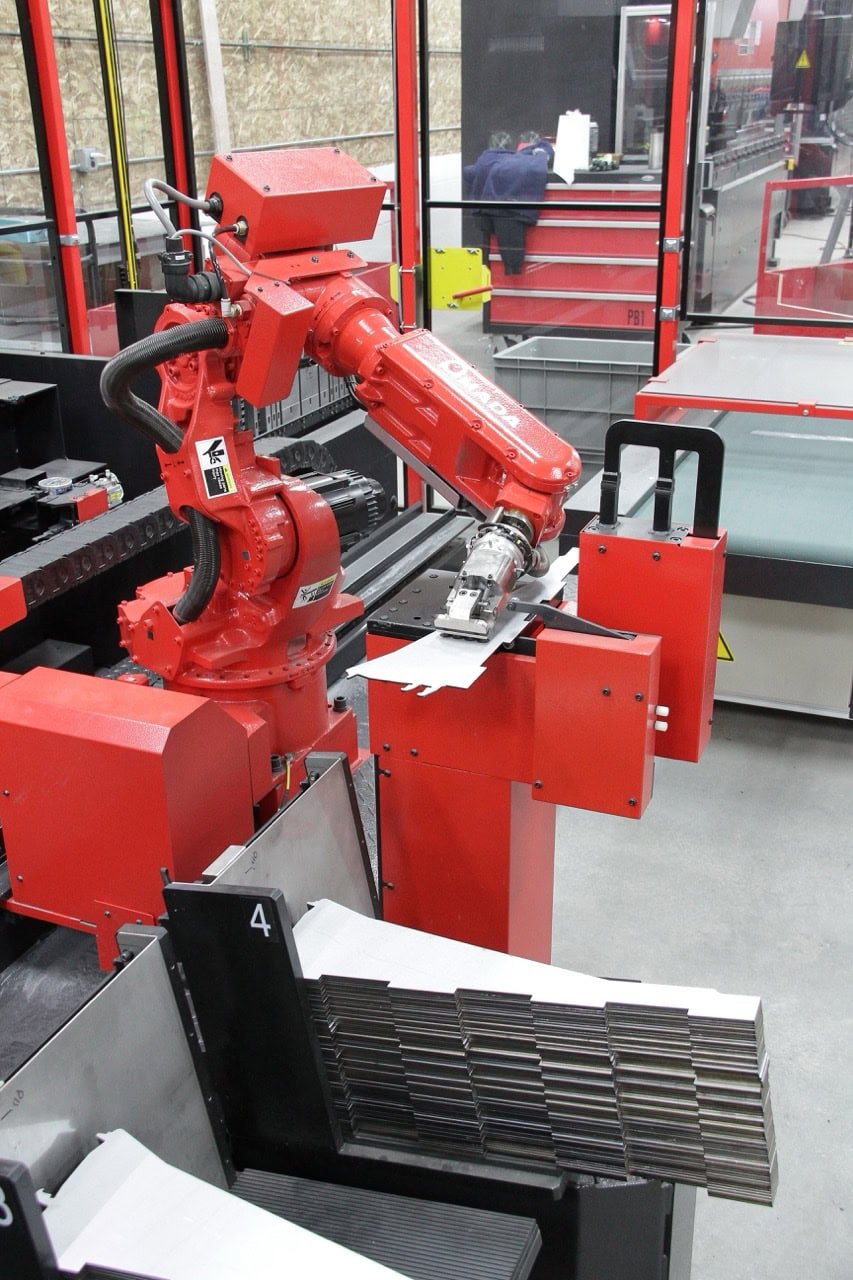

– Load/Unload To Drop Box Or Conveyor
Includes Assorted Tooling. List Available Upon Request.
