Description
Power Requirements: 220 VAC, 1-Phase Input

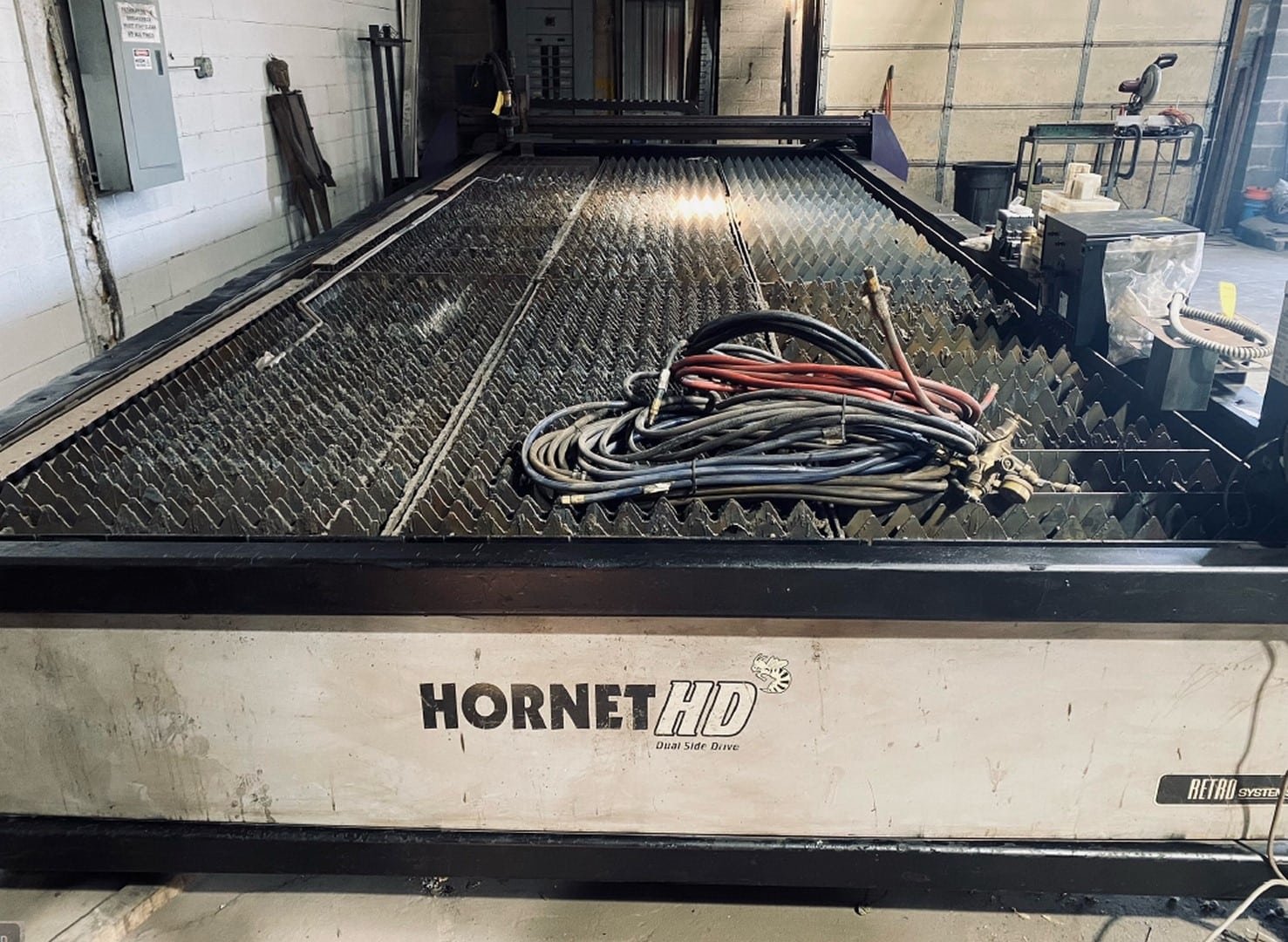

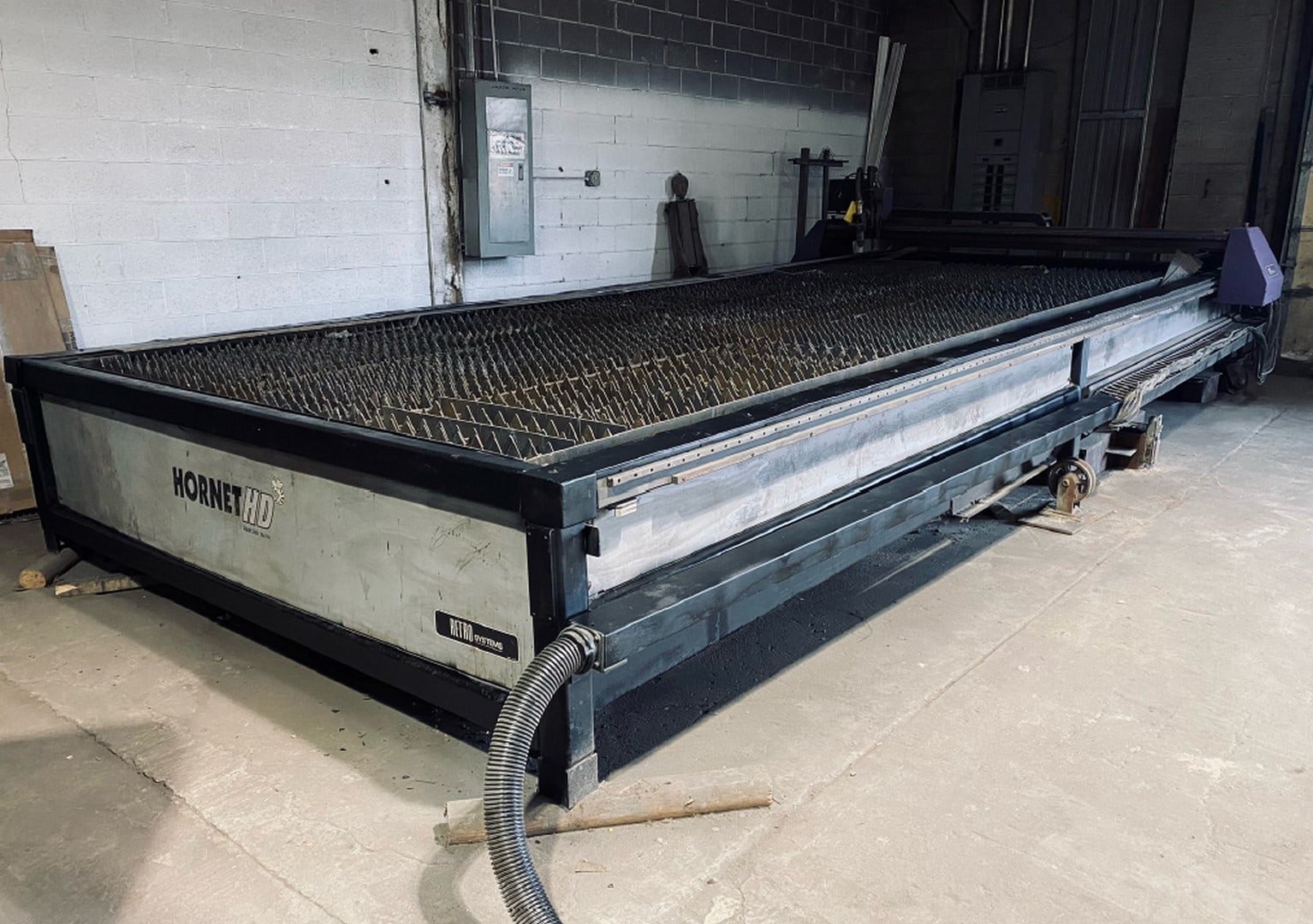

Cutting Area: 8′ x 20′
Rapid Traverse Speed: 1,000 ipm
Diameter Pinion Gears: 2.5″
Wide Gear Rack: 3/4″
Digital AC Servo Motors & Drive Amplifiers: 600 Watt (0.8 HP)
Machine Dimensions: 12.2″ x 26″
Equipped With
MicroEDGE CNC Controller

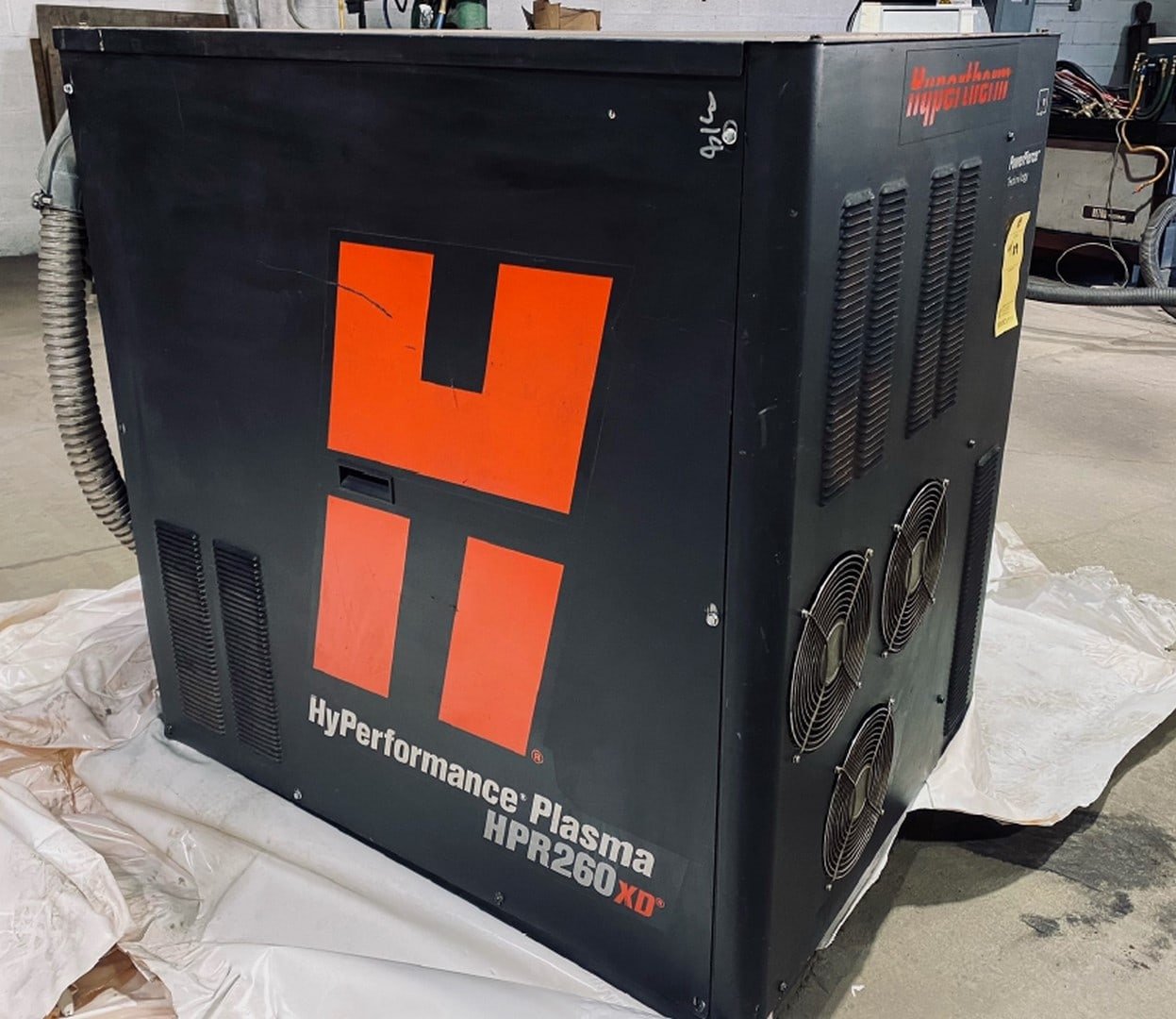

Hypertherm HPR260XD with Automatic Gas Console
4 Axis Drive System

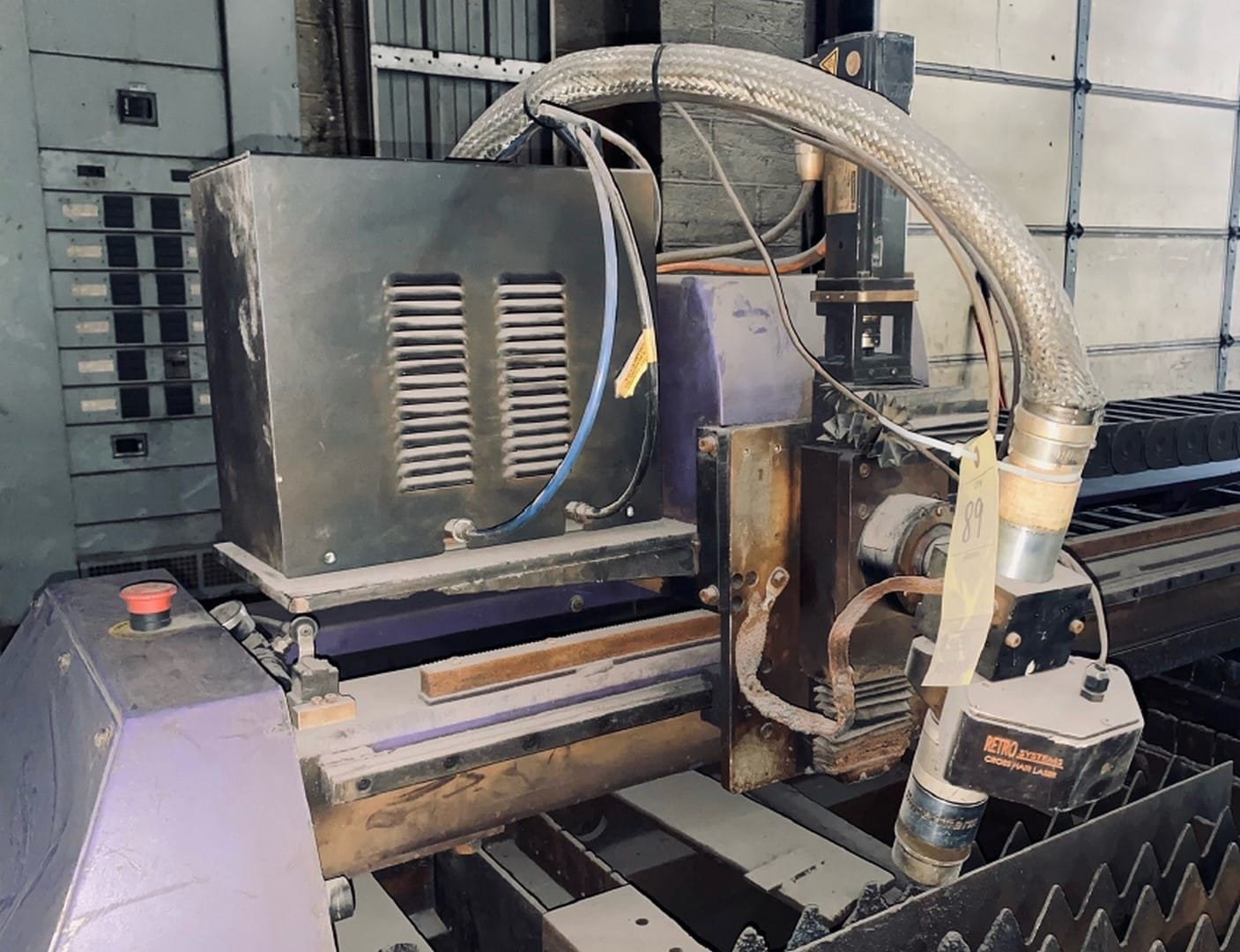

Planetary Gear Heads
Power Track on Main and Cross Axes

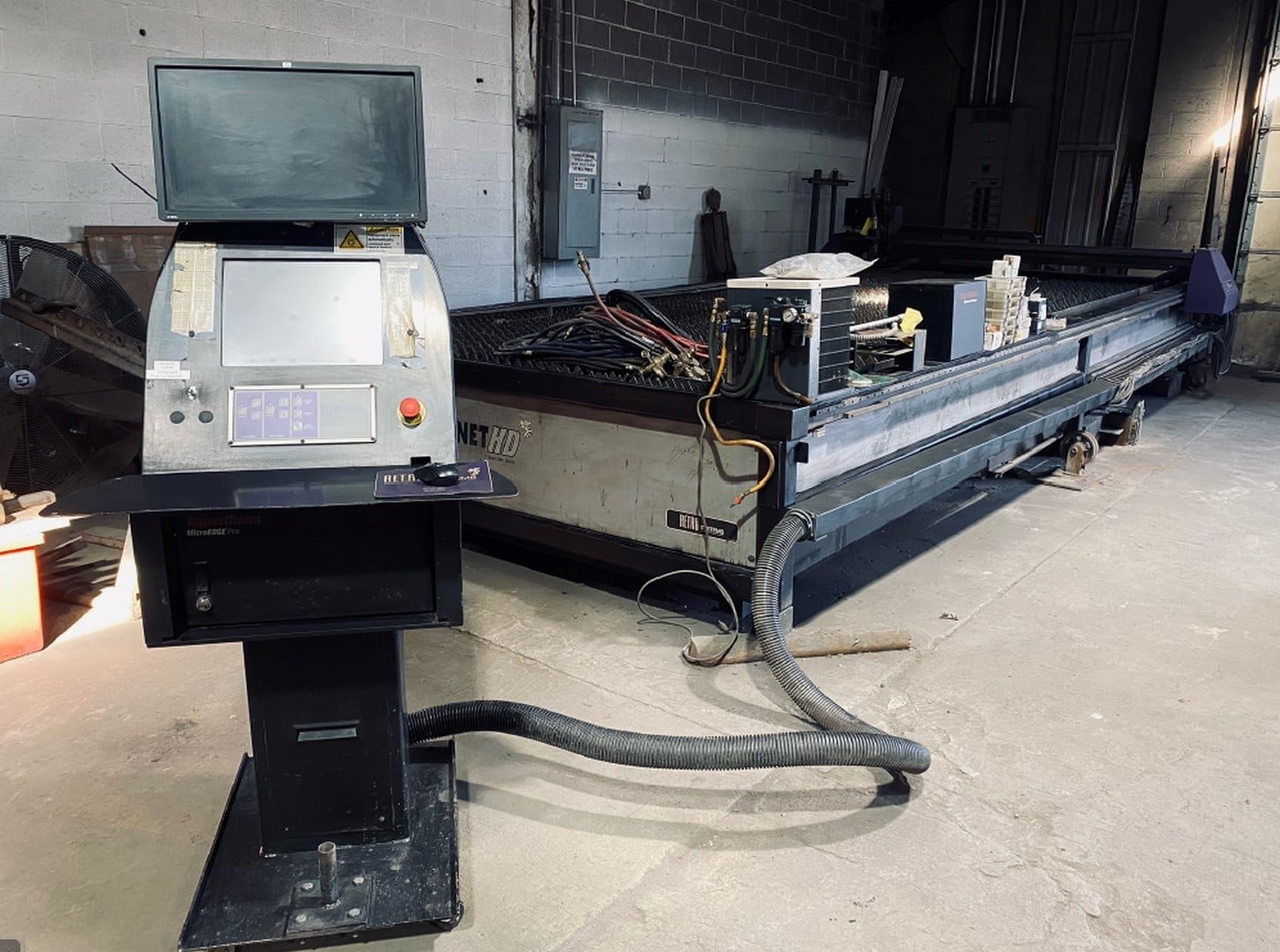

Over-Travel Limits and Homing SwitchesMachine-Mounted Rotating Operator Station
