Description
PUNCH:
Pressure: 82 Tons
Diameter Thru Thickness: 1-1/4″ thru 13/16″
Channels in Flange: 4-15
Beams in Flange: 4-15
Channels in Web: 3-15
Beams in Web: 3-15
Angle Shear:
Angle 90 deg: 6″x6″x1/2″
Angle 45 deg: 3″x3″x5/16″
Working Height: 39-3/4″
Bar Shear:
Round Bar: 2″
Square Bar: 1-3/4″
Plate Shear:
Flat Bars: 18-5/8″
Or: 12-3/4″
Date: 3/21/2024
Manufacturer: www.dynamicmtusa.com
Coper/Notcher:
With Rectangular Notching Tool
Plates: 15/32″
Angles in Flange: 3×7/16″
Notching Depth: 2-3/4″
Stroke(Punch) infinitely variable: 0-2-3/4″
Number of Strokes(punch) at full stroke: 11 per min
Number of Strokes(punch) at ¾”: 40 per min
Motor: Voltage 208-240/440-480, 60 Hz, 10 HP
Oil Capacity: 24 gallons
Machine Dimensions: 60-1/2″ x 29-1/2″ x 65″
Weight: 4,035 lbs
Includes:
Electric Length Gauge

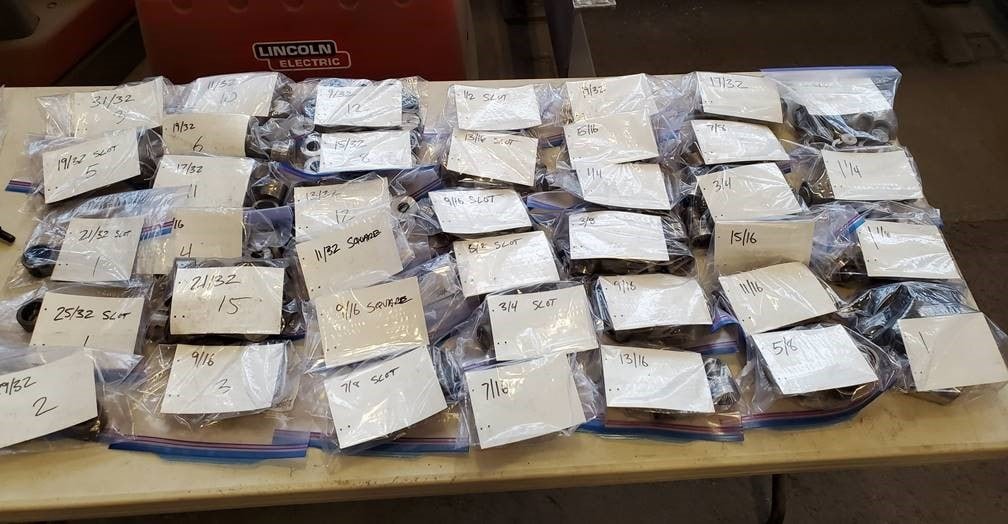

Punches & Dies
