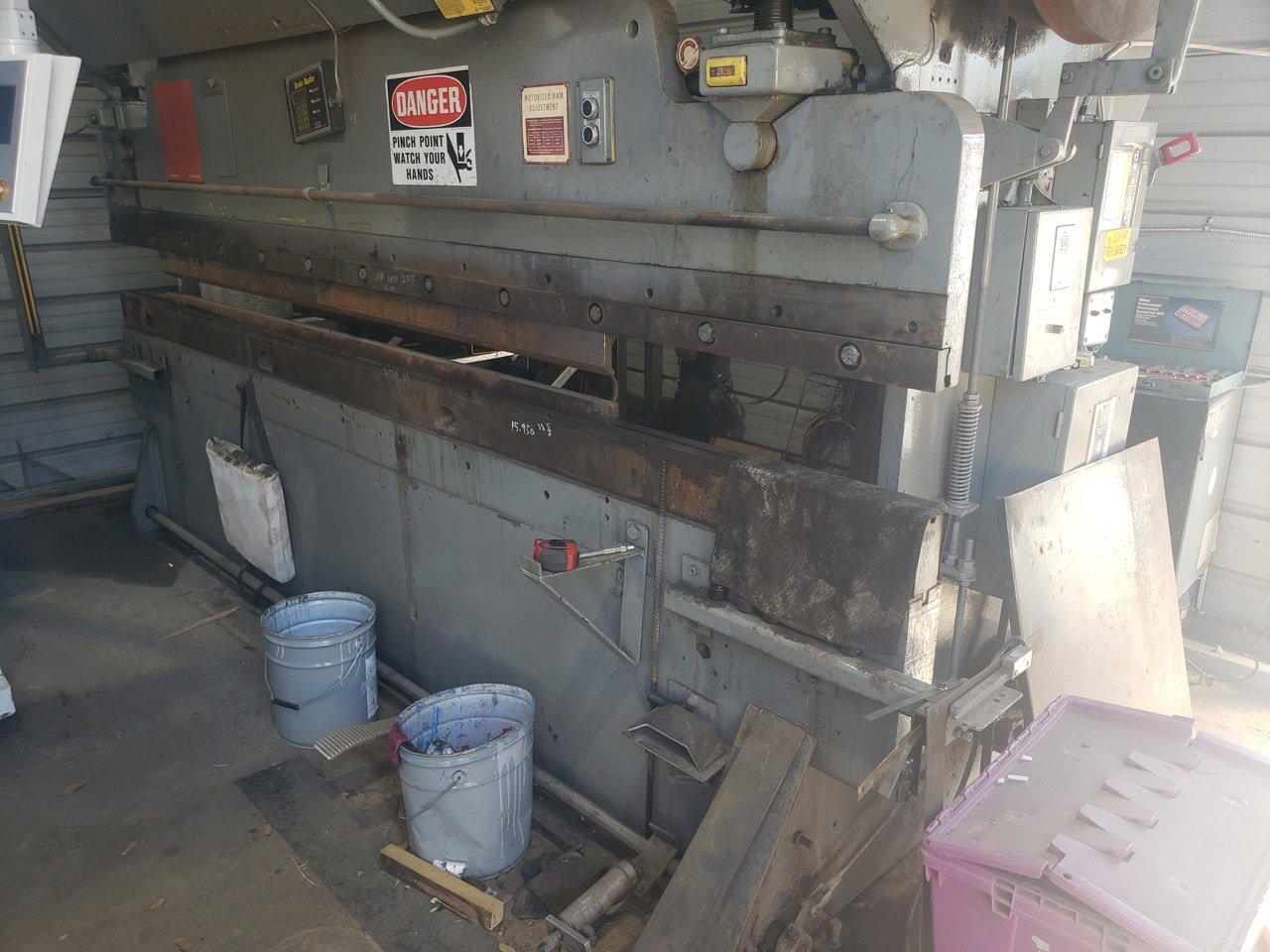

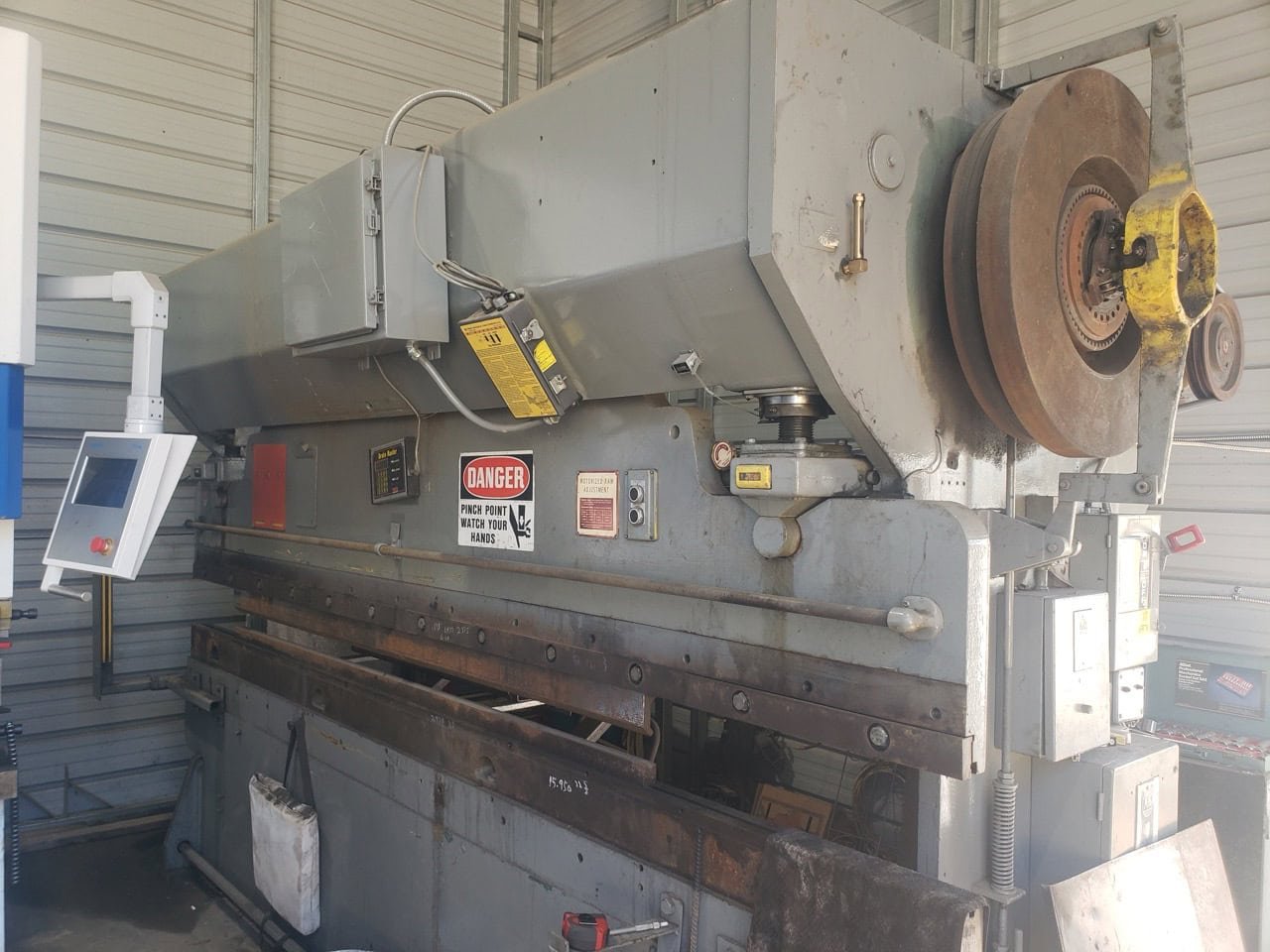

95 Ton x 12′ Chicago 1012 L Mechanical Press Brake, 1975

95 Ton x 12′ Chicago 1012 L Mechanical Press Brake, 1975 - Image 2

95 Ton x 12′ Chicago 1012 L Mechanical Press Brake, 1975 - Image 3

95 Ton x 12′ Chicago 1012 L Mechanical Press Brake, 1975

Name: 95 Ton x 12′ Chicago 1012 L Mechanical Press Brake, 1975
SKU: 28296078154
Availability: InStock

€ 9.900,00

Tonnage: 90 Tonnage At Mid Stroke: 60 Length Of Bed & Ram: 12′ Distance Between Housings: 10′ 6″ Ram Stroke: 3″ Ram Adjustment: 4″ Shut Height: 12″ Throat Depth: 8″ Strokes Per Minute (Variable): 20- 40 Motor: 5 HP Weight: 15,500 Lbs. Equipped With: Metal Tech Brake Master Control Foot Pedal

SKU: 28296078154

Category: Mechanical Press Brakes

Description

Description

Tonnage: 90
Tonnage At Mid Stroke: 60
Length Of Bed & Ram: 12′
Distance Between Housings: 10′ 6″
Ram Stroke: 3″
Ram Adjustment: 4″
Shut Height: 12″
Throat Depth: 8″
Strokes Per Minute (Variable): 20- 40
Motor: 5 HP
Weight: 15,500 Lbs.

Equipped With:

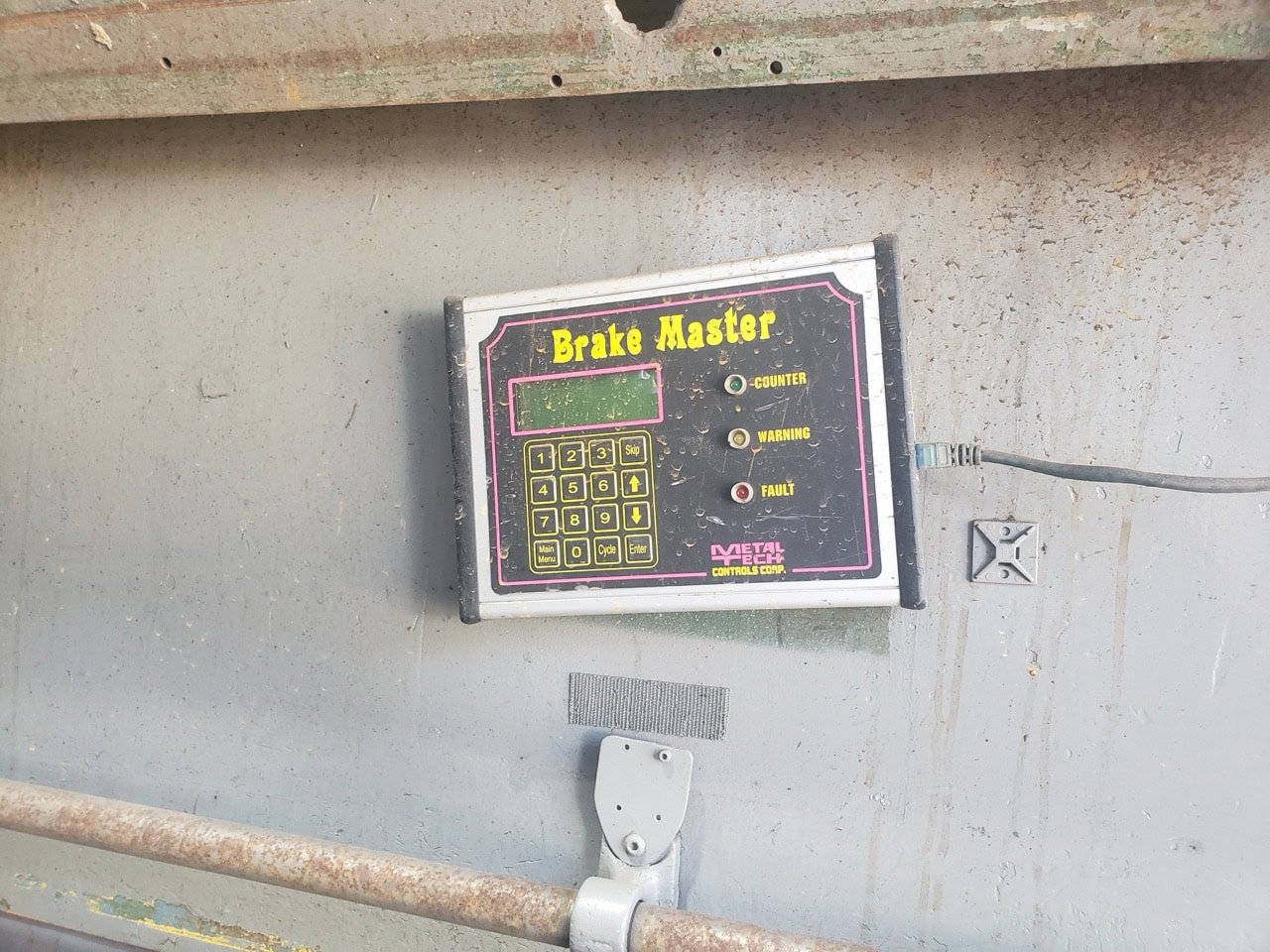

Metal Tech Brake Master Control
Foot Pedal
