Description
Dimensions: 160″ x 144″ x 136″

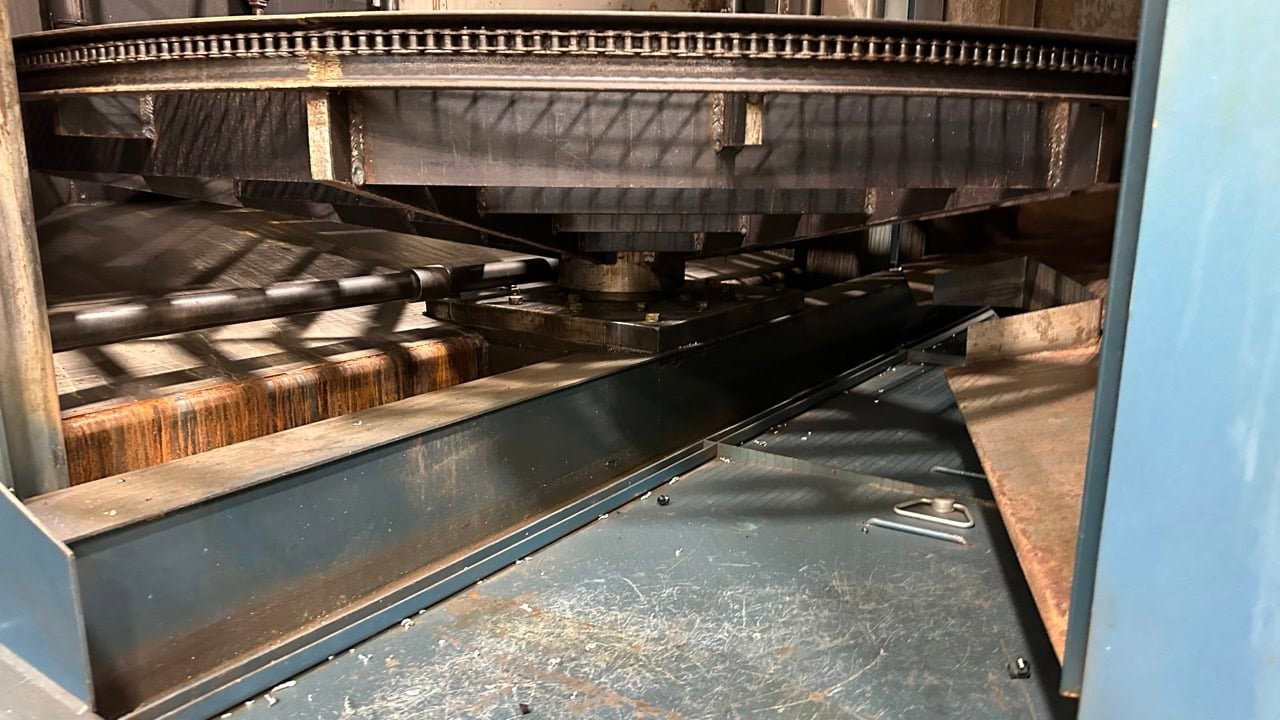

Turntable Diameter: 96″
Working Height: 72″
Working Load Limit: 40,000 lbs
Loading Height: 55″
Solution Capacity: 1,000 gal
Pump Motor Size: 75 HP
Pump Capacity: 300 gpm @ 200 psi
Nozzles Per Manifold: 40
Turntable Motor Size: 1.5 HP
Electric Tank Heater Elements: 6 @ 18 KW/each
Power Requirements: 480 V, 3PH/60C 225A
Fresh Water Inlet Size: 1 NPT
Main Tank Drain Size: 2 NPT
Approximate Shipping Weight: 30,000 lbs
Equipped With:
– Carbon Steel Structure/Framework
– Ferrous and Non-Ferrous Chip Drag Conveyor
– Vertical Chip Screen
– Insulated Cabinet
– Stainless Steel Wash Nozzles
– Stainless Steel Chip Screens

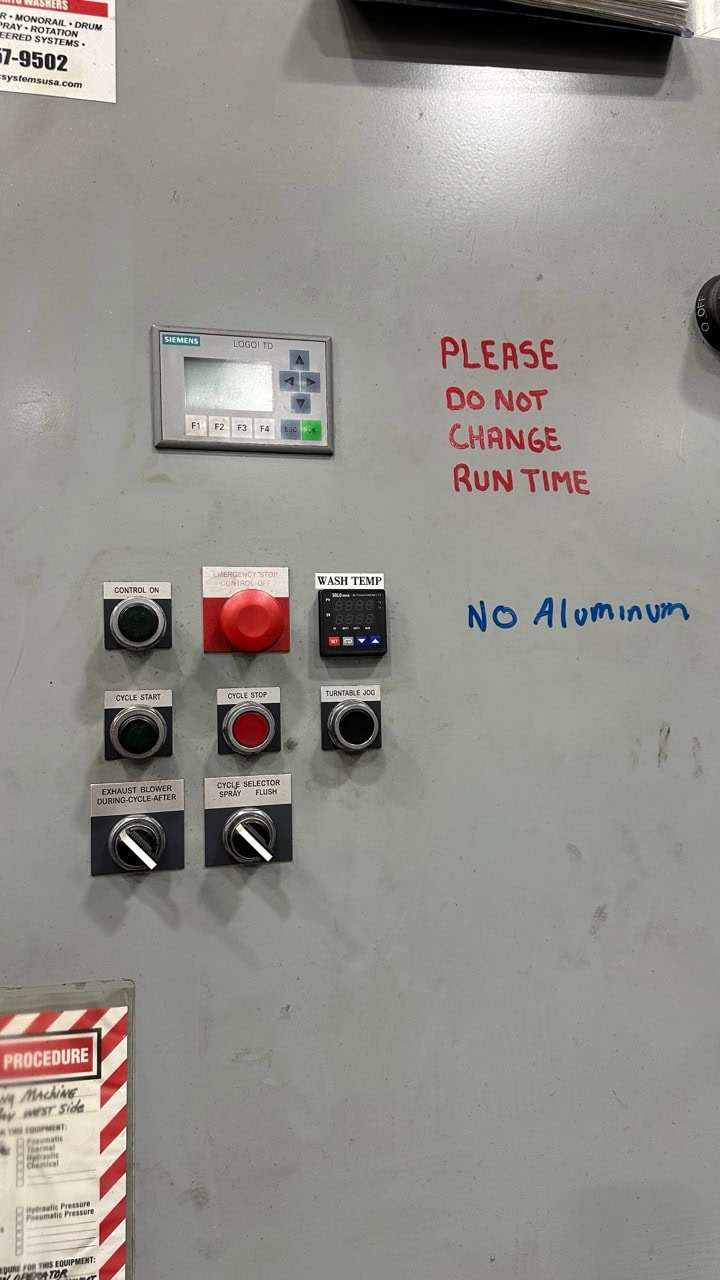

– Turntable Jog Control
– (2) Sweeping Wash Manifolds
Additional Specs Available Upon Request
