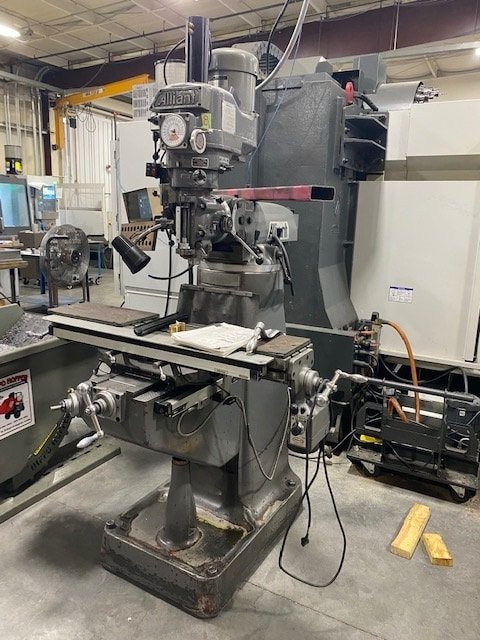

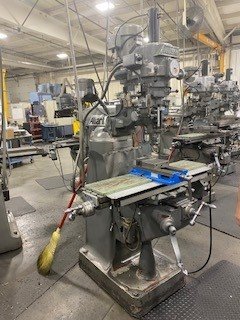

Description
Table: 9″ x 42″
X-Axis Longitudinal Travel: 30″
Y-Axis Cross Feed Travel: 12″
Knee Vertical Travel: 16″
Max. Table Height Above Floor: 47.5″
Max. Workpiece Weight: 750 lbs.
Ram Travel: 12″
Quill Travel: 5″
Spindle Nose to Table Gage Line (min.): 2.5″
Spindle Center to Column (min.): 6.75″
(max.): 18.75″
Swivel (Right/Left): 90 Degrees
Tilt (Up/Down): 45 Degrees
Spindle Motor:
Horsepower: 2
RPM: 1720
Spindle Taper: R-8
RPM Speed Range: 8 Speeds
Low: 80 140 230 350
High: 650 1100 1800 2760
Spindle Diameter: 1.875″
Quill Diameter: 3.375″
Feed Rates:
Low Rev.: 1.5 i.p.r
Medium Rev.: 3 i.p.r.
High Rev.: 6 i.p.r.
Floor Space and Weight:
Max. Machine Height: 82″
Floor area: 7 x 10 feet
Net Weight: 2227 lbs.
Shipping Weight: 2400 lbs
Electrical Supply:
220V/440V 3 Phase – 60 Hz
Equipped with:

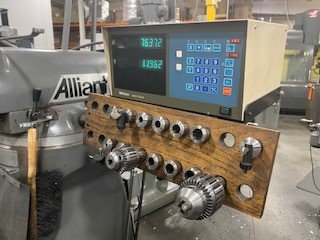

Digital Readout
