Description
System Overview
Apeks “The Force” is a fully integrated, high-capacity supercritical CO2 extraction system engineered for botanical extraction. The system features automated process controls, a robust stainless-steel frame, and is suitable for GMP-compliant production.
System Type:
Supercritical CO2 extraction system
Turnkey, integrated, skid-mounted

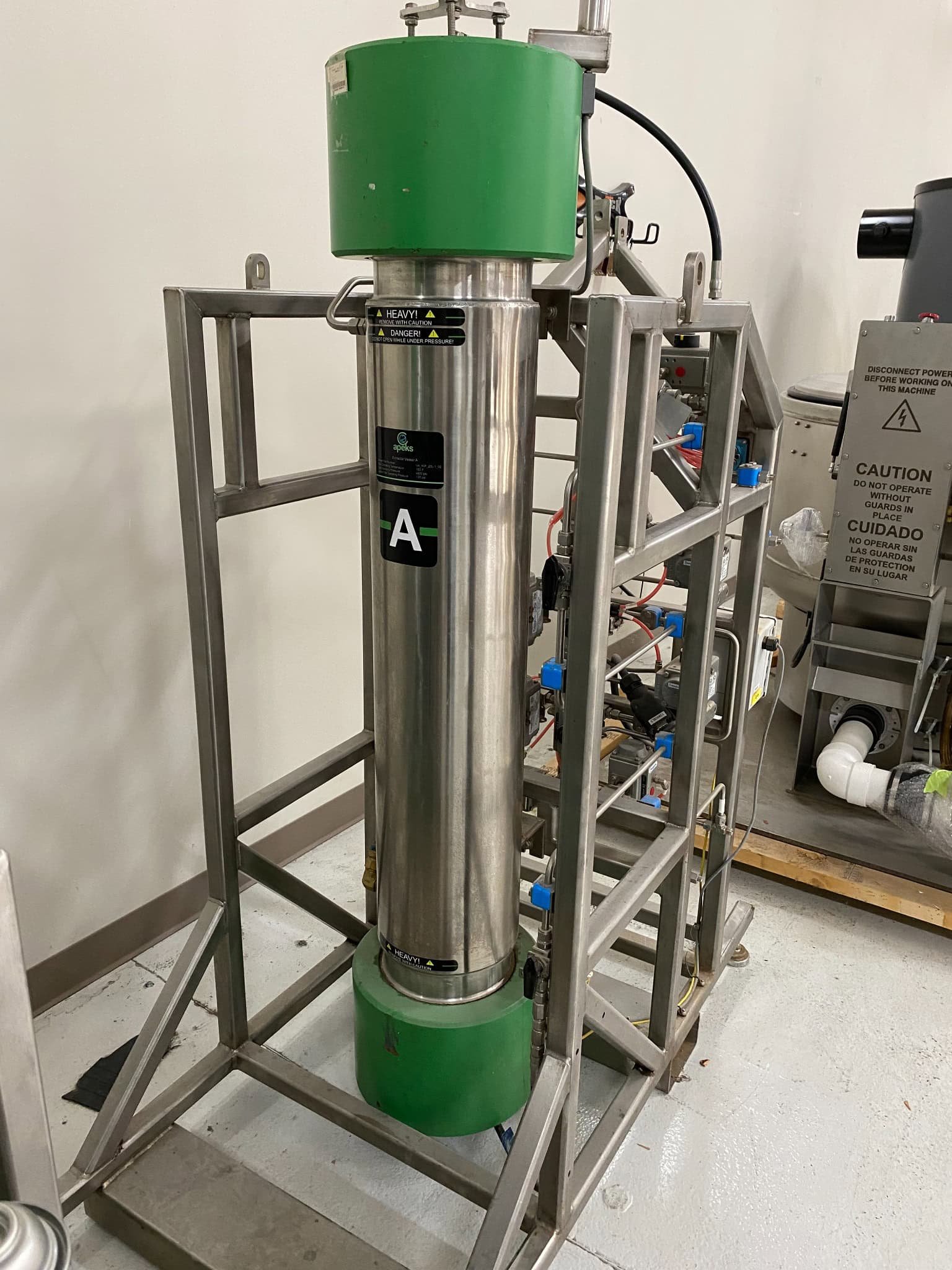

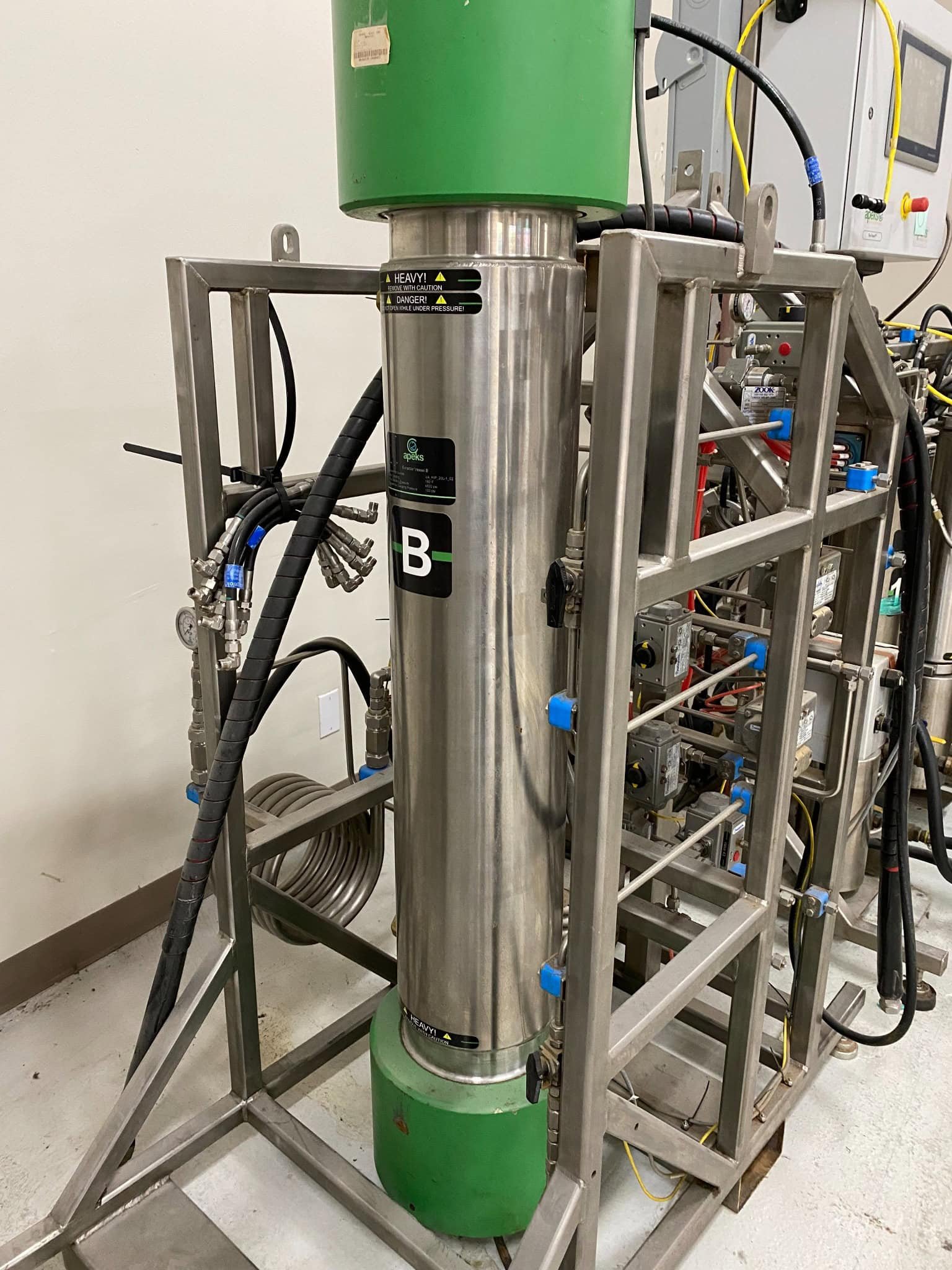

Processing Vessels:
(3) Stainless steel extraction vessels
Typical vessel capacity: 20 liters each

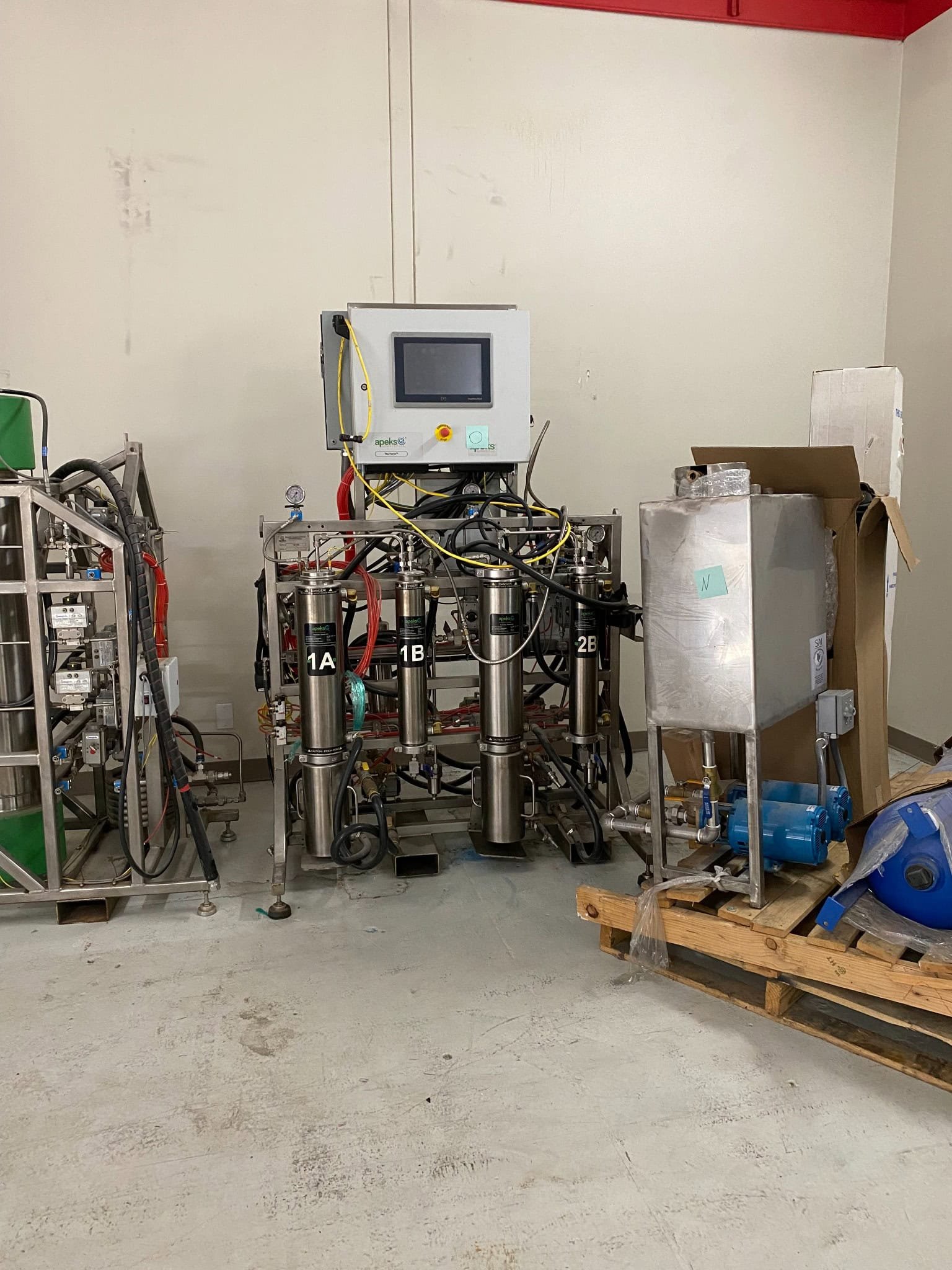

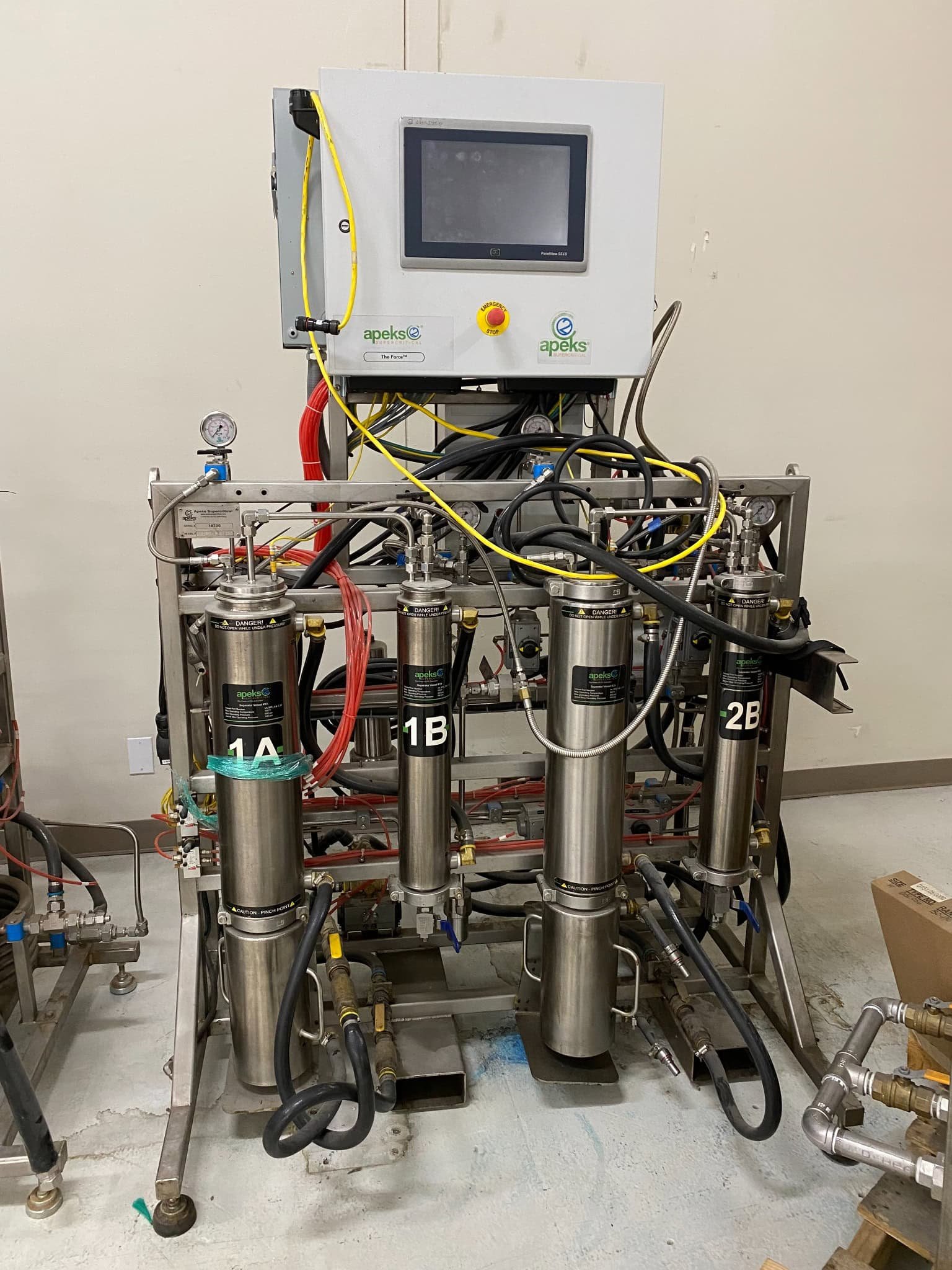

Configuration: Labeled 1A, 1B, 2B
Maximum Operating Pressure: Up to 5,000 psi (manufacturer standard)
Construction: High-grade stainless steel, sanitary fittings

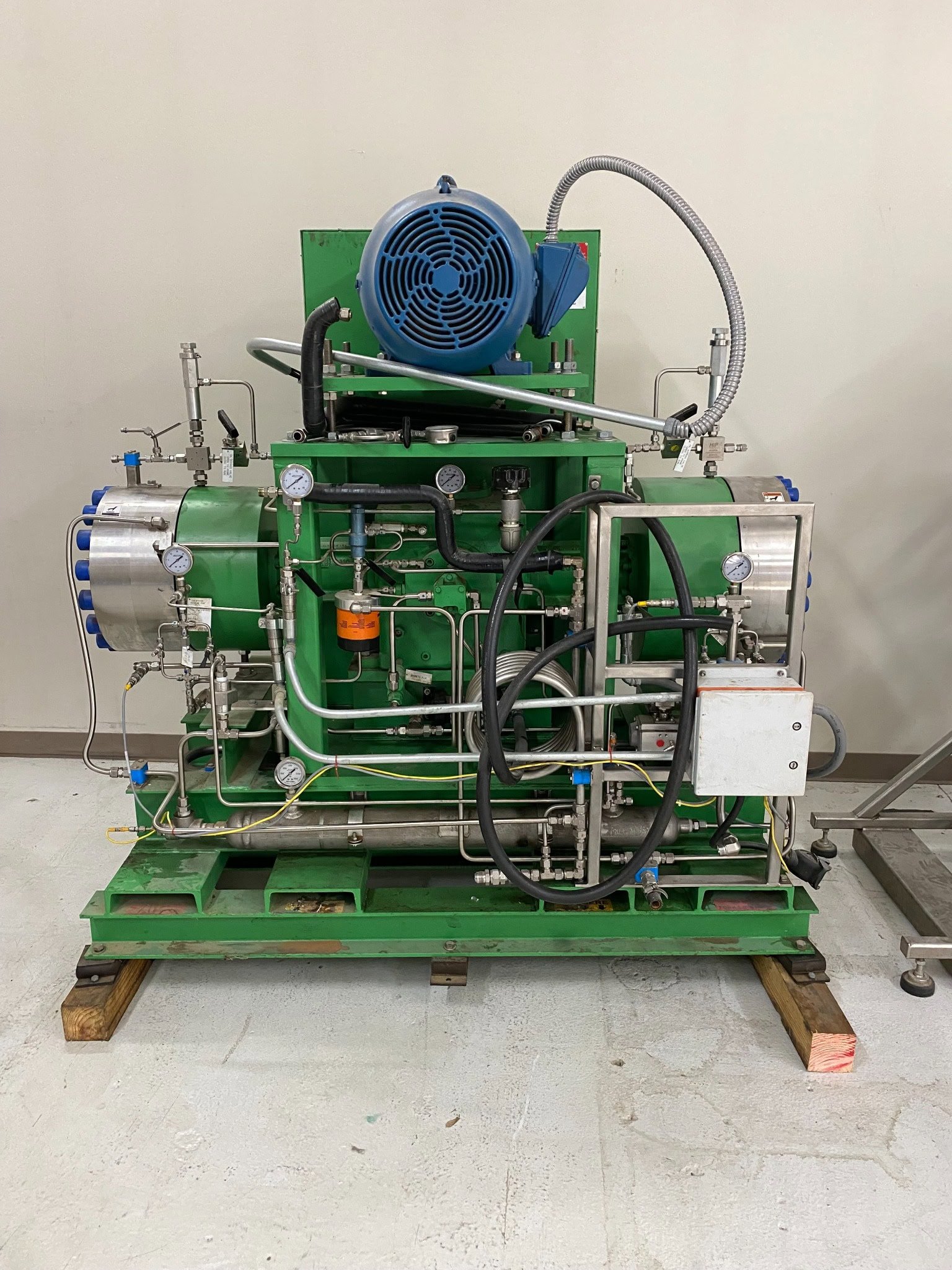

Compressor Package:
High-pressure industrial compressor
Integrated with stainless steel process frame
Oil-less, air-cooled design (standard on “The Force” models)
Controls & Automation:

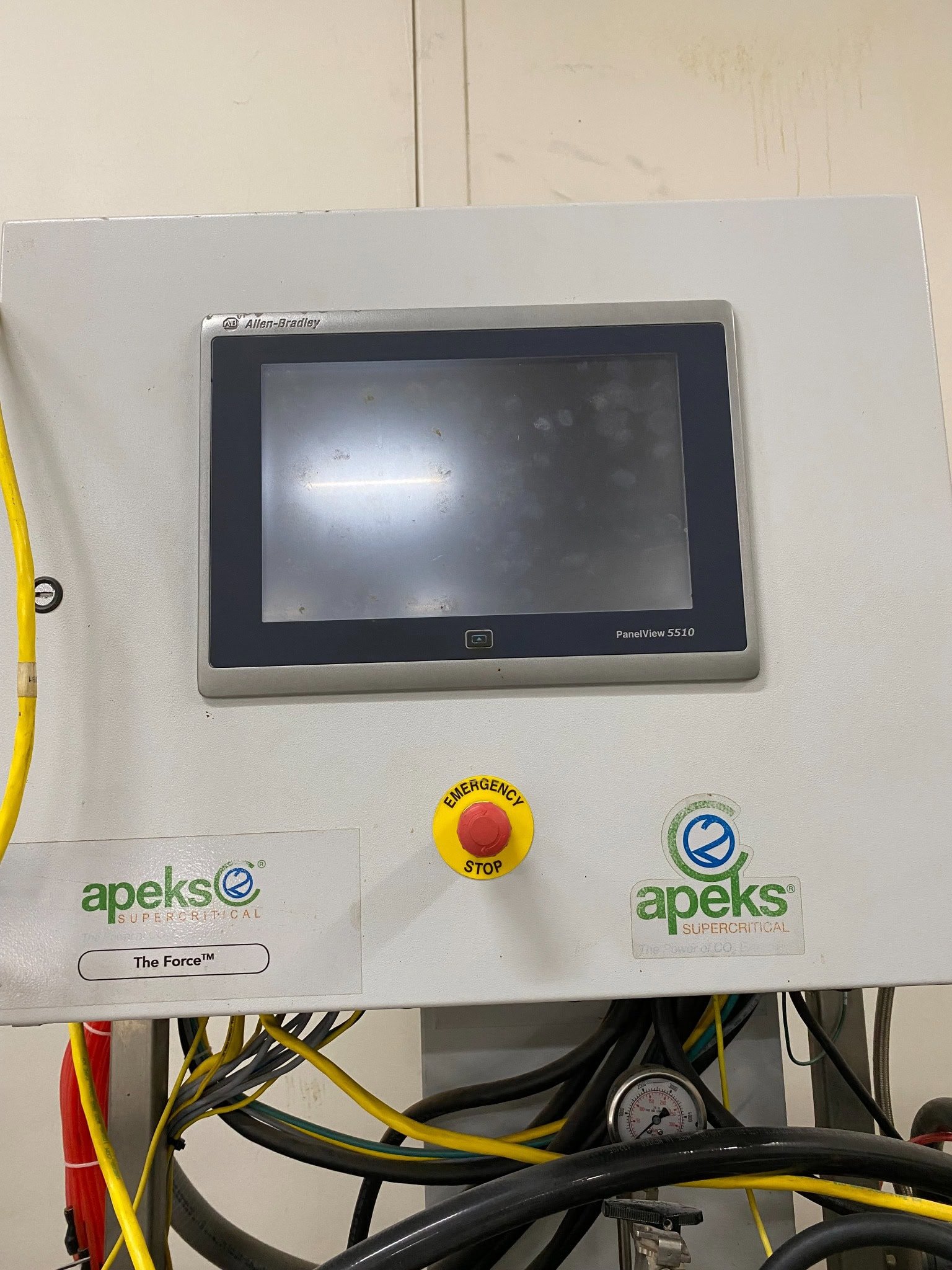

Allen-Bradley PanelView touchscreen HMI (industrial grade)
Fully automated process sequences
Emergency stop and safety interlocks
System monitoring gauges and sensors
Frame & Mounting:
Welded stainless steel skid frame
Heavy-duty casters and levelers
Modular and easy to relocate
Auxiliary Components:
High-pressure piping and quick-disconnects
Auxiliary tanks and blue process pump (included)
Integrated electrical and pneumatic systems
Gauges, safety valves, and compliant labeling
Typical Processing Capacity:
Biomass throughput: ~60–120 lbs/day (actual may vary by run conditions, material, and SOPs)
Extraction vessel capacity: 20L each
CO2 consumption and process rates available upon request
Certifications & Compliance:
cGMP-capable design
ASME-rated vessels
UL-listed electrical components
