Description

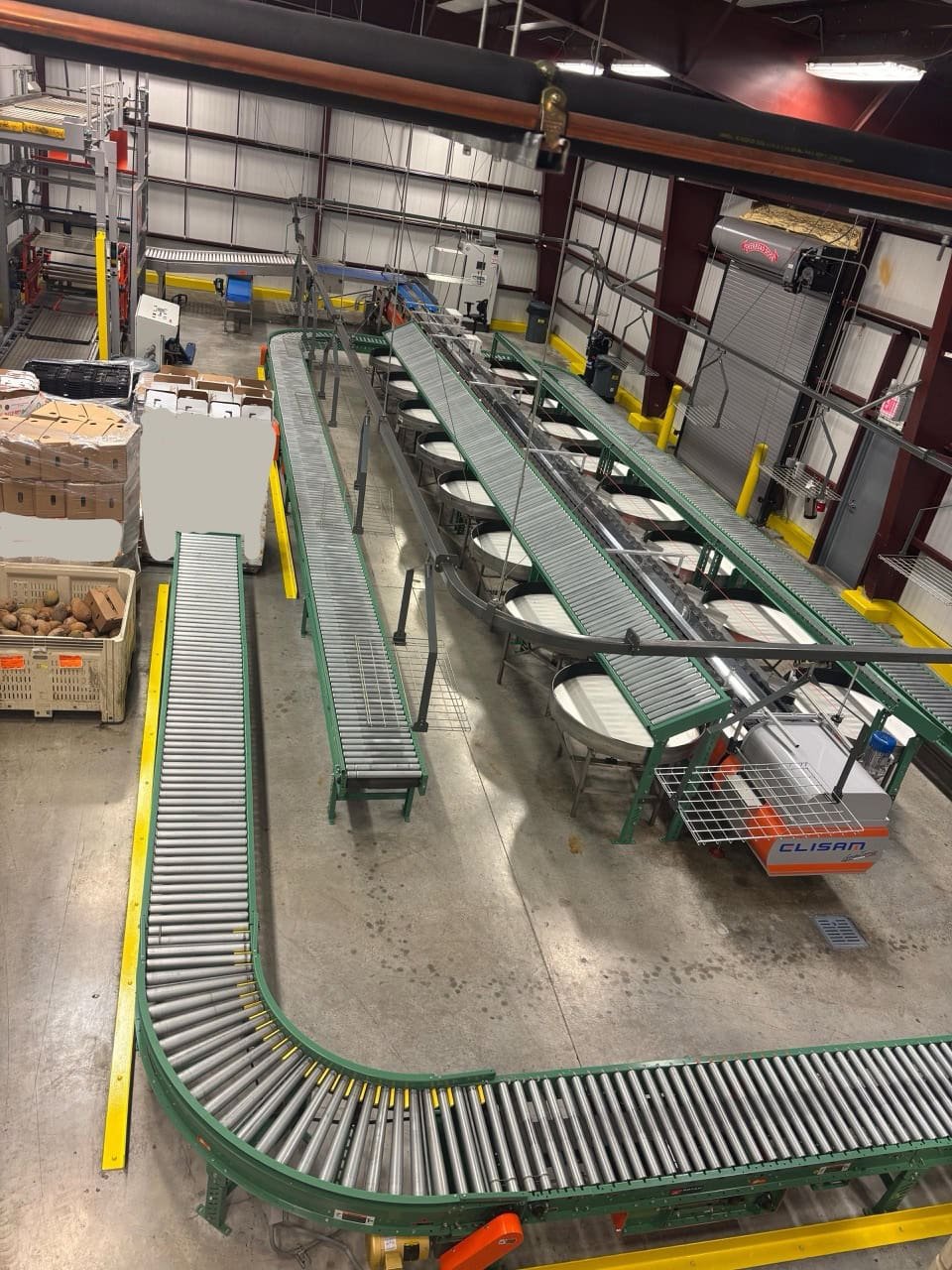

Durand Wayland Produce Packing Line with Elisam Continuous Bin Tipper, Sizer and Optical System for sorting Round Fruit, 2021
Operational video available upon request

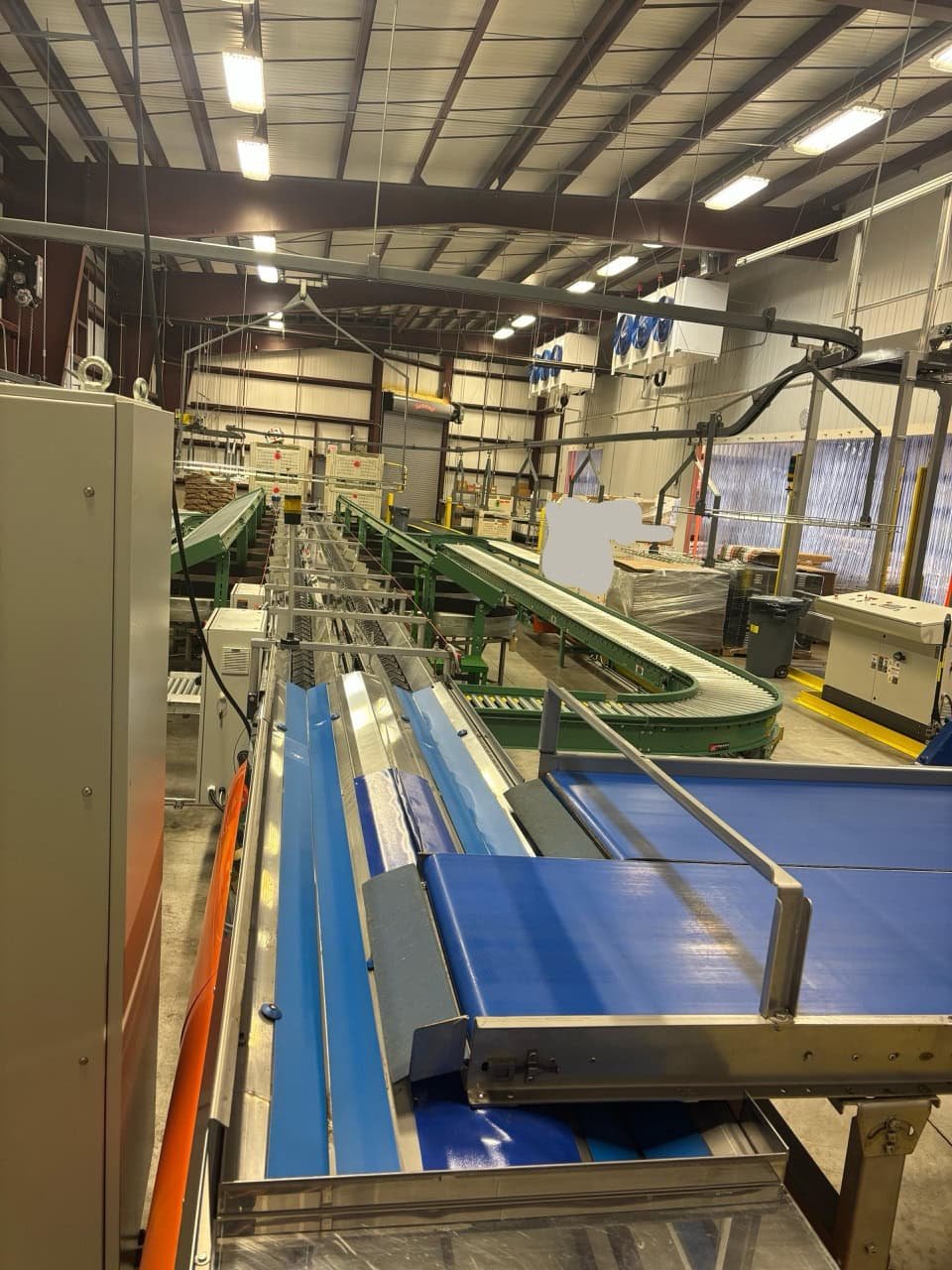

This system is designed for sorting round fruits by size (16 pieces of fruit per second) and distributing them onto 16 hand-packing stations with accumulation tables. It includes return powered conveyors, and box delivery carousel for taking empty boxes to the packing stations. It is capable of running 200,000 pounds of fruit per 12 hour shift.

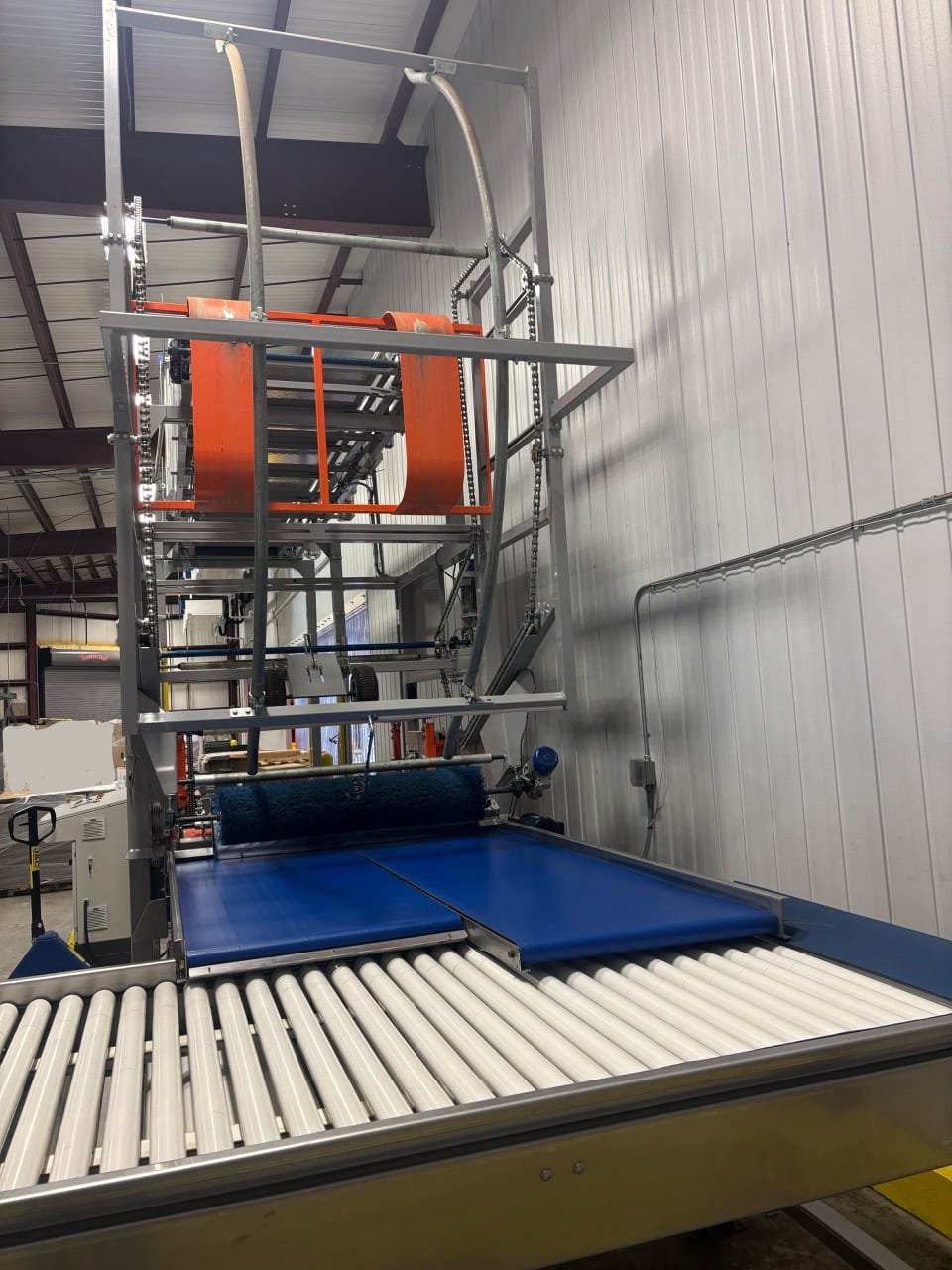

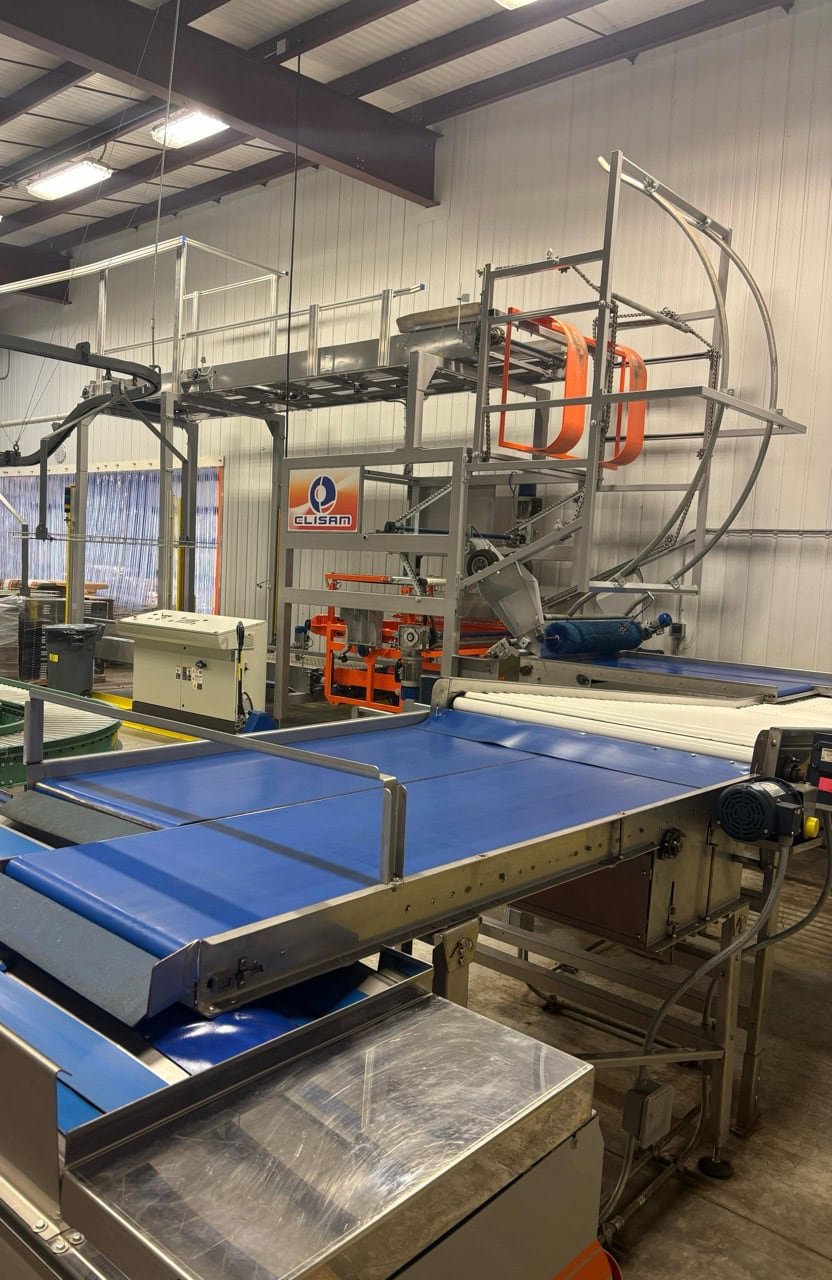

Elisam Continuous Bin Tipper
Maximum capacity of 50 bins per hour
– Bin rotation of 55″ to allow delicate fruit exit of entire bin
– Flow control with photoeyes and VFD for continuous fruit output
– Protection screens
– Integrated motor controls

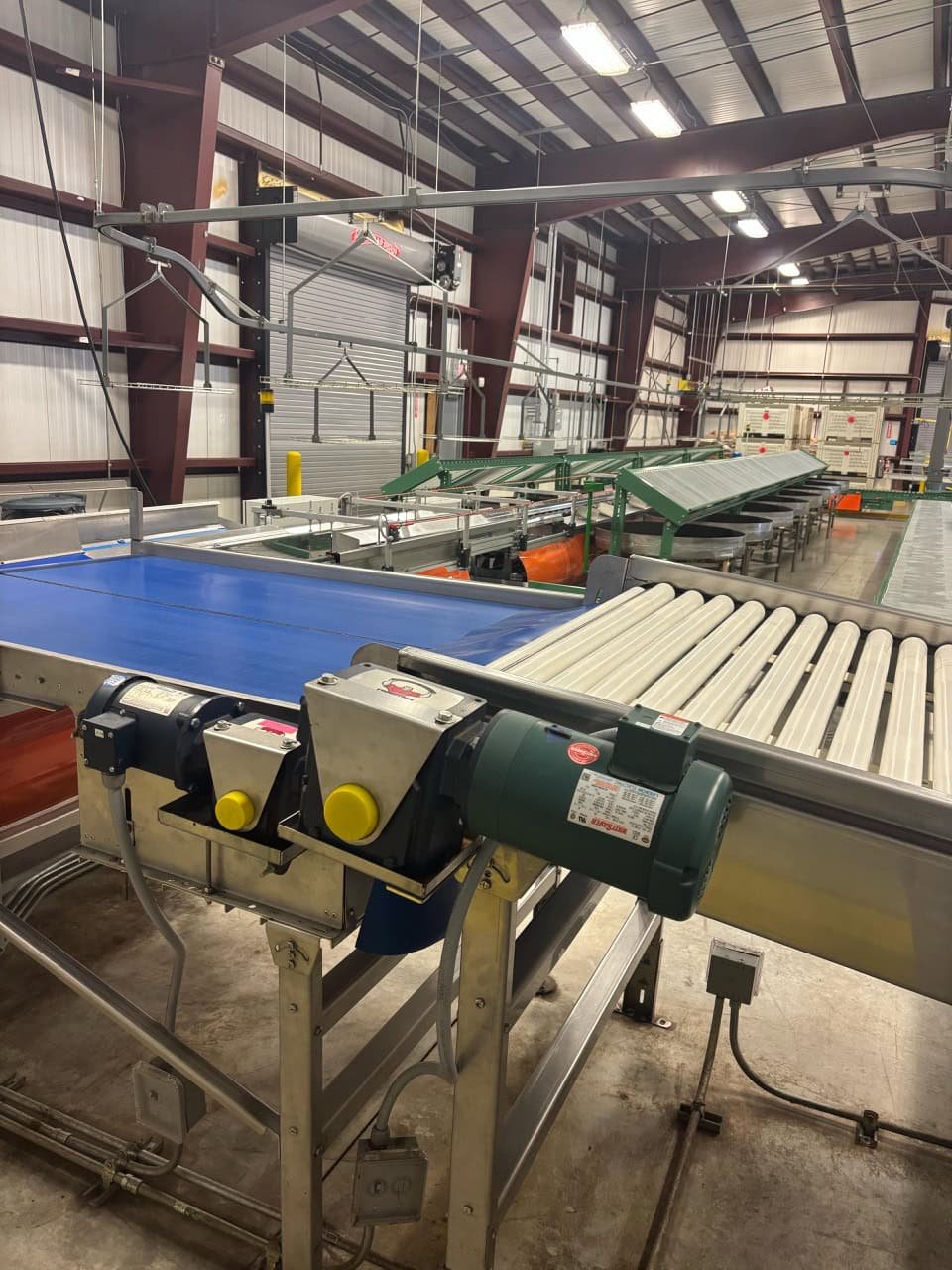

Model A1-1BT Staggering Belt Conveyor
– Staggering belt 30″ W x 8′ L
– Staggering belt 30″ W x 7′ L
– Blue food grade belting
– Variable speed end drive (1/2 hp at 60 feet per minute)
– Leg supports (with 6″ of adjustment)
Series 212BT belt Conveyor, 18″ W x 13′ L
– Blue food grade belting
– Constant speed end drive (1/2 hp at 60 feet per minute)
– Leg supports (with 6″ of adjustment)
Model B1A-1BT Roller Conveyor, 48″ W x 17′ Long
– PVC rollers on 3″ centers
– Constant speed end drive (1/2 hp at 60 feet per minute)
– Leg supports (with 6″ of adjustment)
Model A1-1BT Staggering Belt Conveyor
– Staggering belt 30″ W x 7′ L
– Staggering belt 30″ W x 6′ L
– Blue food grade belting
– Variable speed end drive (1/2 hp @ 60 feet per minute)
– Leg supports (with 6″ of adjustment)

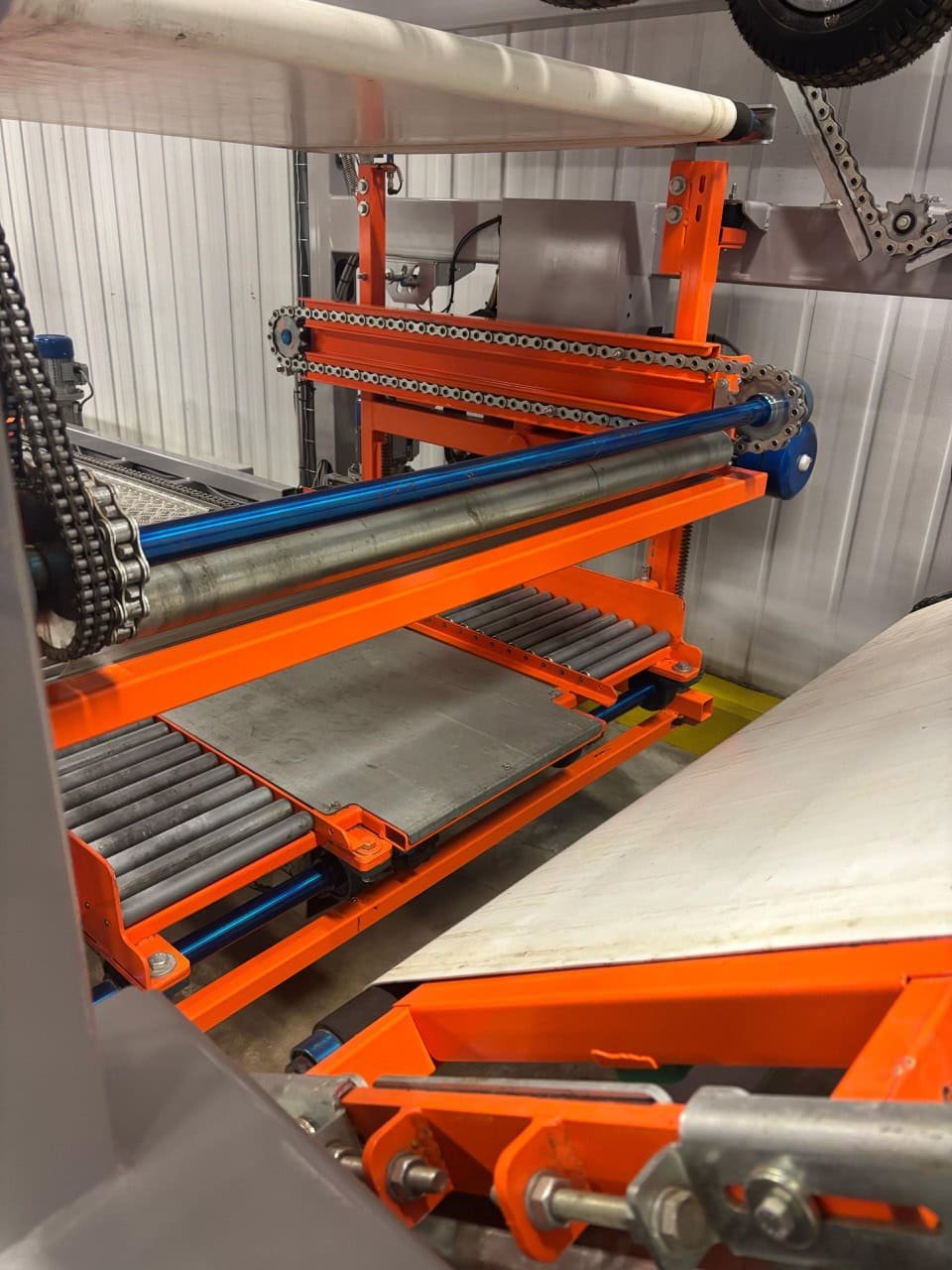

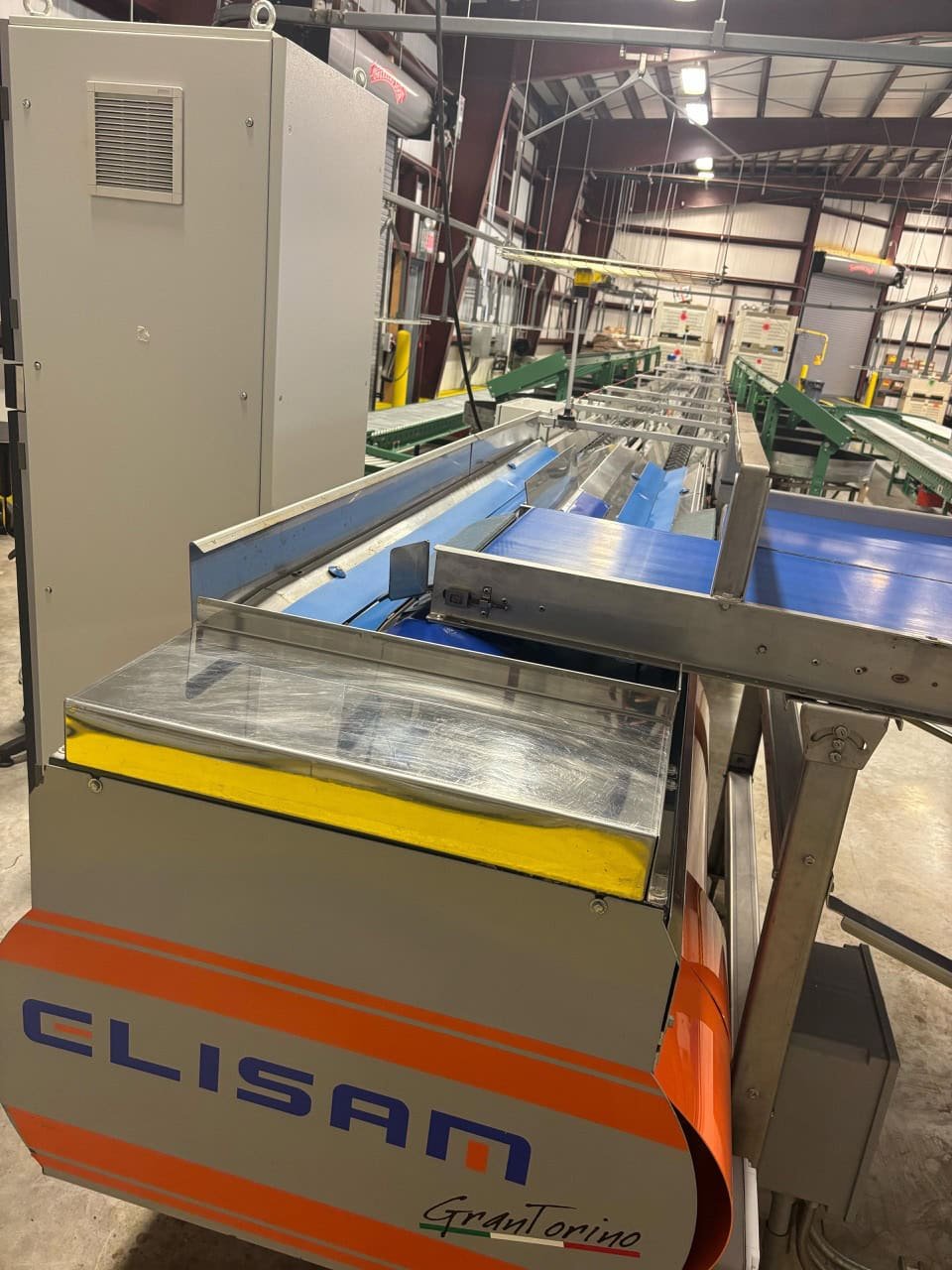

Elisam Gran Torino Boston Sizer including:
Pre-aligning system with 2 lane V-belt conveyor
2 Lane Electronic Sizer – Elisam Gran Torino Boston
– 2 lanes with 7 + 1 drops
– Universal cup conveyors with lateral drops
– Smooth ejection with solenoids at exits
– Aluminum profile frame construction
– Variable speed control for sizer conveyor
– Stainless load cells (with weight accuracy of +/- gram)
Truesort Ellips Optical Software System based on the following system parameters:
– 2 lanes, 7 + 1 exits, Weight

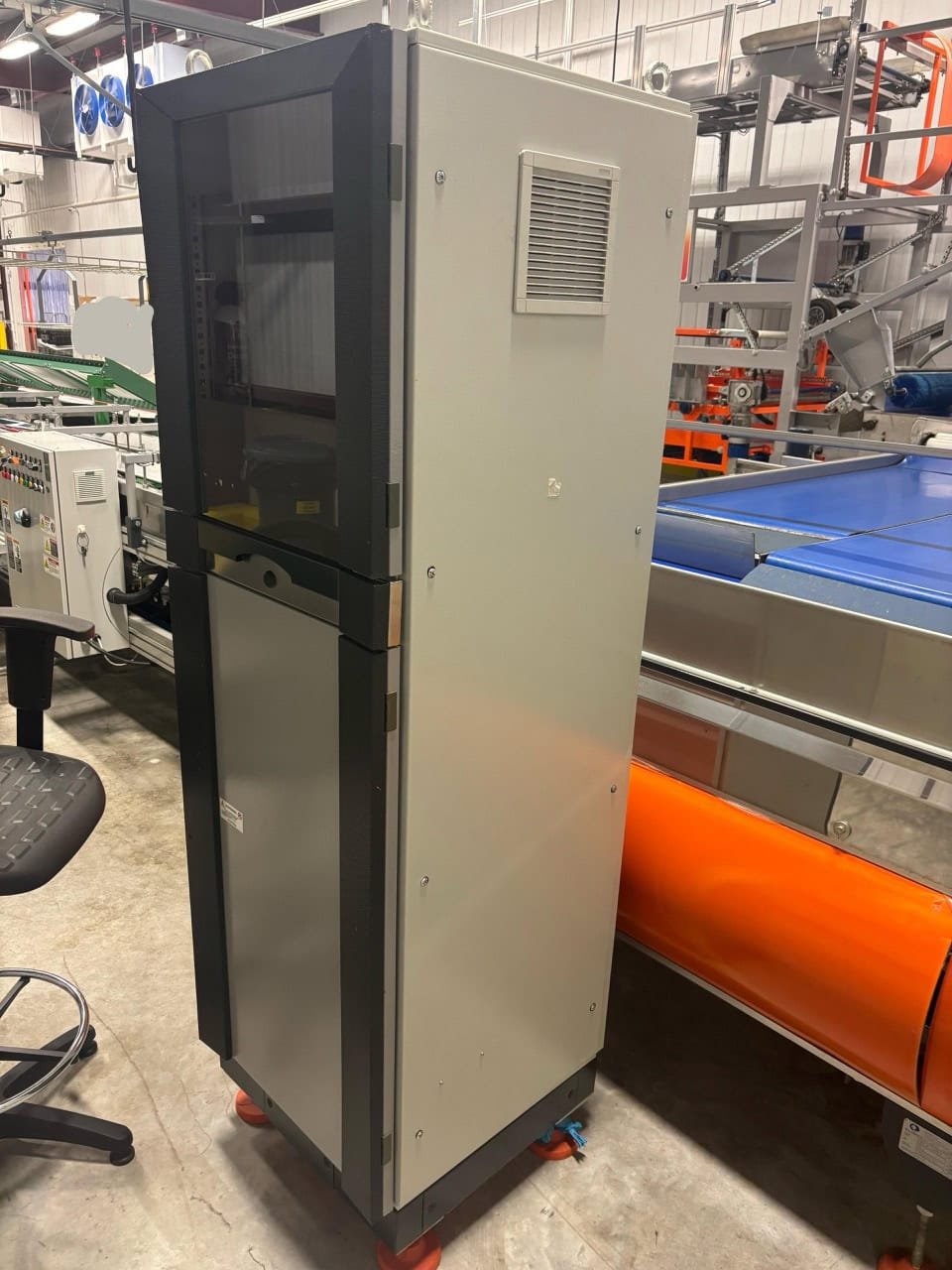

– PC, monitor, printer and Ethernet connection
– Graphical user interface (master computer)
– Pump and circuit for lubrication of the chains (with brass pipes, brushes, PLC with timer)

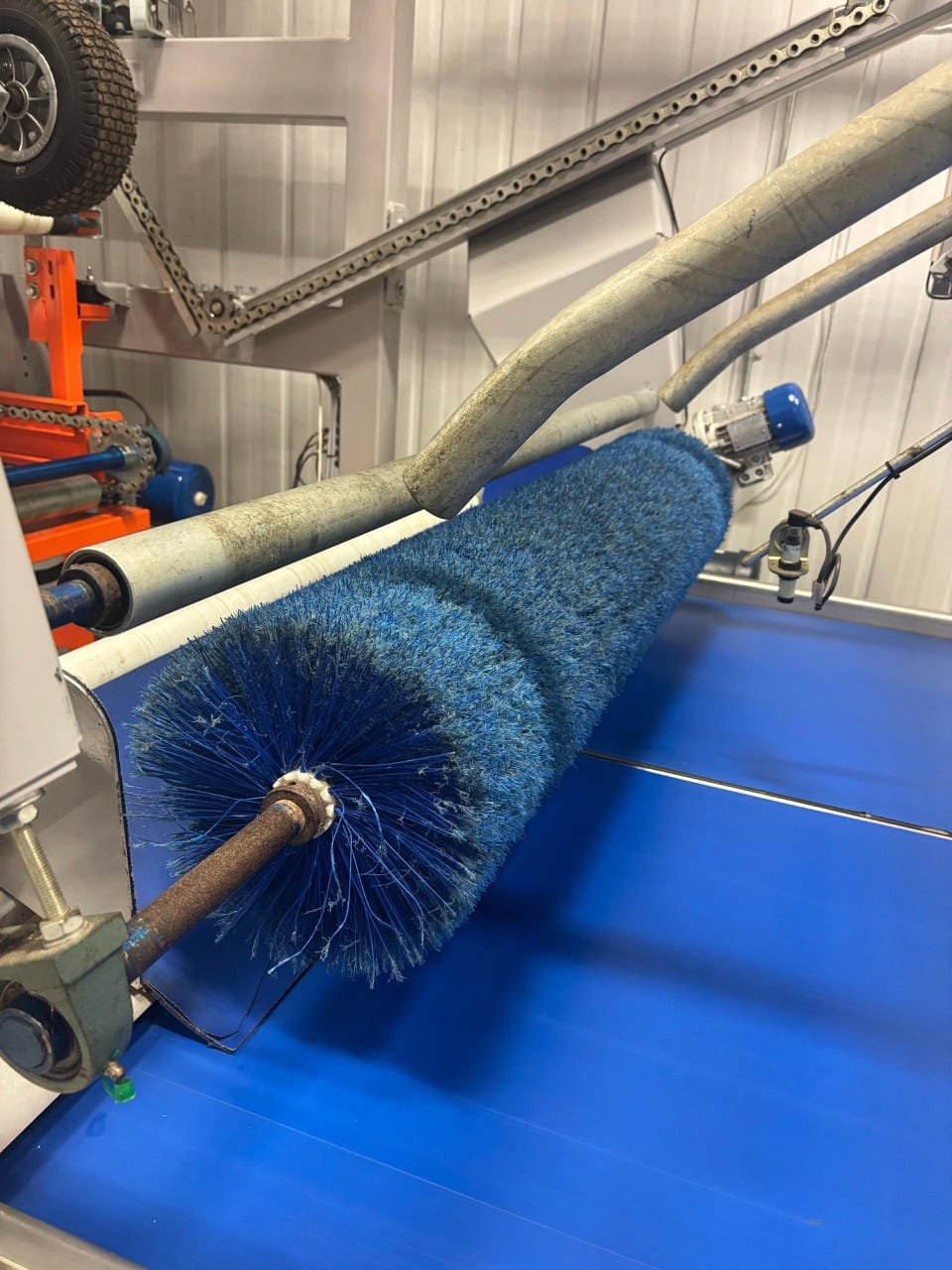

– Cup washing system (with motorized brush, piping, sprayers, air nozzles for drying)
Electrical panel for Elisam Equipment: electrical panel for above equipment to include PLC, inverters motor wiring, wire duct for cabling, photo-eyes, etc.
(16) DP Series Rotary Tables, 48″ Diameter, padded, providing gentle transition from belt to table

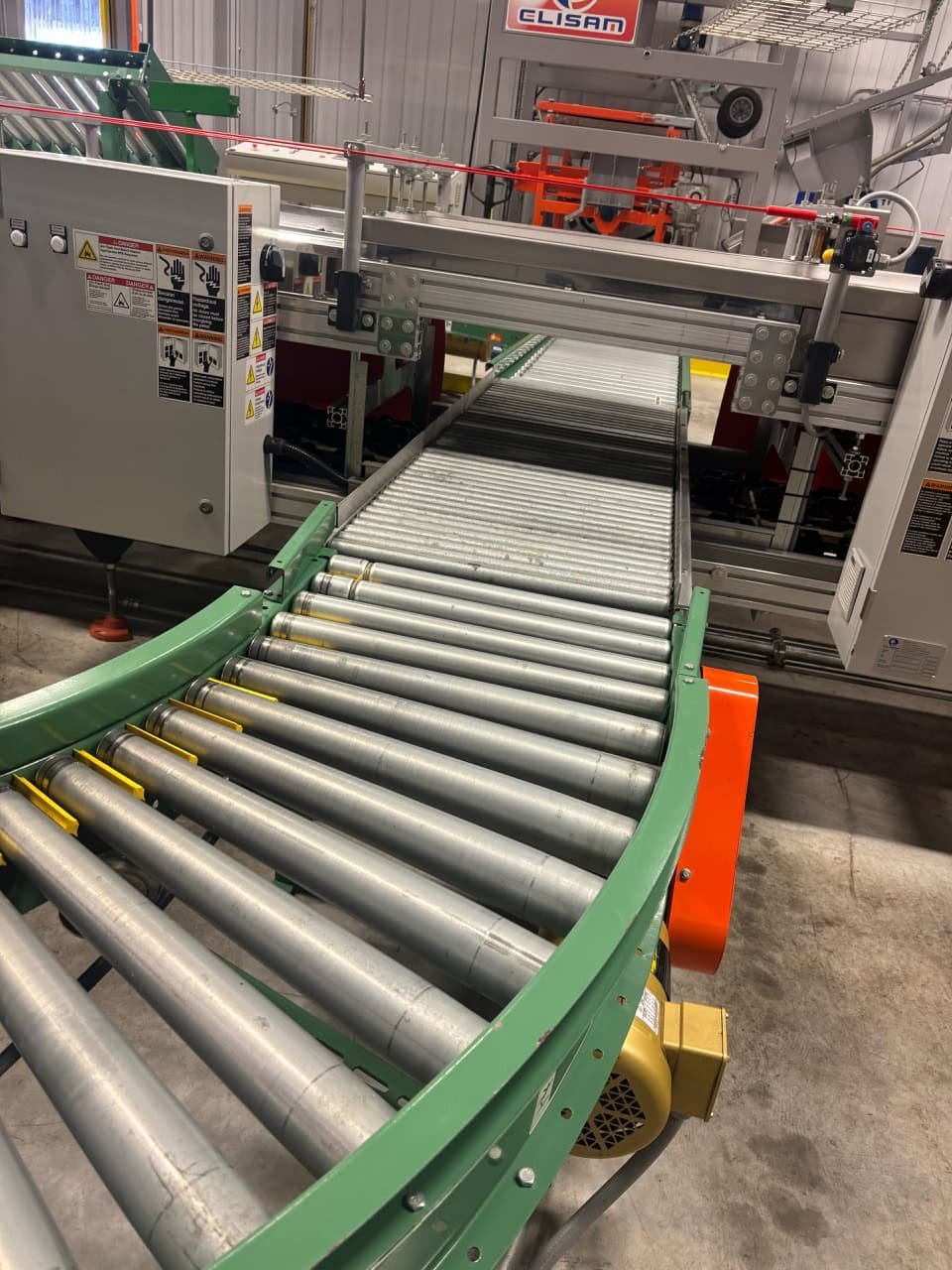

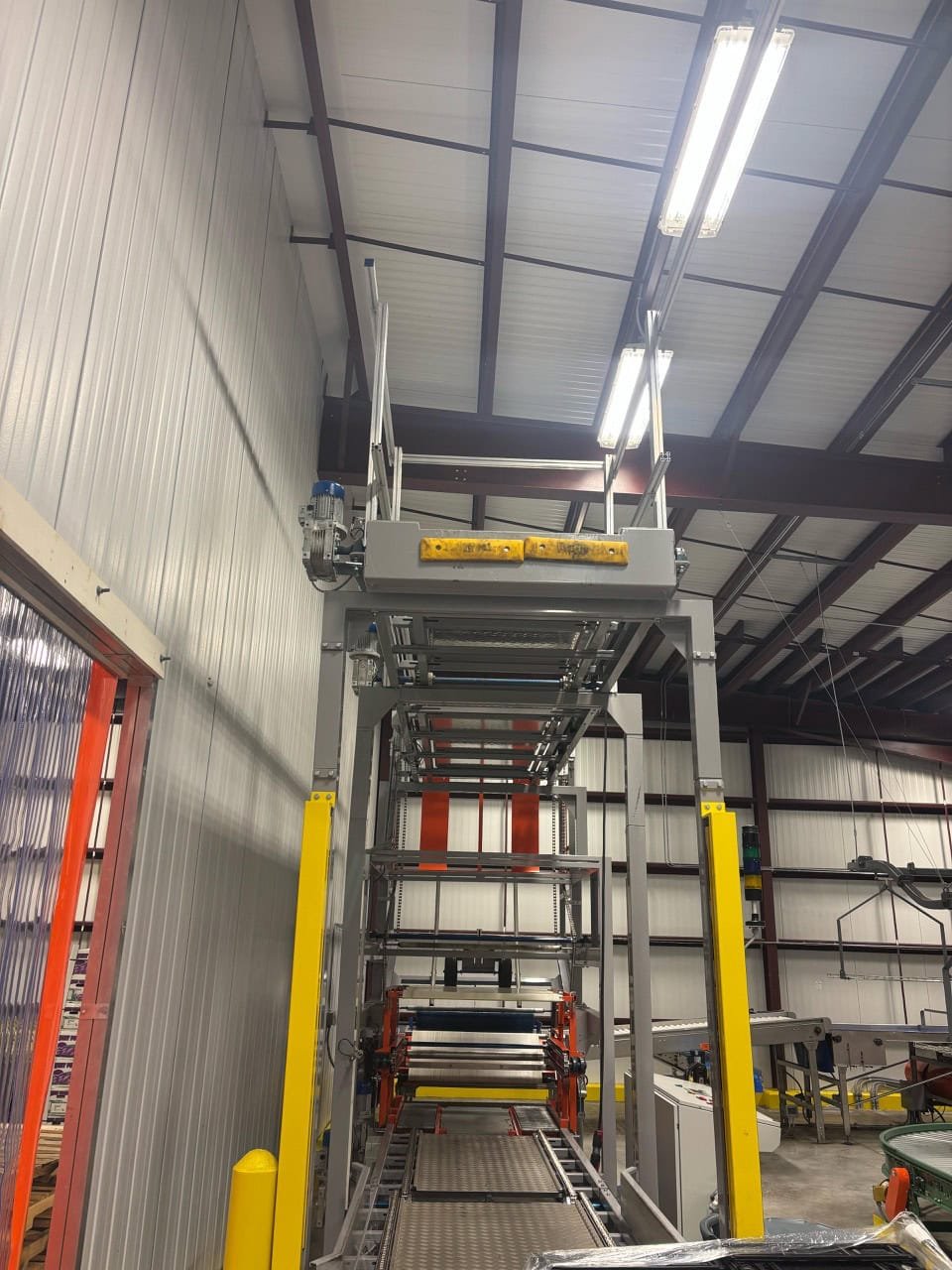

(4) Empty Carton conveyors
– Model WA/WS/WP gravity wheel conveyor, 18″ BF x 10′ L
– Model SM medium duty supports, 18″ BF (5)
Full Carton Conveyor:
– Model 196LRC, 90 degree curve, 19″ BF (4)
– Model 796CALR, straight section, 19″ BF x 40′ L (1)
– Model 796CALR, straight section, 19″ BF x 8′ 6″ L (1)
– Model 796CALR, straight section, 19″ BF x 41′ L (1)
– Model 796CALR, Straight section, 19″ BF x 13′ L (1)
– Model 796CALR, Straight section, 19″ BF x 20′ L (1)
– Model sm medium duty supports, 19″ BF (16)

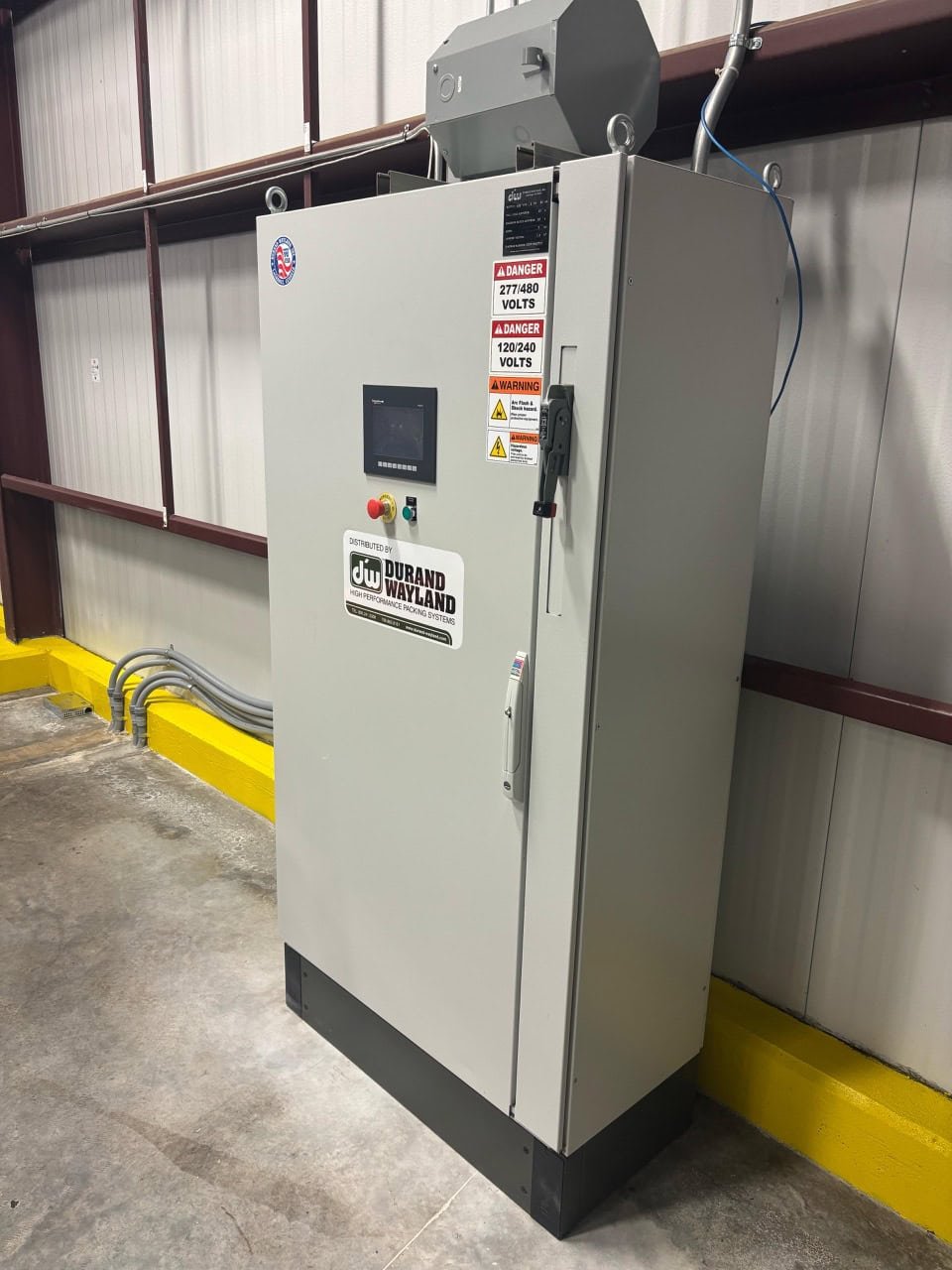

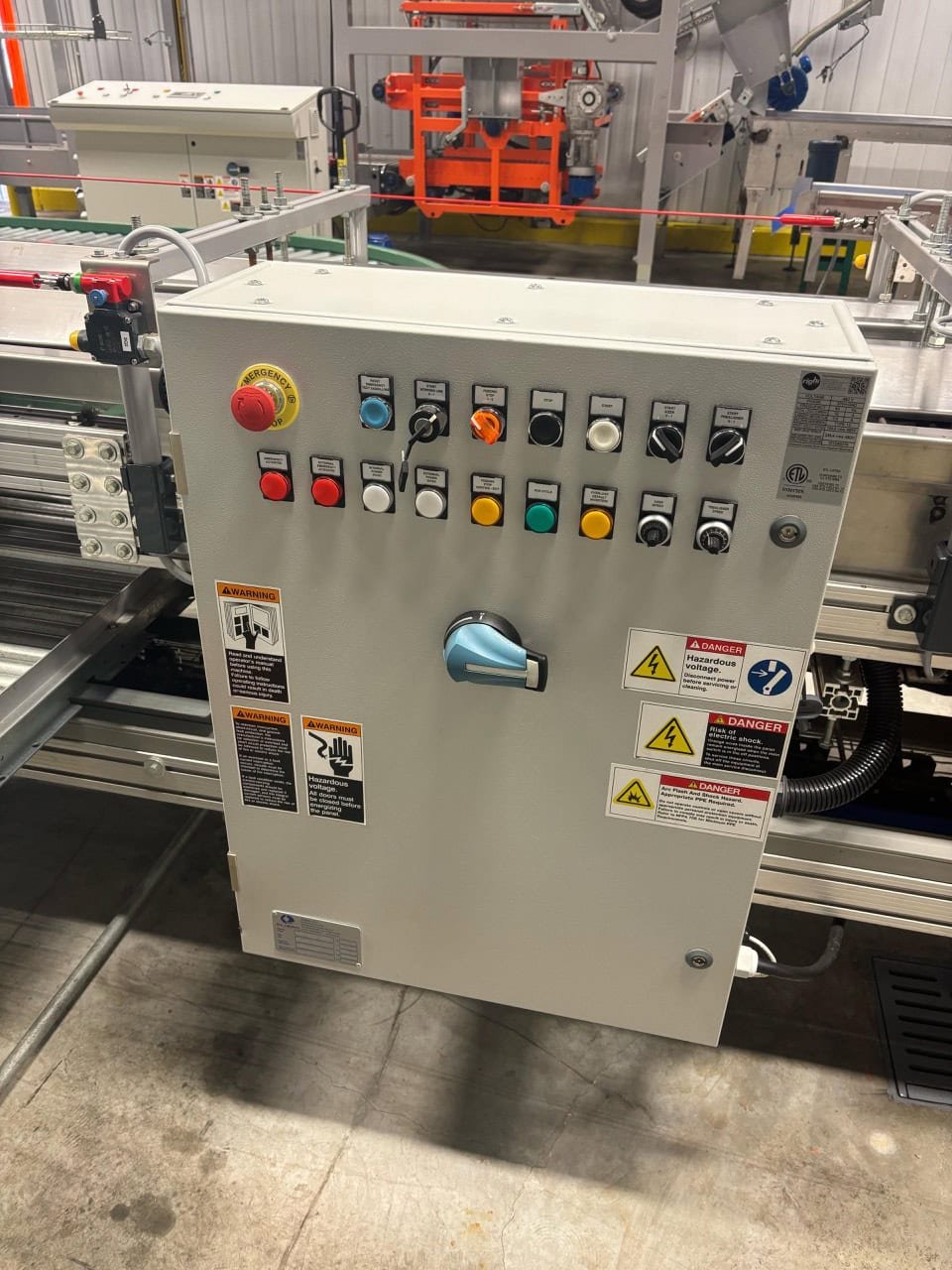

Motor Control Panel MCP01-UL Approved, Main motor controls panel, including:
– Enclosure with locking hardware and air conditioner (as required)
– Integral motor starters and circuit breakers
– Magnetic and thermal overloads for all 3-phase motors
– Programmable logic controllers (PLC)
– touch screen controls
– Variable speed controls, where noted
– Warning horns with timed delay
– Emergency stop buttons
– Lights in the control enclosure
– Complete documentation and electrical drawings
