Description

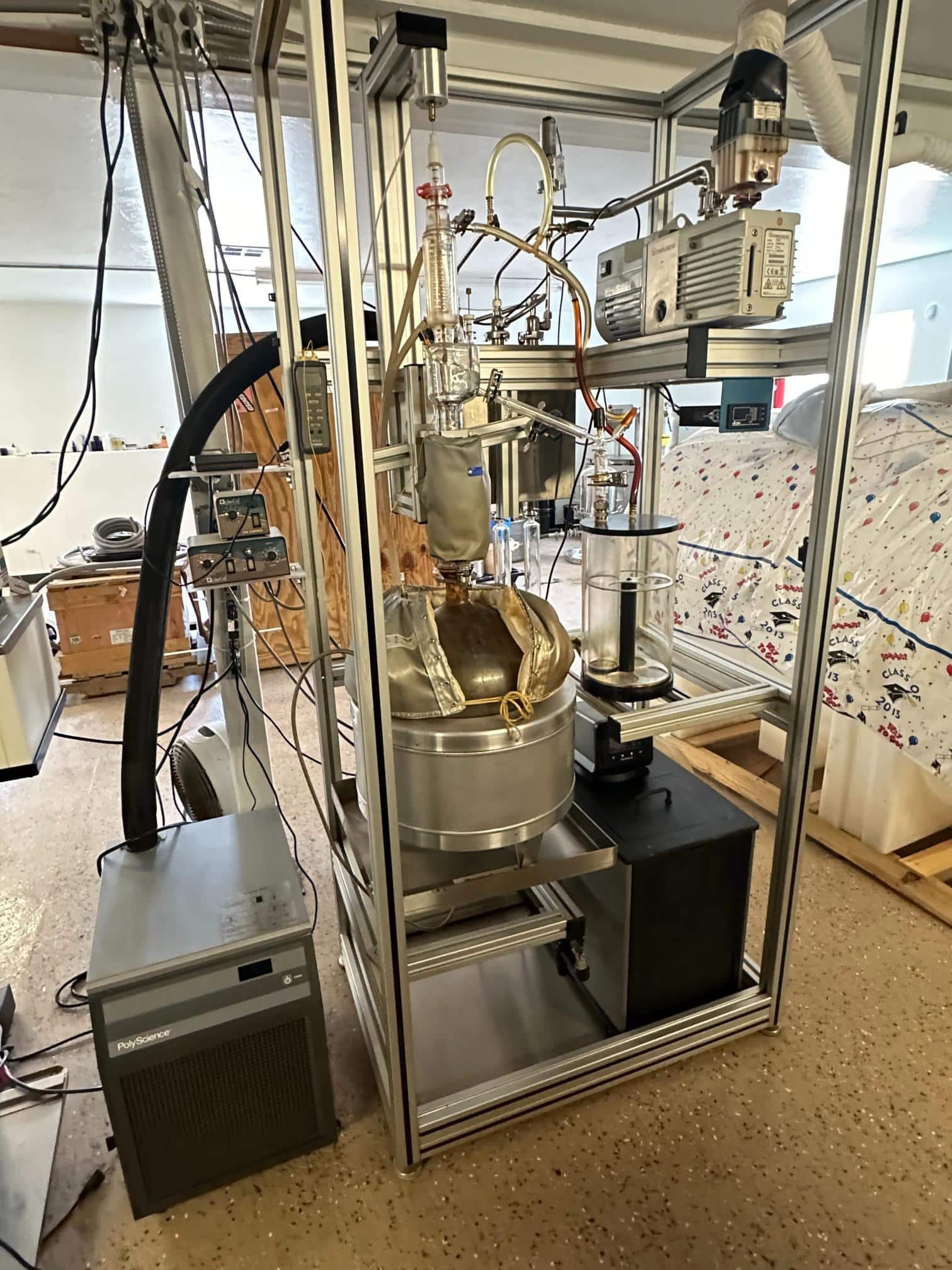

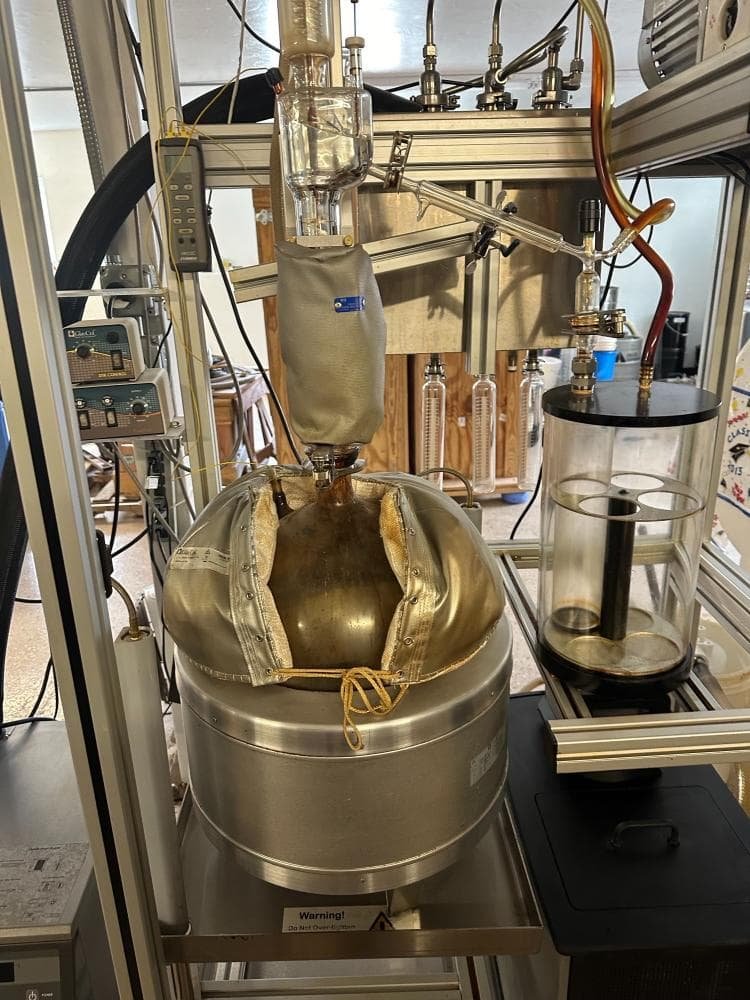

-Spinning Band Distillation Column with two, 22 liter glass boiling flask.
-22 liter heating mantle and controller.
-Six, 1000ml graduated receivers.
-Manual Carousel 4 place fraction collector.
-Pot and Vapor Temperature Display.

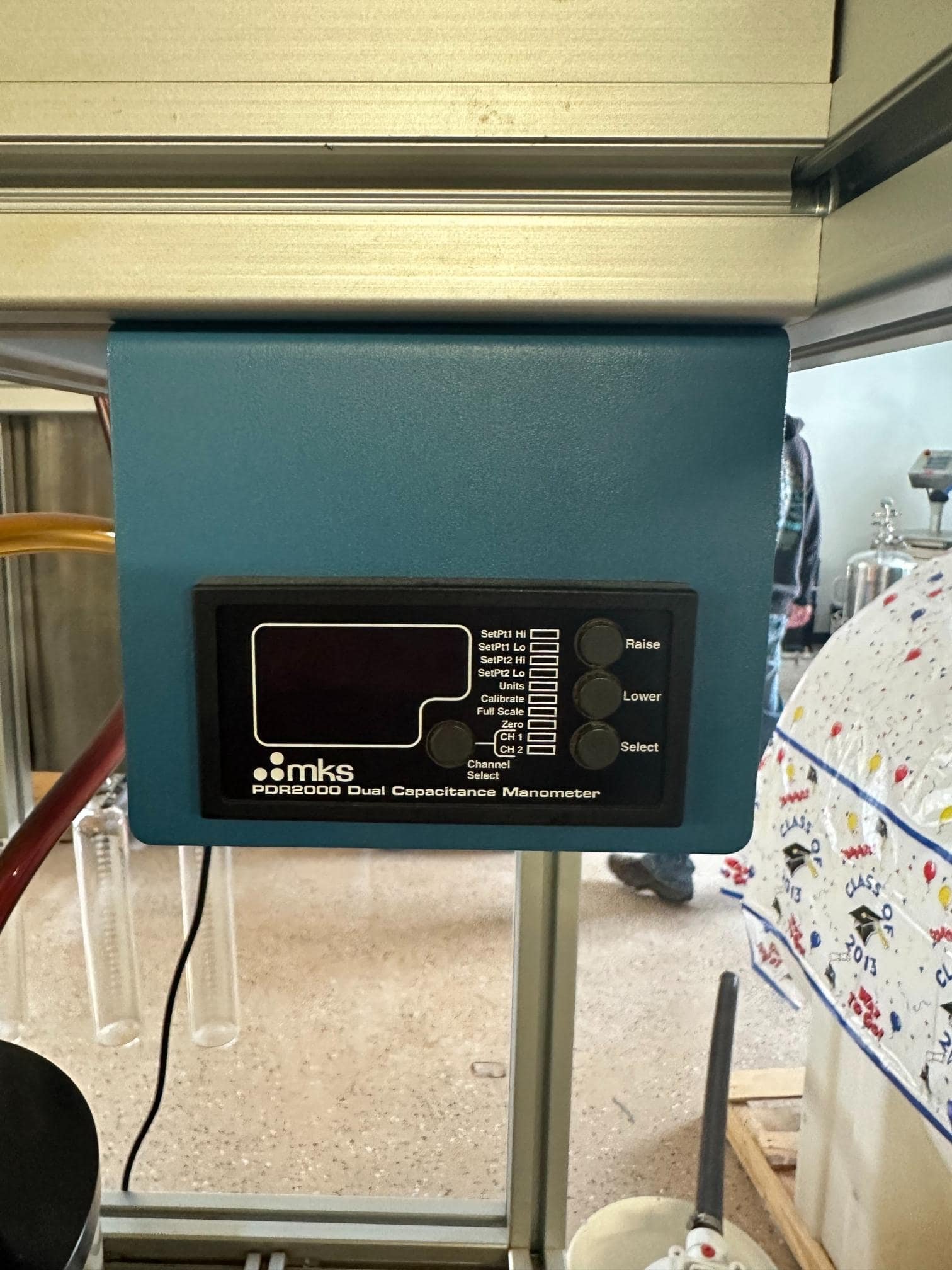

Vacuum System with Vacuum Display and vacuum pump.
-3 position stainless steel cold trap.

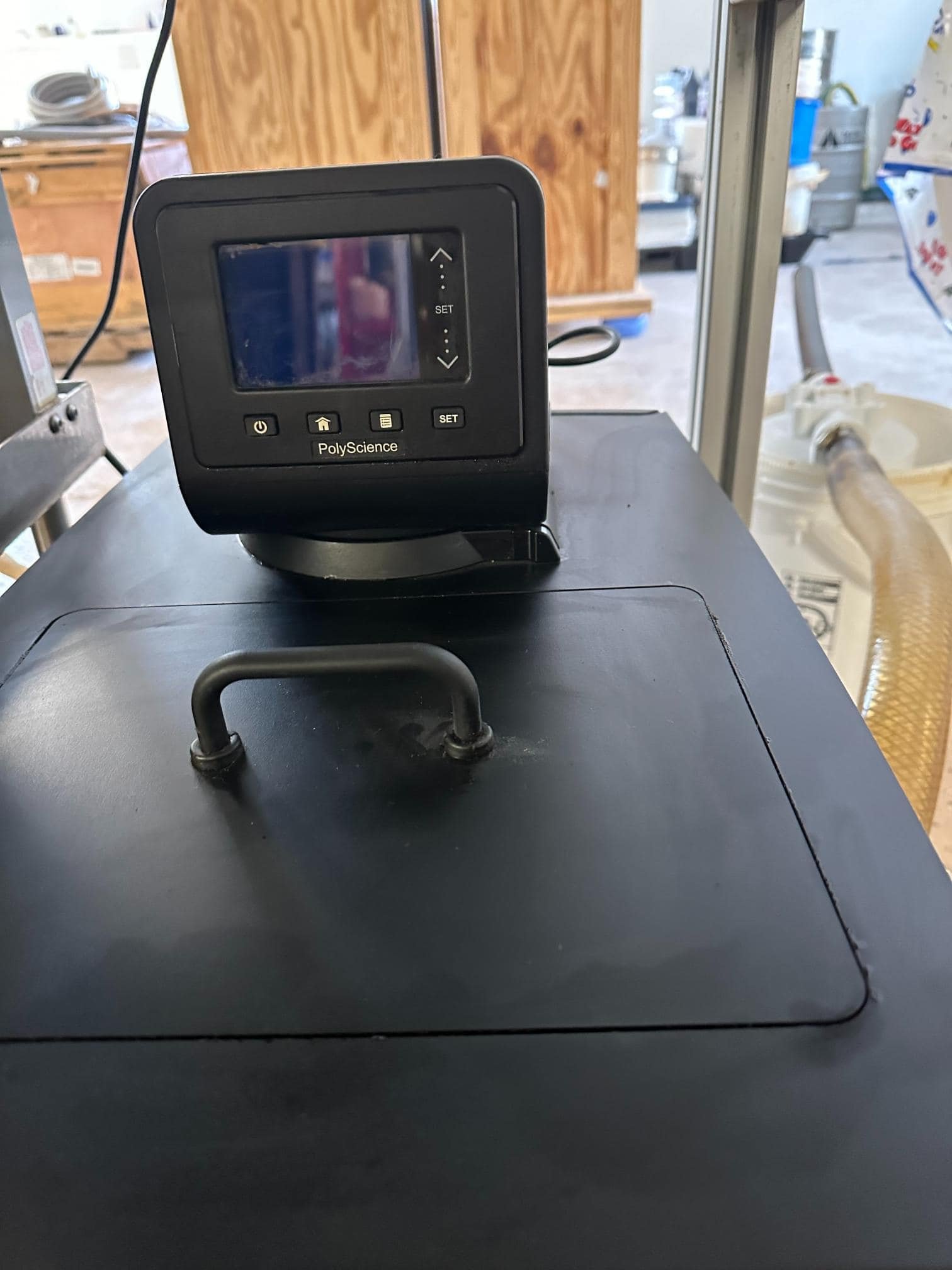

-Circulating Bath.
-Mounting Rack.
-Hydraulic Jack for raising and lowering the pot flask.
Specs:
-Column Diameter: 32 mm
-Column Material: Borosilicate Glass
-Packing Type: Teflon Spinning Band
-Theoretical Plates: 12 @ atmospheric pressure
-Vapor Temperature Probe: PRT temperature probe for measuring vapor temperature.
-Column Vacuum Jacket: Integral glass column and reflux divider totally enclosed in a highly reflective vacuum jacket having a permanent vacuum of less than 0.1 mPa.
-Distillation Rate: 1 liter per hour @ a 0:1 Reflux Ratio.
-Insulating Column Jacket Provides extra thermal insulation
Electrical:
115VAC, 40A, 5 receptacles
Mounting Rack Dimensions 26” D x 48” W x 80” H
Weight: 250 lbs
