Description
Overall Length: 249″
Overall Width: 128″
Overall Height: 84″
Shear Bar: No
Bale Size W 29″, H 38″x Variable
Floor to Top of Chute: 84″
Machine Weight: 16,000lbs
Chute: ID 27″x 32″ 27″x 32″
Inserter L/R: Left Open end to Center of Chute: 119″
MOTOR SPECS
HP: 25 HP Amps: 63.4-58.8/29.4
Frame: 284TC
Volts: 208-230/460
RPM: 1775
Phase: 3
HYDRAULICS
Main Cylinder OD: 6″
Rod Size: 3.5″
Tension Cylinder OD: 6″x 4
Tension Rod OD: 2.5″x4
Oil Cooler: Yes

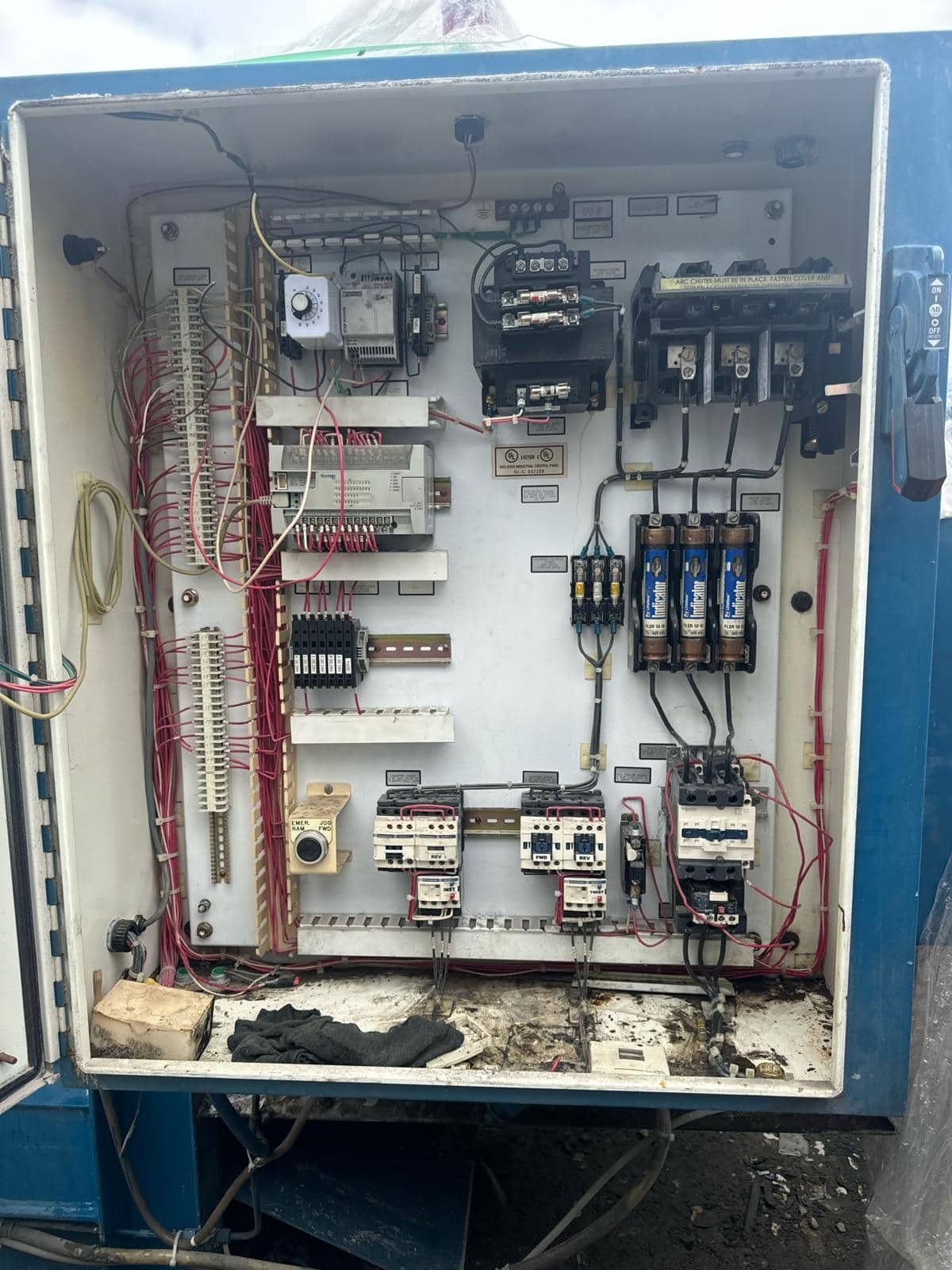

PLC Make: Allen-Bradley
Model: MicroLogix 1200
