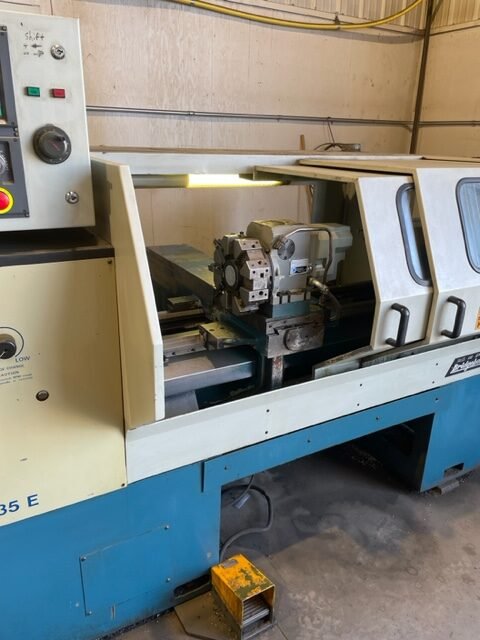

Description
Distance between centers: 40″
Swing over bed: 20.25″
Swing over cross slide: 10″
Cross slide travel w/tool in turret: 5.5″
Tool section: 0.75″ x 0.75″
Bed width: 13 3/8″
Bed height: 12 5/8″
Spindle nose: ASA A2-6″
Hole diameter through the spindle: 2 9/16″
Range of spindle speeds: 18-3,500 RPM
Spindle drive: 10 HP
Rapid traverse X axis: 240 in/min
Rapid traverse Z axis: 480 in/min
Tailstock quill travel: 4 5/8″
Quill diameter: 2 1/4″
Quill taper hole: 4 MT
Floor space: 8′ x 5′
Weight: 5,700 lbs
EQUIPPED WITH:

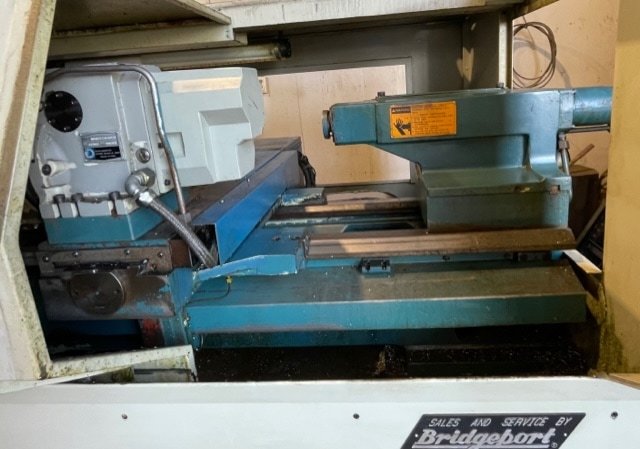

Programmable Tailstock

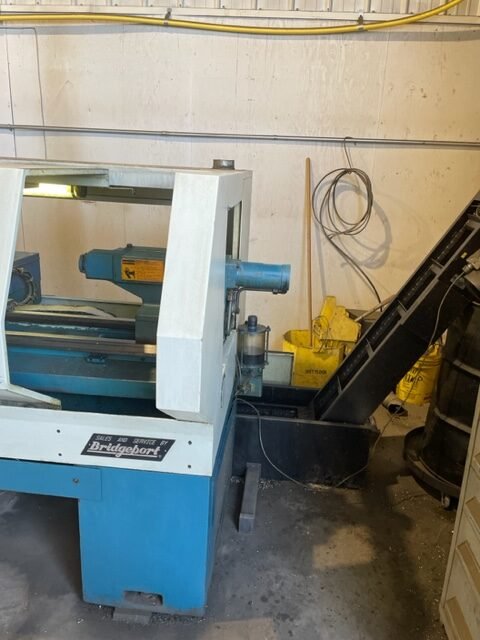

Chip Conveyor

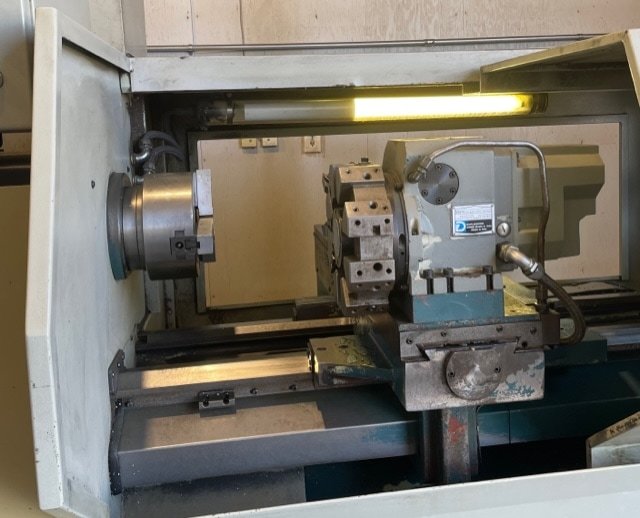

8 Station Tool Turret
Full Enclosure
Chip Pan

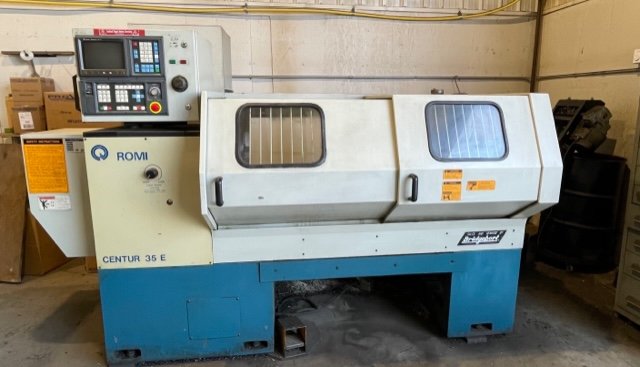

Fanuc O-TC Control

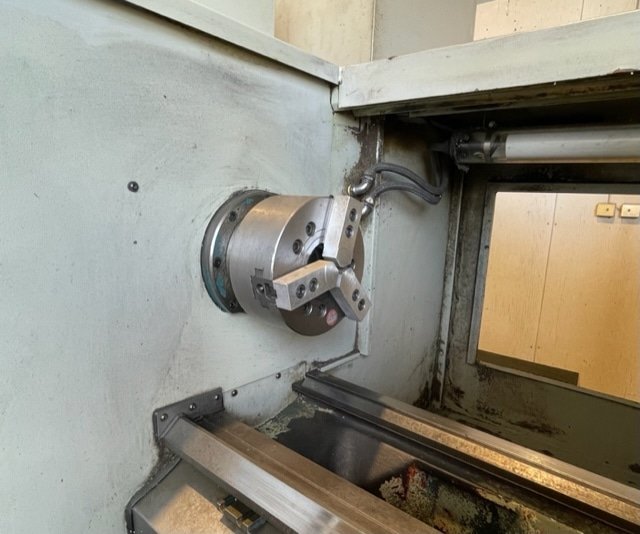

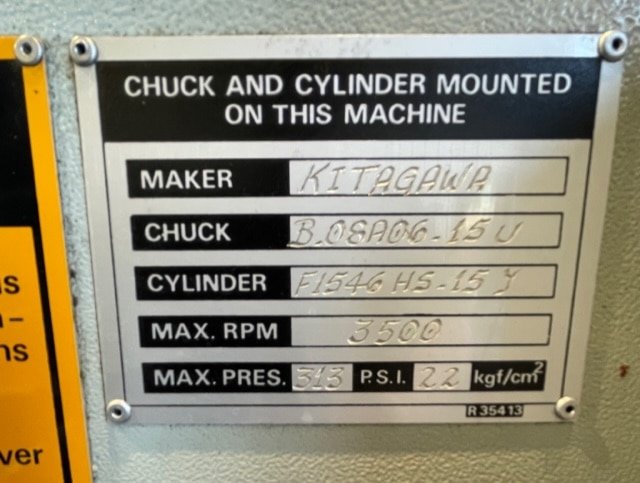

Kitagawa chuck B-08A0615U and hydraulic cylinder F1546HS-15Y

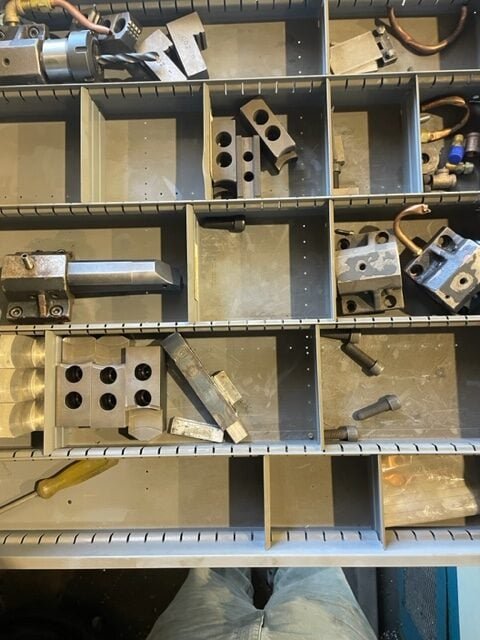

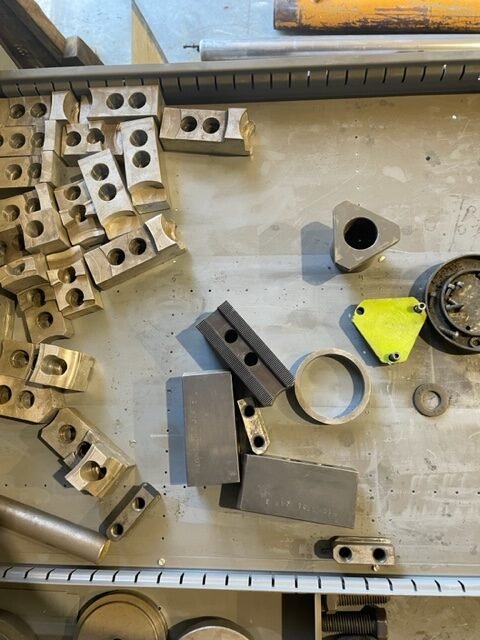

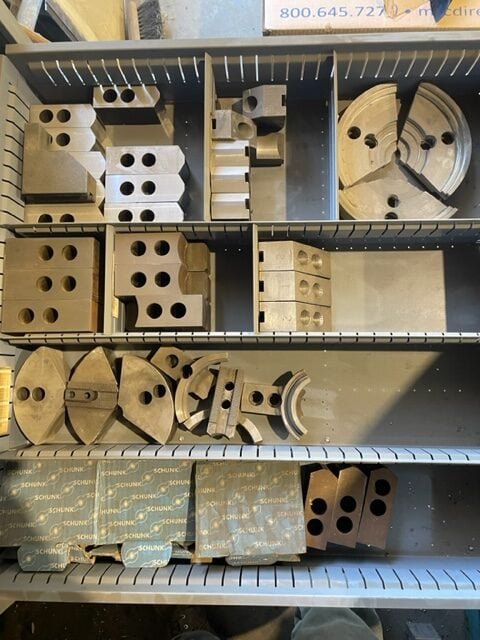

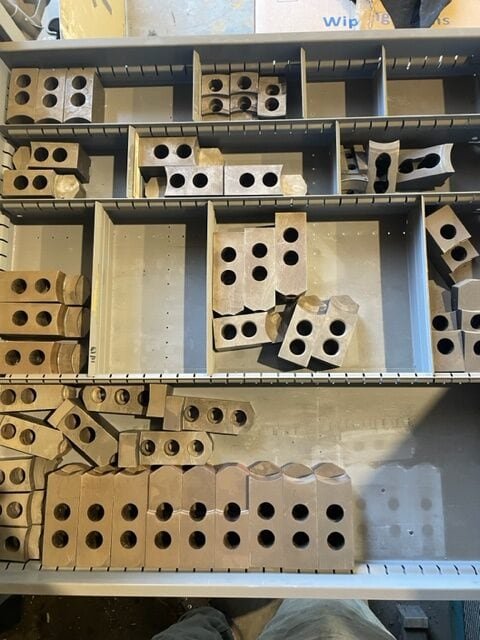

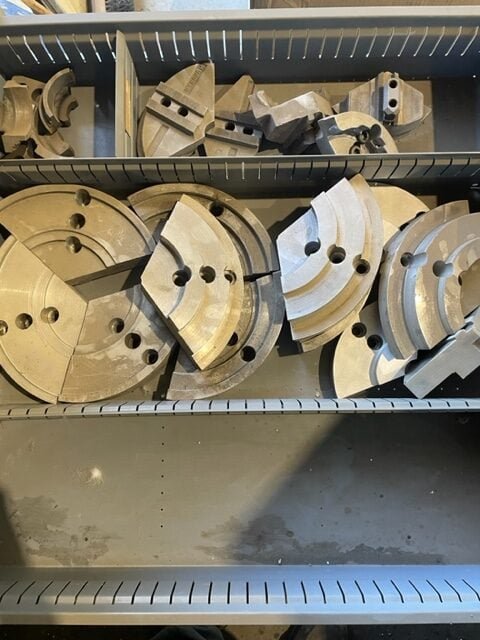

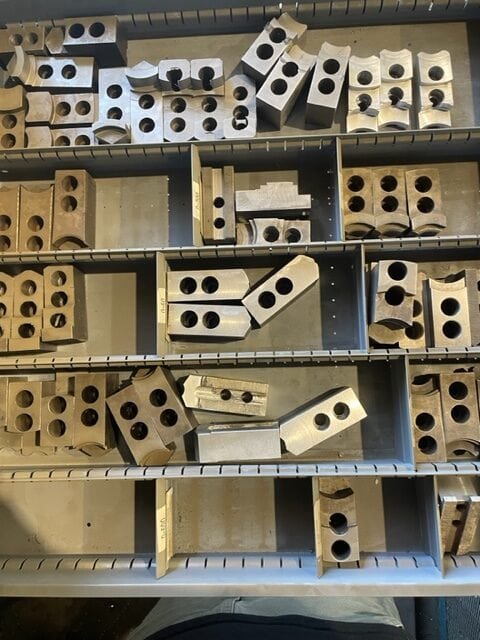

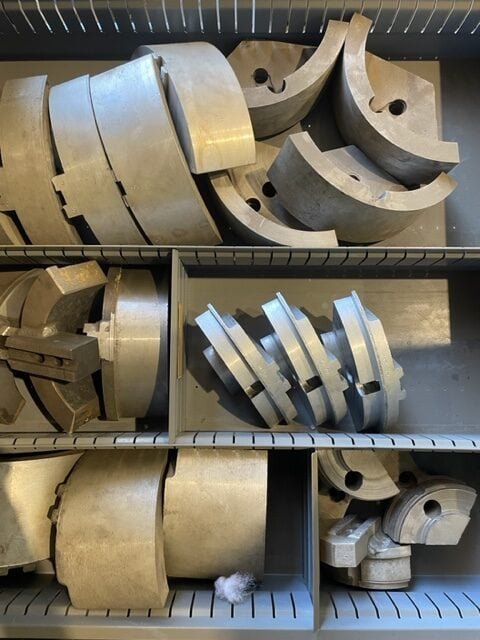

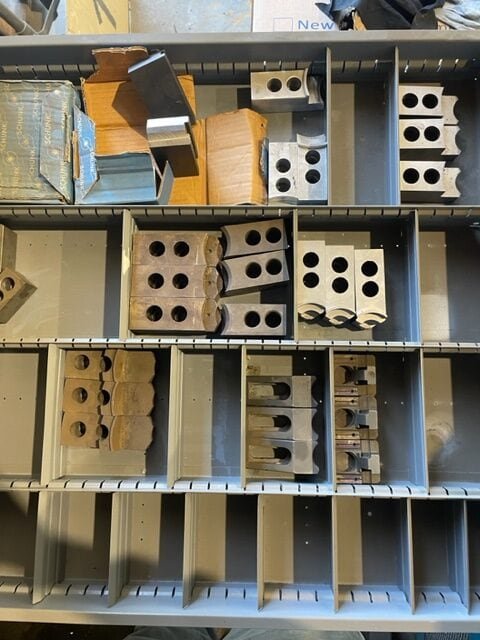

Ton of extra tooling
