Machine Overview

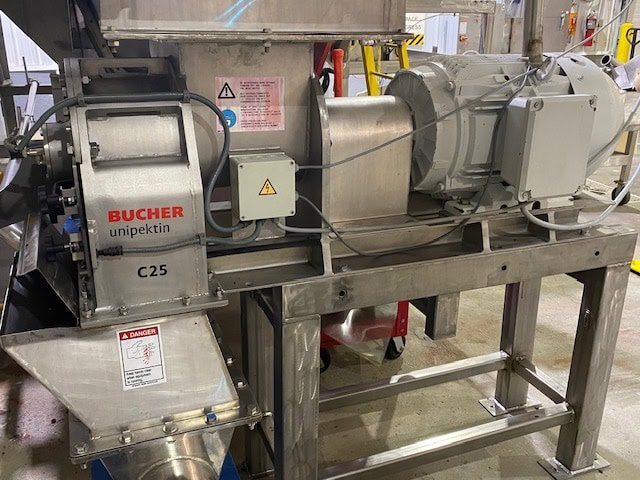

The Bucher Unipektin C25 is an industrial stainless rotary mill used to reduce fruit, root vegetable, and fibrous product prior to pressing or extraction. This unit features a vertical auger feed design with cutting drum assembly, toothed stator segments, and a robust base-mounted motor with inline gearbox.
The system includes a removable stainless discharge chute with threaded tie-down lugs, polished auger feed inlet, and visible cutter blade housing with radial slot plates. Condition is excellent — no visible rust, gouging, or deformation. Feed zone, blade chamber, and discharge port are all intact, and the unit is fully staged for crate or integration.
Specifications & Features
Bucher Unipektin C25 rotary cutter
Product suitability: apples, pears, beets, carrots, tomato, stone fruit mash, citrus peel, etc.
Capacity range: 10 – 25 metric tons/hr (depending on feed type and screen)
Rotor diameter: 250 mm
Screen size: standard slotted disc, removable with wedge lock blade retainer

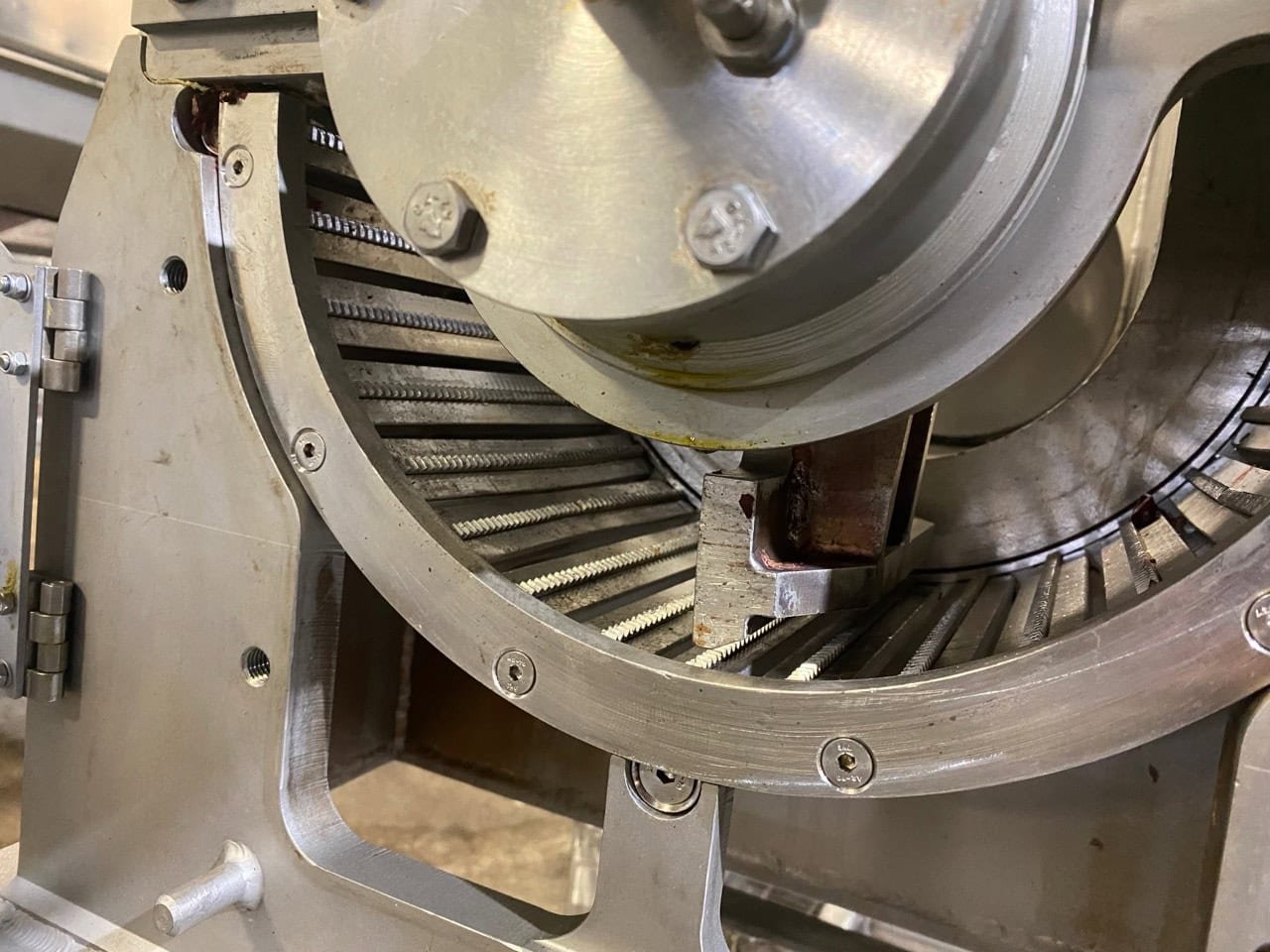

Cutting principle: rotating blade rotor against fixed serrated stator segment

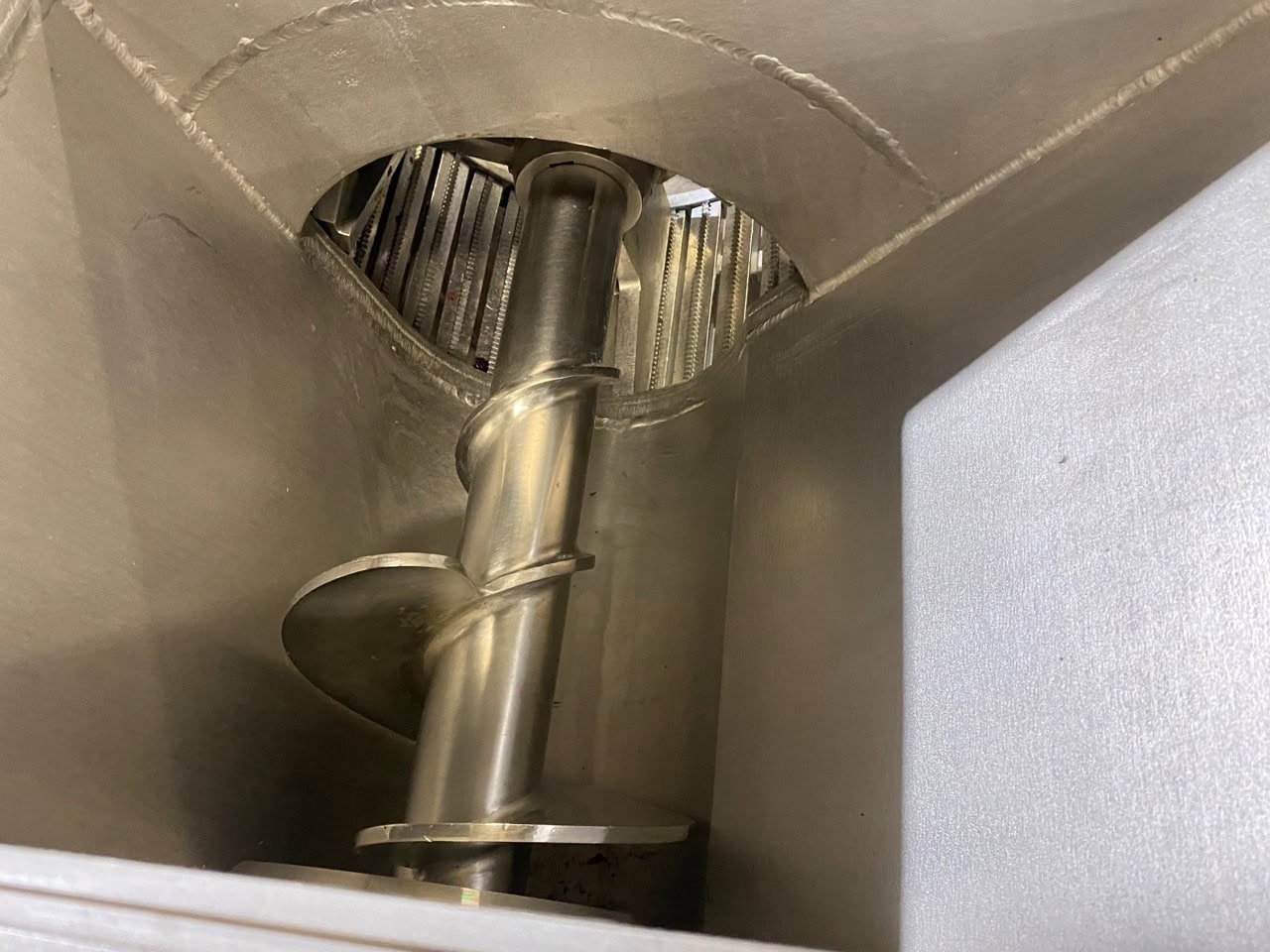

Auger-fed vertical inlet screw – stainless, dual-pitch spiral, full coverage
Product chamber: full weldment with TIG seams and flanged access
Chamber opens via hinged front cover for cutter access

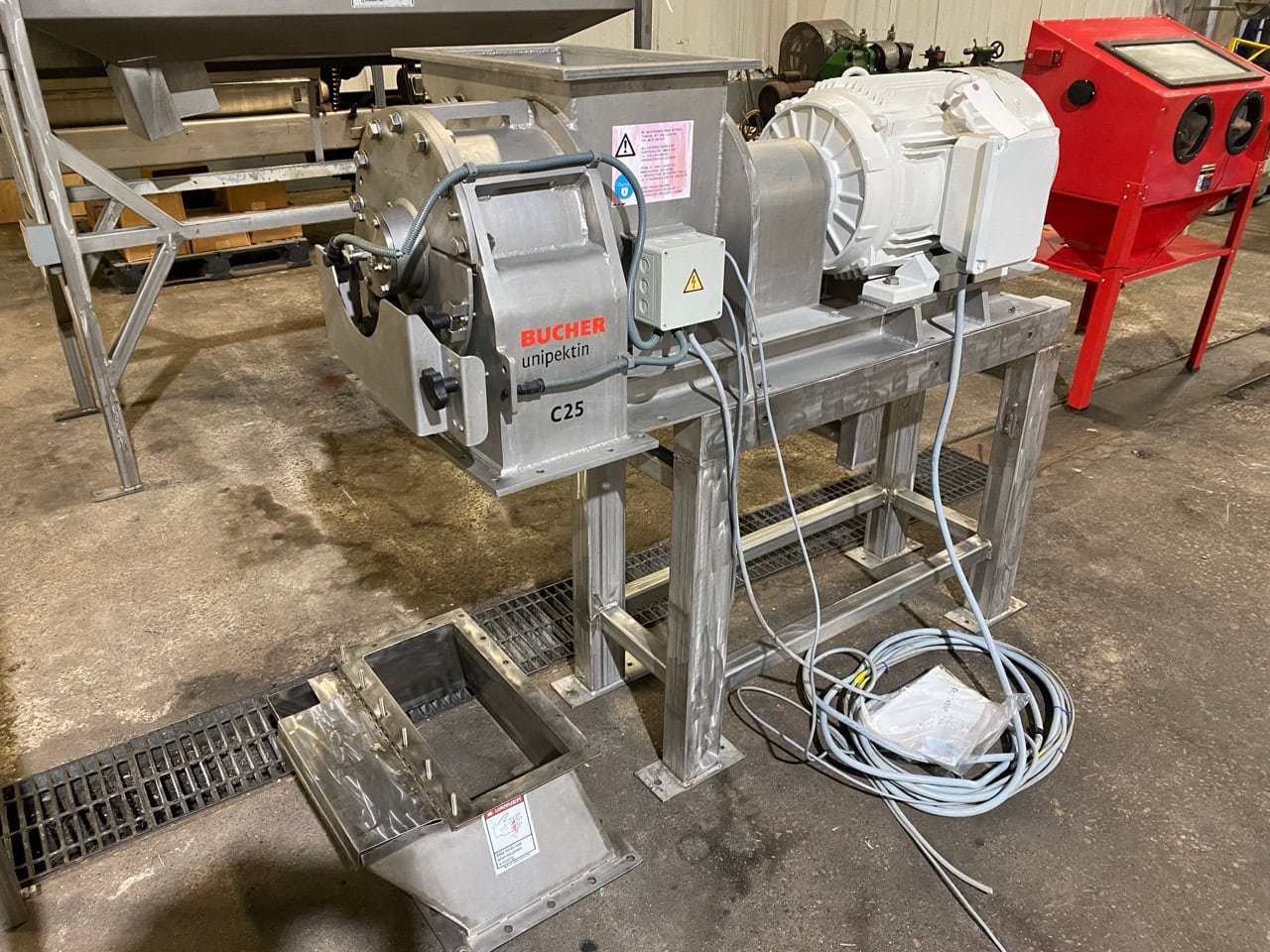

Discharge: removable chute with machined saddle and lift rings
Frame: heavy-duty stainless support legs with leveling pads

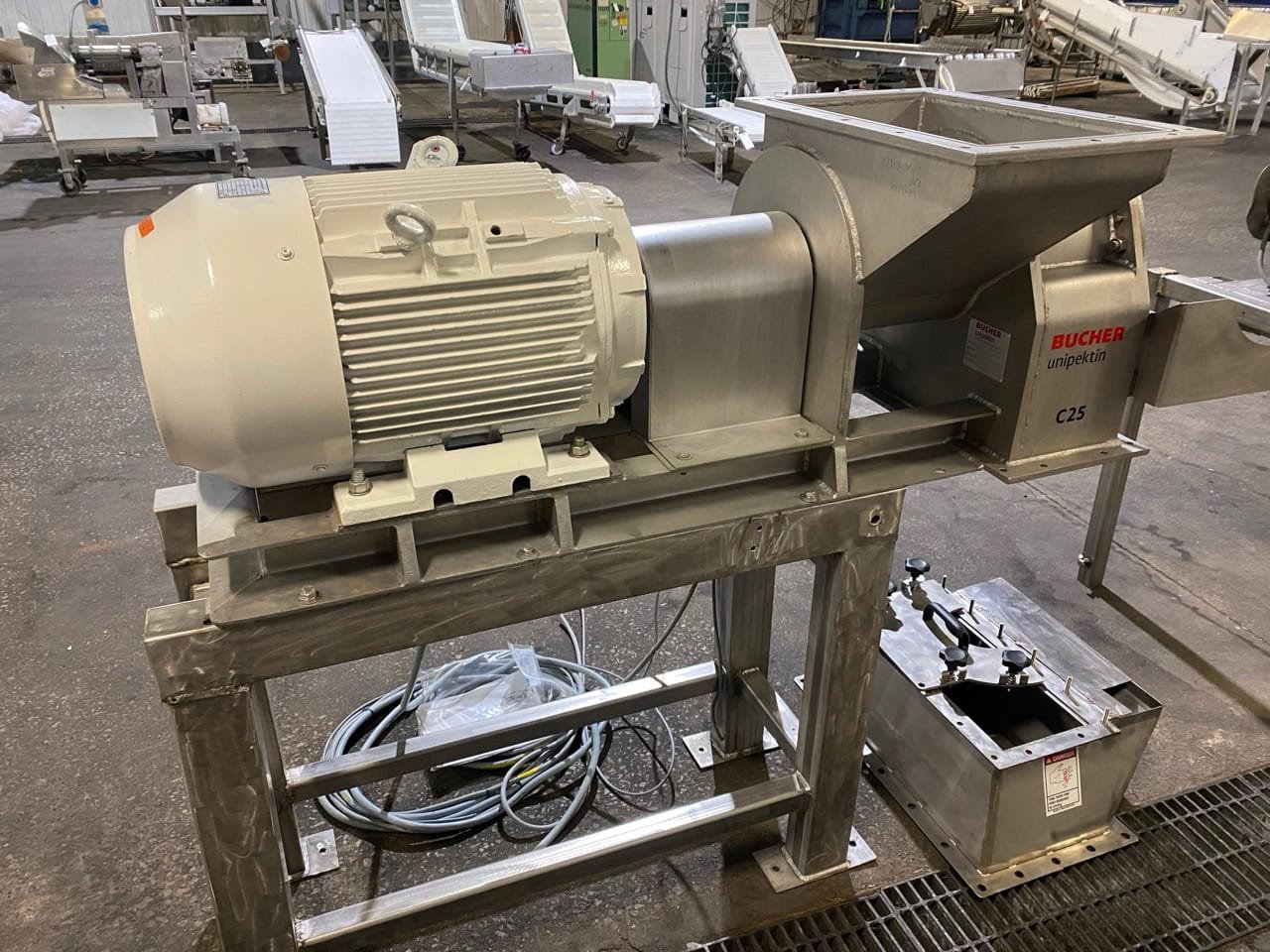

Motor: IEC flange-mounted 3-phase motor, 15–25 HP (est.), with right-angle gear reducer
Integrated cable bundle and control harness included
Designed for CIP/washdown with smooth welds, radius corners, and no pits
Removable bolt-on discharge collection port with guide tabs
