EQUIPMENT OVERVIEW

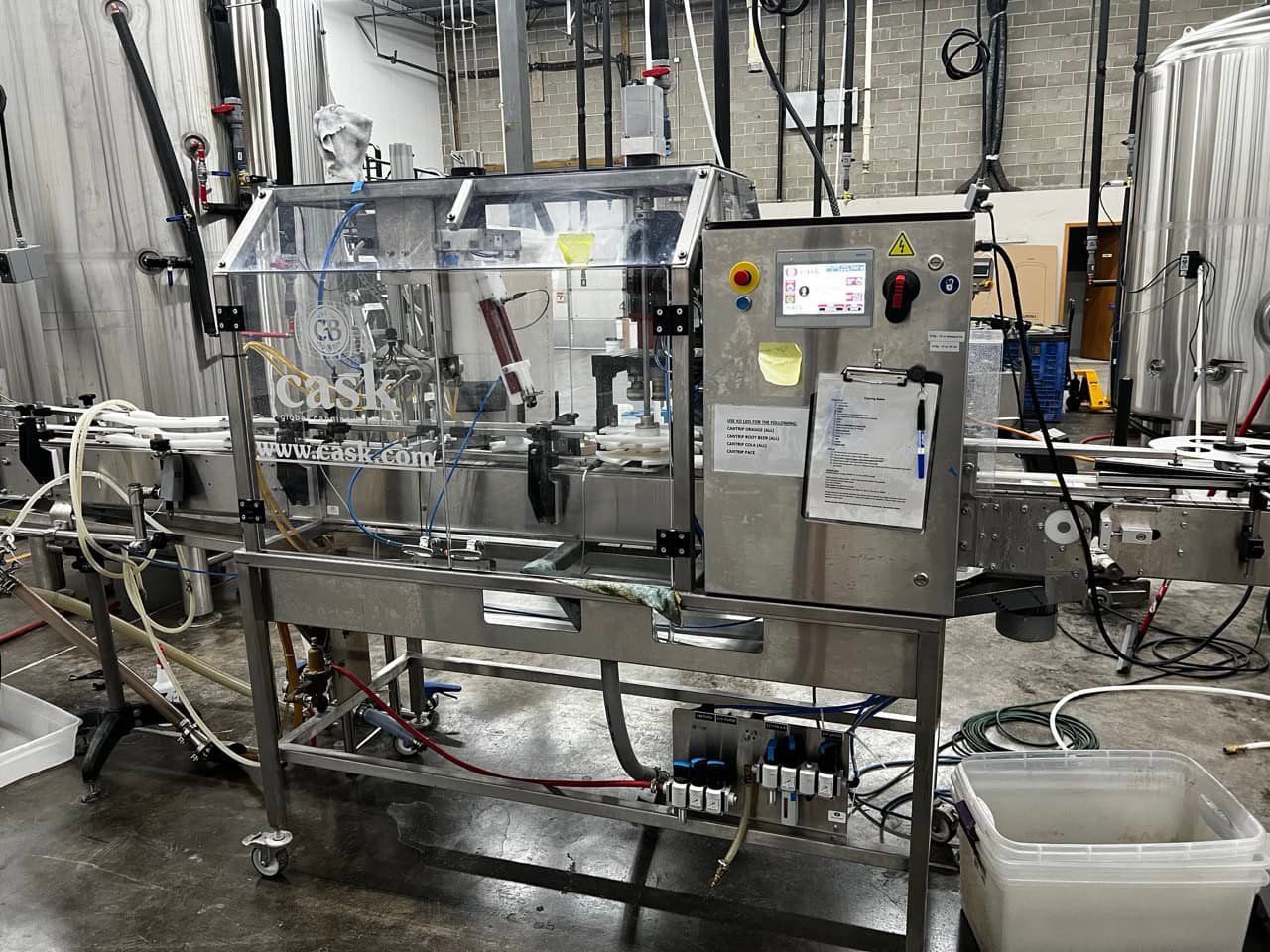

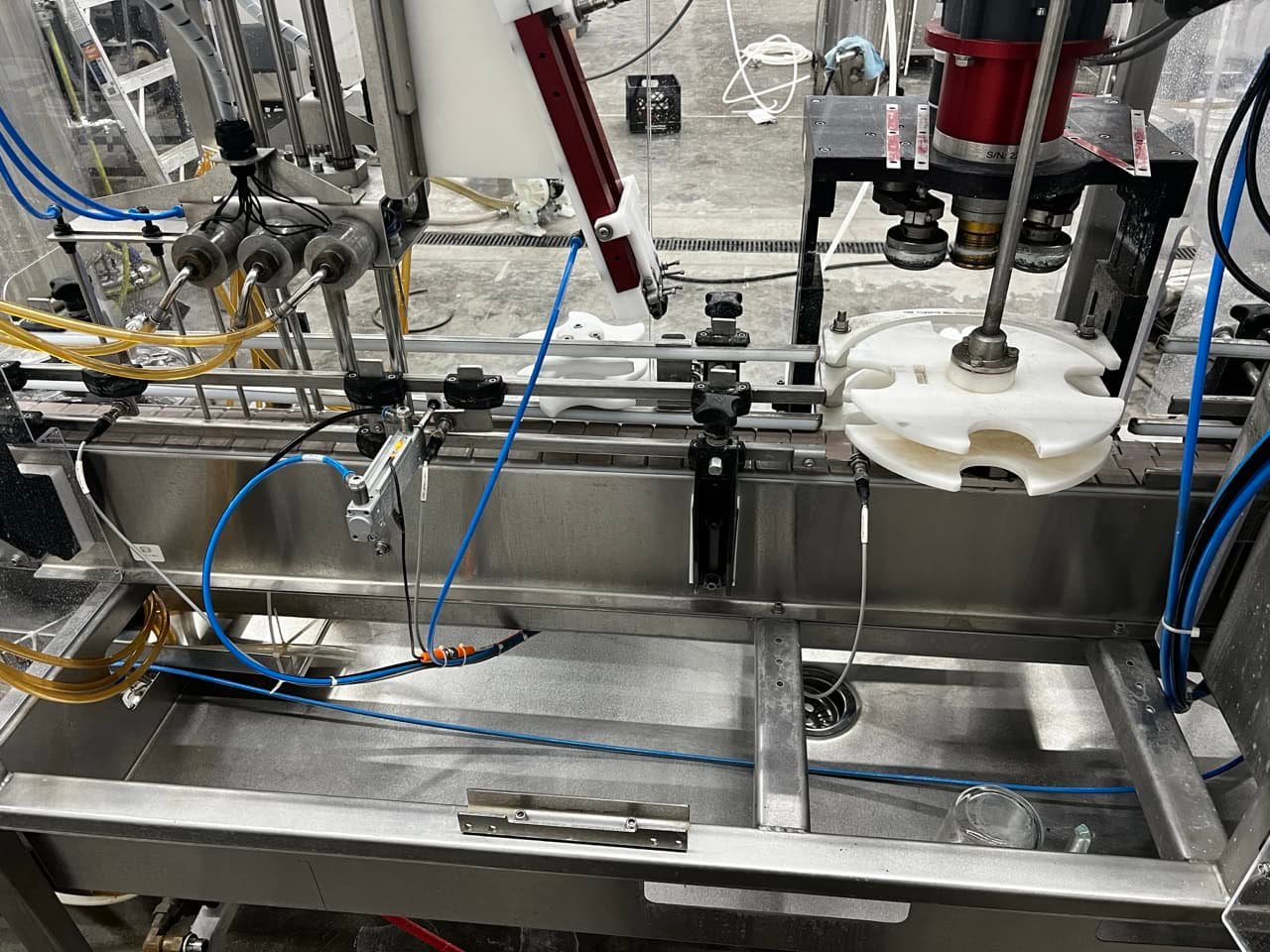

THE CASK MACS IS A COMPACT, HIGH-PERFORMANCE AUTOMATED CANNING SYSTEM DESIGNED FOR CRAFT BREWERIES, RTD PRODUCTS, OR SMALL-BATCH PILOT FACILITIES. IT COMBINES RINSE, FILL, LID DROP, AND SEAMING INTO A SINGLE, SPACE-EFFICIENT FRAME. THIS UNIT INCLUDES A FESTO TOUCHSCREEN INTERFACE, 3-NOZZLE FILL HEADS, A TURRET-STYLE SEAMER, AND A ROTARY ACCUMULATION TABLE FOR INFEED/OUTFEED HANDLING. THE SYSTEM IS ENGINEERED FOR CLEAN OPERATION AND RAPID CHANGEOVER IN HIGH-MIX, LOW-VOLUME ENVIRONMENTS.
KEY FEATURES & SPECIFICATIONS
-PRODUCTION SPEED: 15–20 CANS PER MINUTE

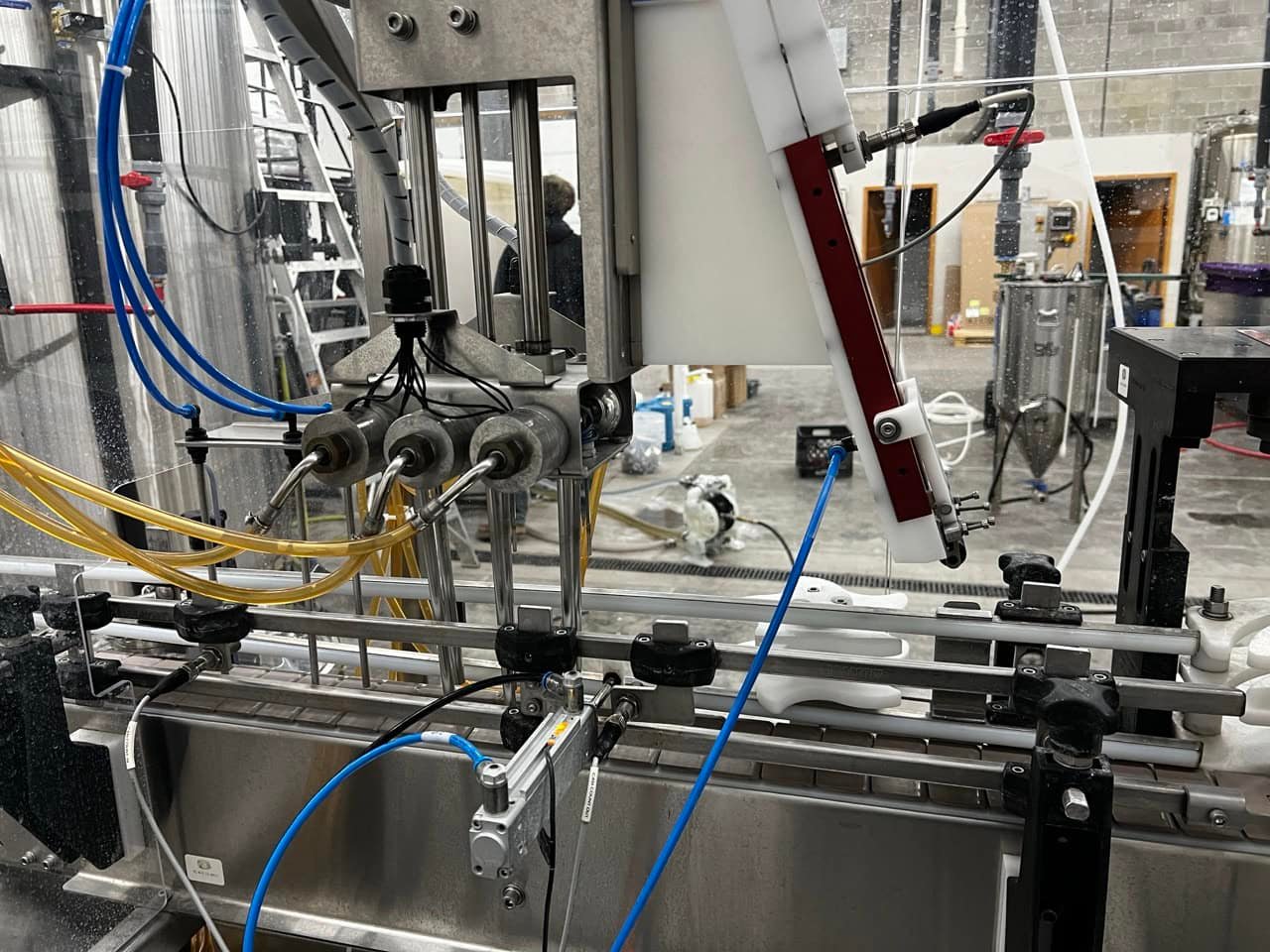

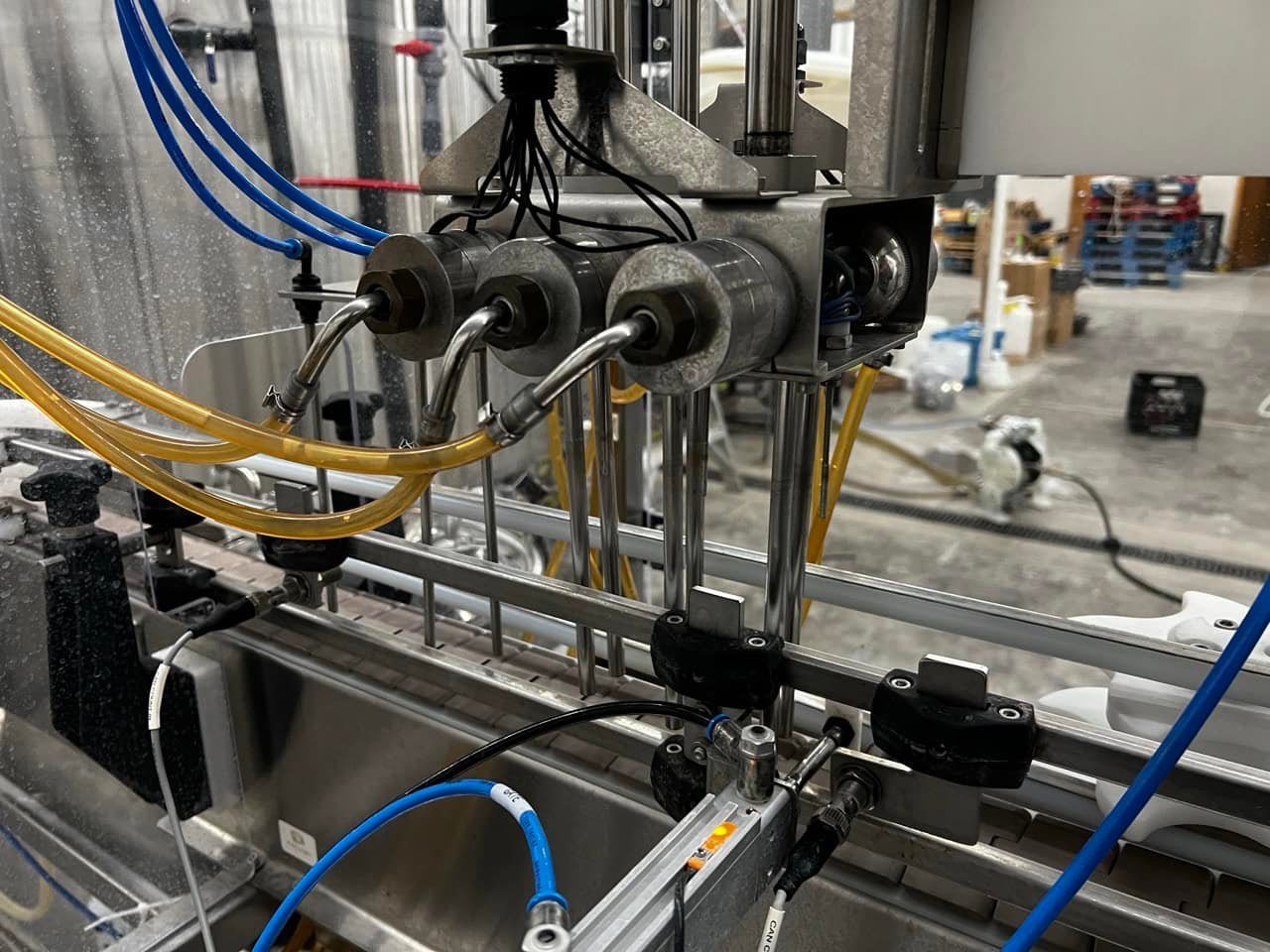

-FILL HEADS: 3-NOZZLE CONFIGURATION

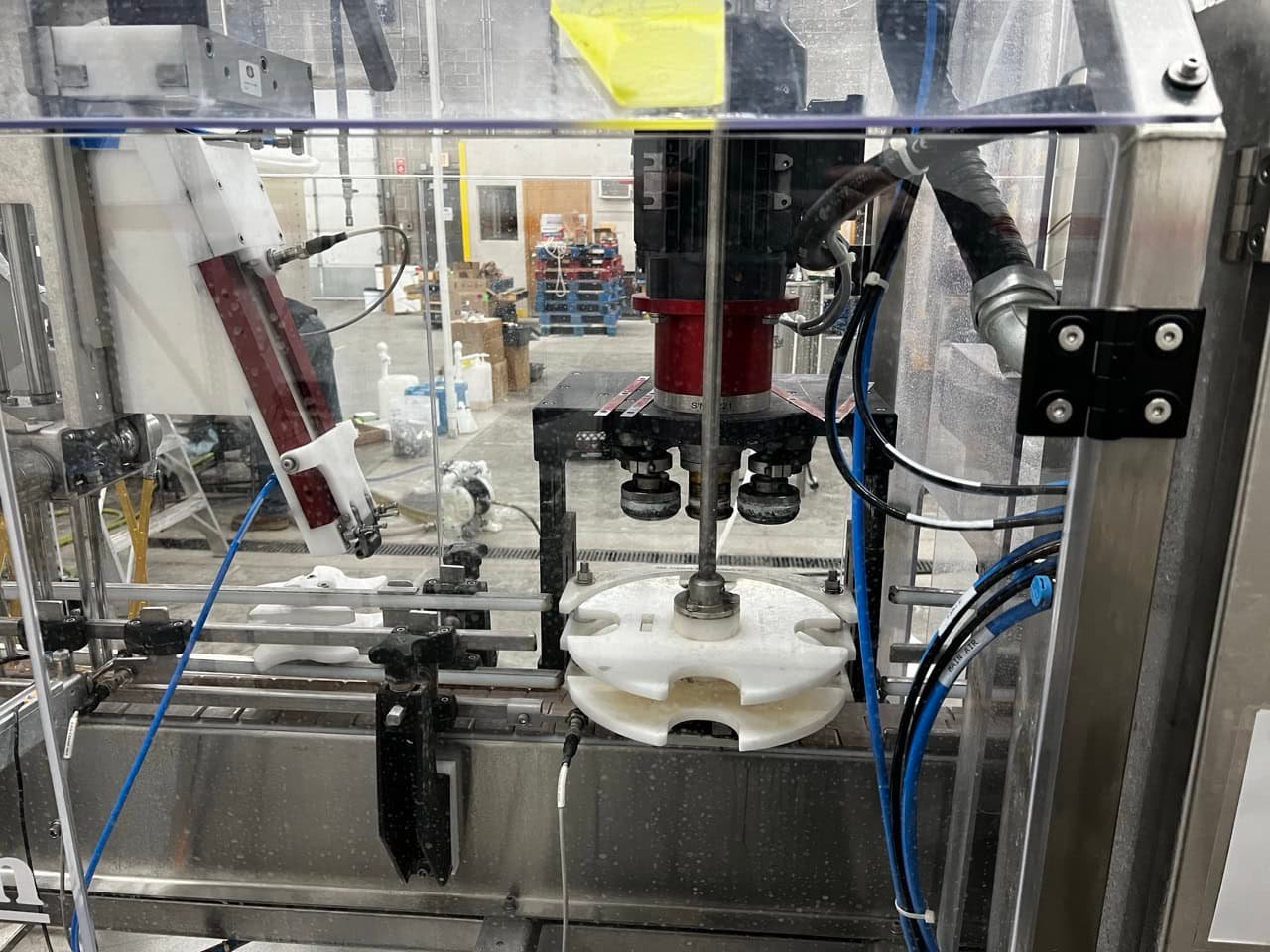

-SEAMING: INTEGRATED AUTOMATIC TURRET-STYLE

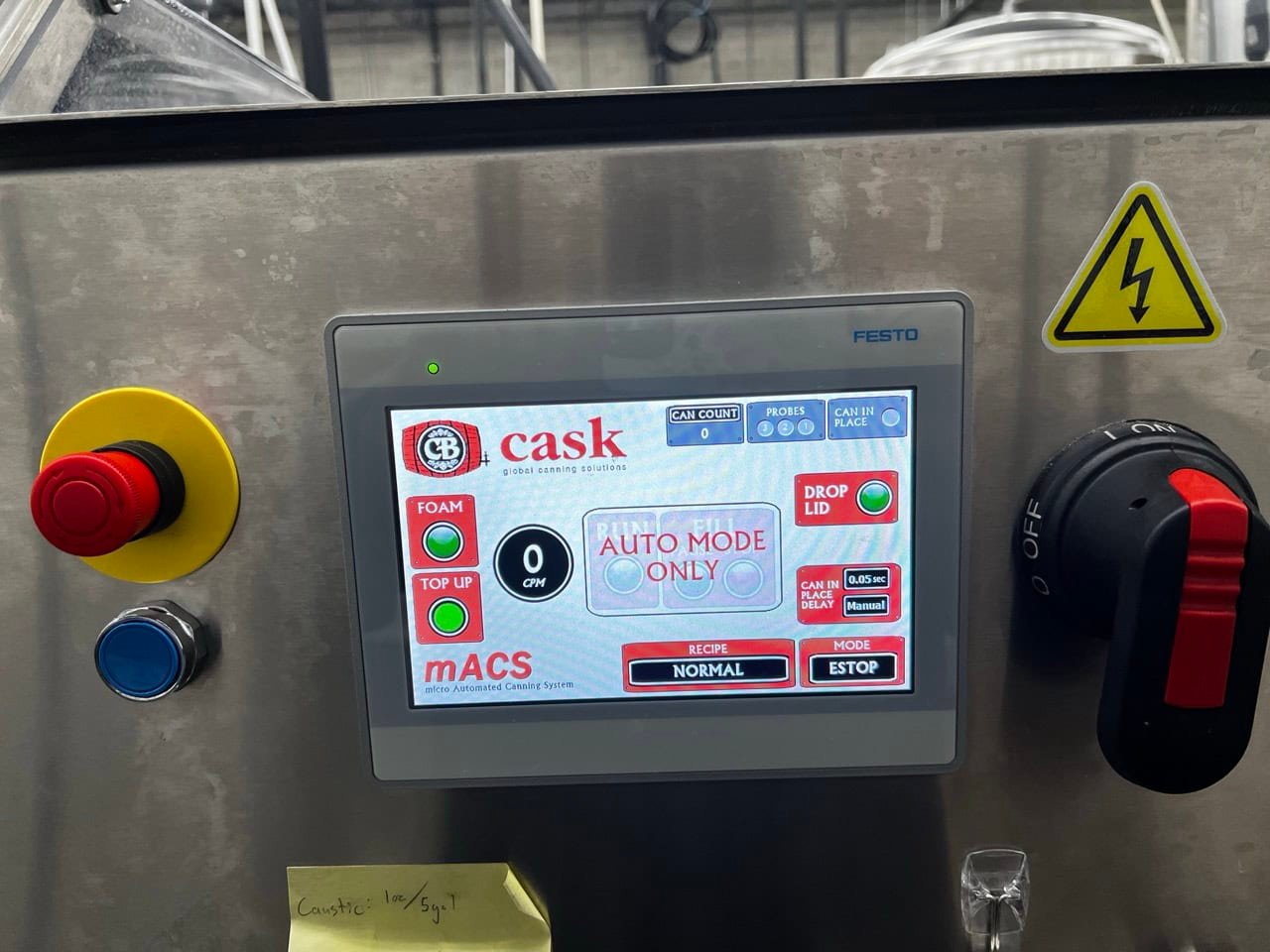

-TOUCHSCREEN CONTROLS: FESTO HMI WITH AUTO/ESTOP/FOAM CONTROL
-CAN SIZE COMPATIBILITY: 12–16 OZ STANDARD (CHANGE PARTS REQUIRED)
-ENCLOSURE: FULL SAFETY GUARDING WITH LID DROPPER MODULE
-FRAME: STAINLESS STEEL WITH DRAIN BASIN AND LOCKABLE CASTERS

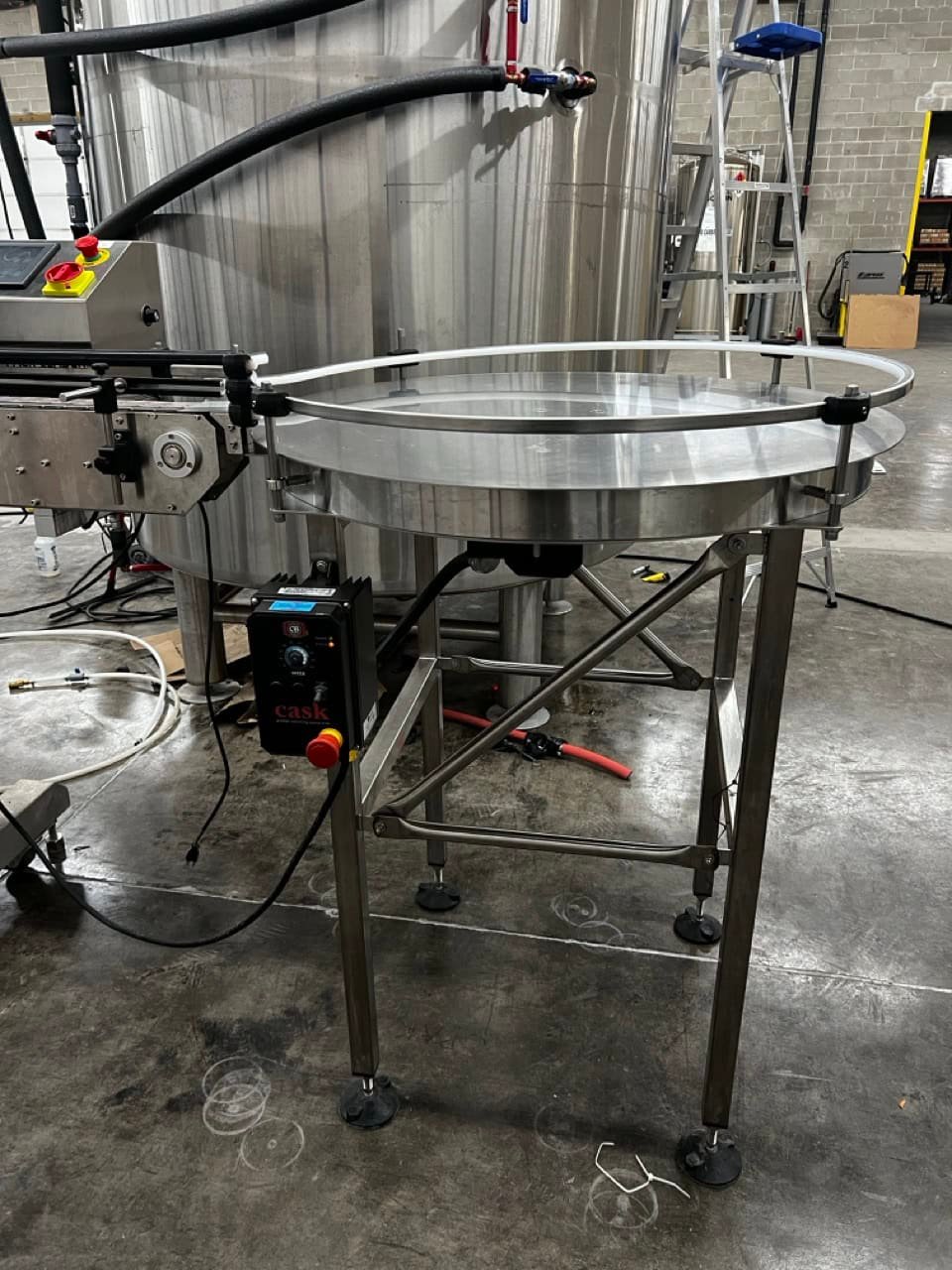

-ROTARY ACCUMULATION TABLE: INCLUDED WITH STAINLESS TOP AND MOTOR DRIVE
-POWER REQUIREMENTS: 120V OR 220V
-AIR REQUIREMENTS: DRY COMPRESSED AIR REQUIRED
CO2 INPUT: REQUIRED FOR DEFOAM/TOP-OFF MODULES
