Description
Max Turning Diameter: 25/32″ (20 mm)
Max Turning Length: 7.87″ (200 mm)
Max Protrusion Length of the Back Spindle Workpiece: 1.96″ (50 mm)
Max Bar Capacity: 0.79″ (20 mm)
Tool Capacity: 21

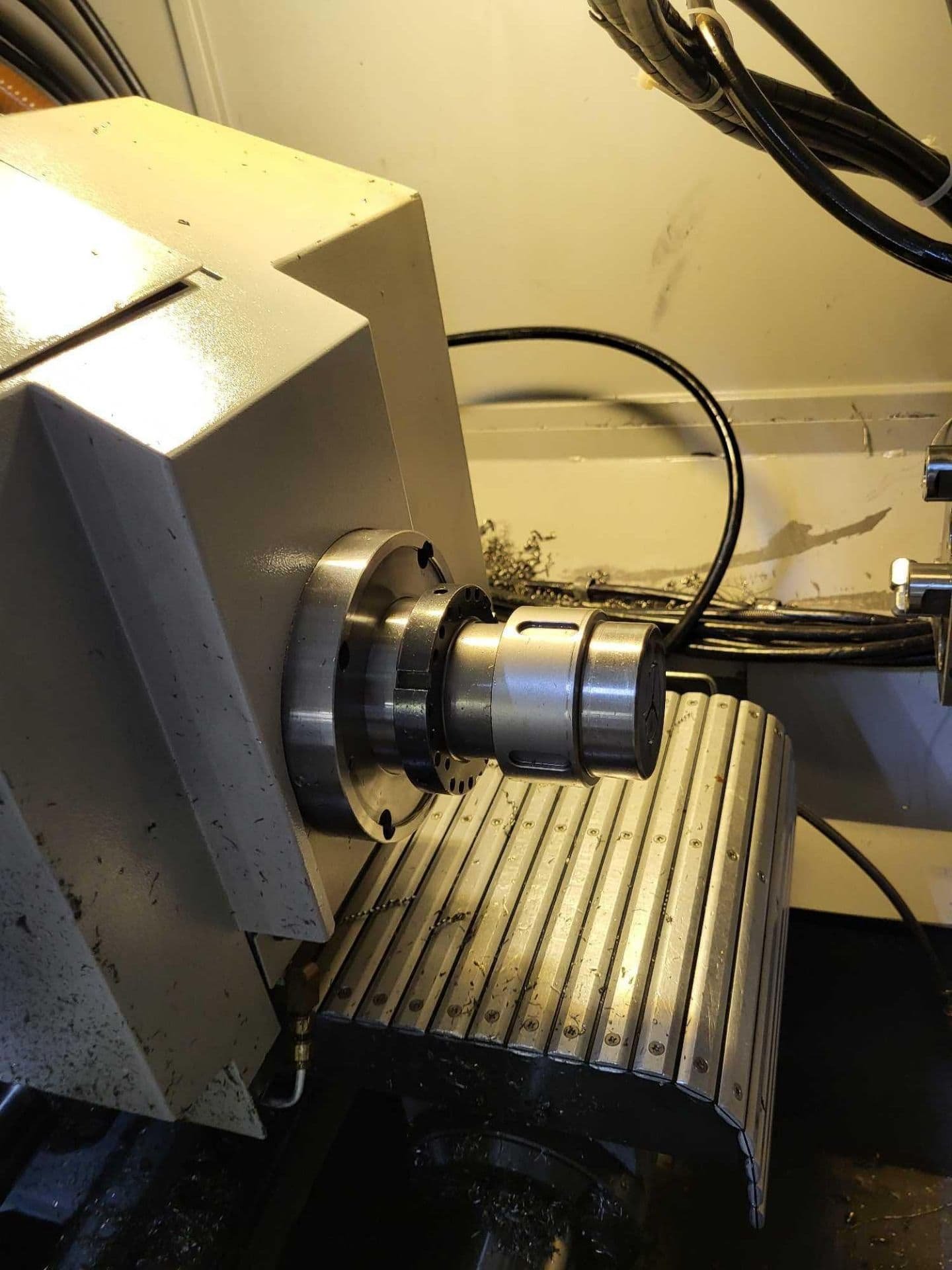

Spindle:
Main Spindle Index: 0.001 degree (C-axis control)
Main Spindle Bore: 1.02″ (26 mm)
Main Spindle Speed: 10,000 RPM
Main Spindle Motor: 5 HP
Back Spindle Index: 0.01 degree (C-axis control)
Back Spindle Speed: 8,000 RPM
Back Spindle Motor: 2 HP

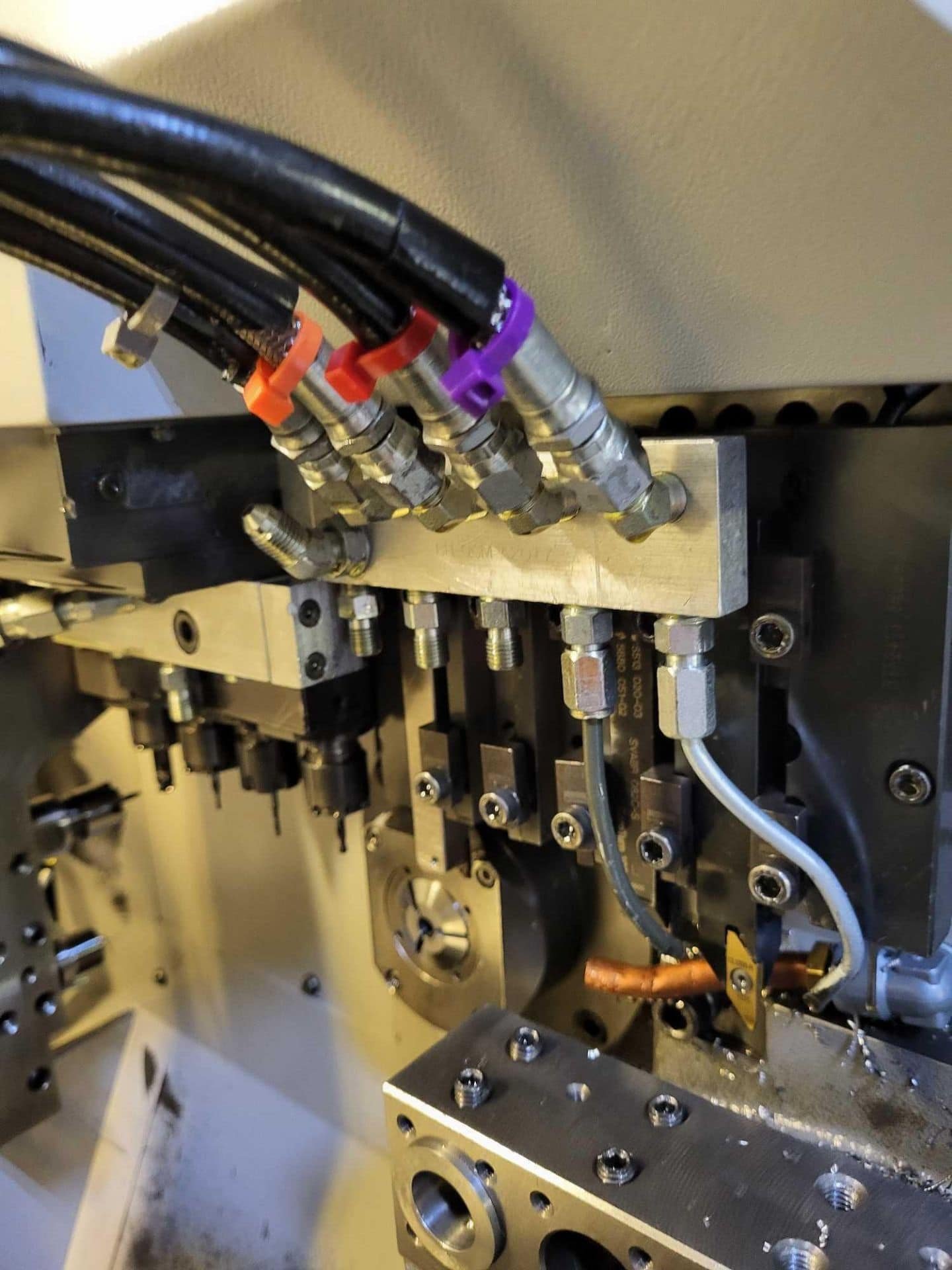

Standard Tools:
Turning Tools: 5
Front End Working Tools: 5 static
Back End Working Tools: 8 static on 2 blocks
Max Drilling Capability: 25/64″ (10 mm)
Max Tapping Capability: M8 x P1.25
Die Cutting Capability: M8 x P1.25
Power Driven Tools Attachment:
Front Working Power Driven Tools:
Max Front Drilling: 25/64″ (10 mm)
Max Front Milling: 25/64″ (10 mm)
Max Front Tapping: M8 x P1.25
Driven Tool Speed: 6,000 RPM
Driven Tool Motor: 1 HP
General:
Power Source: AC 220V / Three Phase / 60 Hz
Overall Dimensions: 84″ x 44″ x 74″ high
Weight: 5,621 lbs approx.
Equipped With:

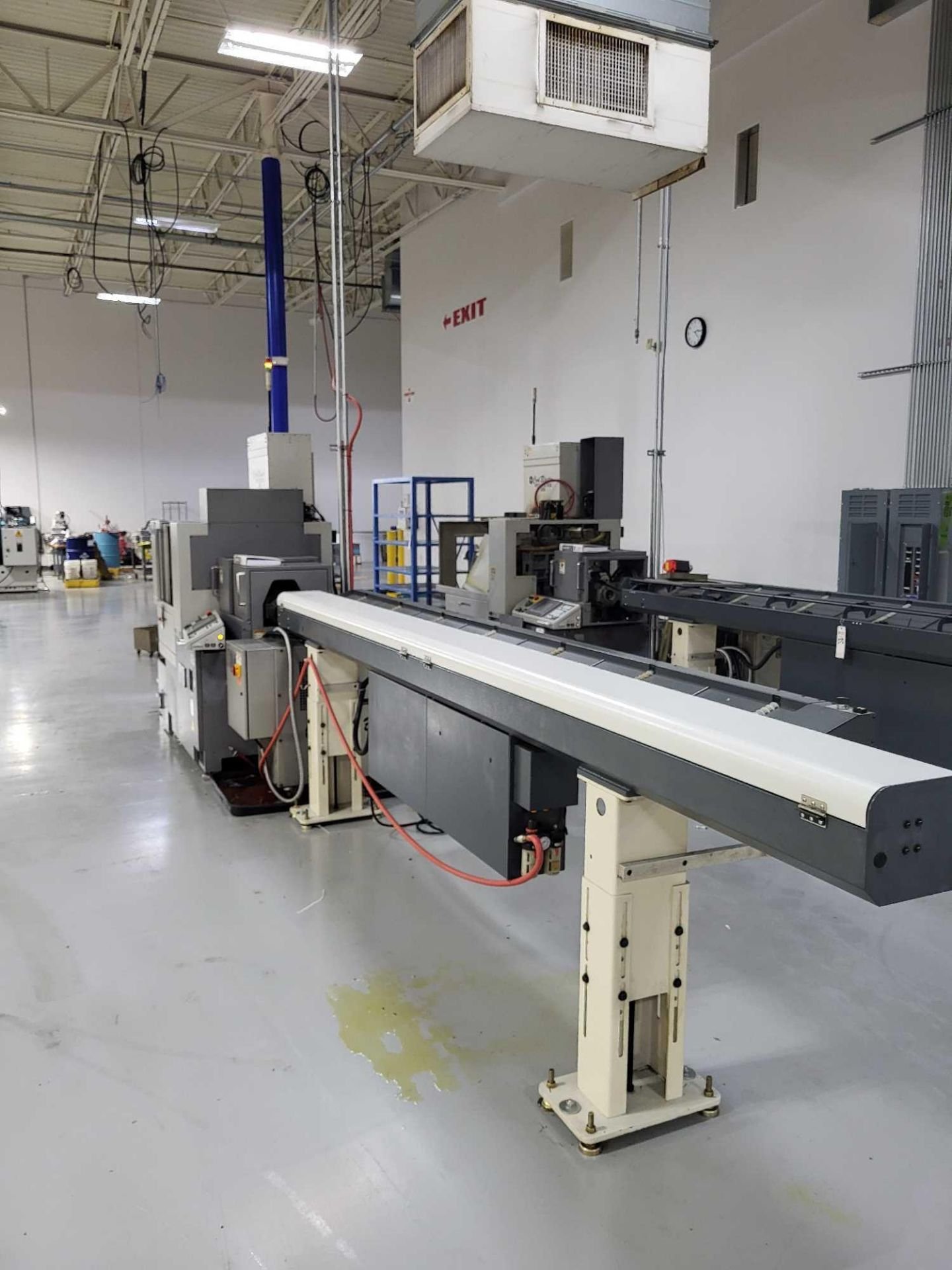

LNS barfeed

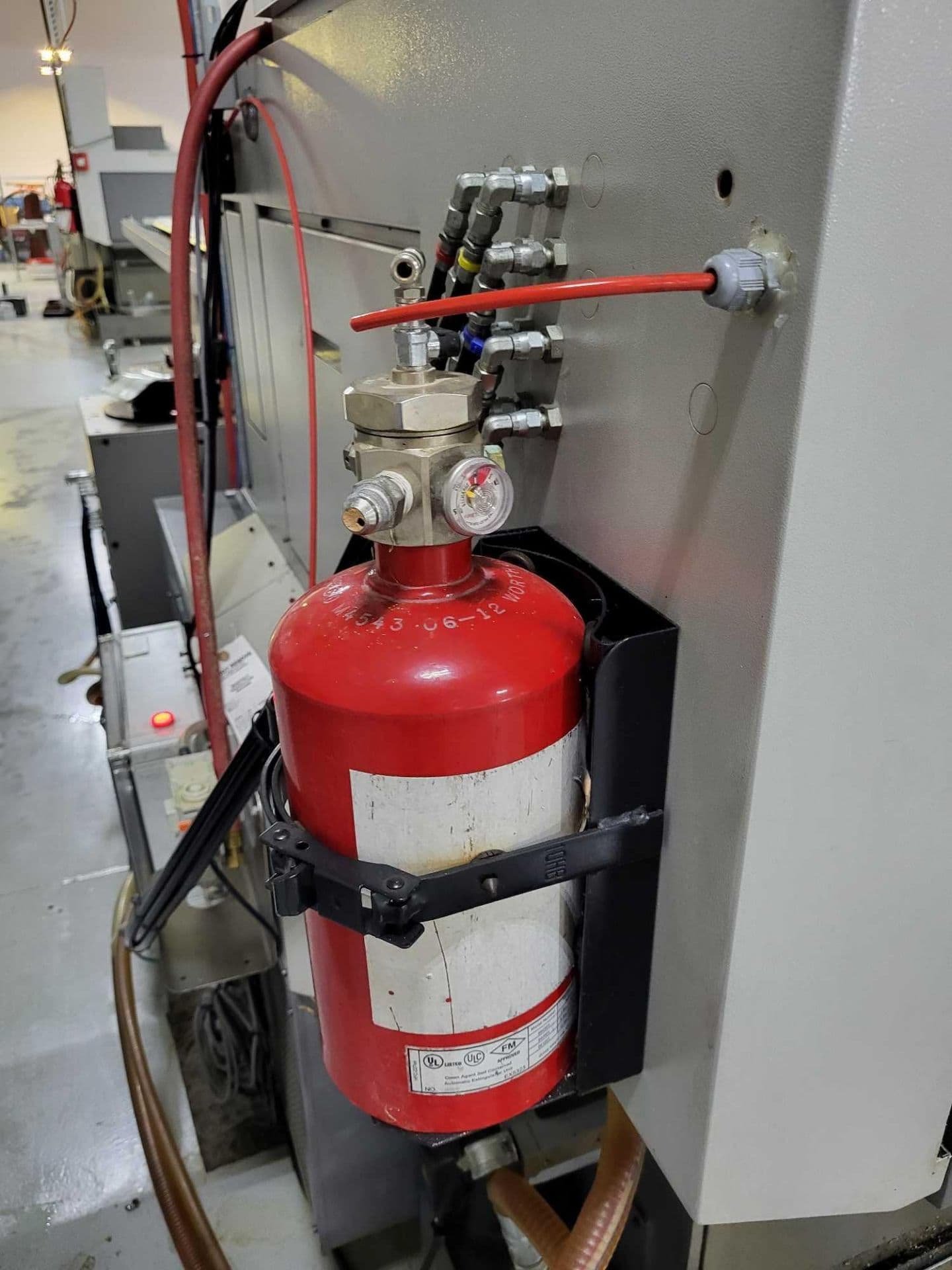

Fire suppression system

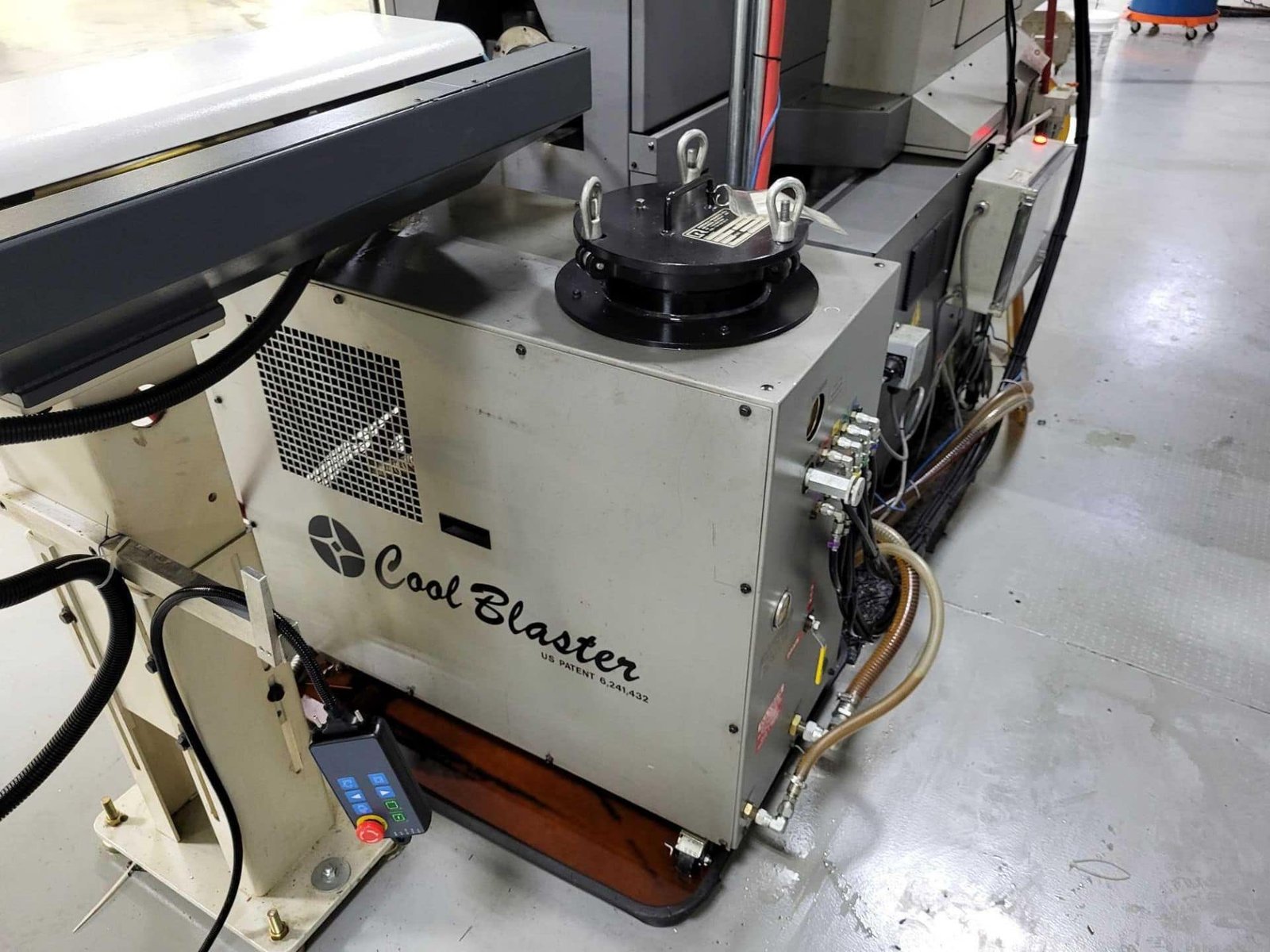

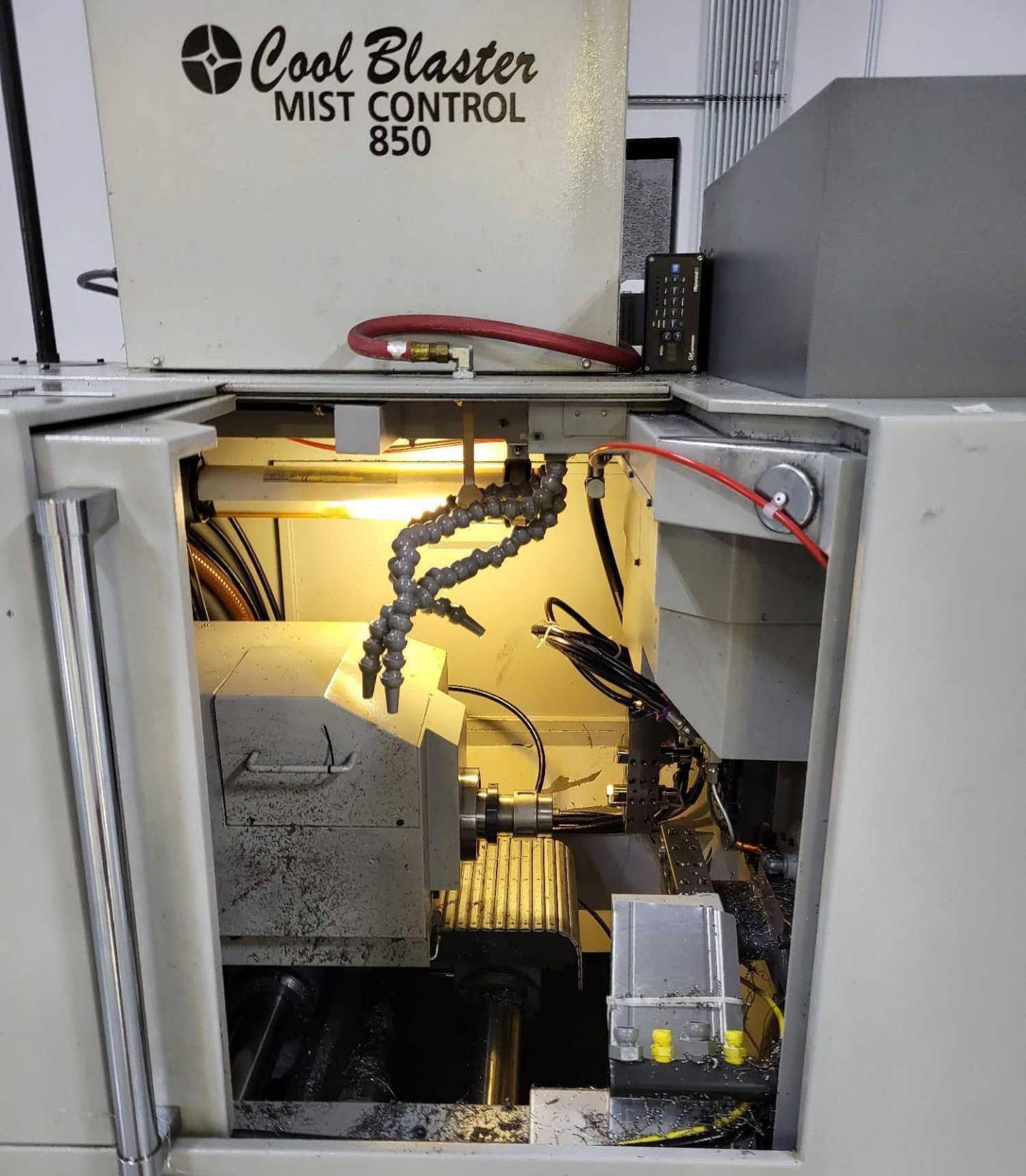

Cool Blaster Mist Buster
