Description
Chuck Size: 5″
Center Distance: 3.94″
Bar Capacity: 1.65″
X-Axis Travel: 5.51″
X2- Axis Travel: 5.51″
Z-Axis Travel: 9.25″
Z2-Axis Travel: 12.20″
Y-Axis Travel: 2.75″ +/- 1.37″
C1/C2 Axis Index: 0.001°
Spindle Nose: Flat
Spindle Speed: 6,000 RPM
Main Spindle Collet Chuck Size: S22D
Sub Spindle Collet Chuck Size: 22SC
Sub Spindle Chuck Size: 5″
Sub Spindle Speed: 5,000 RPM
Sub Spindle Motor: 7.3 HP
Live Tooling Speed: 5,000 RPM
Live Milling Motor: 3.7 HP
Machine Weight: 6,400 lbs
Equipped With:

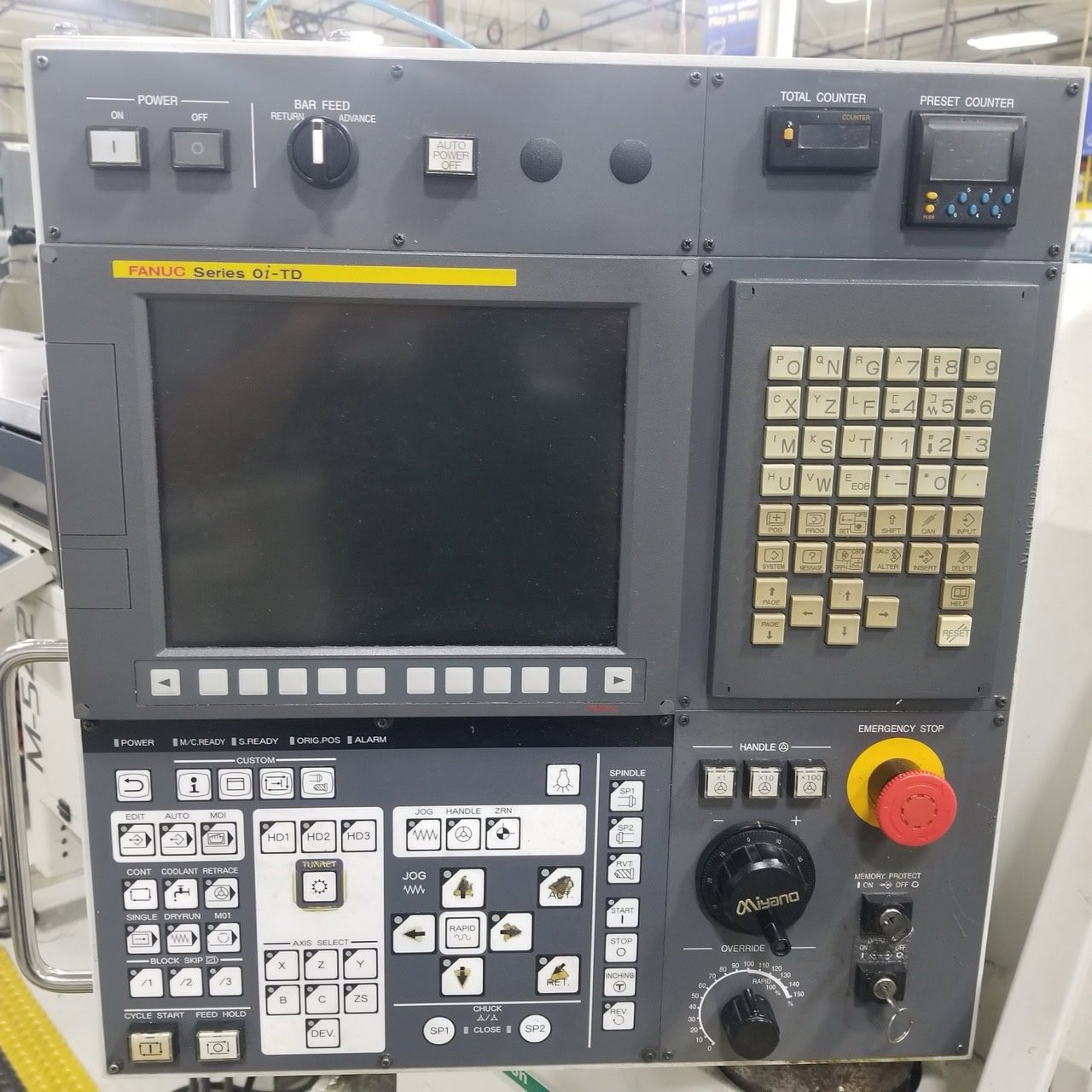

– Fanuc Series 0i-TD Control
– Chip Conveyor

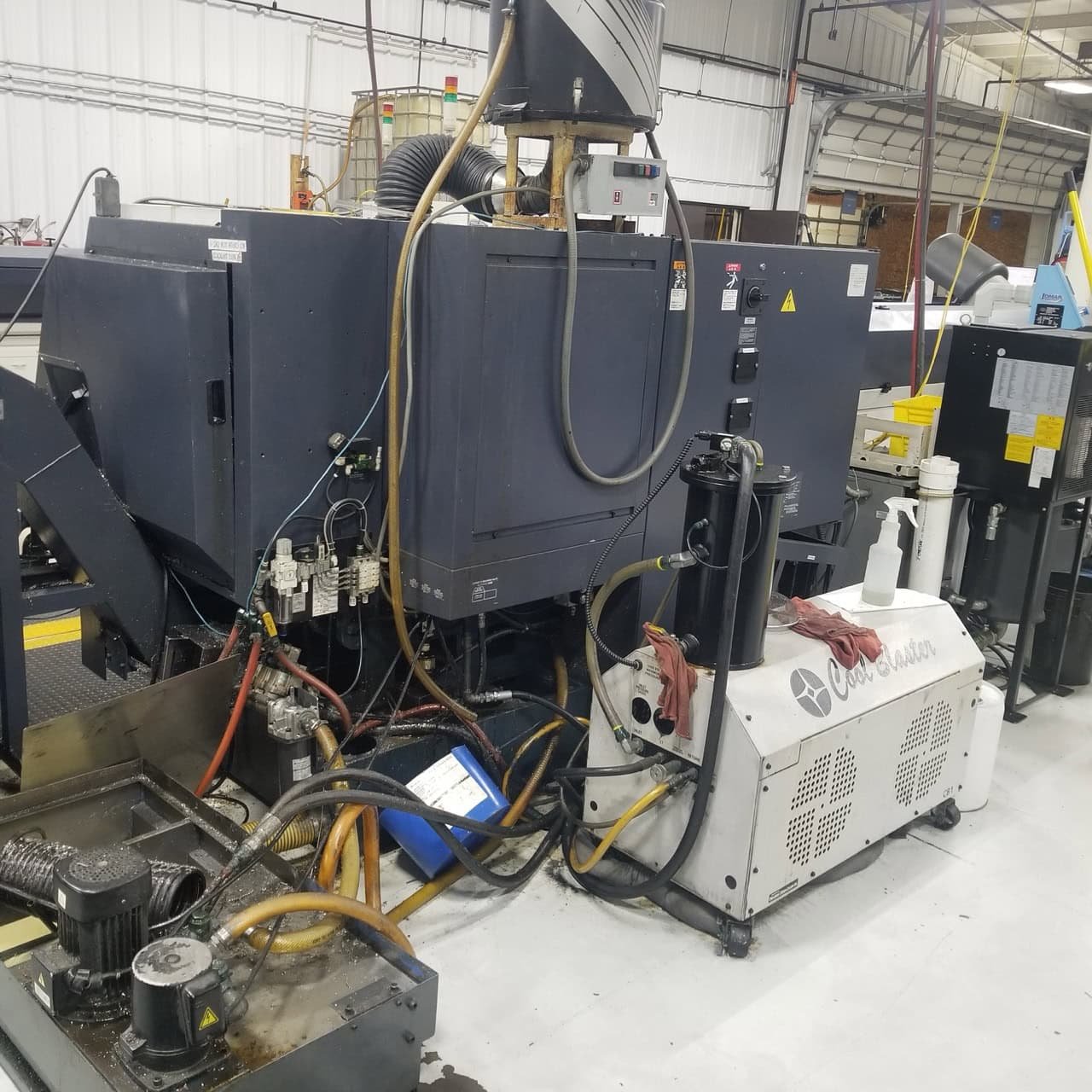

– Coolant Chiller w/Aux Tank
– Live Tooling
Includes Assorted Tooling and Holders
