Description
Swing Over Bed: 18.1″
Swing Over Cross slide: 10.6″
Swing in Gap: 28.7″
Distance Between Centers: 60″
Bed Width: 15.7″
Spindle Bore: 3″
Spindle Nose (camlock): D1-8
Spindle Nose Taper: 5 MT
Spindle Motor: 10 hp
Number of Spindle Speeds: 3 infinitely variable
Spindle Speed RPM Range: 1 – 2200
X-Axis (Cross Slide Travel): 11.7″
X-Axis Rapid Travers: 315 (in/min)
Z-Axis: (Saddle Travel): 55.0″
Z-Axis rapid Traverse: 394 (in/min)
Bar Capacity: 3″
Max Turning Length: 44″
Max. Turning Diameter: 14″
Tailstock Quill Diameter: 3.7″
Tailstock Quill Travel: 5.7″
Tailstock Quill Taper: 6 MT
Coolant System: Yes
Power: 230/460 V 3-Phase
Dimensions: 142″ x 77″ x 69″ H (Approx.)
Machine Weight: 8,000 lbs. (Approx.)
Equipped with:
Fanuc CNC Control

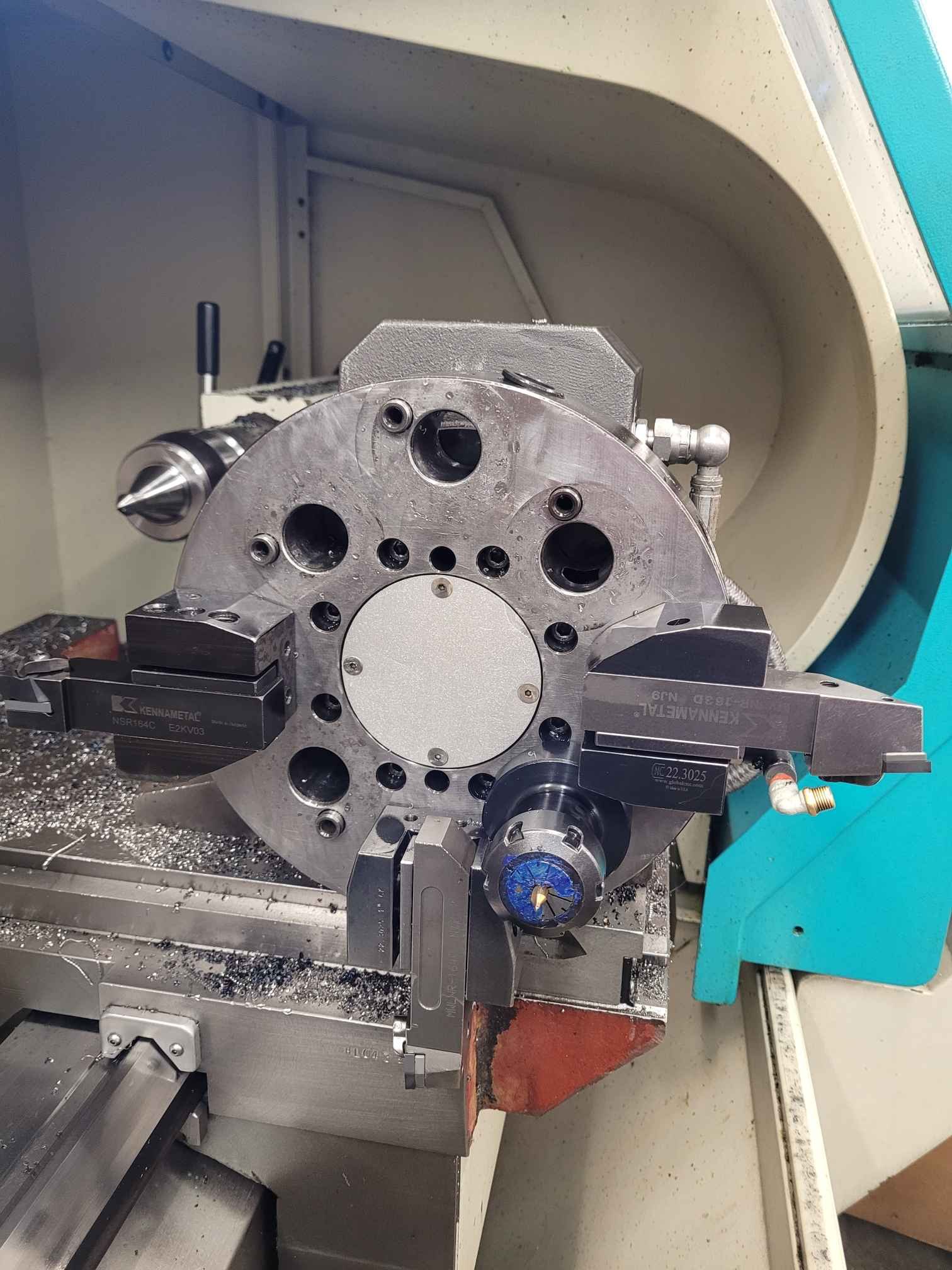

8 Station Bi-Directional Turret

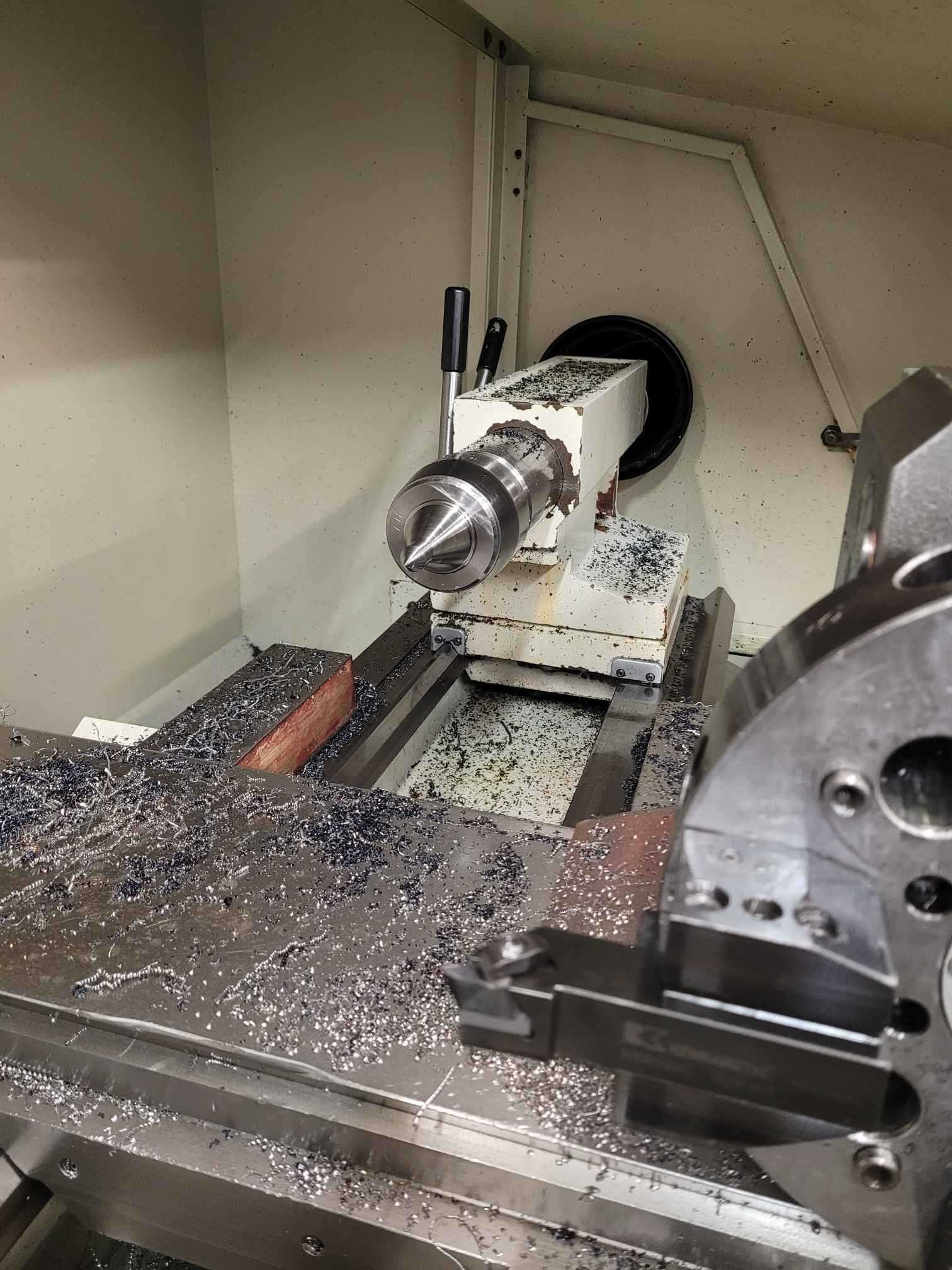

Tailstock

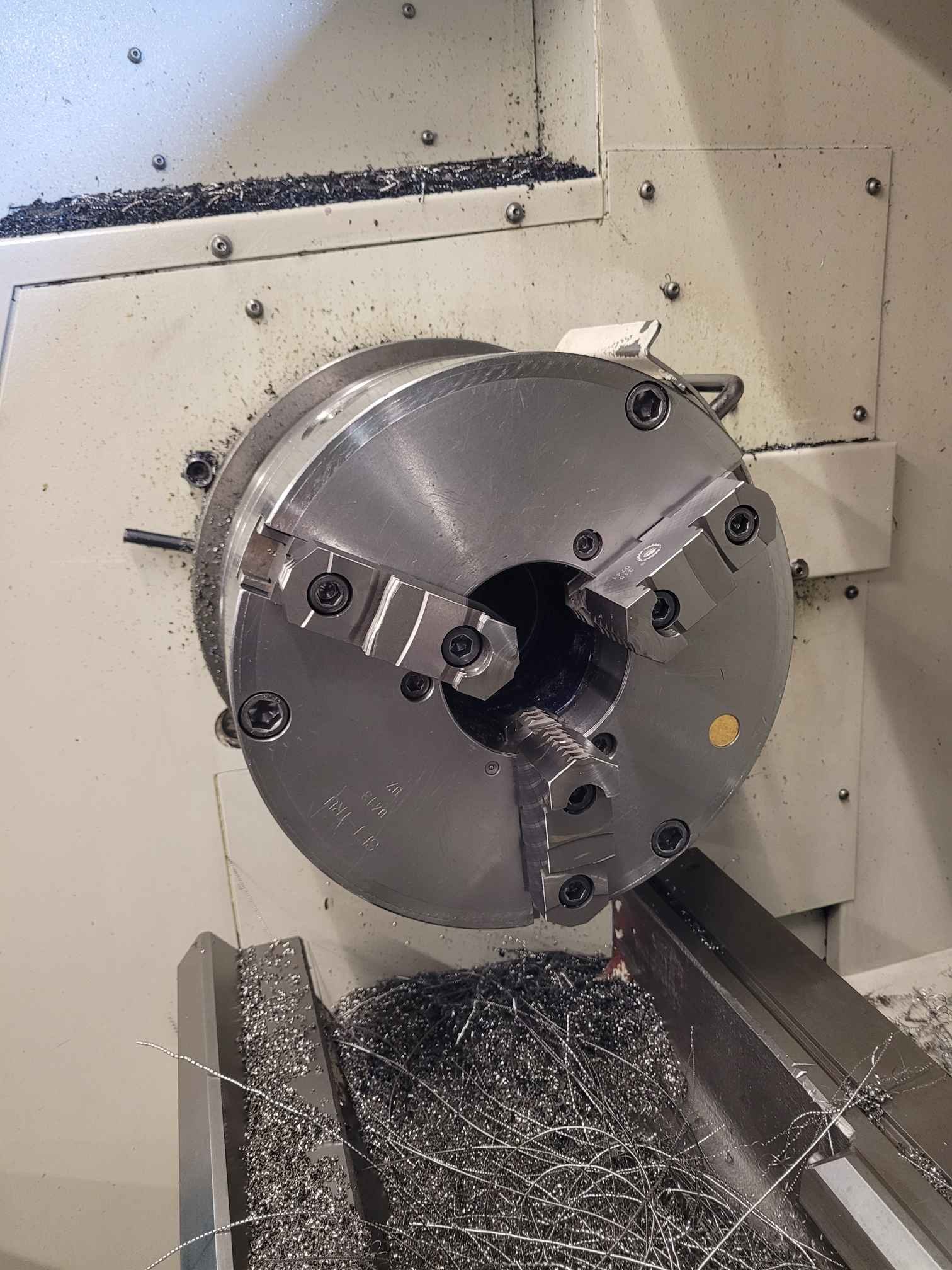

10″ Chuck

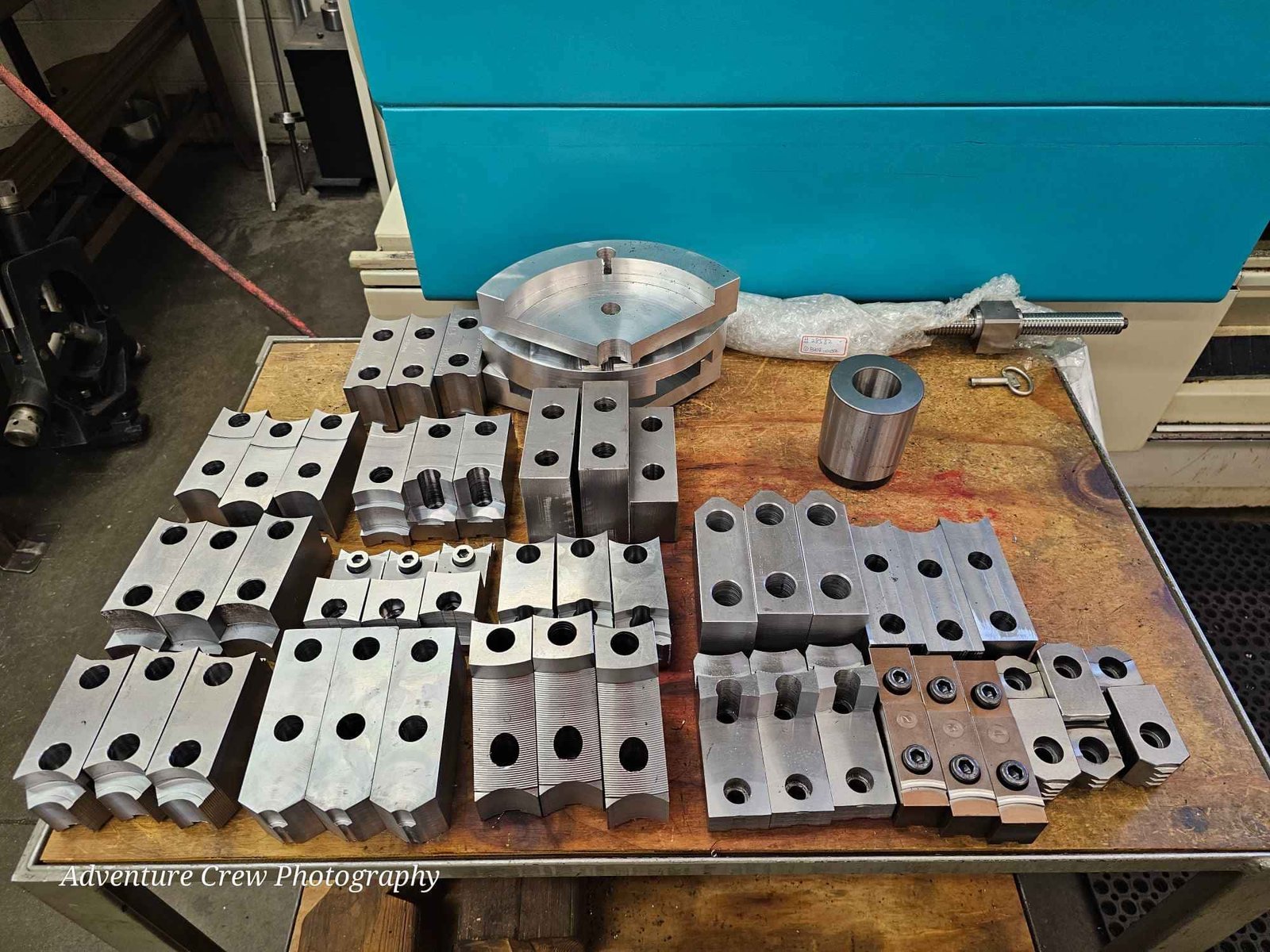

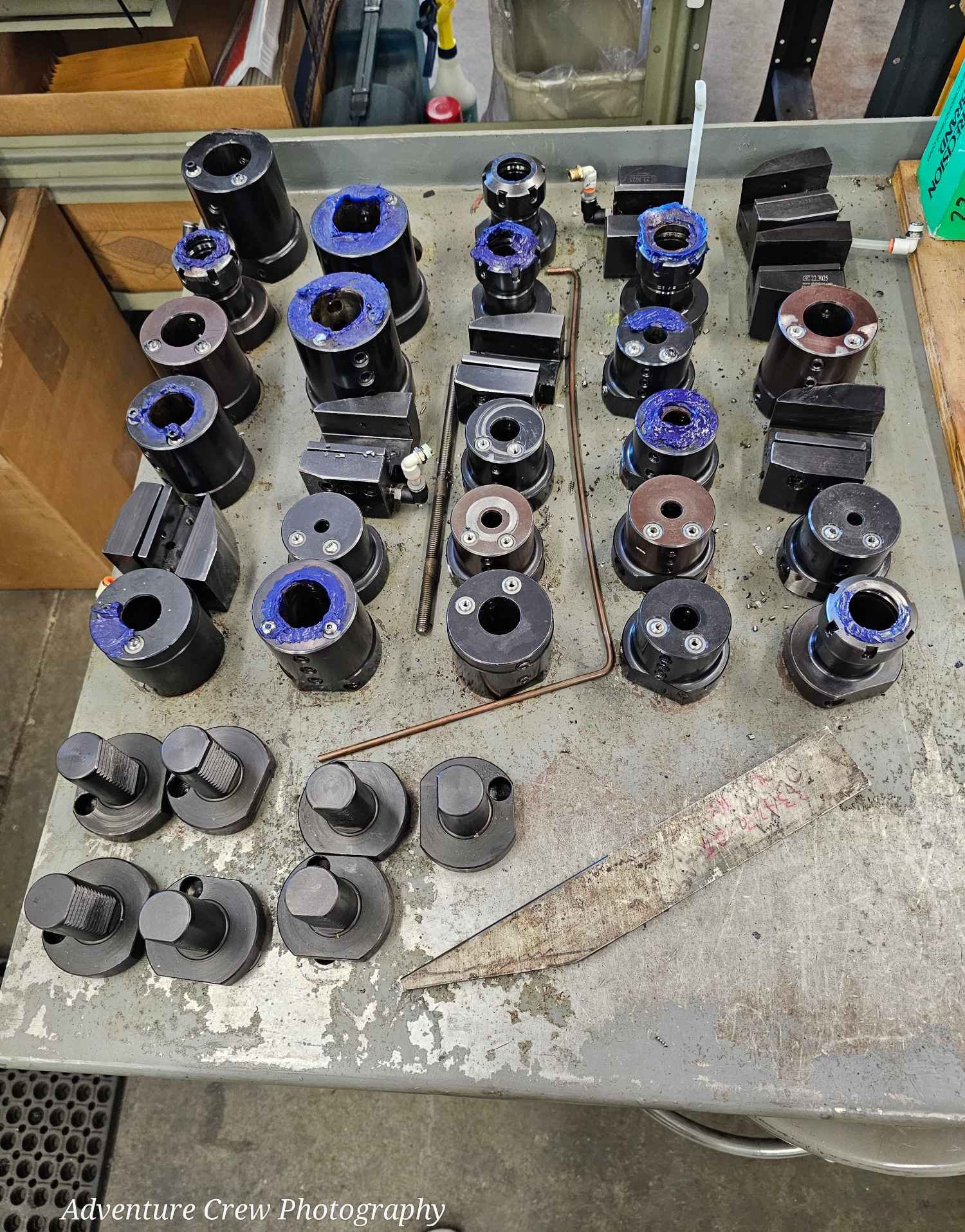

Tooling Included: See Photos.

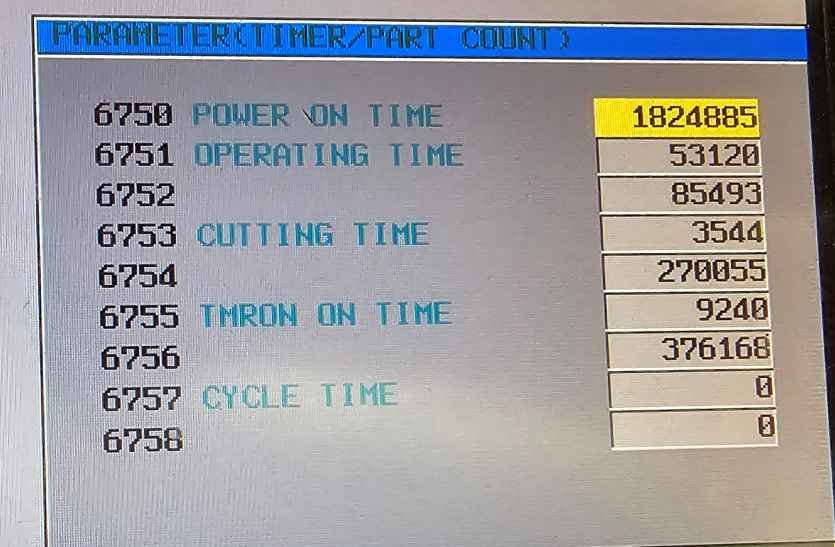

Cutting Time: 3,544 hrs.
