Description
X-Axis Travel: 27.6″
Y-Axis Travel: 16.5″
Z-Axis Travel: 15″
Table Size: 33.1″ X 16.5″
Max Table Load: 882 Lbs
Spindle Motor: 15 Hp
Spindle Speed: 24,000 Rpm
Spindle Taper: Bt-30
Rapid Traverse Rate (x/y/z): 2,362 Ipm
Auto Tool Changer: 25 Tool Atc
Equipped With:

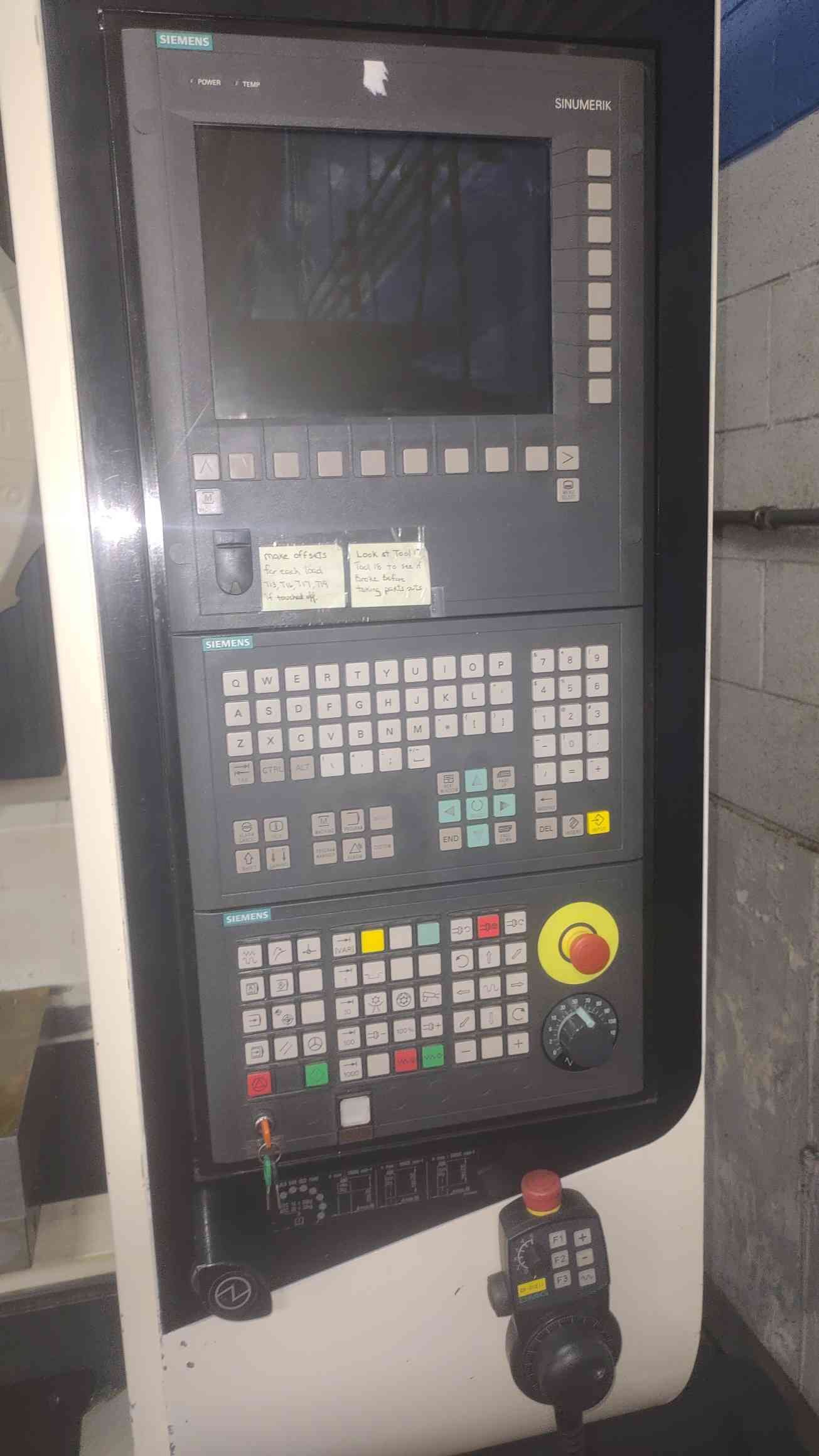

Siemens 840 D Control
10.4″ Tft Screen
Digital Parts Counter & Timer
Program guide via Sinumerik Cycles & G-Code
4 Th & 5 Th Axis Adaptable
Tool Probe
Indexer
