Description
Used E-Pack Hot Fill Line for Jams and Jellies, 2023 – With Piston Filler, Spindle Capper, Open Frame Labeling System:
Previous use: hot filling 1.5oz jars with metal caps and 6oz jars with metal lug-style caps with jams and jellies at 185F, pulling from a 100 gallon kettle at a rate of 10-15 jars per minute.
Line includes:

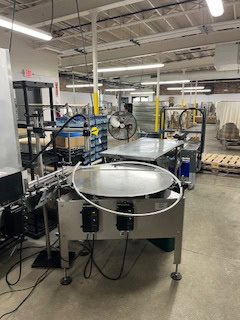

40″ Loading Turntable
* 304 stainless steel top
* 304 stainless steel frame construction
* Standard line height 32″-38″
* Clockwise or counterclockwise rotation
* Single rail system with HDPE bottle contact surface
* Tool-less adjustable rail brackets
* Variable speed controls

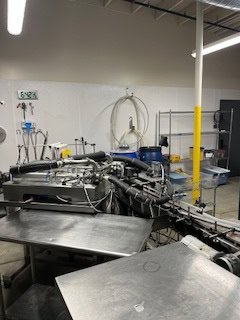

(2) Single Head Sanitary Piston Fillers Model FPV-1025
* Fills thin, thick, and/or chunky liquids
* Total fill range 15ml-250ml (.5oz-8.5oz)
* Recommended fill volume 50ml-250ml (1.7oz-8.5oz)
* Stainless steel base and product cylinder
* Remote-mounted 3/8” bottom close nozzle with silicone tubing and tri-clamp fitting
* 316 stainless steel food grade contact parts
* Silicone O-rings & gaskets
– Includes a complete set assembled in the machine & (1) complete extra set for changeover
* Fill volume adjustment
* Product suction and dispensing speed adjustment
* 9 gallon 316 stainless steel hopper with lid
* Direct draw kit for hot products: Enables the operator to draw thinner products directly from a bulk reservoir (tank, vat, drum) directly into piston filler. This eliminates the need to regularly fill the machine mounted hopper with product. Simply remove the hopper and attach the hose. Kit includes: – (2) Sanitary Tri-clamp, quick-disconnect fittings – 6ft FDA approved hot product fill hose good to 200+ oF
* Approximate dimensions: 11″ W x 37″ L (base only)
* Requires 2-6CFM @ 90PSI clean, dry, compressed air
Automation Package, no remote fill head included:
* Stainless steel stand with height adjustment & castors to accommodate 2 fillers
* Automatic pin indexing
* Photo sensor counter system
* Fill head tube extension for proper positioning over a conveyor for each filler
* 115V/1ph/60Hz
10’ Sanitary Filler Conveyor
* 304 sanitary stainless steel shell construction
* 4.5″ wide Delrin chain belt
* Standard line height range 32-38″
* Single stainless steel rail system with HDPE wear strip
* Tool-less adjustable rail brackets
* Variable speed controls
* Wash-down duty motor

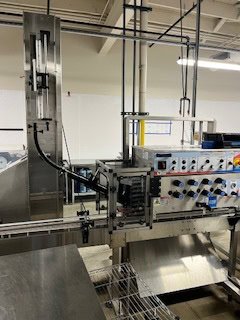

Automatic 4-Station Spindle Capper
* 304 stainless steel frame construction
* Independent base designed to mount over existing conveyor
* 304 stainless steel and anodized aluminum internal components
* Cap sorting elevator, stainless steel with 10″ wide cleated belt & narrow hopper
* Cap chute, 304 stainless steel & anodized aluminum, tool-less for ease of changeover
* Automatic full chute sorting device pause
* Variable speed drive controls for spindle wheels and gripper belts
* Independent pneumatic clutch torque control for 2nd, 3rd & 4th spindle set, adjustable during operation
* First spindle set is reversible, for starting caps prone to cross-threading
* Power height adjustment on capping unit
* Single, opposing ½” gripper belts, adjustable vertically and horizontally
* Cap stabilizer to assist in starting caps
* Short guarding with interlocking entry door only
* Standard caster wheels
* Stainless steel leveling legs
* 80-100psi compressed clean dry air
* 115V/1ph/50-60Hz
15’ Sanitary Capper Conveyor
* 304 sanitary stainless steel shell construction
* 4.5″ wide Delrin chain belt
* Standard line height range 32-38″
* Single stainless steel rail system with HDPE wear strip
* Tool-less adjustable rail brackets
* Variable speed controls
* Wash-down duty motor

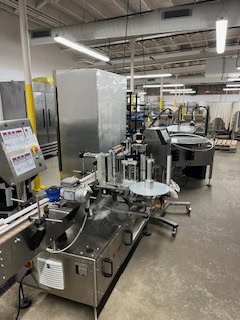

Series 3 Open Frame Labeling System
* Series 3 “Open Frame” Base: Robust stainless steel welded tubular frame & with electronics mounted on easy access drawers inside the machine base. Non-scuff locking castors & stainless steel leveling feet. Standard Line Height: 32” Min. up to 38.5”
* Series 3 Touch Panel Controller: Swivel mounted; easy to use touch panel controller that can operate up to two (2) label heads. Controller activates all labeling modules. Easily accessible from both sides of the product conveyor. Controller can also store up to 100 product set-ups and recalled at the touch of a button.
* Stainless-steel Product Conveyor: 4.5″W x 10’L: All motorized modules which are fitted to Tronics labelers are synchronized to the main product conveyor. Conveyor includes standard a servo motor drive (30mpm: Able to transport products weighing up to a total of 100lbs). Durable Delrin slat chain belt, tool-less adjustable height & width conveyor rails for rapid setup and changeover of different sizes of products. Note: The servo motor drive is a rugged gearbox, there are not and chains, belts, or sprockets to wear prematurely.
* Product Spacer Wheel: Fully synchronized variable speed AC Drive Product Spacer Wheel. Ideal for inexpensive and flexible spacing of products. (Includes tool-less adjustment for varying width/diameter products).
* Label Head (max. label web up to 8.5″H RHS): Fully synchronized stepper driven label head accurate up to + or – 1/32″ with tool-less vertical, horizontal, & 4-Way tilt adjustment. Includes durable solid stainless-steel shafts with reference scales for fast repeatable setup and changeovers. (Typically runs a No. 4 Unwind Label)
* Standard Wrap Module (max. label up to 5.5”H x 18.5”L): Fully synchronized stepper driven Wrap Assembly with tool-less vertical height adjustment and tool-less “wind-in & wind-out” Teflon covered foam backing pad. All shafts are constructed of solid stainless-steel shafts with gradient scales for quick repeatable setup and changeover. (Used for wrapping a single label around a product).
* Cut Down Wrap Belt & Backing Pad
* Adjustable height from 32” – 38.5”
* If required, Air: 30PSI & 5-10CFM
* 120VAC/1ph/20 amps (some features may require 30 amps)
